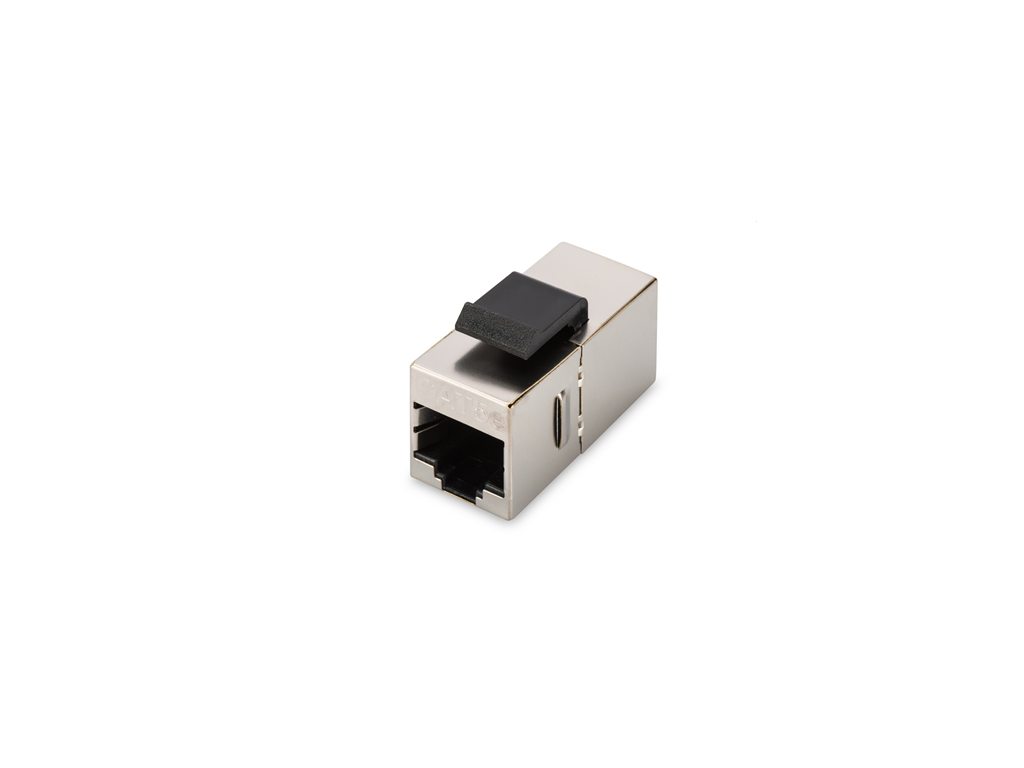

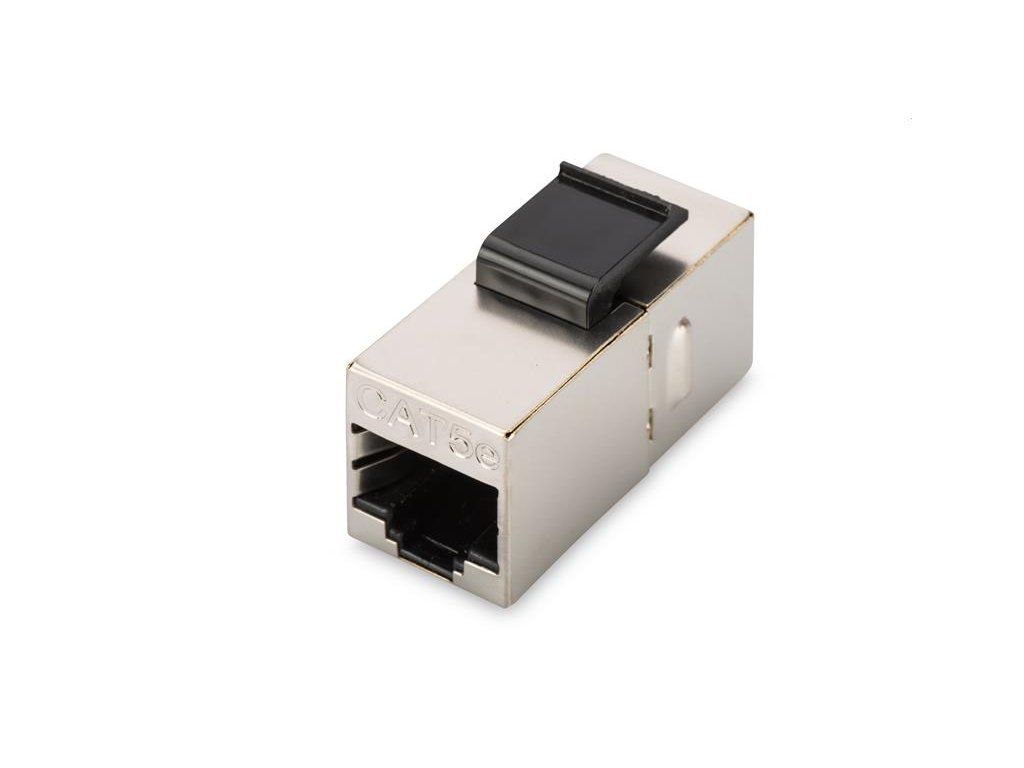

DIGITUS Keystone spojka Cat5E, tienena STP, 2xRJ45, strieborna DN-93513 Digitus
CAT 5e modular coupler, shielded RJ45 to RJ45, for panel connection
The cat. 5e keystone module with 2 RJ45 jacks and 360° shielding supports speeds of up to 1 GBit/s & 100 MHz in connection with cat. 5e or higher network cables
In combination with a modular patch panel or consolidation point housing, the connection module is suitable, for example, for tidy cabling between server and network cabinets
In addition to patch fields, the potential areas of use for keystone couplings include module network sockets and keystone brackets for profile rail installation in sub-distribution units
A stable plastic locking lever is located on the top of the keystone jack for fastening into the intended recesses on junction boxes and patch fields
The network coupling features a 1:1 pin allocation and, in line with the network category Cat 5e, is compatible with all Ethernet and telecommunications cables with RJ45 plug
DESCRIPTION
The modular couplers from DIGITUS® are shielded and provide best performance and link quality for your network. They are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels.
TECHNICAL DETAILS
Transmission properties: Category 5e
Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
2x RJ45 Female, 8P8C
360° shield coverage
Connection 1:1
Technical properties:
Housing material: Zinc die-cast, nickel-plated
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Category: CAT5E
The cat. 5e keystone module with 2 RJ45 jacks and 360° shielding supports speeds of up to 1 GBit/s & 100 MHz in connection with cat. 5e or higher network cables
In combination with a modular patch panel or consolidation point housing, the connection module is suitable, for example, for tidy cabling between server and network cabinets
In addition to patch fields, the potential areas of use for keystone couplings include module network sockets and keystone brackets for profile rail installation in sub-distribution units
A stable plastic locking lever is located on the top of the keystone jack for fastening into the intended recesses on junction boxes and patch fields
The network coupling features a 1:1 pin allocation and, in line with the network category Cat 5e, is compatible with all Ethernet and telecommunications cables with RJ45 plug
DESCRIPTION
The modular couplers from DIGITUS® are shielded and provide best performance and link quality for your network. They are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels.
TECHNICAL DETAILS
Transmission properties: Category 5e
Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
2x RJ45 Female, 8P8C
360° shield coverage
Connection 1:1
Technical properties:
Housing material: Zinc die-cast, nickel-plated
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Category: CAT5E
Dodatočné parametre
| Kategória: | Konektory a zásuvky |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.02 kg |
| Kategória: | Cat6A, Konektory a spojky |
| Tienenie: | Áno |
| Typ: | Spojka |
