ARCTIC P12 Pro PST - 120mm PWM ventilátor s rozdeľovačom káblov (balenie po 5 kusoch) ACFAN00307A Arctic Cooling

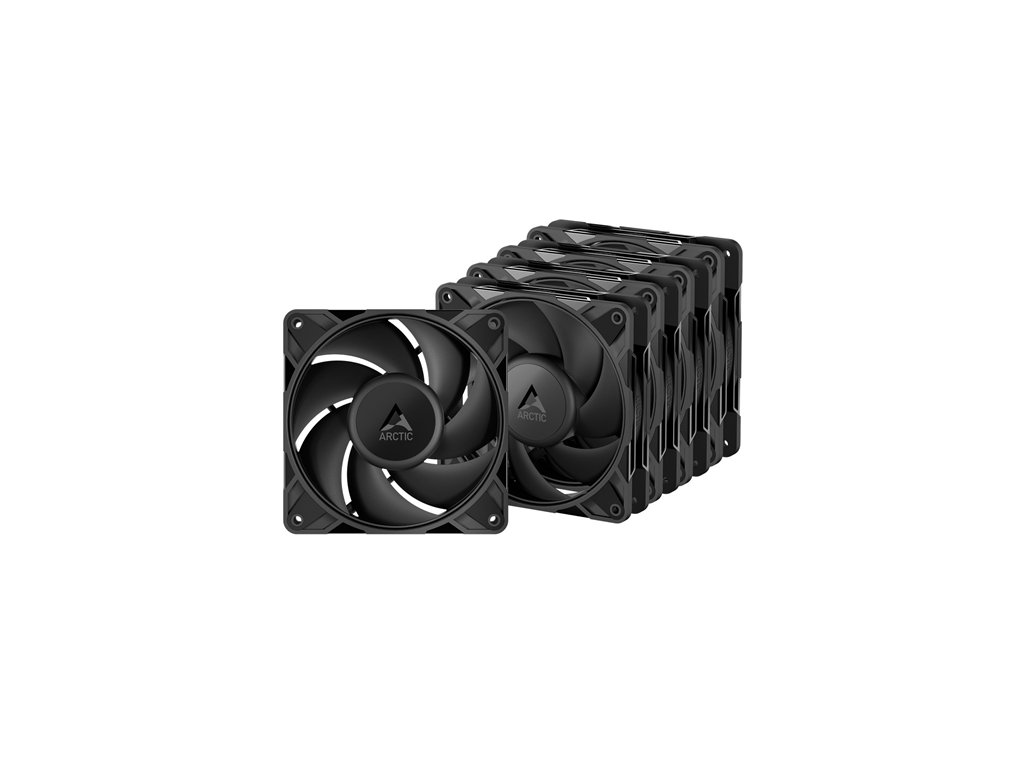

P12 Pro PST - 5 Pack
120 mm PWM Fan with Cable Splitter


Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.


Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.

P12 Pro | Black | Explosion View
Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.


Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.


SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
P12 Pro Series | Performance Chart | DE
More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
P12 Pro Series | CloseUp | Black
Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.
P12 Pro Series | PST Cable | Black
PST – PWM-Based Synchronized Fan Control

An additional PWM connector allows multiple fans to be synchronized in series using a single header.



Warranty
6 Years
Operating Ambient Temperature
0–40 °C
Dimensions
120 (L) x 120 (W) x 25 (H) mm
Net Weight
185 g
Fan Specifications

Fan Speed
600–3000 rpm, PWM controlled
0 rpm below 5 % PWM
Airflow
77 cfm | 131 mł/h
Static Pressure
6.9 mmH2O
Fan Bearing
Fluid Dynamic Bearing
Typical Voltage
12 V DC
Start Up Voltage
3.3 V DC
Current
0.33 A
Cable Length
400 mm + 80 mm Daisy-Chain Cable
Connector
4-Pin Fan Plug + 4-Pin Socket
