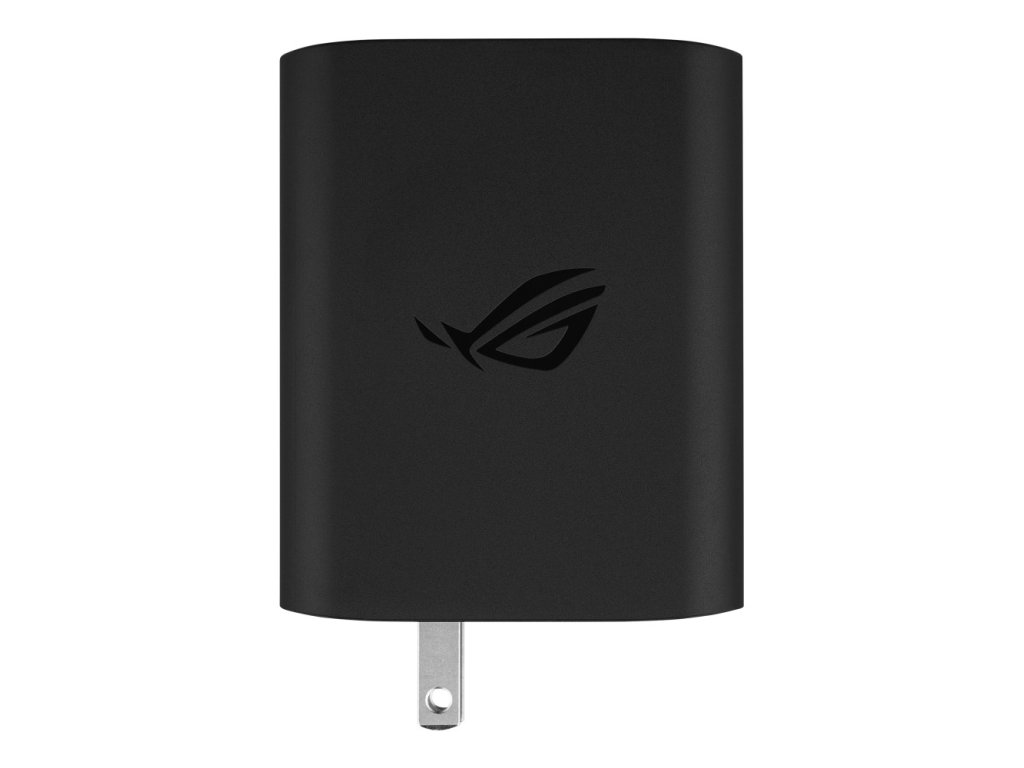

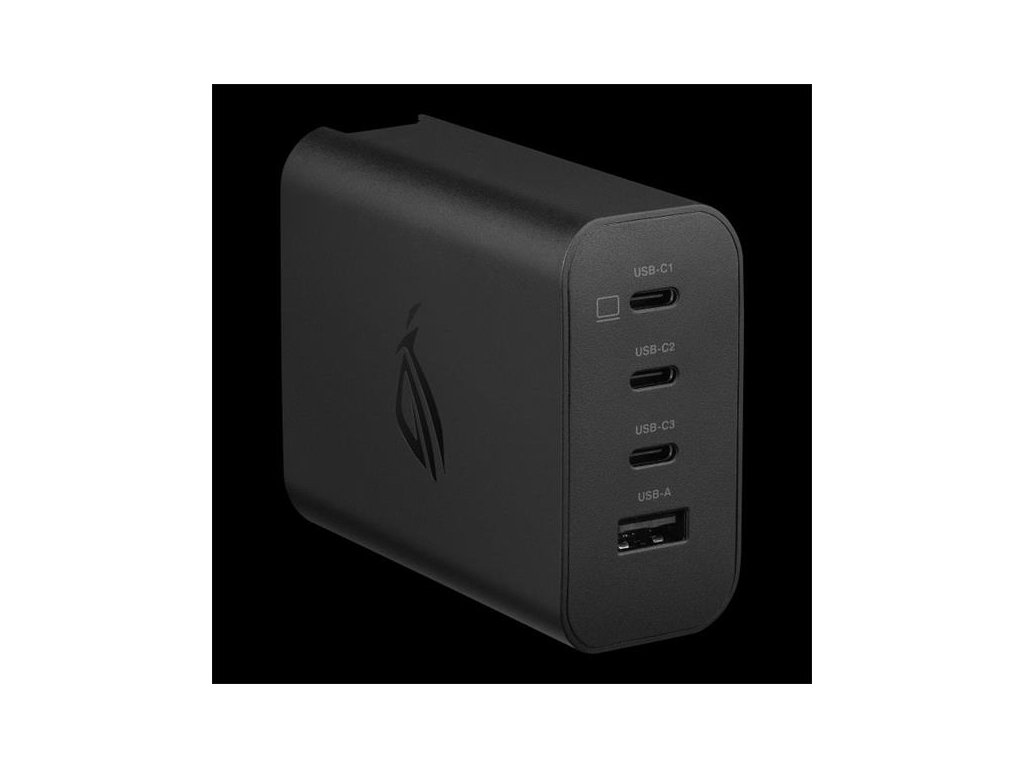

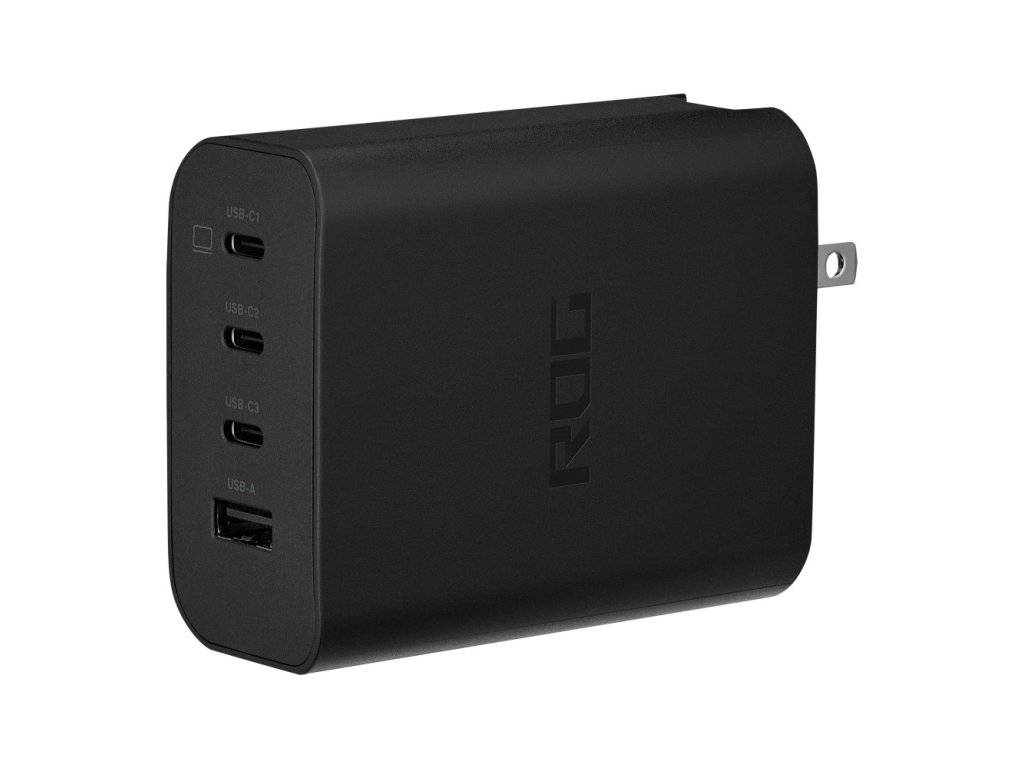

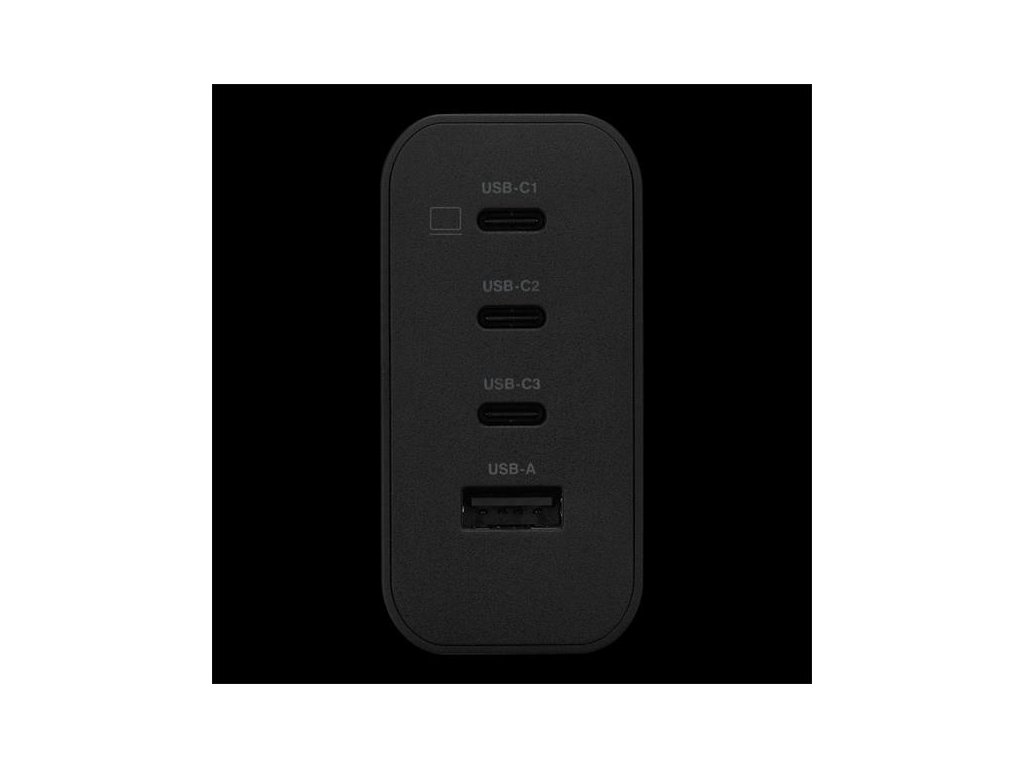

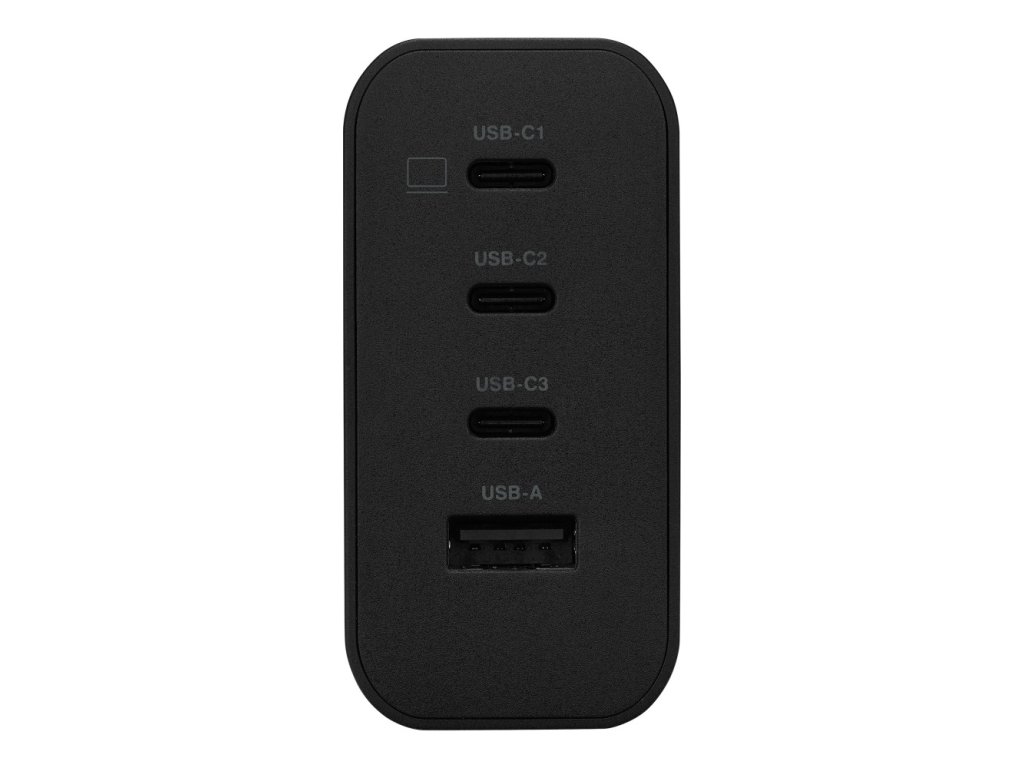

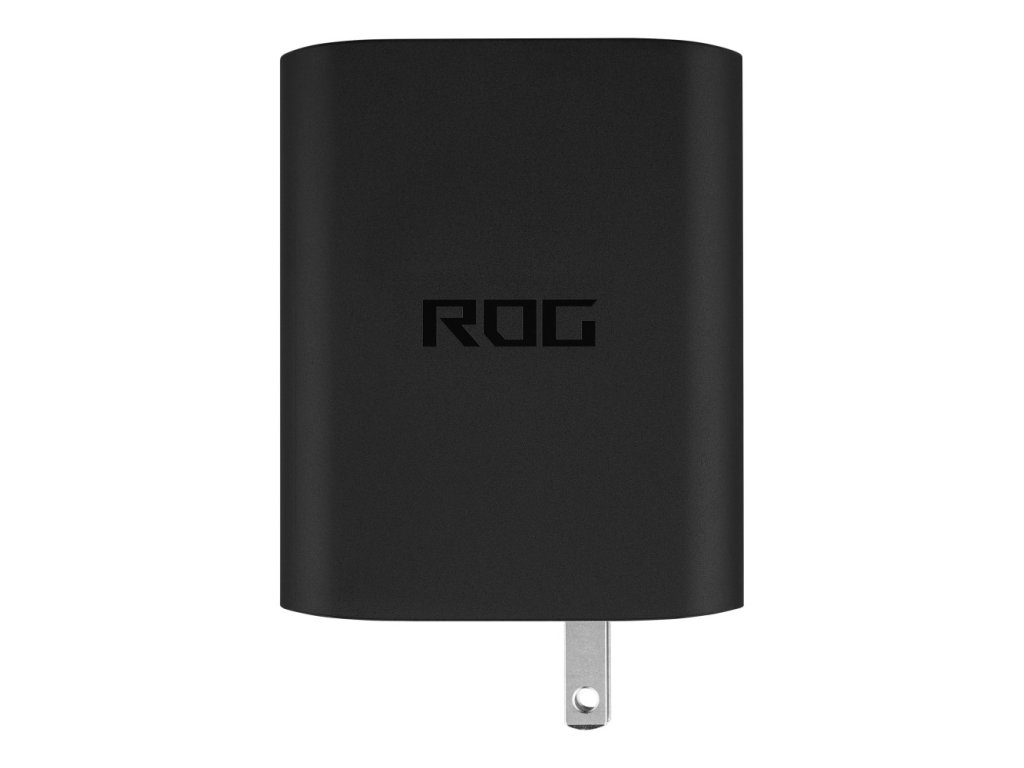

ASUS AC NAPÁJACÍ ADAPTÉR ROG 140W, 3x USB-C, 1x USB-A, GaN 90XB09IN-BPW020 Asus

Model
ROG 140W USB-C GaN Charger

Kategorie
Universal

Model Name
AC140-01

Vstup
AC100-240V ~ 50-60Hz 2.0A

Výstup
?USB-C1/USB-C2:140.0W;USB-C3:100.0W;USB-A:30.0W
?USB-C1+USB-C2/USB-C1+USB-C3/USB-C2+USB-C3:65.0W+65.0W/100.0W+30.0W/30.0W+100.0W
?USB-C2+USB-A:100.0W+30.0W
?USB-C3+USB-A:15.0W+15.0W
?USB-C1+USB-C2+USB-C3/USB-C1+USB-C2+USB-A:45.0W+45.0W+30.0W/65.0W+30.0W+30.0W/30.0W+65.0W+30.0W
?USB-C1+USB-C3+USB-A/USB-C2+USB-C3+USB-A: 100.0W+15.0W+15.0W
?USB-C1+USB-C2+USB-C3+USB-A:45.0W+45.0W+15.0W+15.0W/65.0W+30.0W+15.0W+15.0W/30.0W+65.0W+15.0W+15.0W
140.0W: 5.0V?3.0A(15.0W),9.0V?3.0A(27.0W),12.0V?3.0A(36.0W),15.0V?3.0A(45.0W),20.0V?5.0A(100.0W),28.0V?5.0A(140.0W), 5.0V-21.0V?5.0A(105W)
100.0W: 5.0V?3.0A(15.0W),9.0V?3.0A(27.0W),12.0V?3.0A(36.0W),15.0V?3.0A(45.0W),20.0V?5.0A(100.0W), 5.0V-21.0V?5.0A(105.0W)
65.0W: 5.0V?3.0A(15.0W),9.0V?3.0A(27.0W),12.0V?3.0A(36.0W),15.0V?3.0A(45.0W),20.0V?3.25A(65.0W), 5.0V-21.0V?3.25A(68.25W)
45.0W: 5.0V?3.0A(15.0W),9.0V?3.0A(27.0W),12.0V?3.0A(36.0W),15.0V?3.0A(45.0W),20.0V?2.25A(45.0W), 5.0V-21.0V?2.25A(47.25W)
30.0W: 5.0V?3.0A(15.0W),9.0V?3.0A(27.0W),12.0V?2.5A(30.0W),15.0V?2.0A(30.0W),20.0V?1.5A(30.0W) , 5.0V-21.0V?1.5A(31.5W)
30.0W(For USB-A): 5.0V?3.0A(15.0W),9.0V?3.0A(27.0W),12.0V?2.5A(30.0W)
15.0W: 5.0V?3.0A(15.0W

Celkový výstup
140W

Barva
Black

Hmotnost
Main Body 360±5 g

Rozmery
68*32*85 mm

Obsah balení
140W AC Adapter*1,Quick Start Guide*1,Warranty Card*1

Note
The plug of ROG 140W USB-C GaN Charger will have different specifications based on the country.
