ASUS ExpertWifi EBA63 (PoE AP) 90IG0880-MO3C00 Asus

AX3000 Dual-Band WiFi 6 (802.11ax) PoE Access Point, support up to 5 SSIDs and VLAN, Self-defined Network, support PoE & PoE+, easy management app, AiMesh compatible

Seamless and Extendable Connections — Enjoy uninterrupted roaming with WiFi 6 speeds of up to 3000 Mbps, support for up to 100 active devices and easy scalability to meet the evolving needs of your business network.
Secure and Segmented Networking – Easy WiFi network settings via Self-defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.
Flexible Deployment with PoE — Support for both Power over Ethernet (PoE) connection and AC adapters, providing versatile options for installation.
Accommodate to Any Space — Supports ceiling and wall mounting to fit into various business environments with more flexibility.
Built for Safety and Reliability — Compliant with IEC 60601-1-2 standards, and with the top half of the device made of materials that meet the UL94 5VB plastics flammability standard*, the EBA63 ensures a stable and reliable connection.

*Only the top half of the EBA63 is constructed using UL94 5VB plastics flammability standard material.

ASUS ExpertWiFi EBA63 PoE Access Point
Your Business WiFi Expert Within Reach

The ASUS ExpertWiFi EBA63 is a Power over Ethernet (PoE) solution that provides fast, seamless and secure networking, with rich features tailored for small-to-midsized businesses. With its easy scalability, it can effortlessly adapt to your business network needs.

Secure and Efficient Business Operation with VLAN

The ExpertWiFi series supports virtual local area network (VLAN)* management for enhanced security of your business. VLAN management enables an easy, fast and flexible way to segment wired and wireless networks, with support for a dedicated Ethernet port to provide even more data protection.

*The VLAN functionality of the EBA63 is subject to the capabilities of the router(s) it is connected to.


ASUS ExpertWiFi EBA63
Model Name

EBA63
Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna

Internal antenna x 4
Transmit / Receive

2.4GHz 2x2
5GHz 2x2
Processor

1.7 GHz quad-core processor
Memory

256 MB Flash
512 MB RAM
Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency

2.4 GHz
5 GHz
Operating Mode

AiMesh Node Mode
Access Point Mode

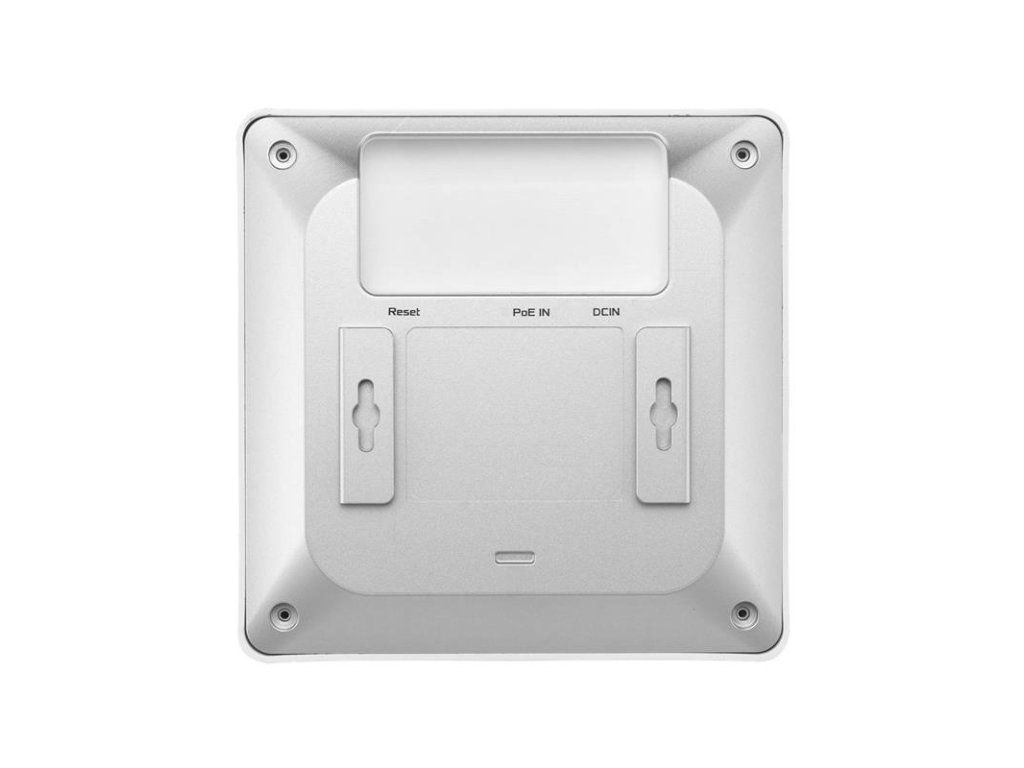

I/O Ports

10/100/1000 Gigabit Ethernet Port (support PoE) x 1
Buttons

Reset Button
LED Indicator

Power x 2
Power Supply

802.3af PoE
12 V with max. 1.5 A current DC (power adapter included)
Power Consumption

US: 10.0W
EU: 9.1W

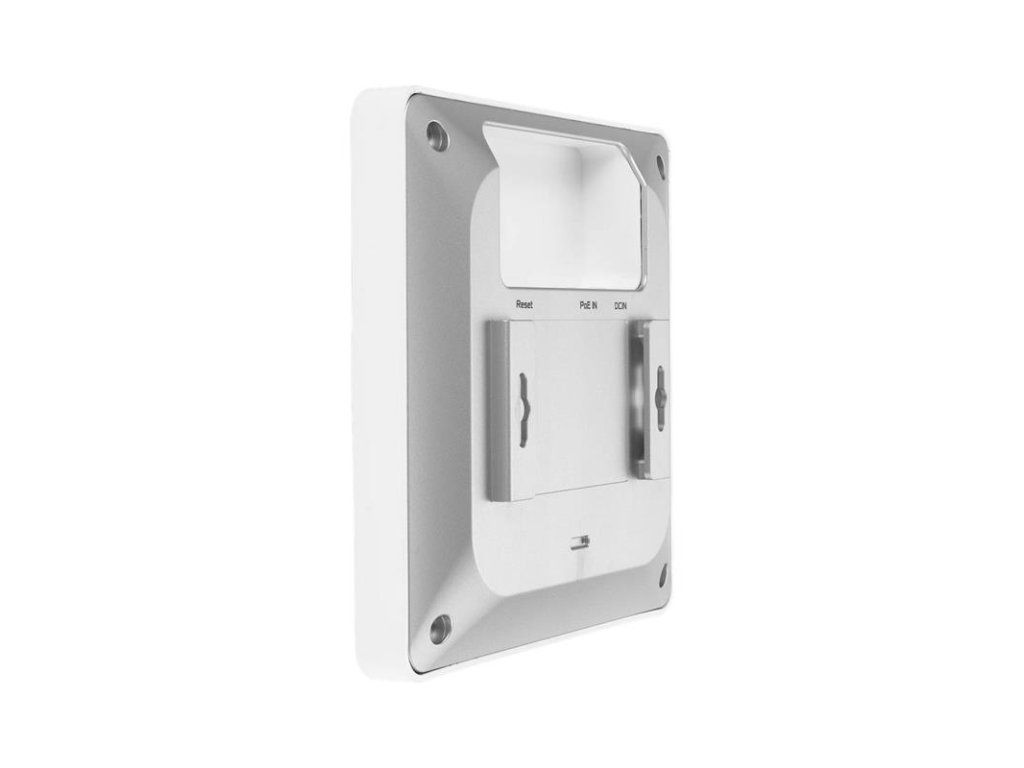

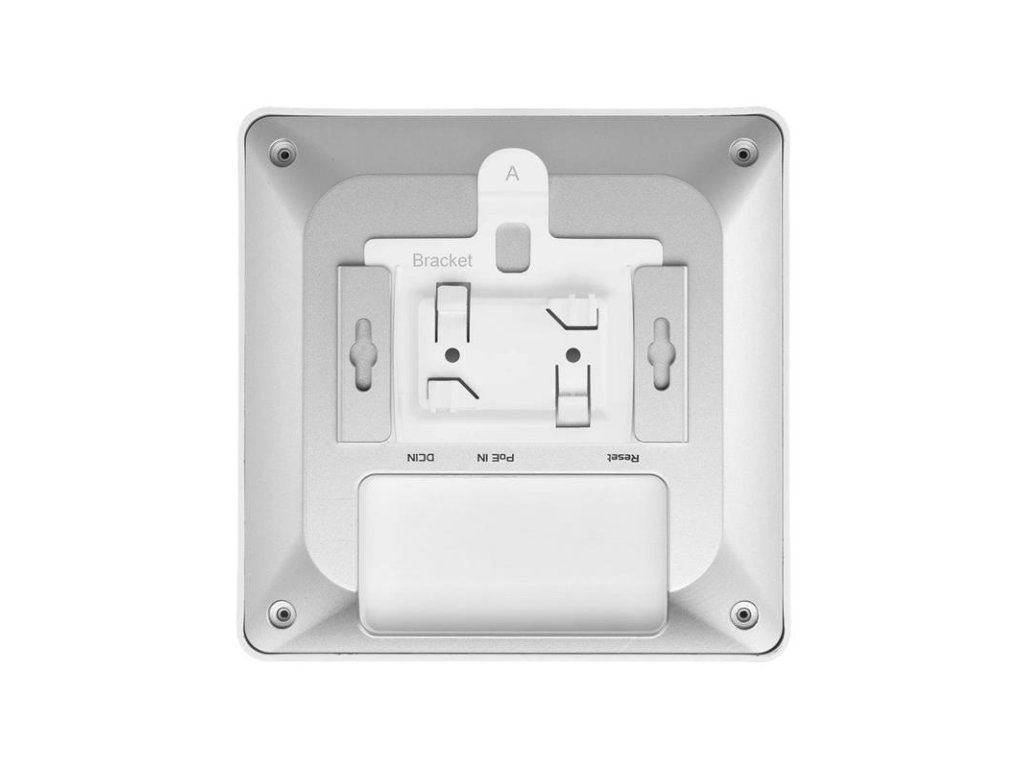

Mounting

Wall Mount
Ceiling Mount
Package Content

ExpertWiFi EBA63
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Wall-mount kit
Product Weight (g)

426g
Product Dimentions

160x160x42
AiMesh

AiMesh
• AiMesh Node
Device Access Control

Time Scheduling
Reward
Customized Internet Schedule
• Maximum Device Access Control Profile :12
• Maximum Device Access Control Content Filter Rule :12
Dashboard

Dashboard
Self-Defined Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
------------------------------------------------------------------------
Self-Defined Network Type
• Employee
• Guest Network
• Scheduled Network
• Maximum Self-Defined Network Rule :16
VLAN
WiFi Scheduling: One Time Access
WiFi Scheduling: Weekly Schedule
WiFi share: QR code, PDF file
AP isolate
Security

WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
SSH
Traffic Control

• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Wireless

UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
User Interface

WEB: ASUSWRT
APP: ASUS ExpertWiFi APP
Administration

Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
