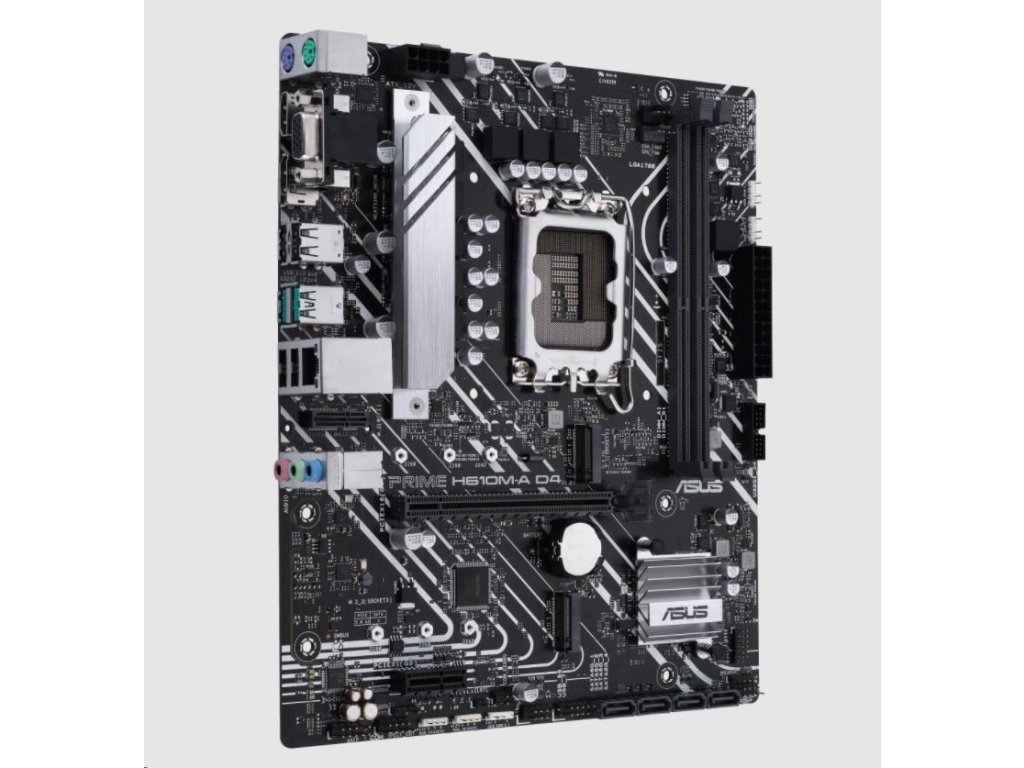

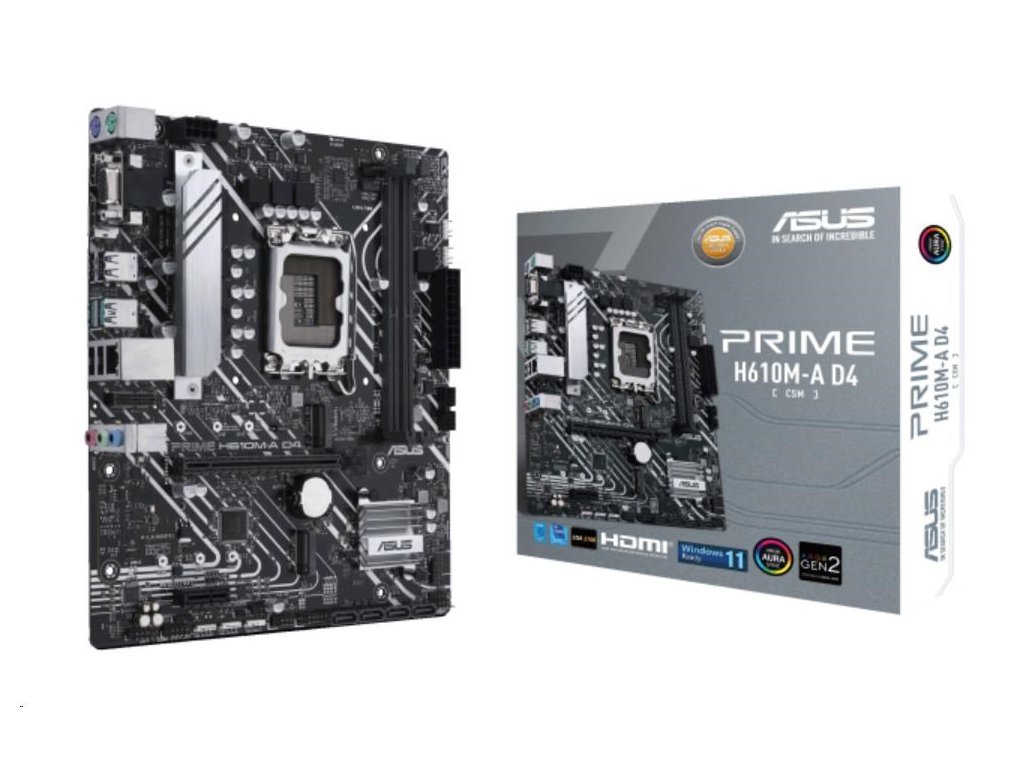

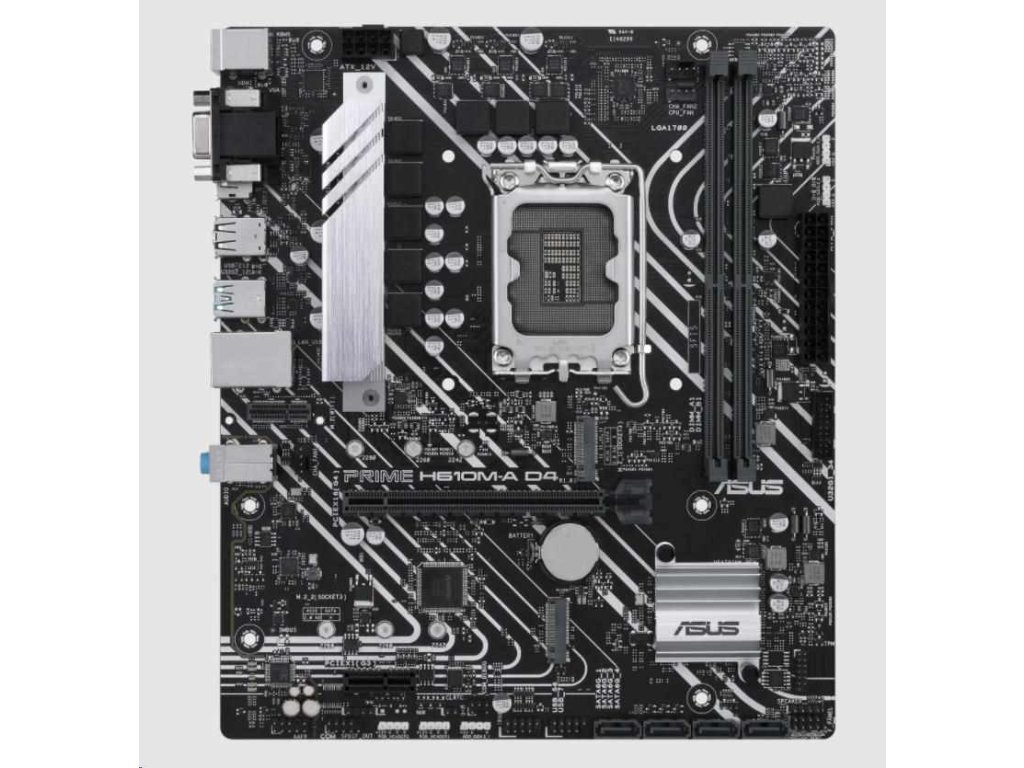

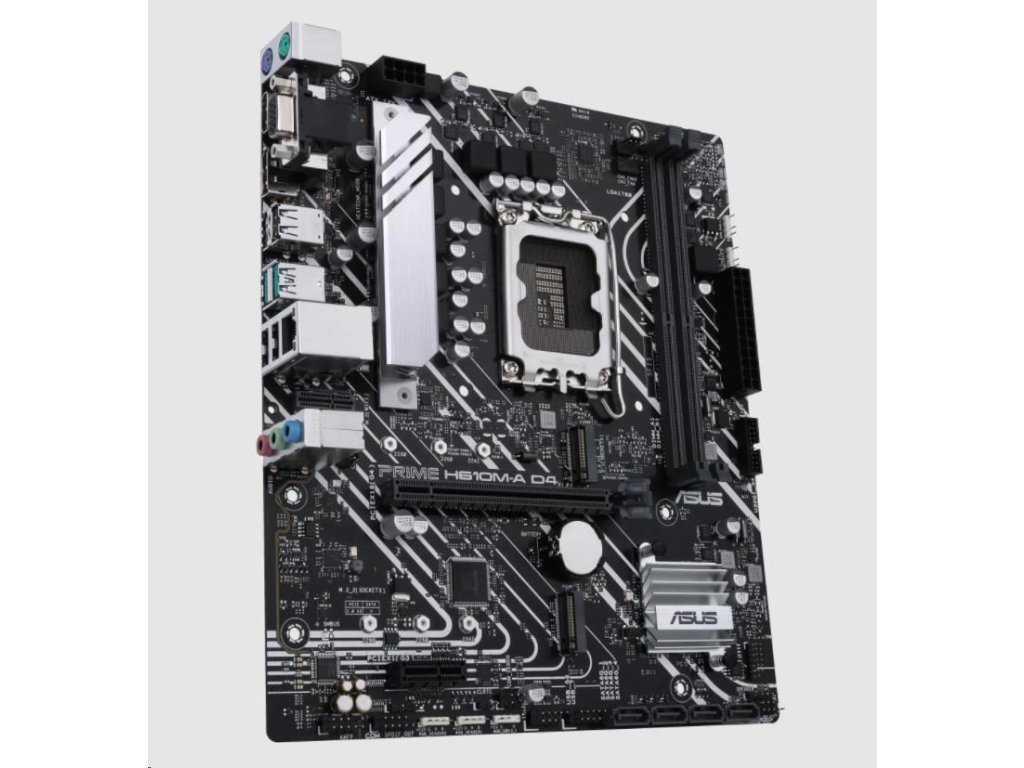

ASUS MB Sc LGA1700 PRIME H610M-A DDR4-CSM, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX 90MB19P0-M0EAYC Asus

Chipset: Intel H610 Chipset Rozměrový formát: mATX (24.4 cm x 21.1 cm) Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA1700 Pozice na paměti: 2 x DIMM, Dual Channel Memory Architecture Podpora pro paměti: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz Max.velikost operační paměti: 64 GB Podpora pro paměti typu: XMP Grafické výstupy: (na základě procesoru) *1 x DisplayPort *1 x D-Sub port *1 x HDMI port Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Síťová karta: 1 x Intel 1Gb Ethernet Rozšiřující sloty: *1 x PCIe 4.0 x16 slot *1 x PCIe 3.0 x1 slot SATA: 4 x SATA 6Gb/s ports M.2: 2 x M.2 slots (Key M) USB: *Interní: *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 3 USB 2.0 ports *Externí: *2 x USB 3.2 Gen 2 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) Interní porty: *Fan and Cooling related *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers *Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *Storage related *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports *USB *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 3 USB 2.0 ports *Miscellaneous *3 x Addressable Gen 2 headers *2 x AURA RGB headers *1 x Clear CMOS header *1 x Front Panel Audio header (AAFP) *1 x COM Port header *1 x S/PDIF Out header *1 x Speaker header *1 x SPI TPM header (14-1pin) *1 x 10-1 pin System Panel header Externí porty: *2 x USB 3.2 Gen 2 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x D-Sub port *1 x V-M.2 slot (Key E) *1 x Intel 1Gb Ethernet port *3 x Audio jacks *1 x PS/2 Keyboard (purple) port *1 x PS/2 Mouse (green) port BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
