ASUS NUC 15 ROG Mini PC, Intel Core Ultra 7 275HX, RTX5060, 16GB DDR5, 1TB SSD, WiFi+BT, HDMI 2xDP, TB(USB-C), W11 90AS00I1-M00300 Asus

Windows 11 Home 64-bit
Intel Core Ultra 7 255HX (30MB Cache)
NVIDIA GeForce RTX 5060
16GB (6400MHz) DDR5-SDRAM (2 x 8) & 1000GB SSD


Model

ROG NUC (2025)

RNUC15JNK7X569A2
Operating System
Windows 11 Home
CPU
Intel® Core™ Ultra 7 Processor 255HX
Chipset
Integrated
Graphics
NVIDIA® GeForce RTX™ 5060 Laptop GPU
Intel® Graphics GPU
Memory
Max Capacity: 96GB (48GB DDR5-5600 SODIMM x 2)
Included: 16GB DDR5-6400 CSO-DIMM x 2
Storage
Support:
1TB~4TB M.2 2280 NVMe™ PCIe® 4.0x4 SSD or
1TB~4TB M.2 2280 NVMe™ PCIe® 5.0x4 SSD
Included: 1TB M.2 2280 NVMe™ PCIe® 4.0 SSD?
Wireless Data Network
Intel® Wi-Fi 7 BE200, Bluetooth 5.4
*Bluetooth® version may change with different OS version.
LAN
Intel® 2.5 Gb Ethernet port

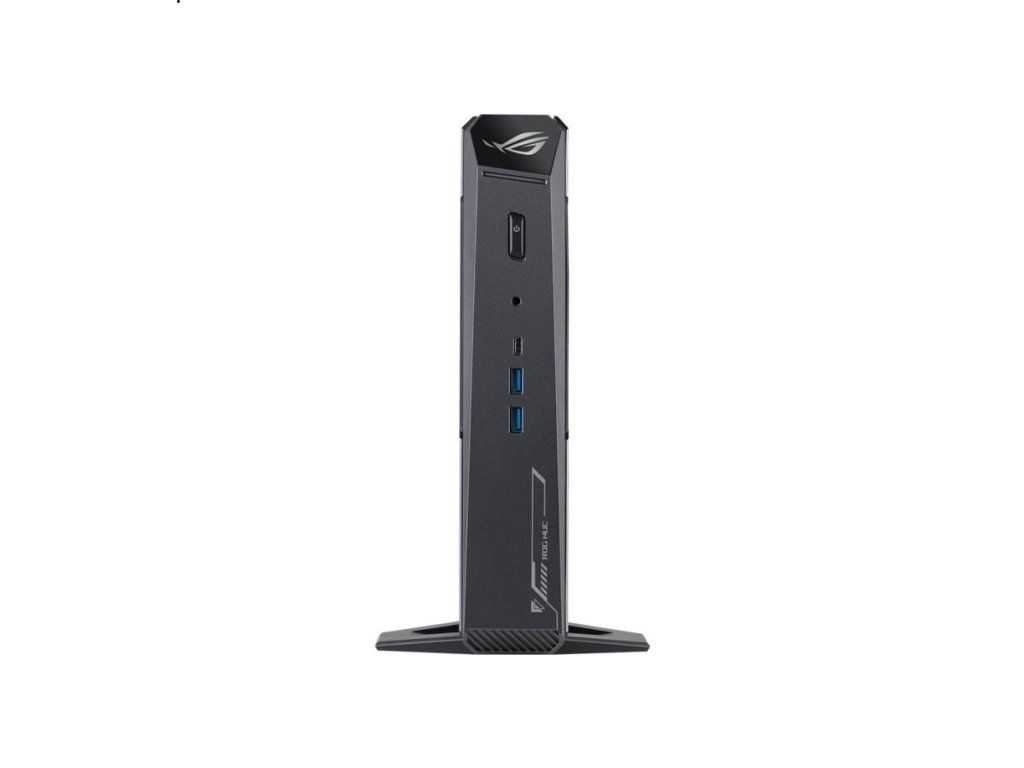

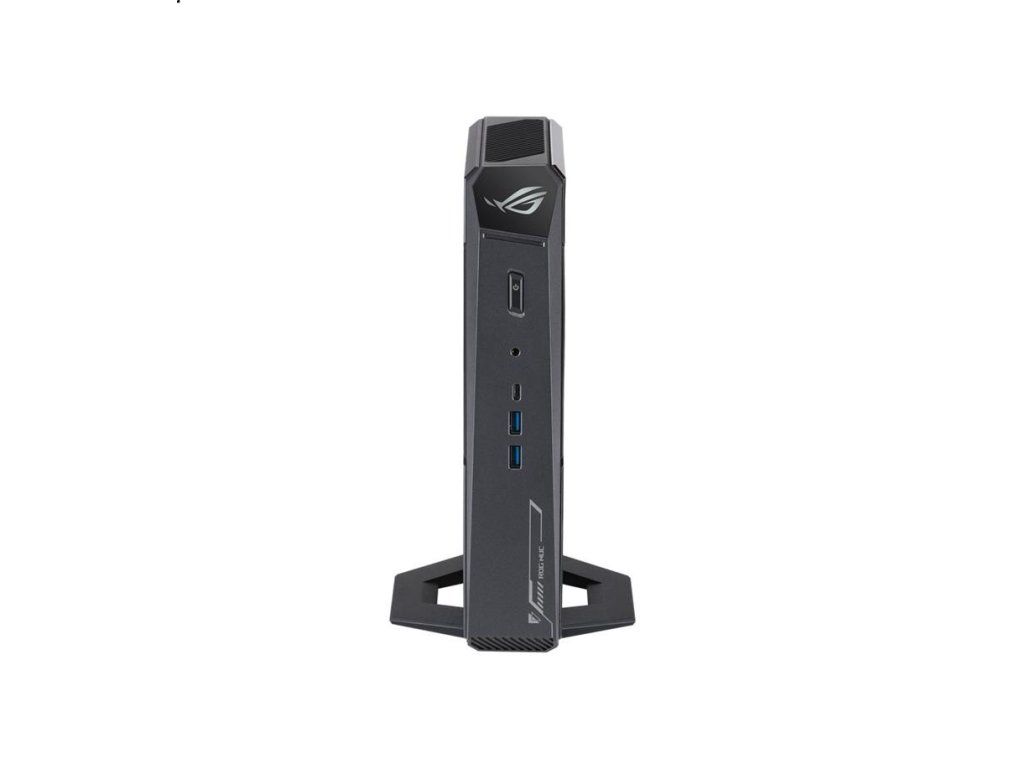

Front(Side) I/O Ports
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
1x 3.5mm Combo Audio Jack

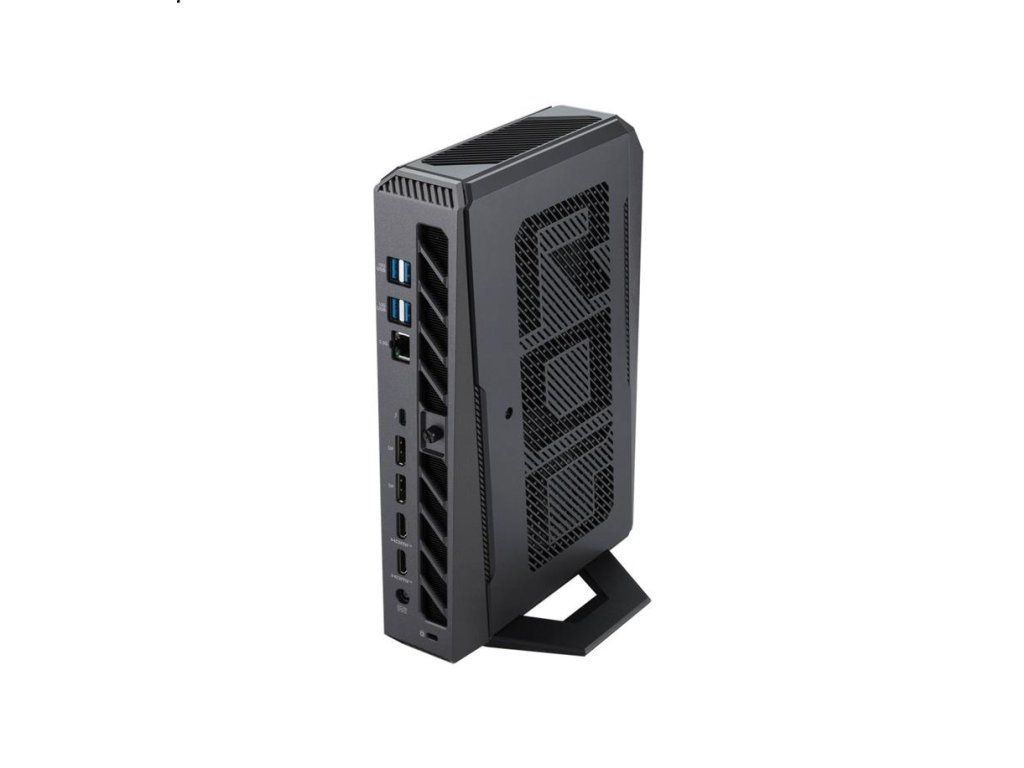

Back I/O Ports
1 x Thunderbolt 4 Type-C w/ DisplayPortTM 2.1
4 x USB 3.2 Gen 2 Type-A
2 x HDMI 2.1 FRL
2 x DP 2.1
1 x RJ45 LAN
1 x DC-in
1 x Kensington Lock
Dimensions (W x D x H)
282.4mm x 187.7mm x 56.5mm (bottom: 146mm)
Weight
3.12 KG
Accessories
AC Adapter+Power Cord
Safety/Caution/Regulatory Insert
Warranty Card
*Power cord included is region specific, and some SKUs do not include the power cord
