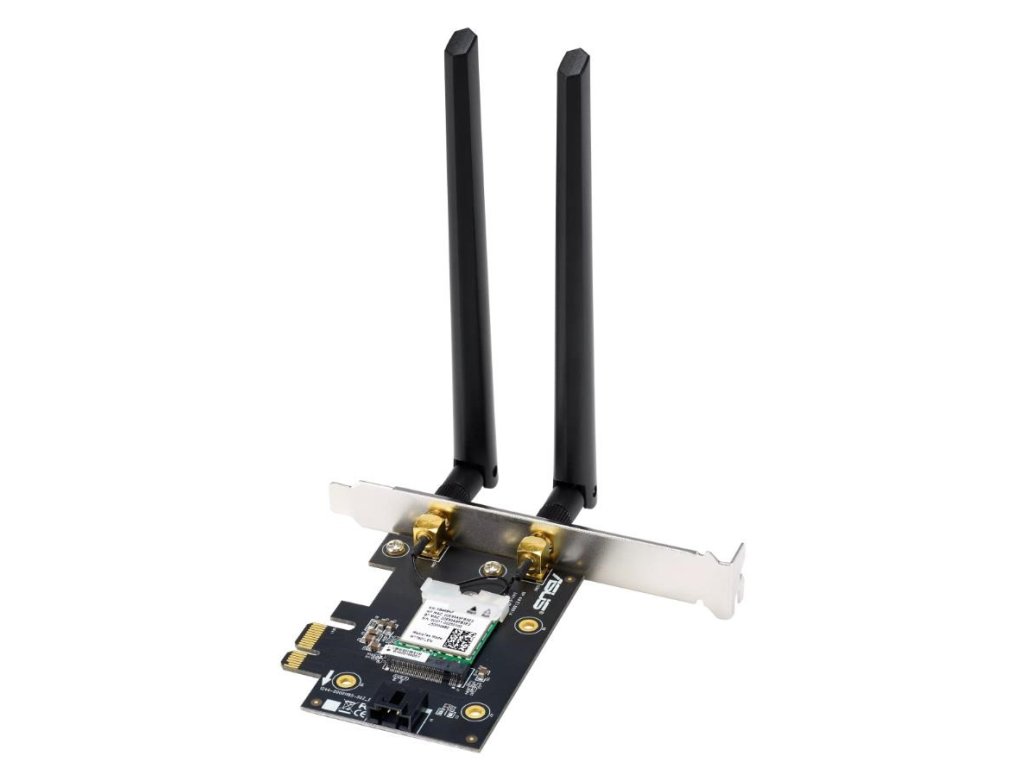

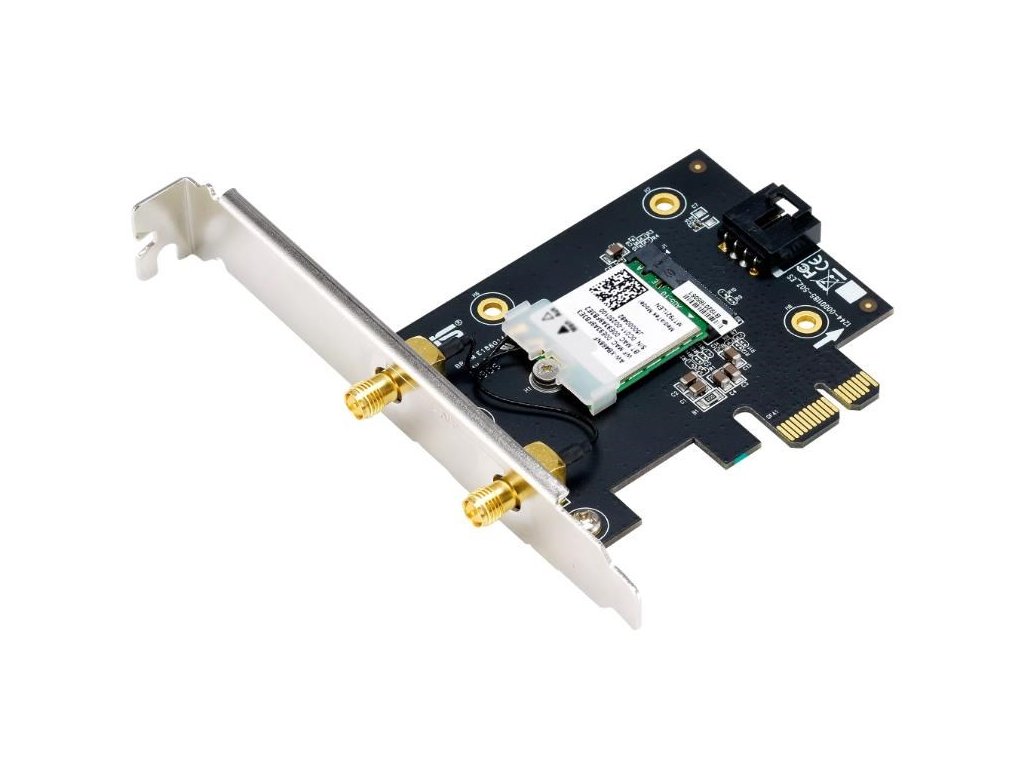

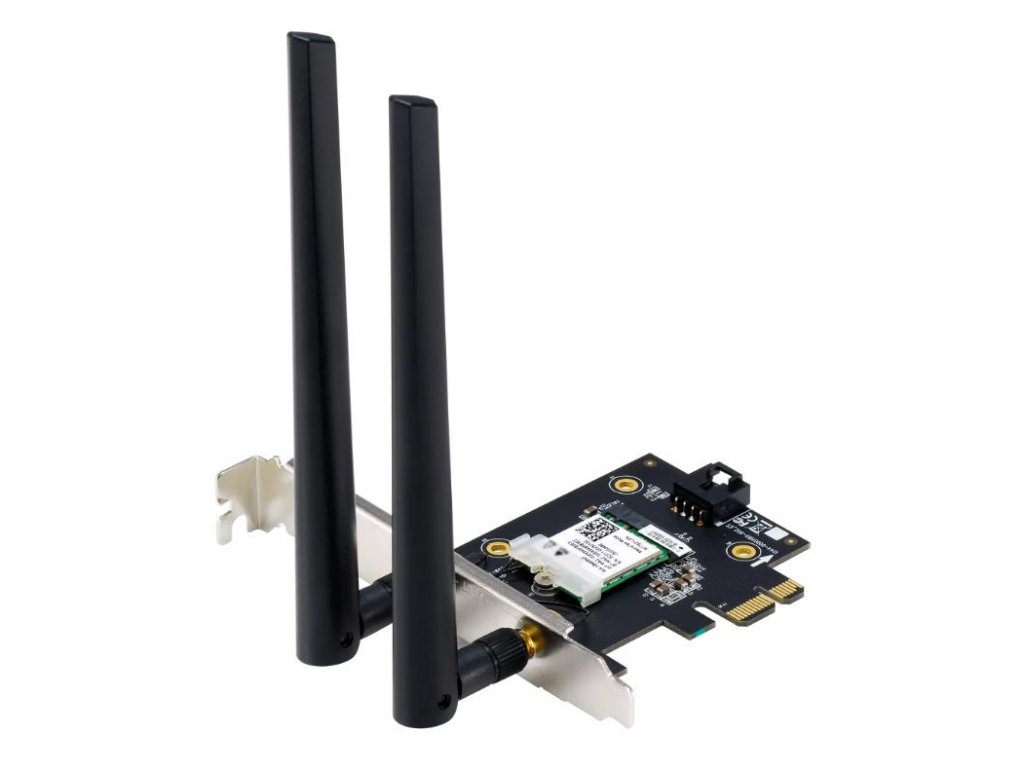

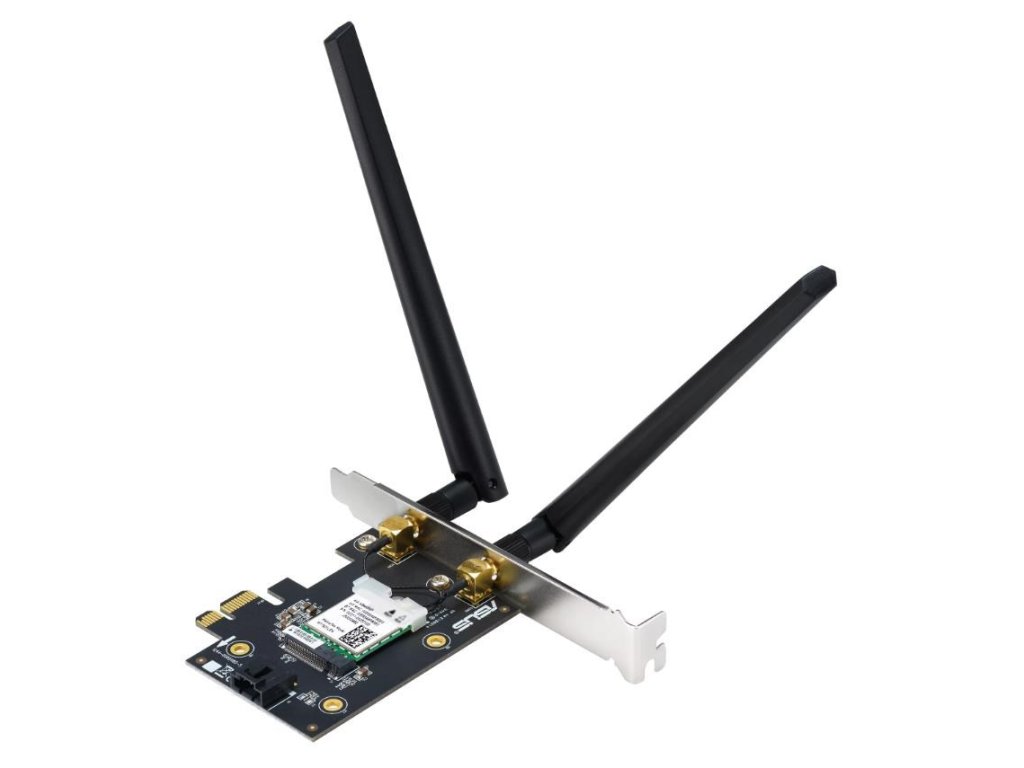

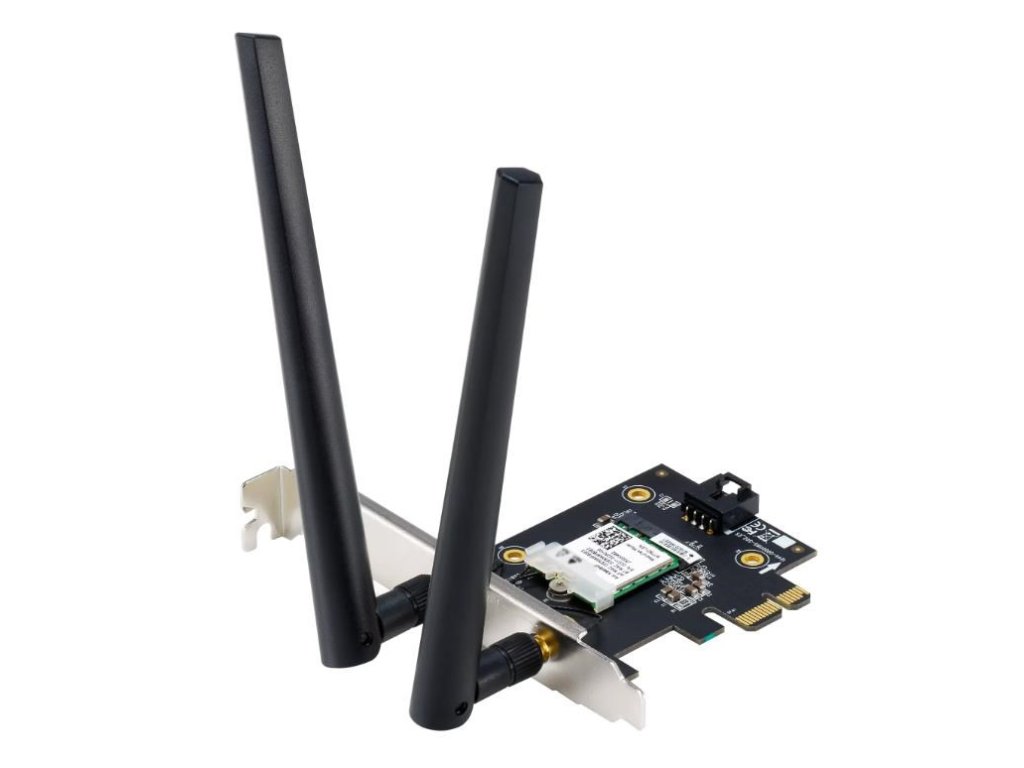

ASUS PCE-AXE5400 - Tri-Band PCIe Wi-Fi Adapter 90IG07I0-ME0B10 Asus

WiFi 6E PCI-E Adapter with 2 external antennas. Supporting 6GHz band, 160MHz, Bluetooth 5.2, WPA3 network security, OFDMA and MU-MIMO

ASUS WiFi 6E total solution - optimized capabilities and performance
All-new 6 GHz band - Less congestion and interference for WiFi connections
Latest Bluetooth® 5.2 - improved signal range, faster transmit speeds and less interference
Ultrafast WiFi 6 & WiFi 6E – 4.6X faster speeds, improved connection efficiency and better network security
Reduced dead zones with external antennas - Adjustable antennas allows easy positioning for the best reception.

PCE-AXE5400
Network Standard
Bluetooth® 5.2
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
Bluetooth
5.2
Interface
PCI-Express x 1
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps
Antenna
External Antenna x 2
Operating Frequency
2.4GHz / 5GHz / 6GHz
Security
WPA3
OS Support
OS Support : Windows 11 64-bit
Windows 10 64-bit (support 2.4GHz & 5GHz band only)
Package Content
ASUS PCE-AXE5400 WLAN Card x1
Low Profile Bracket x1
Motherboard USB Cable x1
Warranty Card
Antenna x2
Quick Start Guide
Product Weight (g)
49.7g
Product Dimensions
120.5 x 88.03 x 21.59 mm
