ASUS ROG-LOKI-1000P-SFX-L-GAMING 90YE00N1-B0NA00 Asus

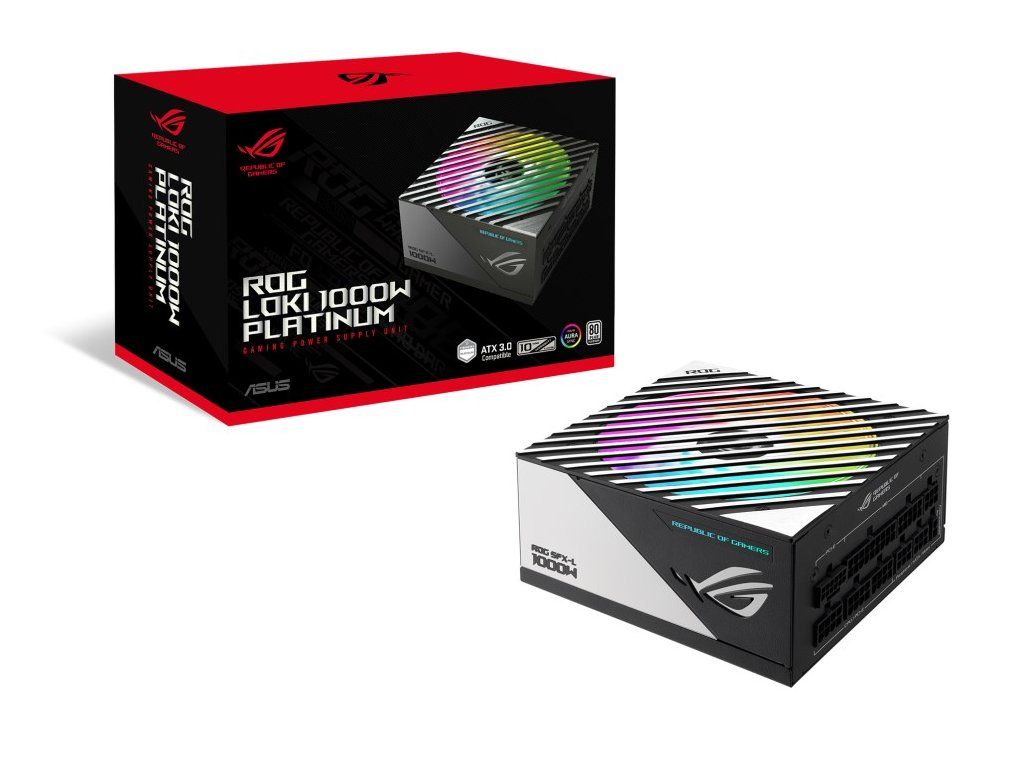

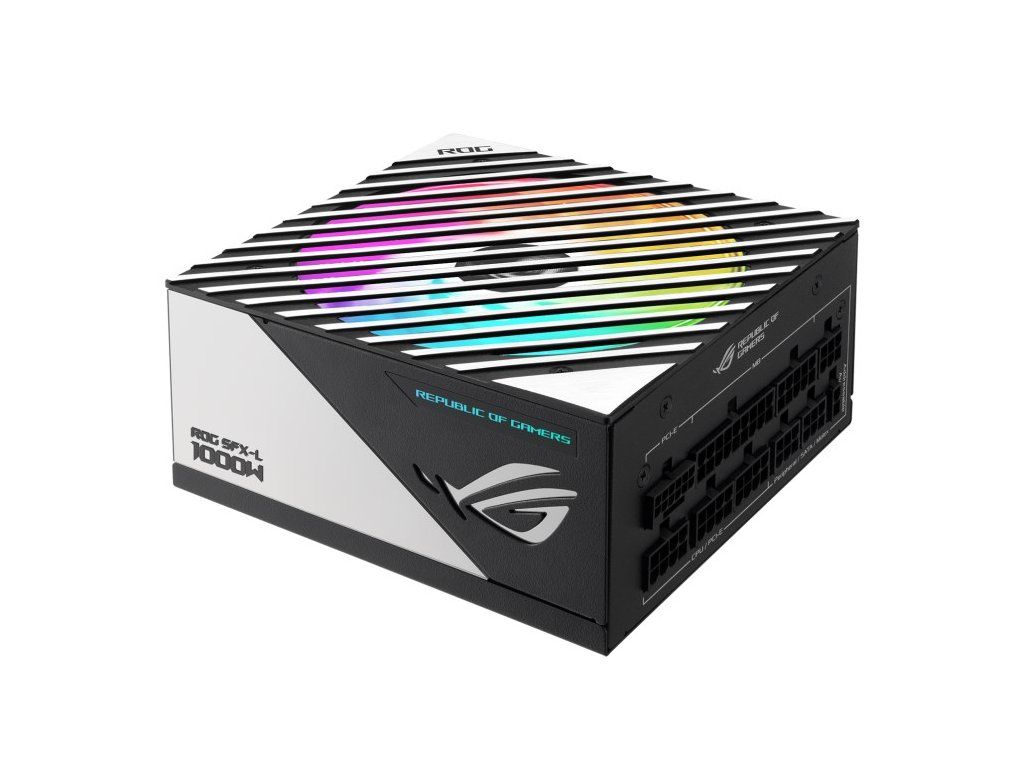

ROG Loki 1000W Platinum
The Quietest SFX-L PSU

Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.


Accessibility links

Skip to content
Accessibility Help
Skip to Menu
ROG Footer

SUPPORT

ASUS home logo

ROG LOKI SFX-L 1000W Platinum
- Tech Specs

Features
Tech Specs
Awards
Gallery
Support

Intel Form Factor
PFC Type
ATX Standard
Dimensions
Efficiency
MTBF
Protection Features
Hazardous Materials
AC Input Range
DC Output Voltage
Maximum Load
Combined Load
Total Output
Cable Connectors
Package Contents
Weight
AURA SYNC
Cybenetics Noise Level Certification
0dB Technology

Model

ROG LOKI SFX-L 1000W Platinum

Intel Form Factor
SFX-L
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
125 x 125 x 63.5 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 83.3A 0.8A 2.5A
Combined Load
110W 110W 1000W 9.6W 12.5W
Total Output
1000W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5.1 16-pin Cable x 1 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Weight
1.83kg (single PSU)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
A
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
