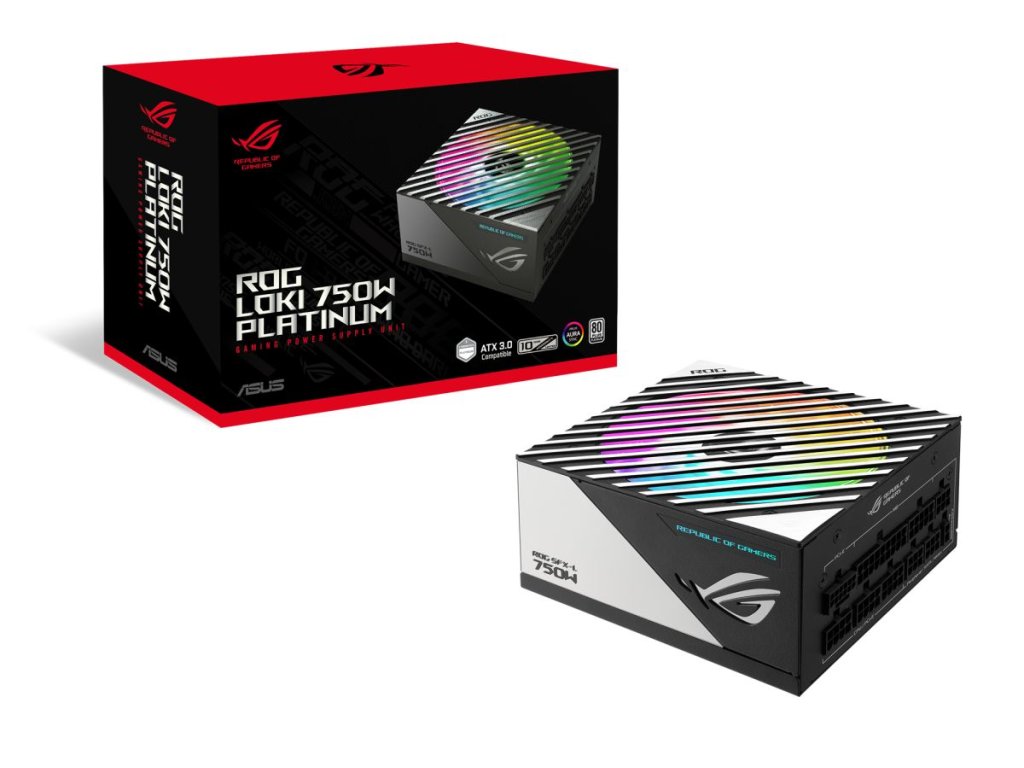

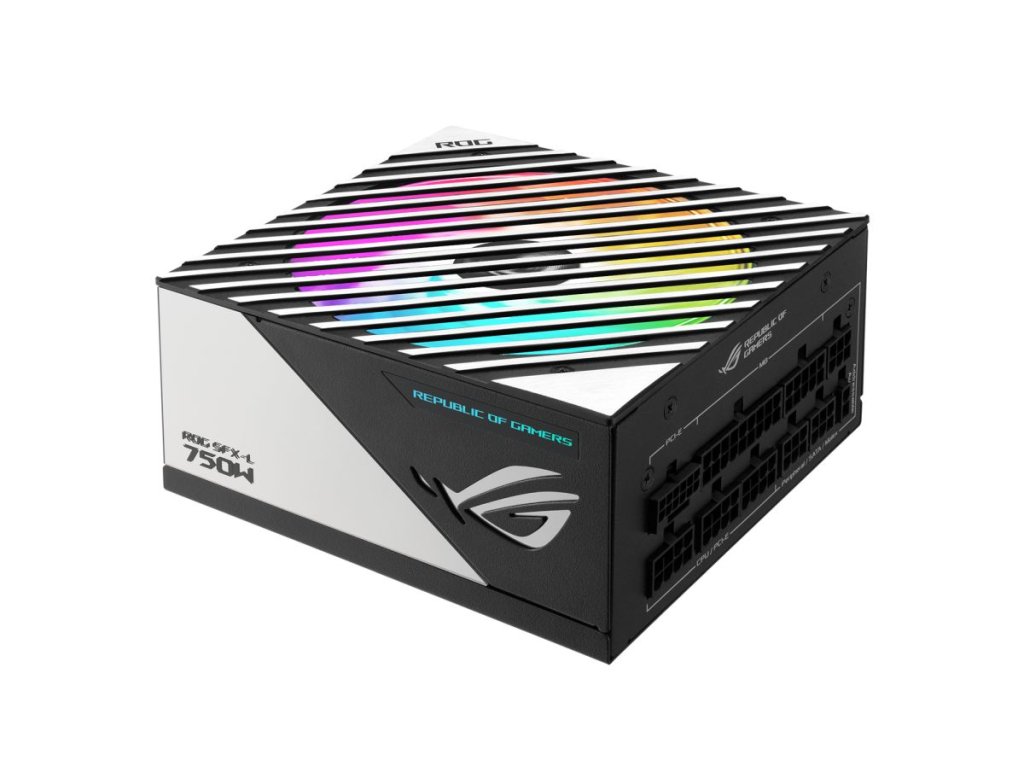

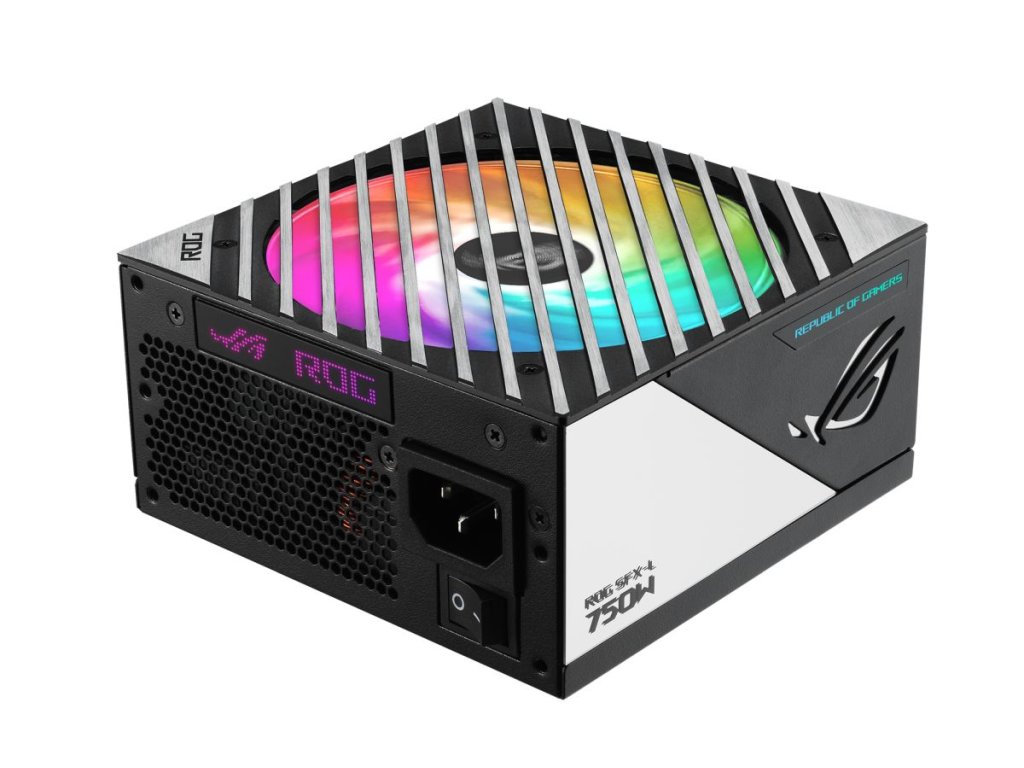

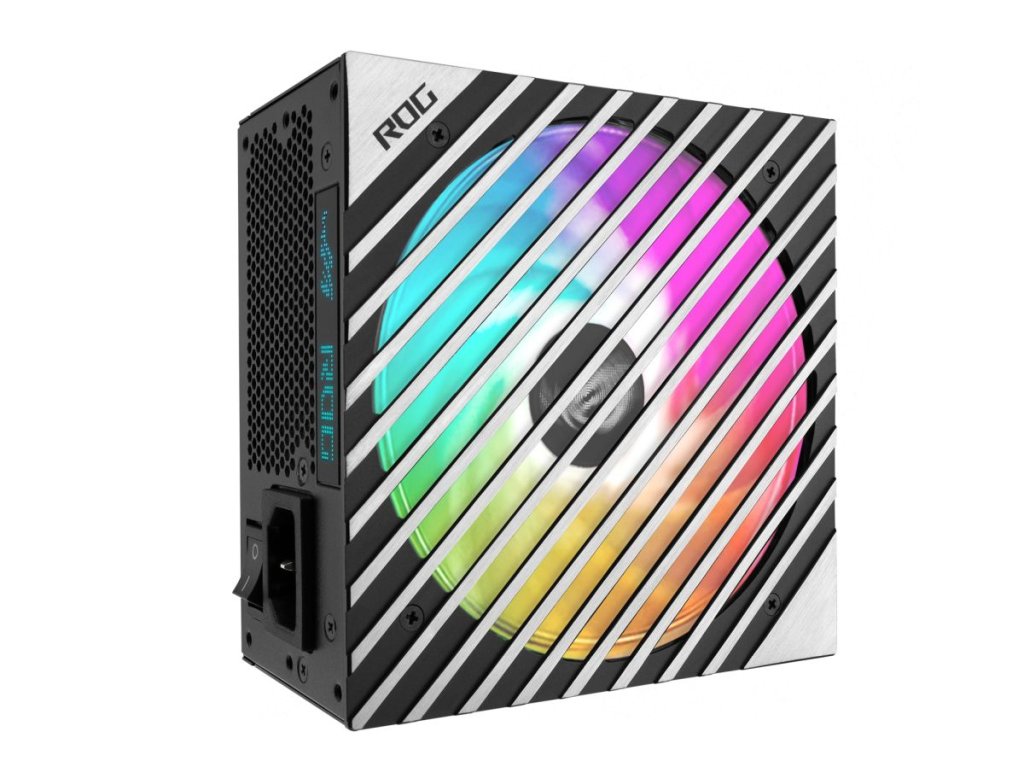

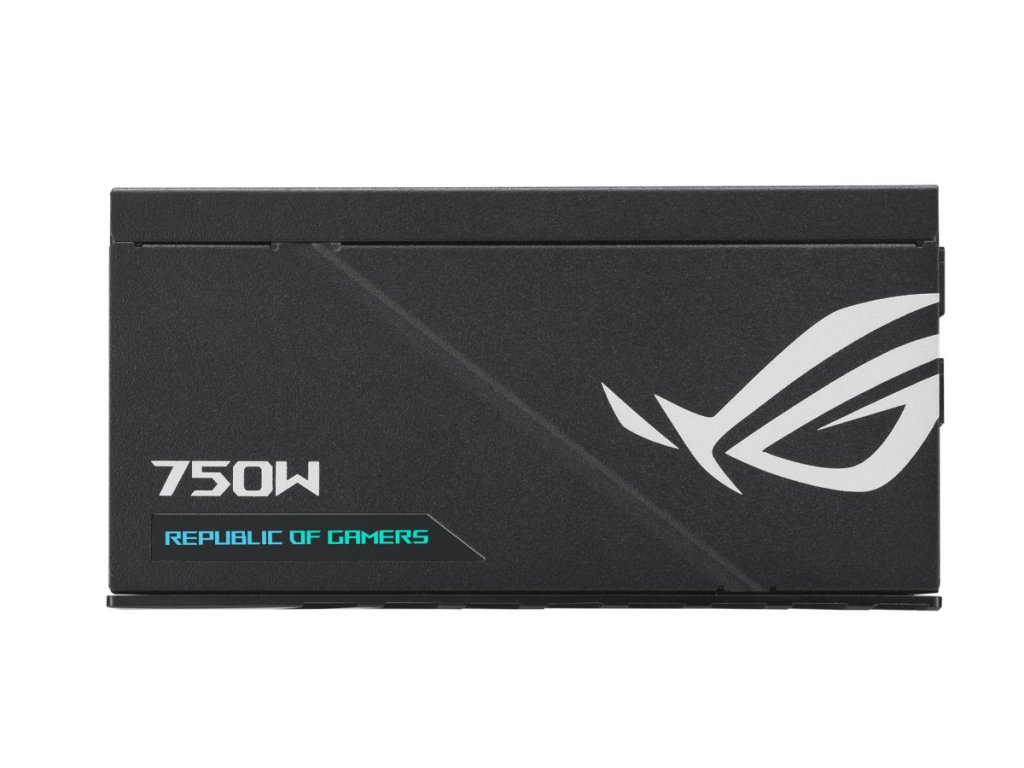

ASUS ROG LOKI/750W/SFX-L/80PLUS Platinum/Modular 90YE00N4-B0NA00 Asus

ROG Loki 750W Platinum
The Quietest SFX-L PSU

Taking after the ROG Thor, the ROG Loki SFX-L 750W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.


Model

ROG LOKI SFX-L 750W Platinum

Intel Form Factor
SFX-L
PFC Type
Active PFC
ATX Standard
ATX 3.0
80 PLUS Efficiency
80Plus Platinum
Cybenetics Efficiency
Platinum (230V) ; Platinum (115V)
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 62.5A 0.8A 2.5A
Combined Load
110W 110W 750W 9.6W 12.5W
Total Output
750W

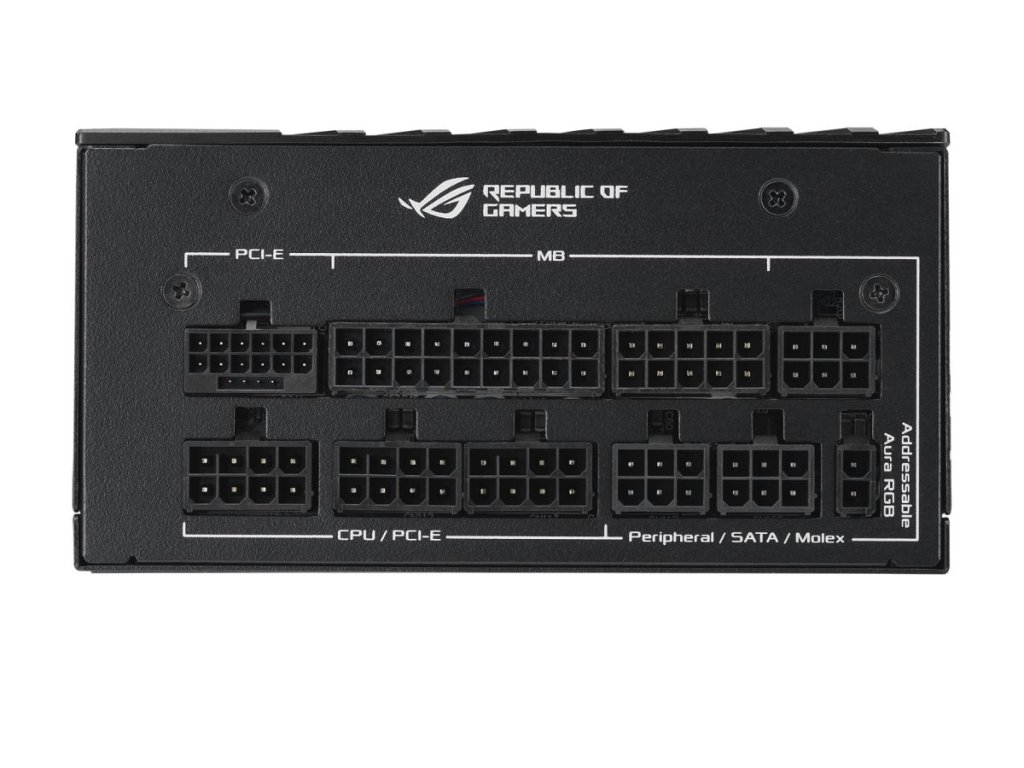

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4

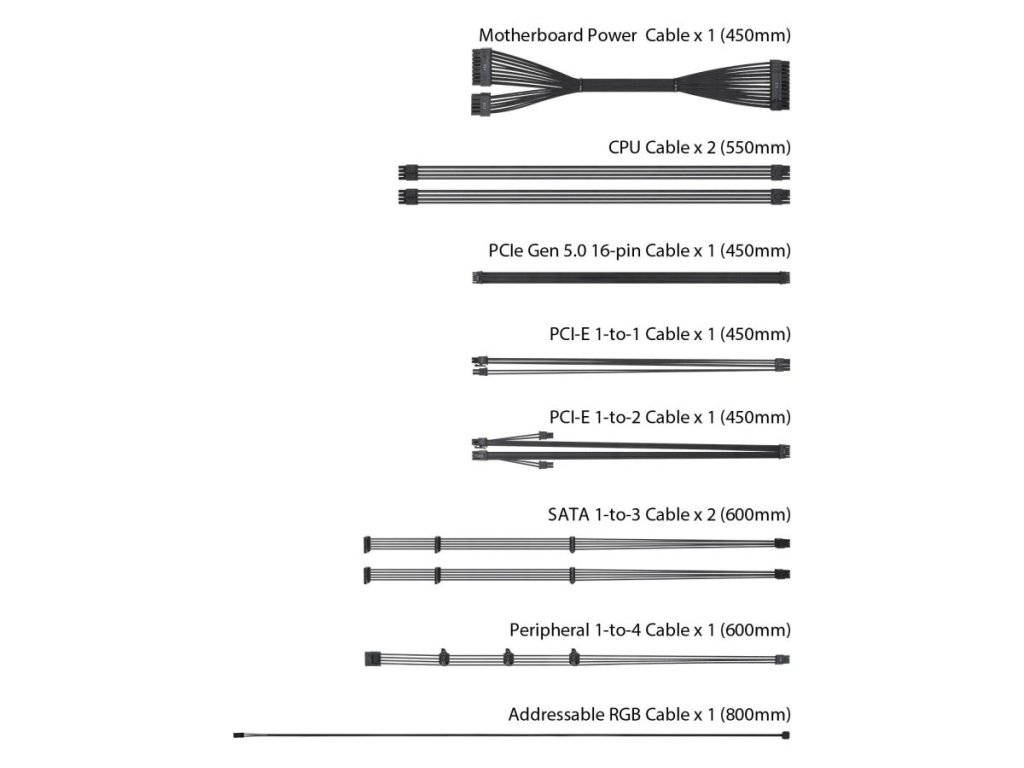

Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5.1 16-pin Cable x 1 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1
Dimensions
125 x 125 x 63.5 mm
Weight
1.815kg (single PSU)
Cybenetics Noise Level Certification
A+
AURA SYNC
Yes
MTBF
>120,000 hrs @ 25°C
0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
Warranty
10-year limited(Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.)
