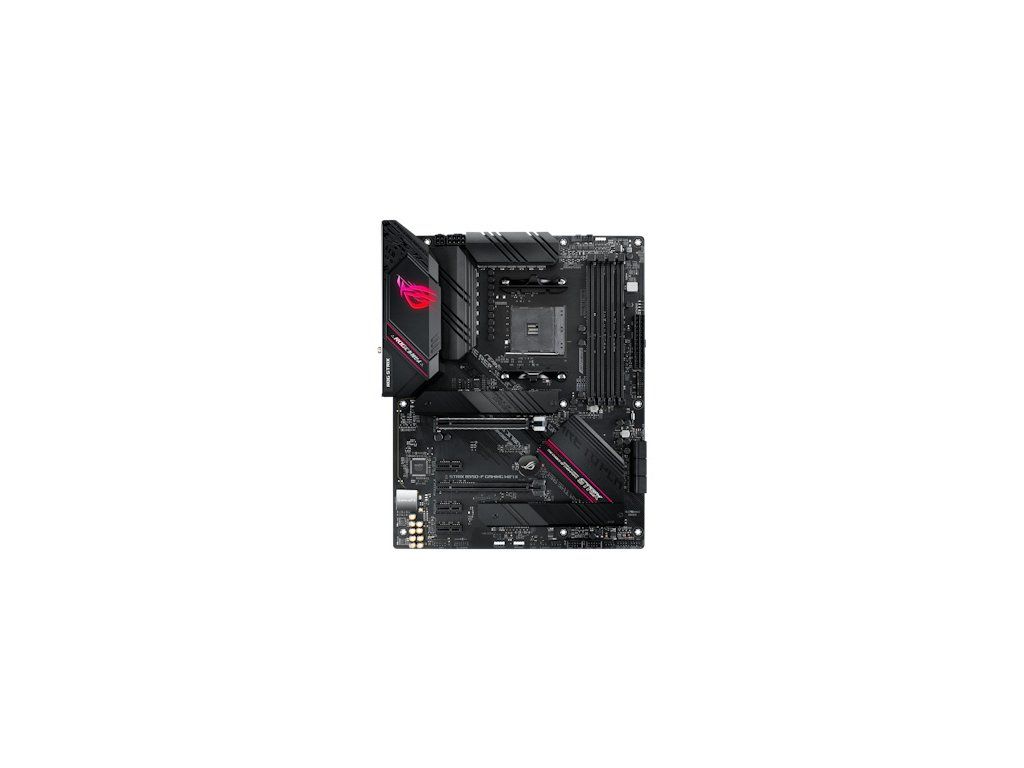

ASUS ROG STRIX B550-F GAMING WI-FI II/AM4/ATX 90MB19V0-M0EAY0 Asus

Popis produktu

Chipset: B550 Rozměrový formát: ATX (30.5cm x 24.4cm) Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Pozice na paměti: 4 x DIMM,DDR4 Podpora pro paměti: *AMD Ryzen 5000 and 3000 Series Desktop Procesors *DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz *AMD Ryzen 5000 and 4000 G-Series Processors *DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Max.velikost operační paměti: 128 GB Podpora pro paměti typu: ECC Zvuková karta: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A Síťová karta: *1 x Intel I225-V 2.5Gb Ethernet *WI-FI 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) *Bluetooth v5.2 Rozšiřující sloty: *1 x PCIe 4.0 x16 SafeSlot (supports x16 mode) *1 x PCIe 3.0 x16 slot (supports x4 mode) *3 x PCIe 3.0 x1 slots RAID řadič: RAID 0, 1, 10 SATA: 6 x SATA 6Gb/s ports M.2: 2 x M.2 slots (Key M) USB: *Interní: *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Externí: *2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) *4 x USB 3.2 Gen 1 ports (4 x Type-A) *2 x USB 2.0 ports Interní porty: *Fan and cooling related *1 x 4-Pin AIO_Pump header *1 x 4-Pin CPU fan header *1 x 4-Pin CPU_OPT fan header *3 x 4-Pin Chassis fan headers *Power related *1 x 24-pin main power connector *1 x 8-pin +12V power connector *1 x 4-pin +12V power connector *Storage related *2 x M.2 slots (Key M) *6 x SATA 6Gb/s ports *USB ports *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Miscellaneous *1 x Addressable Gen 2 header *2 x AURA RGB headers *1 x Clear CMOS header *1 x Front panel audio header (AAFP) *1 x 20-3 pin System Panel header with Chassis intrude function *1 x Thermal sensor header *1 x Thunderbolt header Externí porty: *2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) *4 x USB 3.2 Gen 1 ports (4 x Type-A) *2 x USB 2.0 ports *1 x Wi-Fi Modul *1 x DisplayPort *1 x HDMI port *1 x Intel I225-V 2.5G Ethernet *1 x Optical S/PDIF out *5 x Audio jacks *1 x BIOS FlashBack button BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
