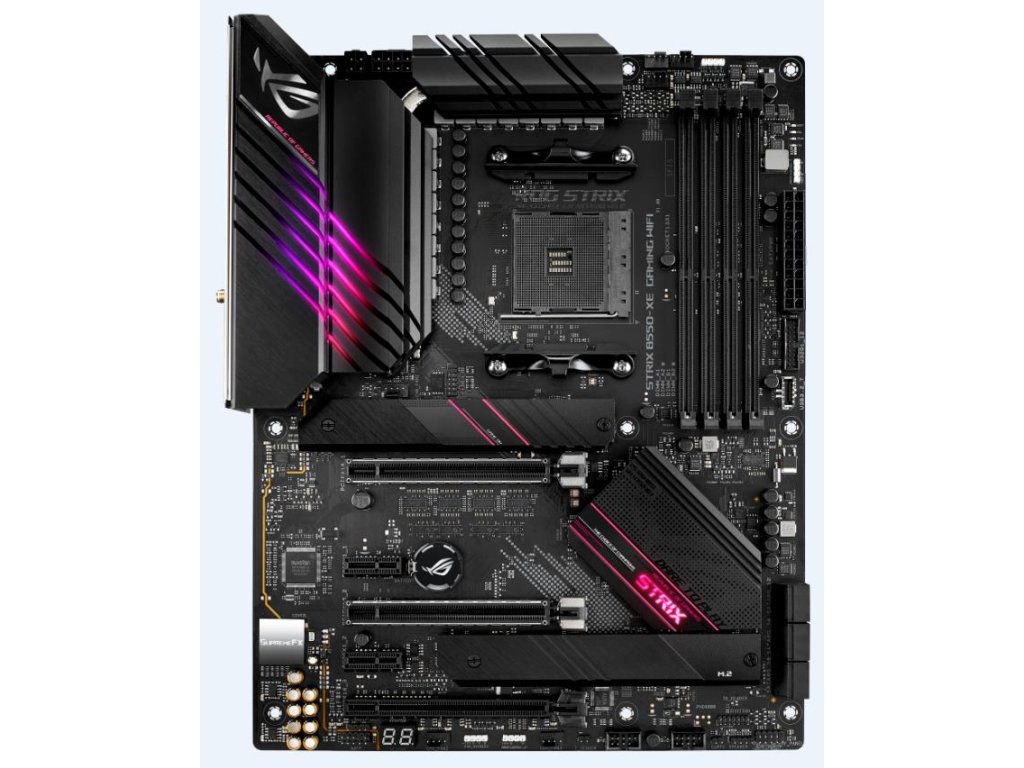

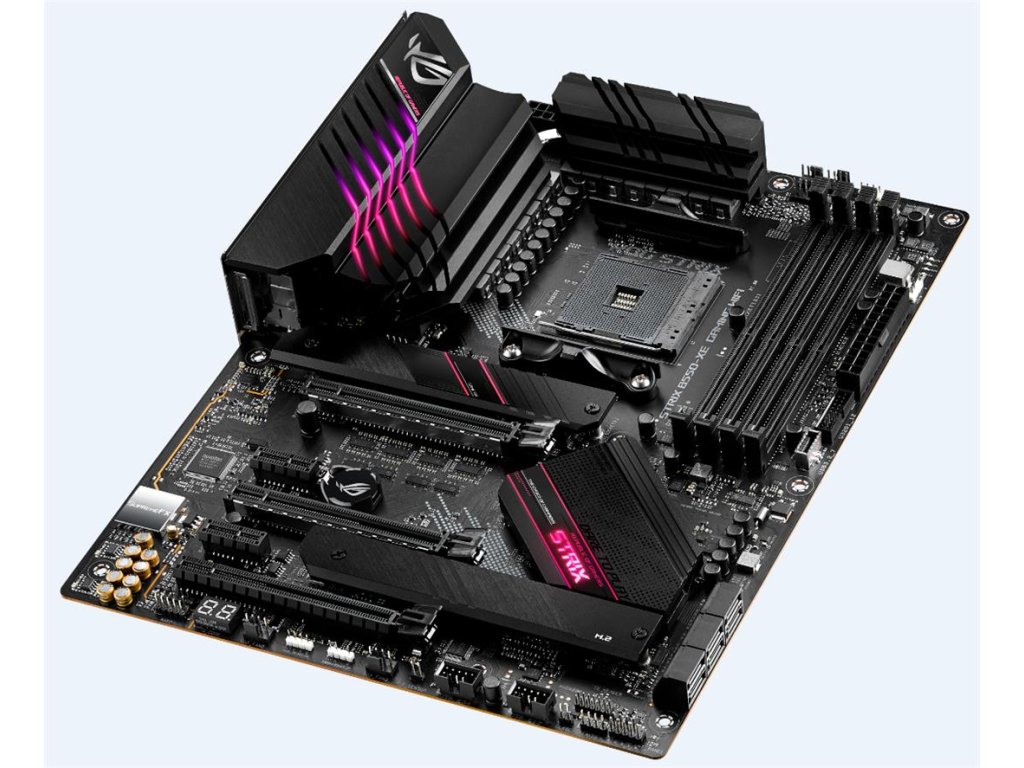

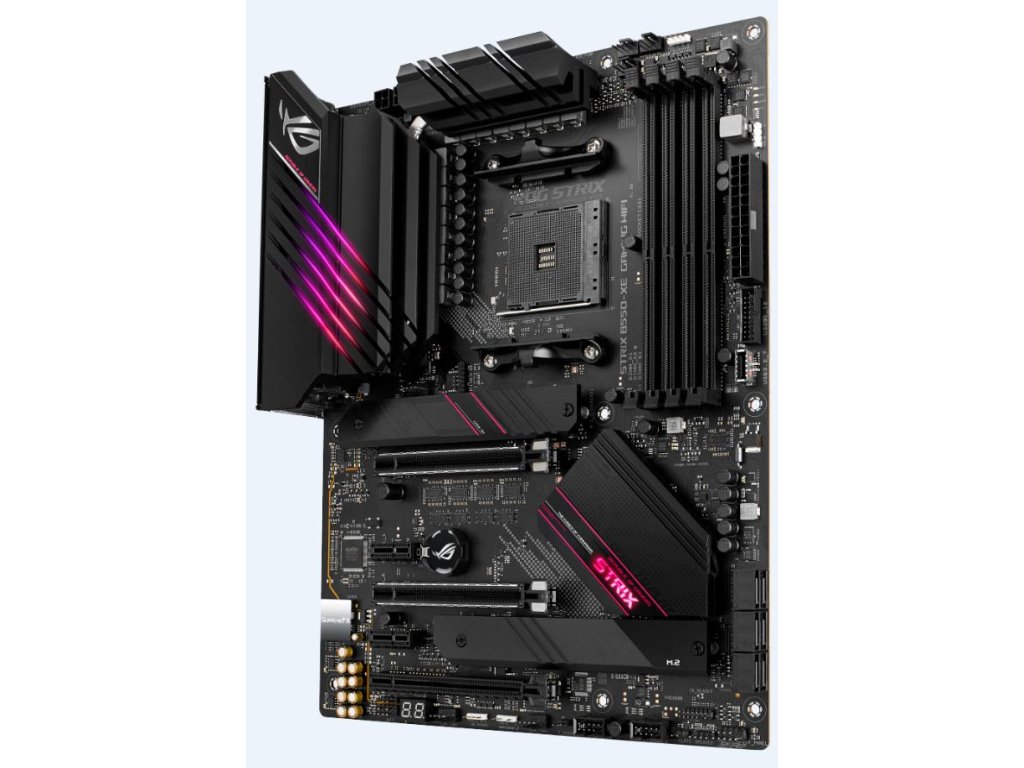

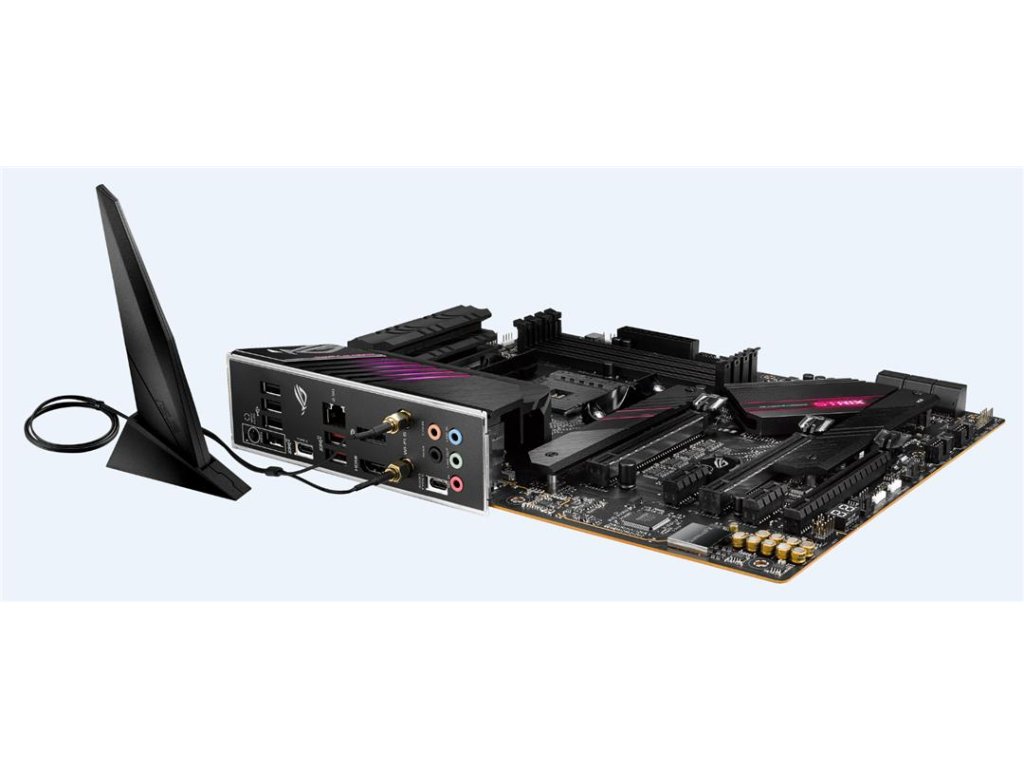

ASUS ROG STRIX B550-XE GAMING WIFI 90MB17B0-M0EAY0 Asus

Chipset: AMD B550 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: *4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *AMD Ryzen™ 4000 G-Series Desktop Processors - 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *OptiMem II *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU. Grafická karta: Integrated Graphics Processor (na základě procesoru) *1x HDMI 2.1(4K@60HZ) *1x DisplayPort 1.2 Multi GPU: *NVIDIA 2-Way SLI® Technology *AMD 3-Way CrossFireX™ Technology Zvuková karta: *ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A Síťová karta: *Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard) *Intel® Wi-Fi 6 AX200 *Bluetooth 5.1 Rozšiřující sloty: *1x PCIe 3.0 x16 (x4 mode) *2x PCIe 3.0 x1 *2x PCIe 4.0 x16 (x16 or dual x8) RAID řadič: 0, 1, 10 SATA: *6x SATA 6Gb/s port(s) M.2: *1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) USB: *zadní USB porty ( celkem 8 ) *3x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C®) *1x USB 2.0 port(s)(1 x audio USB Type-C® ) *4x USB 2.0 port(s)(4 x Type-A) *přední USB porty ( celkem 7 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s) *1x USB 3.2 Gen 2 front panel connector port(s) Interní porty: *1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *1x Thunderbolt header(s) *1x Q-Code *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *3x Chassis Fan connector(s) *1x AIO_PUMP connector *1x AAFP connector *2x Aura RGB Strip Header(s) *2x Addressable Gen 2 header(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *6x SATA 6Gb/s connector(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x 4-pin ATX 12V Power connector(s) *1x System panel(s) *1x Thermal sensor connector(s) *1x Clear CMOS jumper(s) Externí porty: *3x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®) *5x USB 2.0 (1 for audio USB Type-C®) *1x BIOS FlashBack™ Button(s) *1x Intel® I225-V 2.5Gb Ethernet *1x DisplayPort *1x HDMI *5x Audio jack(s) Obsah balení: *1x Hyper M.2 x16 Gen 4 Card *5x M.2 SSD screw package(s) *3x M.2 Rubber Package(s) *1x ROG audio USB Type-C® cable *1x ROG key chain *1x Wi-Fi moving antenna *User´s manual *4x SATA 6Gb/s cable(s) *1x Supporting DVD *1x ROG Strix stickers *1x Cable ties pack(s) *1x Extension Cable for RGB strips (80 cm) *1x Extension cable for Addressable LED *1x ROG Thank you card BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-xe-gaming-wifi-model https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
