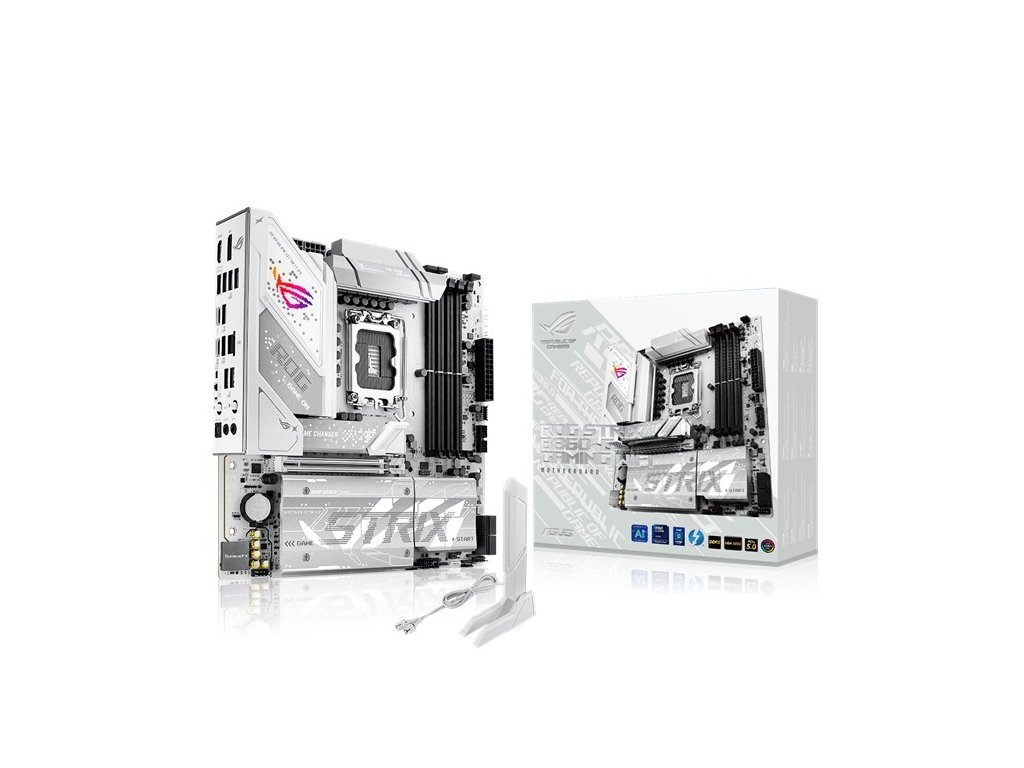

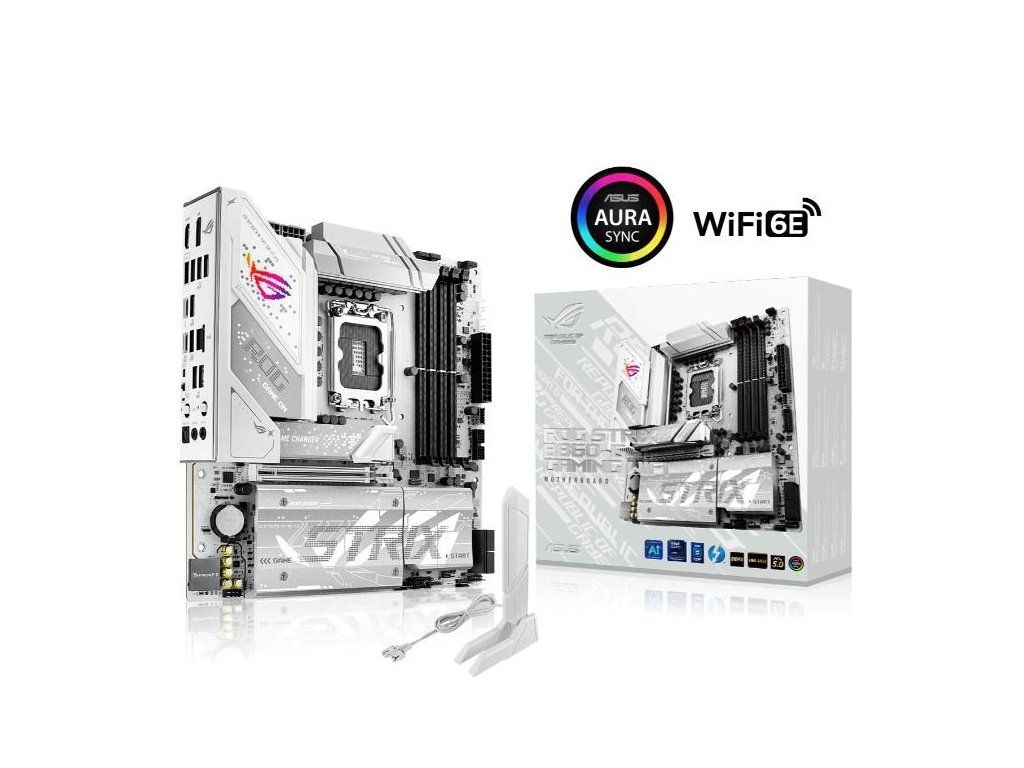

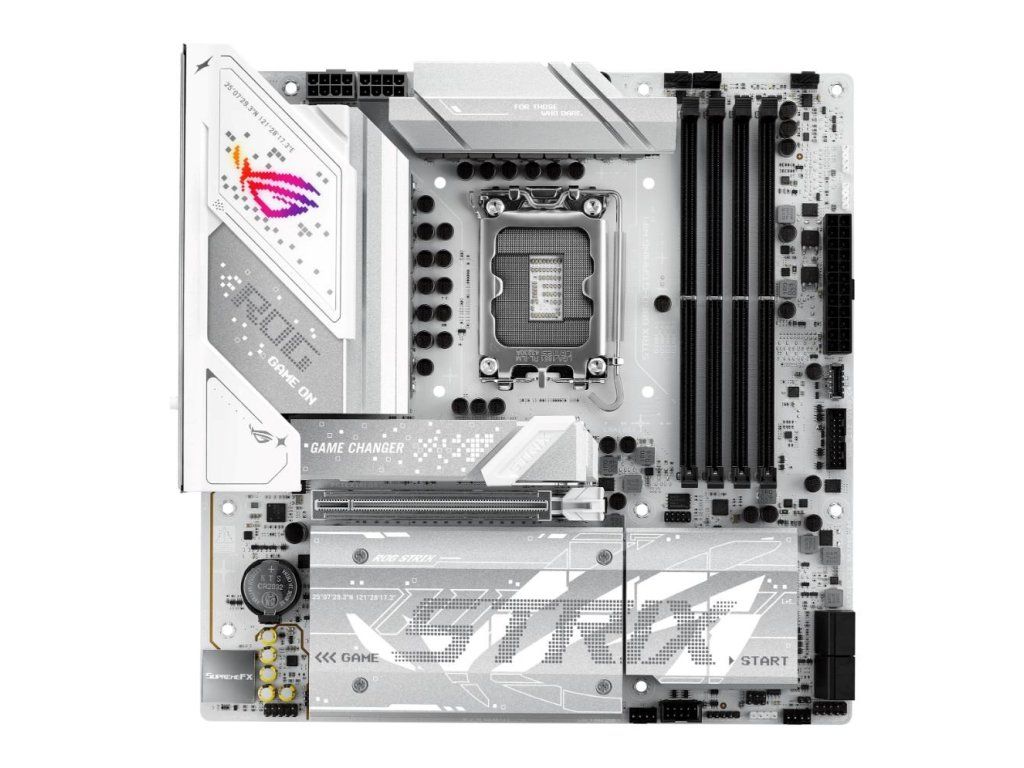

ASUS ROG STRIX B860-G GAMING WIFI soc 1851 DDR5 B860 mATX 90MB1JF0-M0EAY0 Asus

ASUS ROG STRIX B860-G GAMING WIFI * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors(Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *Podpora paměťového modulu Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III(AEMPIII) Grafické porty: *1 x DisplayPort *1 x HDMI™ port *1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs Rozšiřující sloty: Intel® Core™ Ultra Processors(series 2) *1 x PCIe 5.0 x16 slot Úložný prostor: Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4) *M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4) *M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 2.5Gb Ethernet Připojení a Bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Total 7 ports) *1 x Thunderbolt™ 4 port (1 x USB Type-C®) *1 x USB 20Gbps port(s) (1 x USB Type-C®) *1 x USB 10Gbps port(s) (1 x Type-A) *3 x USB 5Gbps port(s) (3 x Type-A) *4 x USB 2.0 port(s) (4 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps connector *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Rear optical S/PDIF out port *Premium audio capacitors *Audio cover Vstupy/výstupy zadního panelu: *1 x Thunderbolt™ 4 USB Type-C® port(s) *1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode) *1 x USB 10Gbps port(s) (1 x Type-A) *3 x USB 5Gbps port(s) (3 x Type-A) *4 x USB 2.0 port(s) (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 2.5Gb Ethernet port *2 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header(s) *1 x 4-pin CPU OPT Fan header(s) *1 x 4-pin AIO Pump header(s) *2 x 4-pin Chassis Fan header(s) Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connector Úložiště: *4 x M.2 slots (Key M) *1 x M.2 Vertical slot (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (support(s) USB Type-C® ) *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *2 x USB 2.0 header(s) support(s) 3 additional USB 2.0 ports Různé: *3 x Addressable Gen 2 header(s) *1 x Front Panel Audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thermal Sensor header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x Cable ties package *1 x M.2 Q-Latch package(s) *1 x M.2 Q-Slide package *1 x ROG key chain *1 x ROG Strix sticker *3 x M.2 rubber package(s) *1 x M.2 backplate rubber package(s) Dokumenty: *1 x Quick start guide
