ASUS RT-BE50 WiFi 7 Extendable Router, AiMesh, 1x WAN, 3x LAN 90IG09U0-MO3S00 Asus

ASUS RT-BE50
Worry-Free Smart Home WiFi

Elevate your smart home with blazing-fast dual-band Wi-Fi 7 speeds of up to 3600 Mbps and boosted coverage with AI-boosted Smart AiMesh technology. With next-gen ASUS advanced network technologies such as IoT Network, the RT-BE50 safeguard your network end-to-end, 24/7.


RT-BE50
Network Standard

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Product Segment

BE3600 ultimate BE performance : 688+2882 Mbps
WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps
Antenna

External antenna x 4
Transmit / Receive

5GHz 2x2
2.4GHz 2x2
Processor

Quad-core processor
Memory

128 MB Flash
256 MB RAM
Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency

2.4GHz / 5GHz, 5 GHz
2.4 GHz
Operating Mode

Repeater Mode
Media Bridge Mode
Access Point Mode
Range Extender Mode
AiMesh Node Mode
Wireless Router Mode

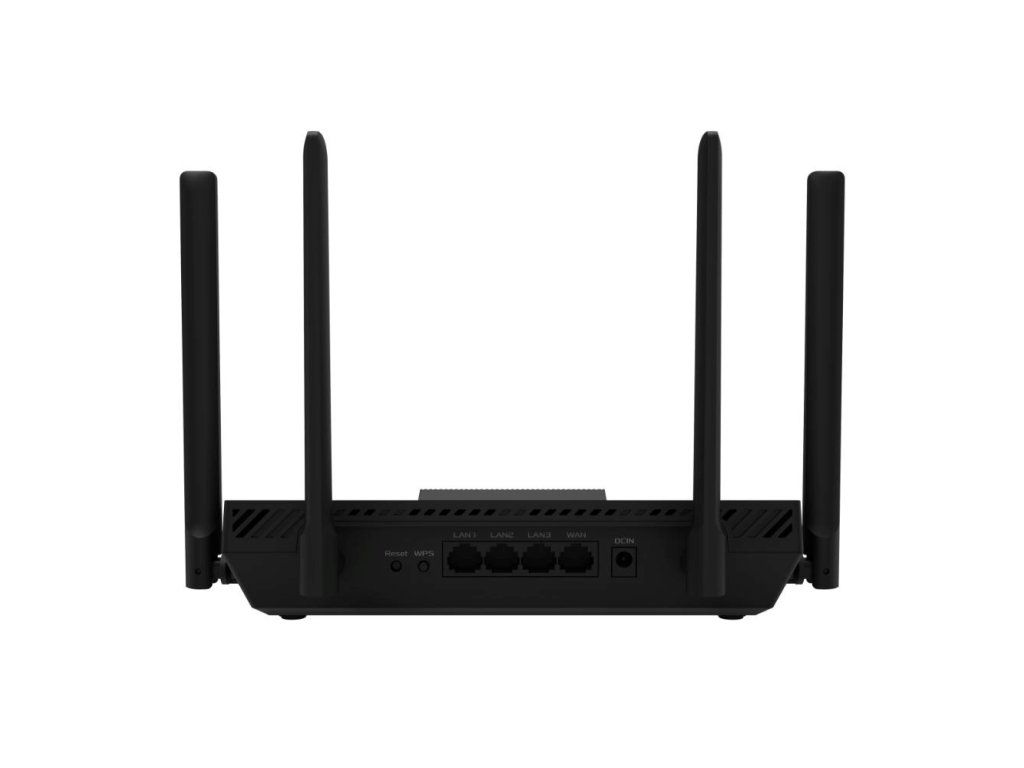

I/O Ports

1x 2.5G for WAN,
3x 1G for LAN,
Buttons

WPS Button, Reset Button
LED Indicator

Power x 1
Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 1.5 A current
Package Content

RT-BE50
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)

450g
Product Dimensions

261 x 156 x 50 mm
AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node
Parental Control

Time Scheduling, Safe Browsing, Customized Internet Schedule
Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit
Security

VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
Traffic Control

• Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor
WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)
Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
User Interface

WEB: ASUSWRT, APP: ASUS Router APP
Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
