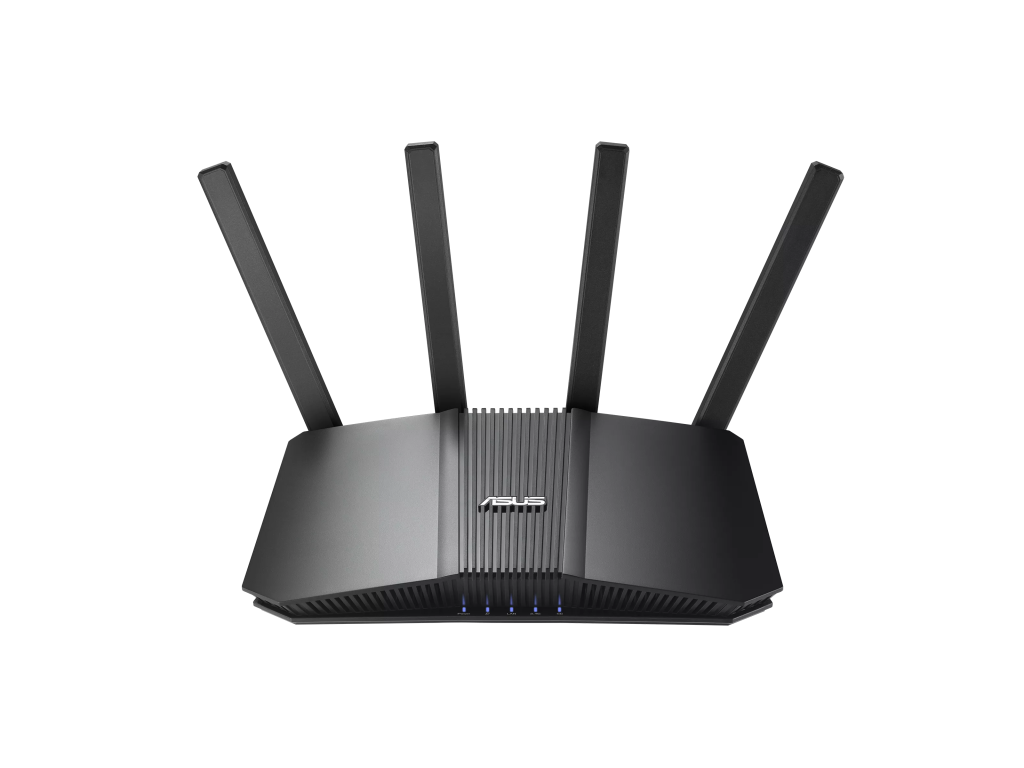

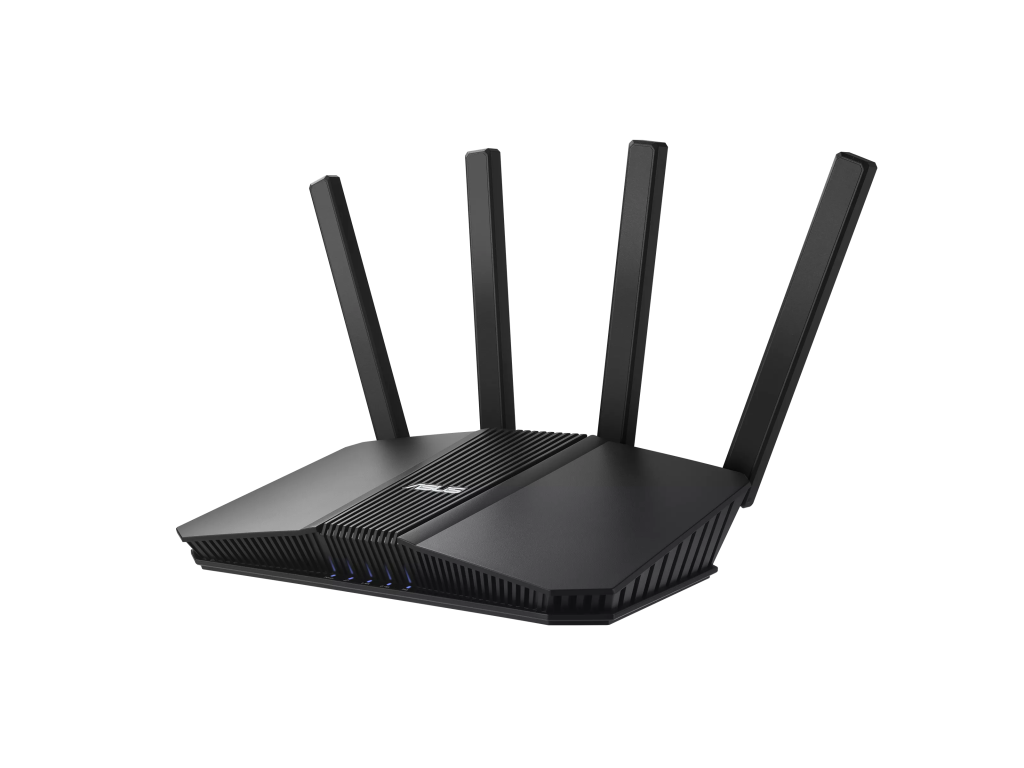

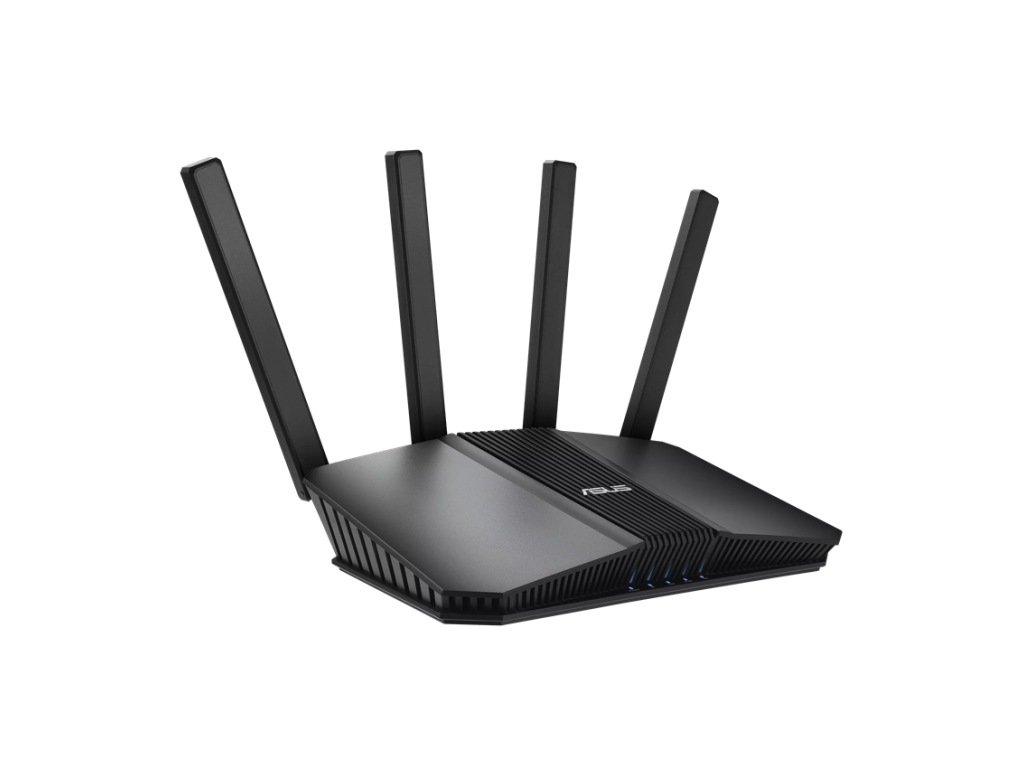

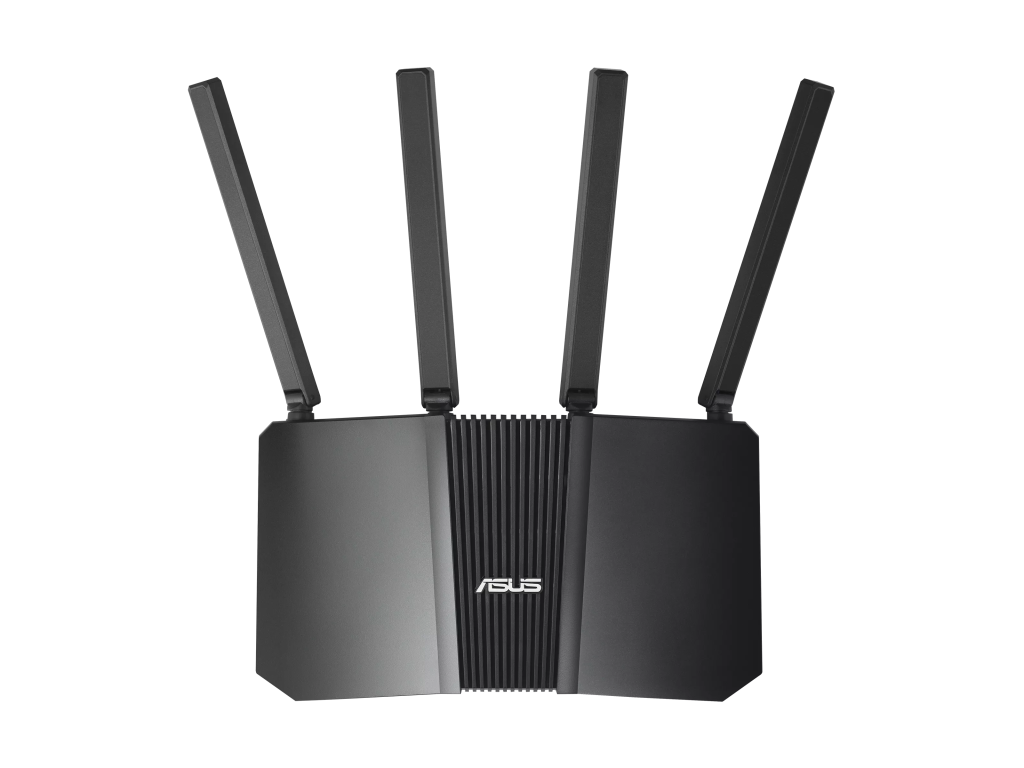

ASUS RT-BE59 90IG0AE0-MO9C00 Asus

WiFi 7 AiMesh Extendable Router, 4K-QAM, MLO, 2.5G WAN port, 2.5G LAN port, Three 1G ports, Commercial-Grade Network Security, Parental Control, IoT network, Kid’s network, VPN network

Beyond-fast WiFi 7 (802.11be) - WiFi 7 (802.11be) with 4096-QAM significantly increases network capacity and throughput, with speeds up to 5000 Mbps.
Multi-link Operation – Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers.
Smart Home Master - Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls.
Commercial-Grade network security - Network security with commercial-grade AiProtection, plus a one-tap security scan and Safe Browsing.
Comprehensive VPN features - Including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi.
Hassle-free AiMesh Extendable Network - AiMesh extendable routers enable whole home seamless roaming with rich, advanced features.

RT-BE59
Network Standard

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Product Segment

BE5000 ultimate BE performance : 688+4320 Mbps
WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 4320 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
Antenna

External antenna x 4; Internal antenna x 1
Transmit / Receive

5GHz 3x3
2.4GHz 2x2
Processor

2.0 GHz quad-core processor
Memory

128 MB Flash
1 GB RAM
Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency

5 GHz
2.4 GHz
Operating Mode

Wireless router mode
AiMesh node mode

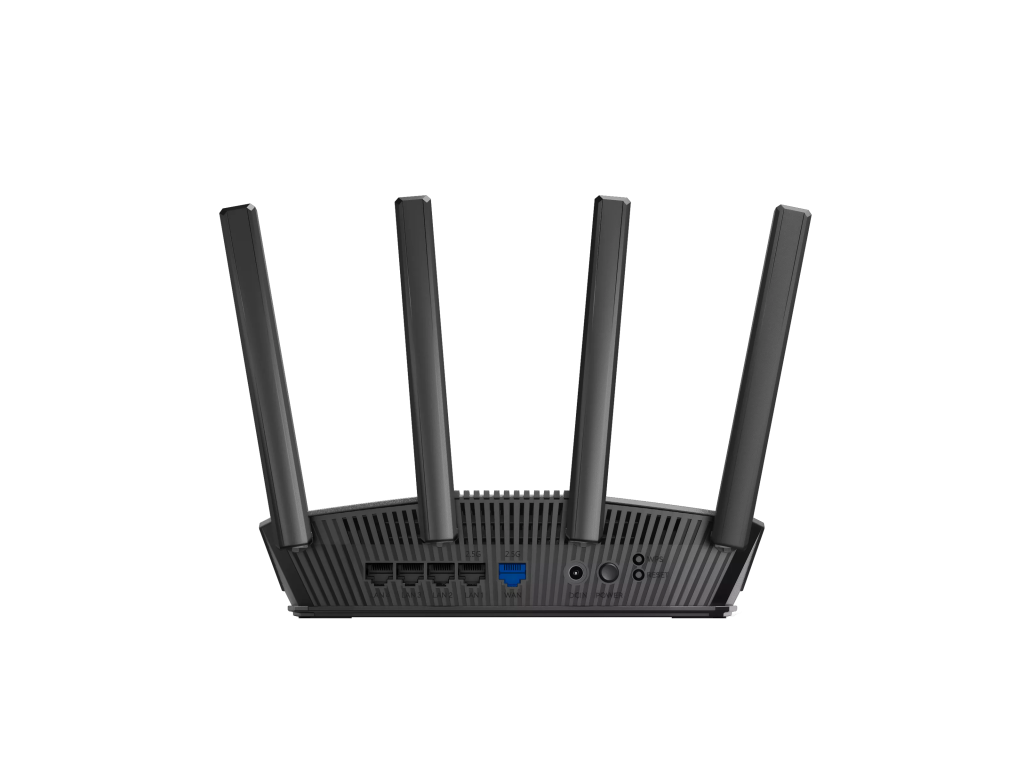

I/O Ports

1x 2.5G for WAN,
1x 2.5G for LAN,
3 x 1G LAN,
Buttons

WPS Button, Reset Button, Power Button
LED Indicator

Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1
Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current
Package Content

RT-BE59
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)

506g
Product Dimensions

238 x 193 x 59 mm
AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node
Parental Control

Time Scheduling, Safe Browsing, Customized Internet Schedule
Security

AiProtection, VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
AiProtection

AiProtection, • Router Security Assessment, • Malicious Site Blocking
VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard
Traffic Control

Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History
WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, • Maximum Port Forwarding Rule : 64, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address
Wireless

MU-MIMO, WiFi MAC Address Filter
User Interface

WEB: ASUSWRT, APP: ASUS Router APP
Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
