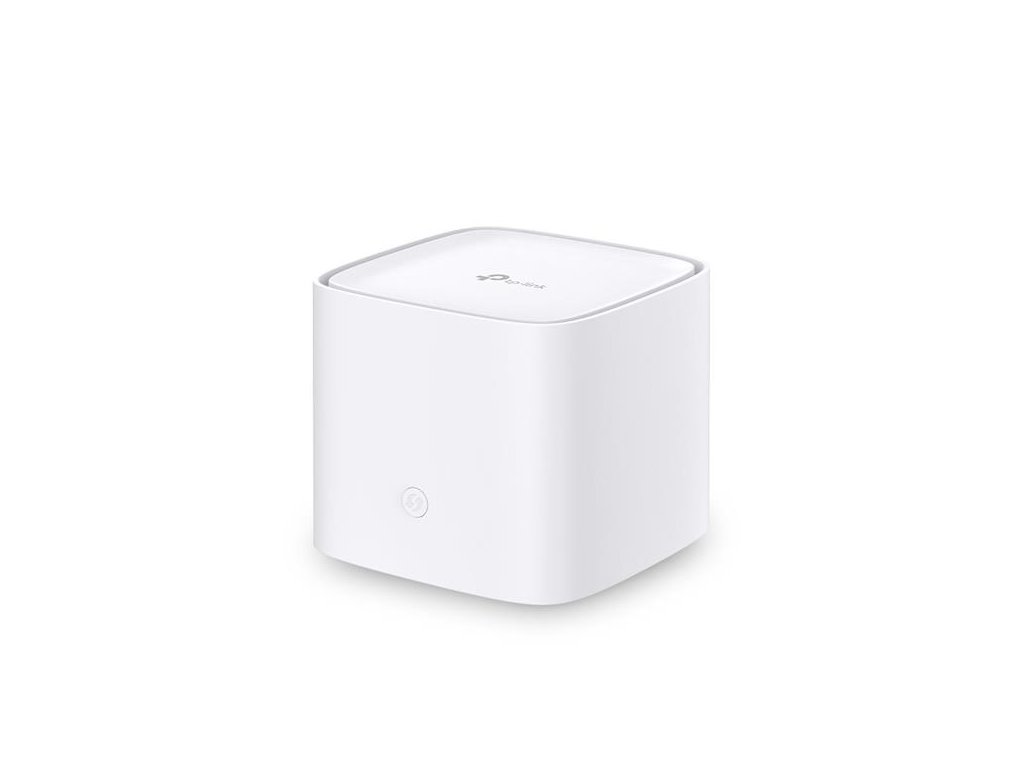

AX1500 Whole Home Mesh Wi-Fi AP SPEED: 300 Mbps at 2.4 GHz +1201 Mbps at 5 GHz SPEC: Internal Antennas, 3× Gigabit Por HX141(1-pack) TP-link

HX141

AX1500 Whole Home Mesh WiFi System

Dual Band WiFi: Speeds up to 1500 Mbps – 1201 Mbps na 5 GHz a 300 Mbps na 2.4 GHz.†

Connect More, Stay Fast: Equipped with the Wi-Fi 6 bezdrôtová technológia pre vysoké rýchlosti, veľká kapacita, a reduced network congestion.*

Boosted Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi signals.

EasyMesh Compatible: Vytvorte a unified smart mesh siete s bezproblémovým pokrytím a skvelou flexibilitou založenou na štandardnej technológii mesh.**

One Unified Network: Multiple units form a whole-home network, ktorý auto-selects najväčšieho pripojenia as you move around your home.

Gigabit Wired Speeds: 1× Gigabit WAN/LAN port a 2× Gigabit LAN porty ponúka flexibilný a fast internet access.

Enhanced Security: WPA3 encryption, Multi-SSID, a parental controls provide personalized and safer online experience.*

Easy Setup and Use: Nastaviť svoju mesh WiFi v minútach s powerful Aginet app.

Remote Management: TR-069, TR-181, TR-111 a TR-143 sú podporované.



HARDWARE FEATURES

Interface 3× Gigabit Ports



*Per Unit

1 Port supports WAN/LAN auto-sensing

Button Reset Button

WPS Button

External Power Supply 12 V ? 1.0 A

Dimensions ( W x D x H ) 3.9 x 3.9 x 3.5 in

(100 x 100 x 89.5 mm)

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac/ax 5 GHz

IEEE 802.11b/g/n 2.4 GHz

Frequency 2.4 GHz and 5 GHz

Signal Rate AX1500

5 GHz: Up to 1201 Mbps (HE80)

2.4 GHz: Up to 300 Mbps

Transmit Power CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)

FCC:<30 dBm

Wireless Security WPA/WPA2/WPA3 Personal

WPA/WPA2 Enterprise

Multi-SSID 2× 5 GHz Multi-SSID

2× 2.4 GHz Multi-SSID

SOFTWARE FEATURES

Mesh Technology EasyMesh compatible, and supports 802.11k/v/r, Ethernet Backhaul

Quality of Service WMM

Advanced Features Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule, Wireless Statistics, Guest Network, Beamforming, MU-MIMO, Band Steering, Airtime Fairness

WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP/Bridge (Multi-EWAN)

Management Local management: WebGUI, Aginet app (for end users)



Remote management: TR-069, TR-098, TR-181, TR-111,TR-143 for service providers

Aginet App for end users (need to log in wtih TP-Link ID and bind your device to it)

VPN PPTP, OpenVPN, IPSec

Firewall Security SPI Firewall, IP and MAC Address Binding

Protocols IPv4

IPv6

Working Modes Router Mode

Access Point Mode

OTHERS

Package Contents HX141 (2-Pack)

2× HX141 Units

2× Power Adapters

1× RJ45 Ethernet Cable

1× Quick Installation Guide



HX141 (1-Pack)

1× HX141 Unit

1× Power Adapter

1× RJ45 Ethernet Cable

1× Quick Installation Guide

Certifications CE

Environment Operating Temperature: 0?–40? (32?–104?)

Storage Temperature: -40?–60? (-40?–140?)

Operating Humidity: 10%–90% non-condensing

Storage Humidity: 5%–90% non-condensing
