DIGITUS Industrial 8+4-Port Gigabit Ethernet PoE Switch 8 x GE RJ45 + 2 SFP+ Port, PoE DN-651153 Digitus
DIGITUS Industrial 8+4-Port Gigabit Ethernet PoE Switch 8 x GE RJ45 + 4 SFP Port, PoE
8x PoE 10/100/1000 BASE-TX RJ45 + 4 x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40C to 80C.

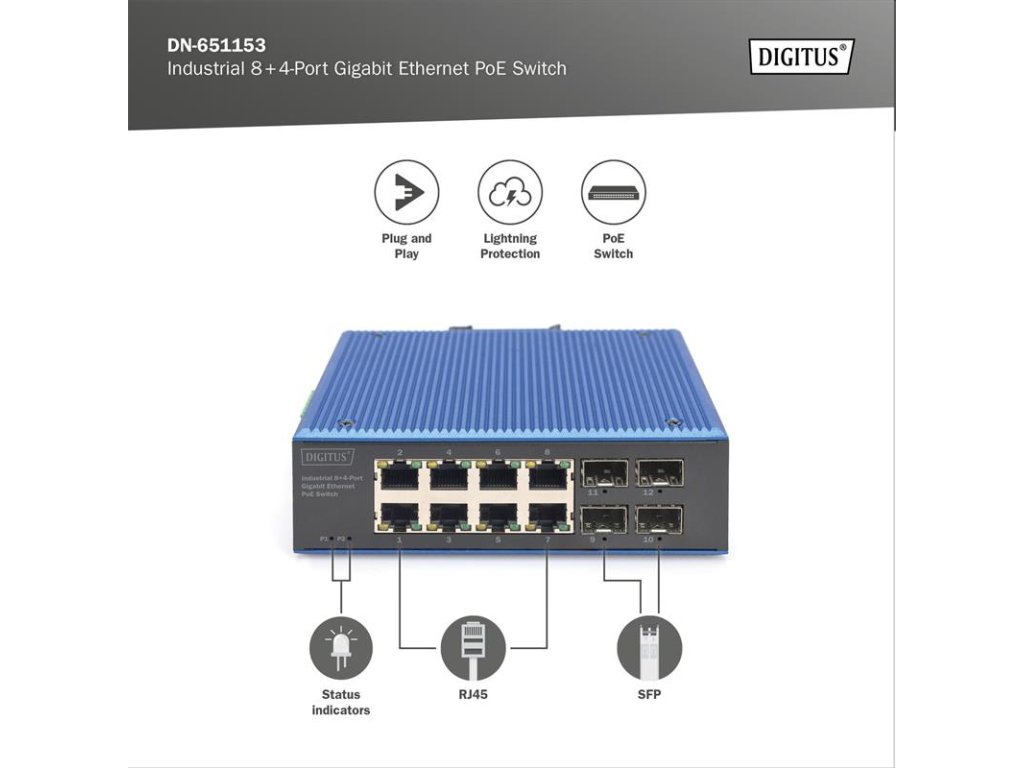

8 port GE, 2 SFP GE ports
8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
4 x 10/100/1000 Mbit (SFP)
Redundant power supply 48-57 V (DC)
Metal housing to IP40 standard

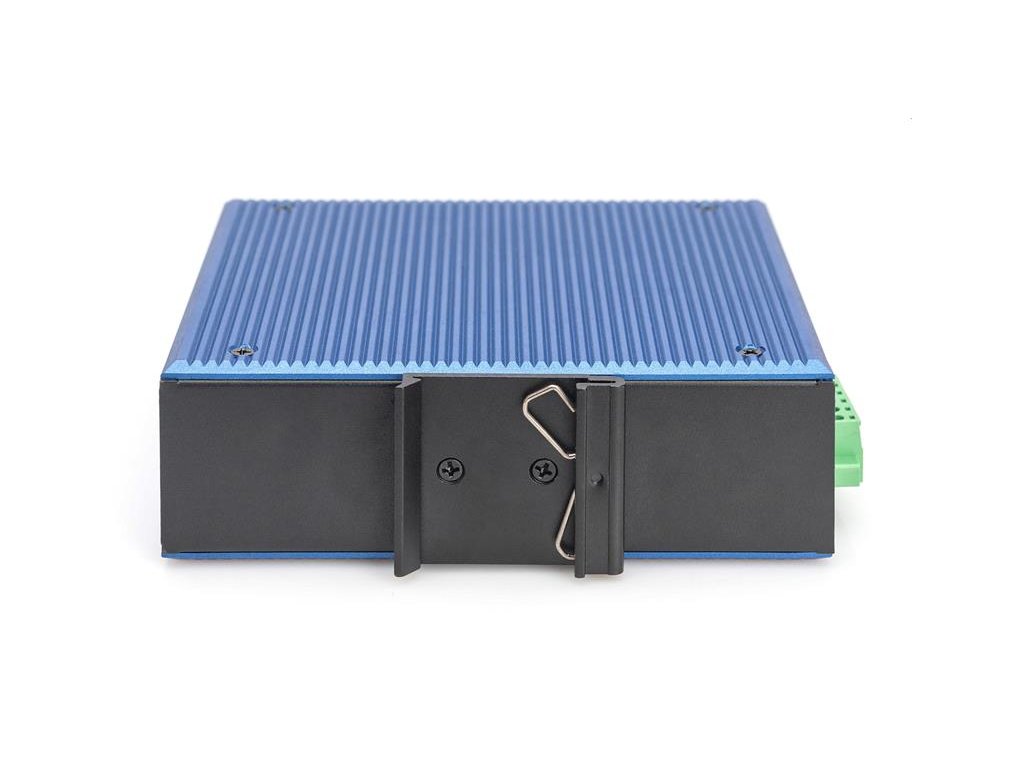

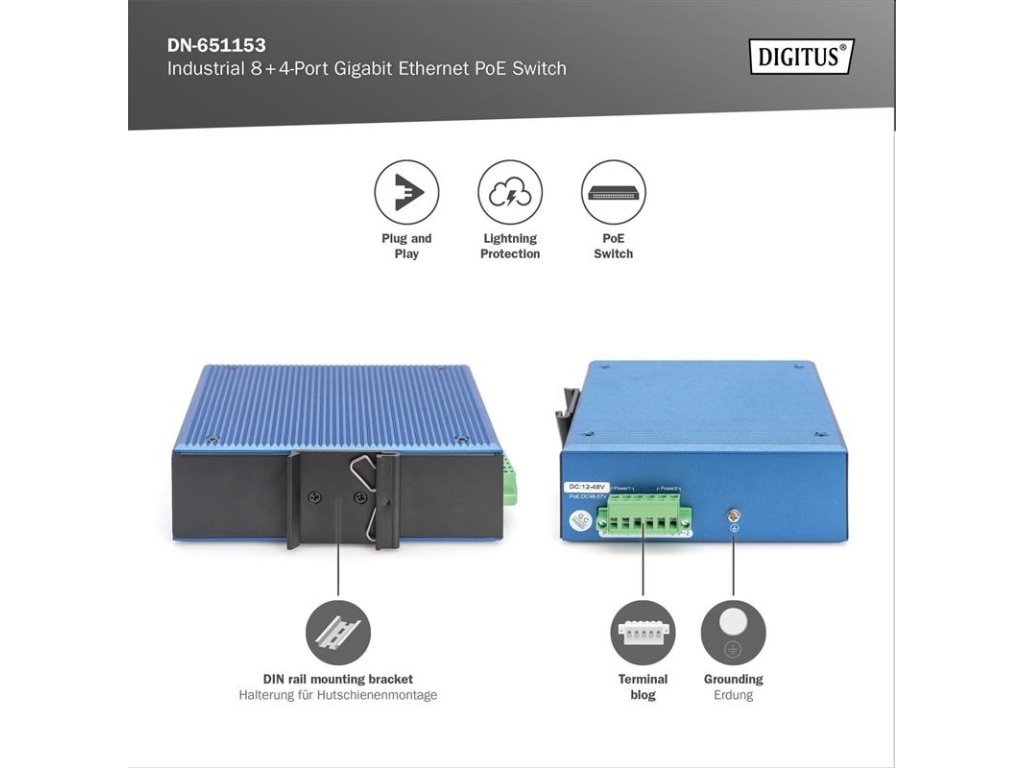

Simple mounting on a top-hat rail
Operating temperature from - 40° up to 80° C
Simple plug & play installation
ESD & EFT protection up to 6 kV (DC)
Ideal for connecting camera systems

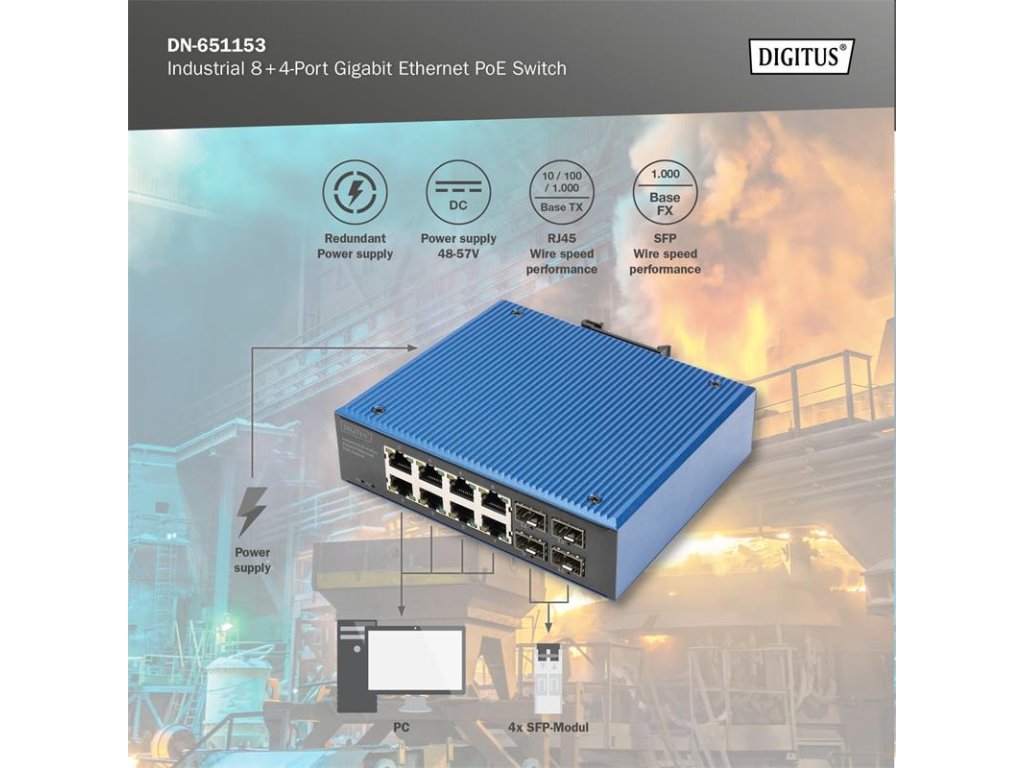

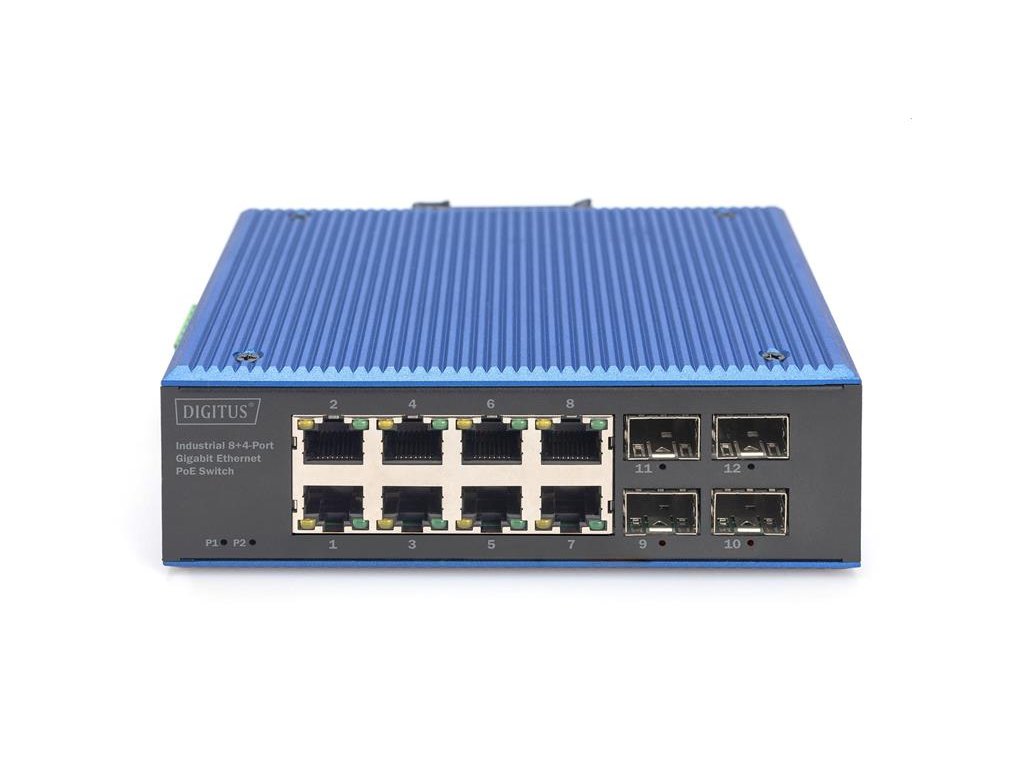

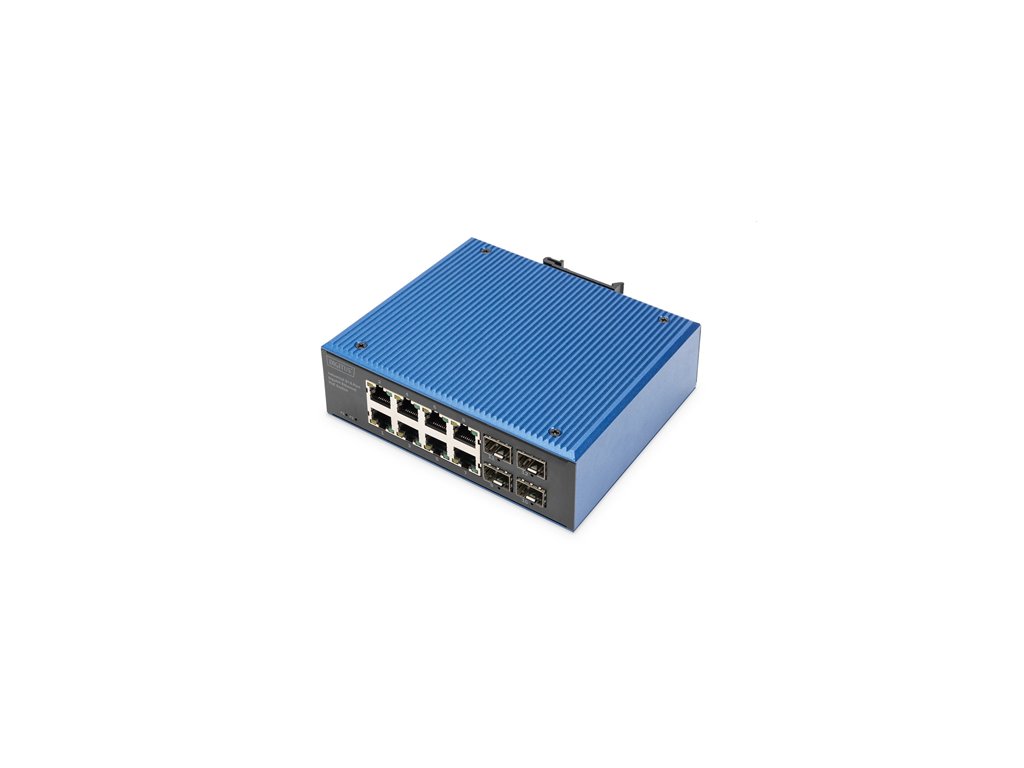

The DN-651153 is a robust 8+4 port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 4 x 1000 Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40C to 80C.
Technical details
Supports IEEE802.3x flow control, and backpressure
Supports store-and-forward technology for optimized data transmission
Automatic speed and half/full duplex detection/adjustment
8 port PoE with up to 30 W
Bandwidth: 52 Gbps
Packet buffer: 4.1 Mbit
Packet forwarding size: 38.7 Mbps
Size of the MAC address table: 8K
Jumbo frame rate: 9000 byte
ESD protection: 6 kV (DC)
EFT protection: 6 kV (DC)
Metal housing, IP40
4 kV lightning protection and surge protection

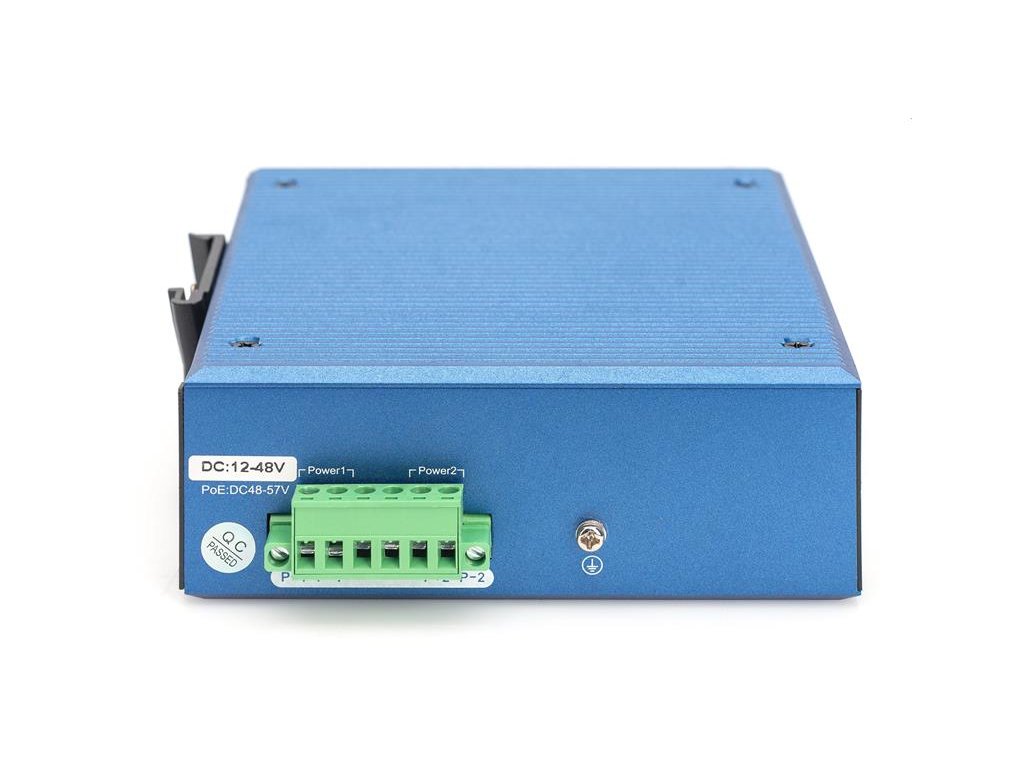

Redundant power supply with reverse polarity protection function
Power supply: 48 to 57 V
Power consumption: < 10 W
Removable terminal connection
Protection class: IP40
Dimensions: 143.7 x 125 x 47.7 mm
Weight: 0.76 kg
Operating temperature: -40 to 80 ° C
Storage temperature: -40 to 80 ° C
Humidity: 5% to 95% (non-condensing)
MTBF: 300,000
Total PoE budget: 200 W
Number of ports: 8
PoE standard: IEEE802.3af (PoE)
Ethernet speed: Gigabit
Industrial usage: yes
Managed: no
Number of ports (Uplink): 4
Outdoorsuitable: no
PoE (Power over Ethernet): yes
Protection against vanadlism: no
Uplink port connection: SFP
VLAN: no
8x PoE 10/100/1000 BASE-TX RJ45 + 4 x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40C to 80C.
8 port GE, 2 SFP GE ports
8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
4 x 10/100/1000 Mbit (SFP)
Redundant power supply 48-57 V (DC)
Metal housing to IP40 standard
Simple mounting on a top-hat rail
Operating temperature from - 40° up to 80° C
Simple plug & play installation
ESD & EFT protection up to 6 kV (DC)
Ideal for connecting camera systems
The DN-651153 is a robust 8+4 port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 4 x 1000 Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40C to 80C.
Technical details
Supports IEEE802.3x flow control, and backpressure
Supports store-and-forward technology for optimized data transmission
Automatic speed and half/full duplex detection/adjustment
8 port PoE with up to 30 W
Bandwidth: 52 Gbps
Packet buffer: 4.1 Mbit
Packet forwarding size: 38.7 Mbps
Size of the MAC address table: 8K
Jumbo frame rate: 9000 byte
ESD protection: 6 kV (DC)
EFT protection: 6 kV (DC)
Metal housing, IP40
4 kV lightning protection and surge protection
Redundant power supply with reverse polarity protection function
Power supply: 48 to 57 V
Power consumption: < 10 W
Removable terminal connection
Protection class: IP40
Dimensions: 143.7 x 125 x 47.7 mm
Weight: 0.76 kg
Operating temperature: -40 to 80 ° C
Storage temperature: -40 to 80 ° C
Humidity: 5% to 95% (non-condensing)
MTBF: 300,000
Total PoE budget: 200 W
Number of ports: 8
PoE standard: IEEE802.3af (PoE)
Ethernet speed: Gigabit
Industrial usage: yes
Managed: no
Number of ports (Uplink): 4
Outdoorsuitable: no
PoE (Power over Ethernet): yes
Protection against vanadlism: no
Uplink port connection: SFP
VLAN: no
Dodatočné parametre
| Kategória: | Prepínače (switch) |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.75 kg |
| EAN: | 4016032490494 |
