DIGITUS Professional 16 port gigabit PoE+ injector DN-95116 Digitus

DIGITUS 16-Port Gigabit PoE+ Injector 16 ports data in, 16 ports data out+PoE 250W power support

Description
16 port gigabit PoE+ injector


Minimization of the cabling costs for PoE-capable devices


16 gigabit ports with PoE+ support
250 watt performance with up to 30 watts per port
Compatible with the IEEE802.3af and IEEE802.3at standards
Automatic surge protection

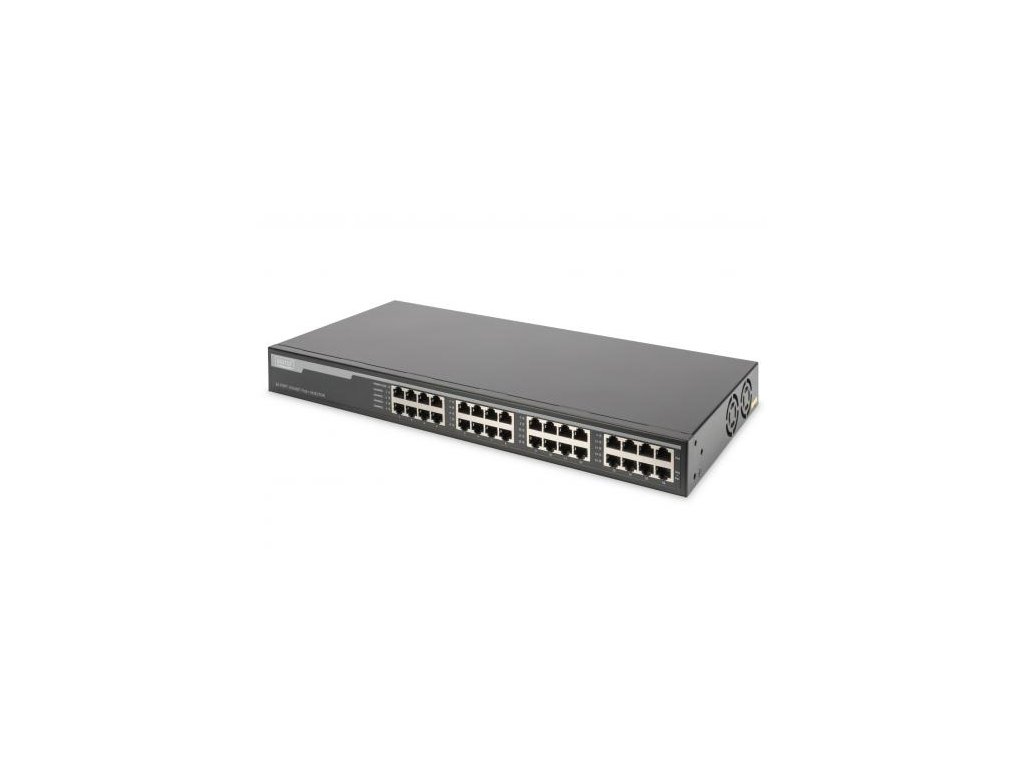

The DIGITUS® DN-95116 is an 16 port gigabit PoE+ mid-span hub (PoE injector). It offers 16 input ports for data and 16 output ports which make data and PoE available. Each PoE-port supports connected devices in accordance with the IEEE802.3af and IEEE802.3at PoE standard with 15.4 watts and/or 30 watts, such as PoE access points, PoE IP-telephones or PoE IP cameras, for example. The switch makes available a maximum budget of 250 watts for all ports and maximum budget of 30 watts per port.

Technical details
32 x 10/100/1000Mbps (16 x input data, 16 x output data+PoE)
Compatible with the IEEE802.3af and IEEE802.3at standards
PoE power supply via PIN 1.2(V-) and PIN 3.6(V+)
Maximum total output of 250 watts
Compatible with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
Automatic cable recognition - Auto-MDI-/ MDI-X function
Auto recognition of full and half duplex
Power supply: 100V AC ~ 240V AC
Operating temperature range: -10 °C to +45 °C
Storage temperature: -20°C - 70°C
Dimensions (mm): 440(L) x 200(W) x 45(H)
MTBF: 100,000 hours


Package content
16 port gigabit PoE+ injector
Quick start guide
Power Cord cable
Mounting accessories
