DIGITUS Zásuvka modulární 3 port, neosadená pod omietku, German 80x80, centr.plate 50x50 uhlovy DN-93821 Digitus

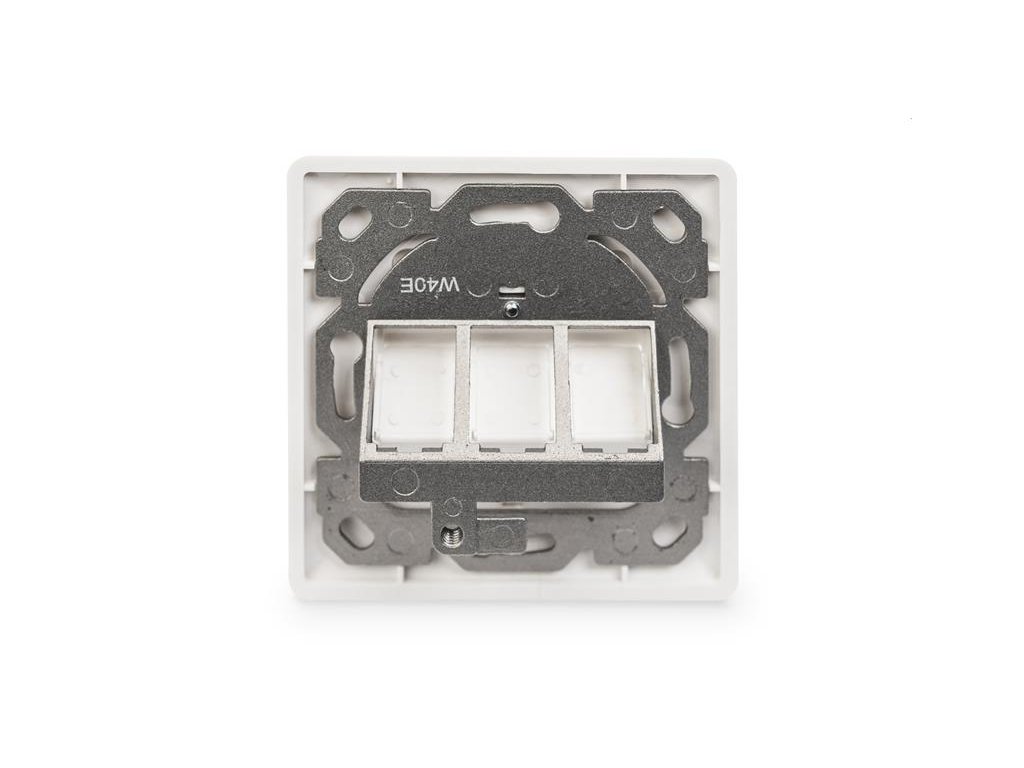

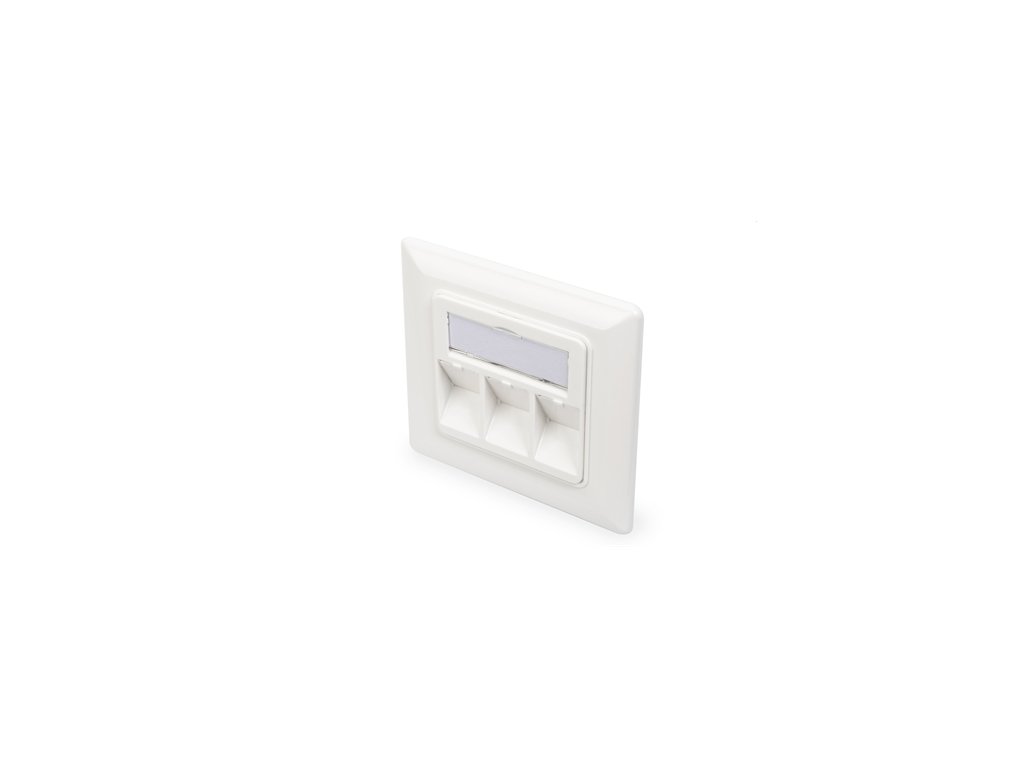

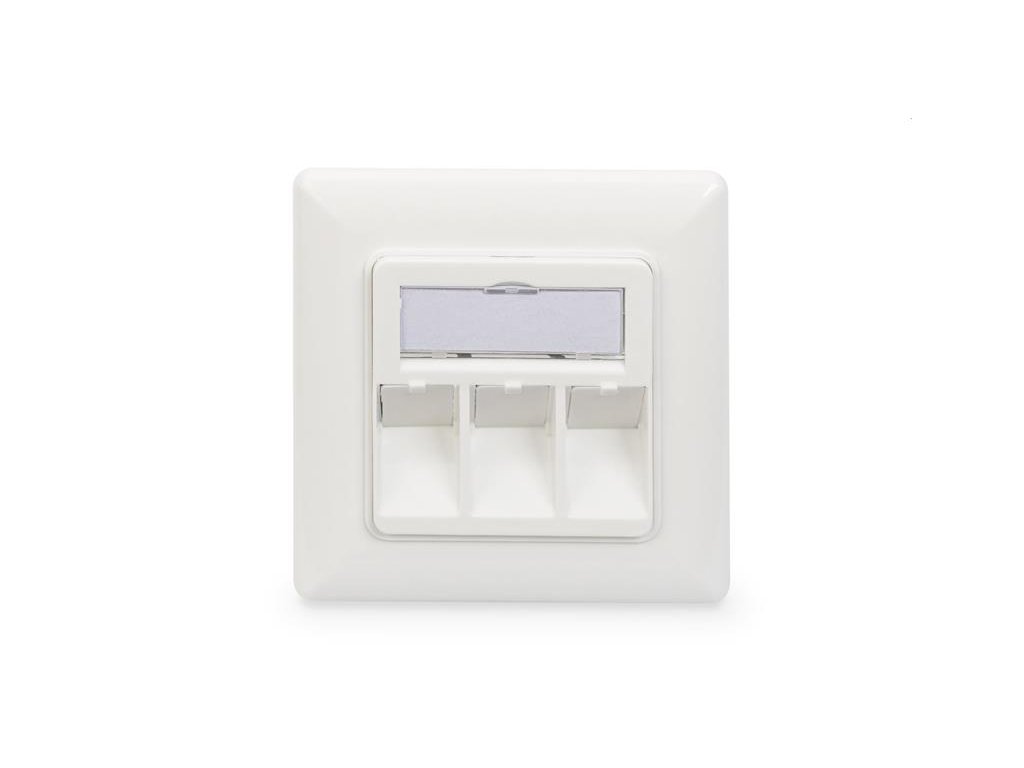

Faceplate for Keystone Jacks,3x RJ45 dust cover, 80/80 + central plate, pure white
DESCRIPTION
The DIGITUS® Faceplates are suitable for the connection of all shielded DIGITUS® Keystone Modules. Included dust protection shutters provide a perfect protection. Their connection way of the module is 45° vertical (German and British Layout) or 90° horizontal (French Layout).
TECHNICAL DETAILS
Layout keystone entry: 45° outlet
Area of application: Cavity socket, trunking, surface mount box
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, flush and surface mount
Central ground connection
Integrated dust cover
Plastic label field
Design compatible with spacer ring to current switch ranges of switch manufacturers
Technical properties:
Wall outlet material: Die-cast metal
Central plate material: ABS UL 94V-0
Frame material: ABS UL 94V-0
Surface mount box material: ABS UL 94V-0
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Colour: White RAL9003
DESCRIPTION
The DIGITUS® Faceplates are suitable for the connection of all shielded DIGITUS® Keystone Modules. Included dust protection shutters provide a perfect protection. Their connection way of the module is 45° vertical (German and British Layout) or 90° horizontal (French Layout).
TECHNICAL DETAILS
Layout keystone entry: 45° outlet
Area of application: Cavity socket, trunking, surface mount box
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, flush and surface mount
Central ground connection
Integrated dust cover
Plastic label field
Design compatible with spacer ring to current switch ranges of switch manufacturers
Technical properties:
Wall outlet material: Die-cast metal
Central plate material: ABS UL 94V-0
Frame material: ABS UL 94V-0
Surface mount box material: ABS UL 94V-0
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Colour: White RAL9003
Dodatočné parametre
| Kategória: | Konektory a zásuvky |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.09 kg |
