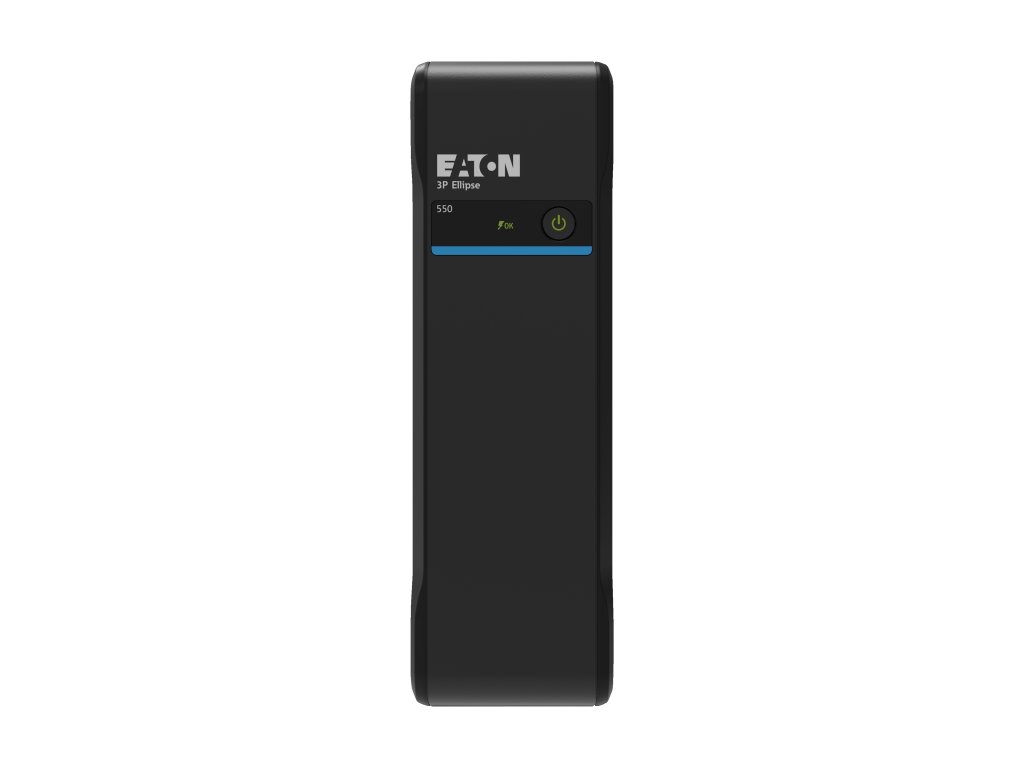

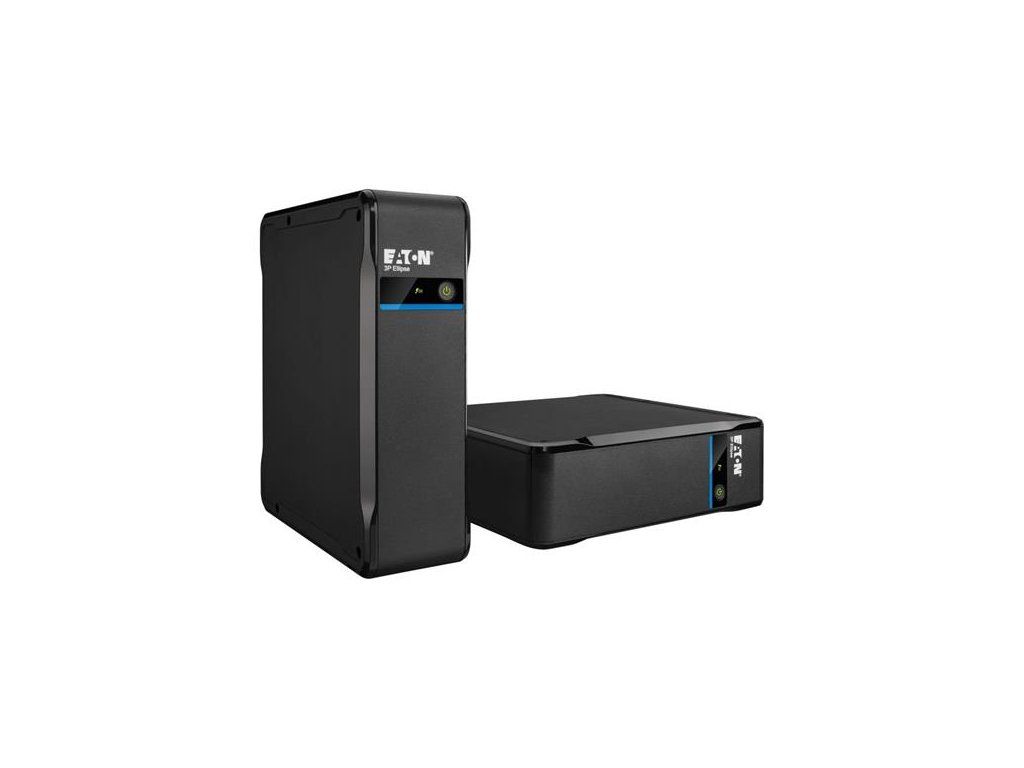

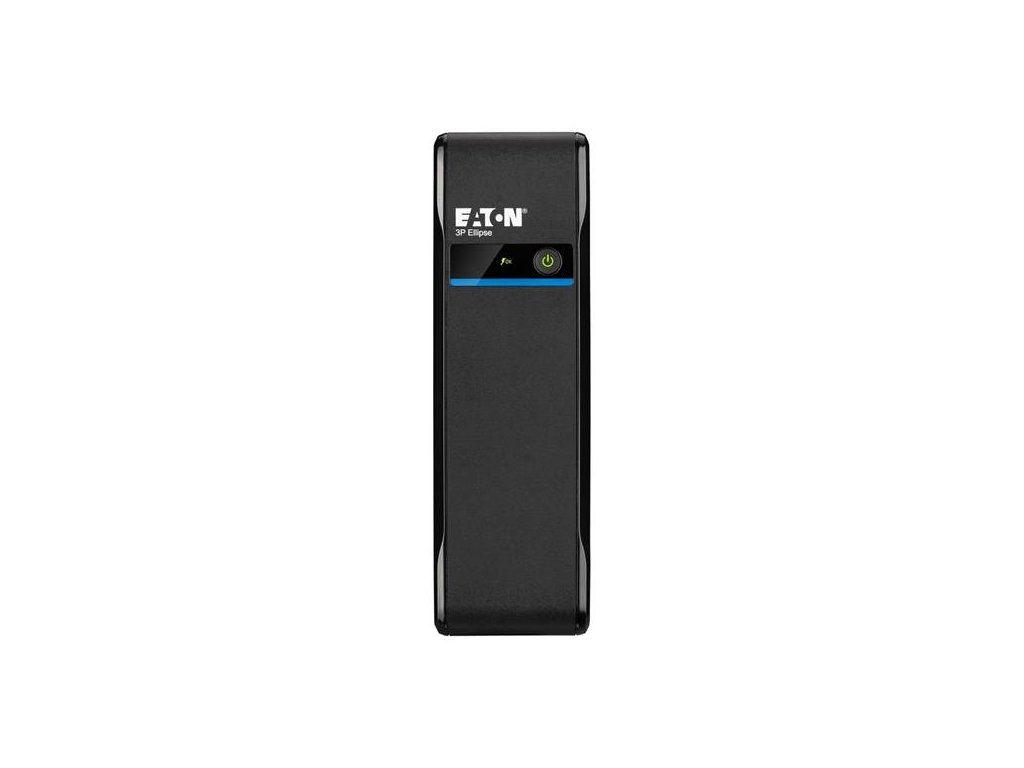

Eaton UPS 1/1fáza, 700VA-3P Ellipse 700 IEC 3P700I
General Specifications
Product Name Eaton 3P Ellipse UPS
Catalog Number 3P700I
EAN 3553340621291
Product Length/Depth 235 mm
Product Height 263 mm
Product Width 81 mm
Product Weight 3.7 kg
Warranty 3 year on electronics, 2 year on battery
Compliances CE Marked LVD Directive (CB) EMC Directive RoHS Directive WEEE Directive Packaging Directive Batteries Directive IEC 61643-11
Certifications IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm
Model Code Eaton 3P Ellipse 700 IEC
Product specifications
Special features Convenient extra-flat design for easy installation in any office environmentHigh performance surge-protection device compliant with IEC 61643-11 standard4 outlets to connect your PC + peripheralsEasy to replace battery helps to extend UPS service life
Topology Offline
Form factor Tower
Construction type Free standing model
Color Black
VA rating 700 VA
Wattage 420 W
Rack mounting kit No
Package contents (2) IEC-IEC cablesQuick startSafety instructions
Surge protection Yes
Auto shutdown function No
Primary frequency - max 70 Hz
Primary frequency - min 46 Hz
Input connection C14
Input nominal voltage 230V default (220/230/240V)
Nominal frequency 50-60 Hz
Input frequency range 46-70 Hz

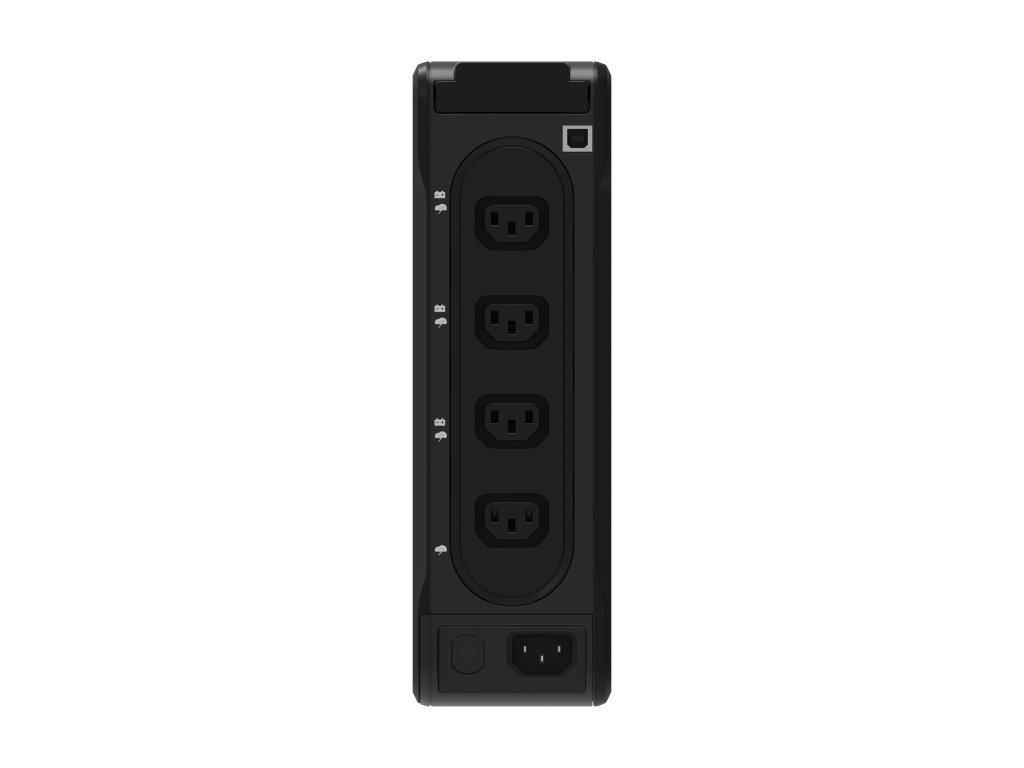

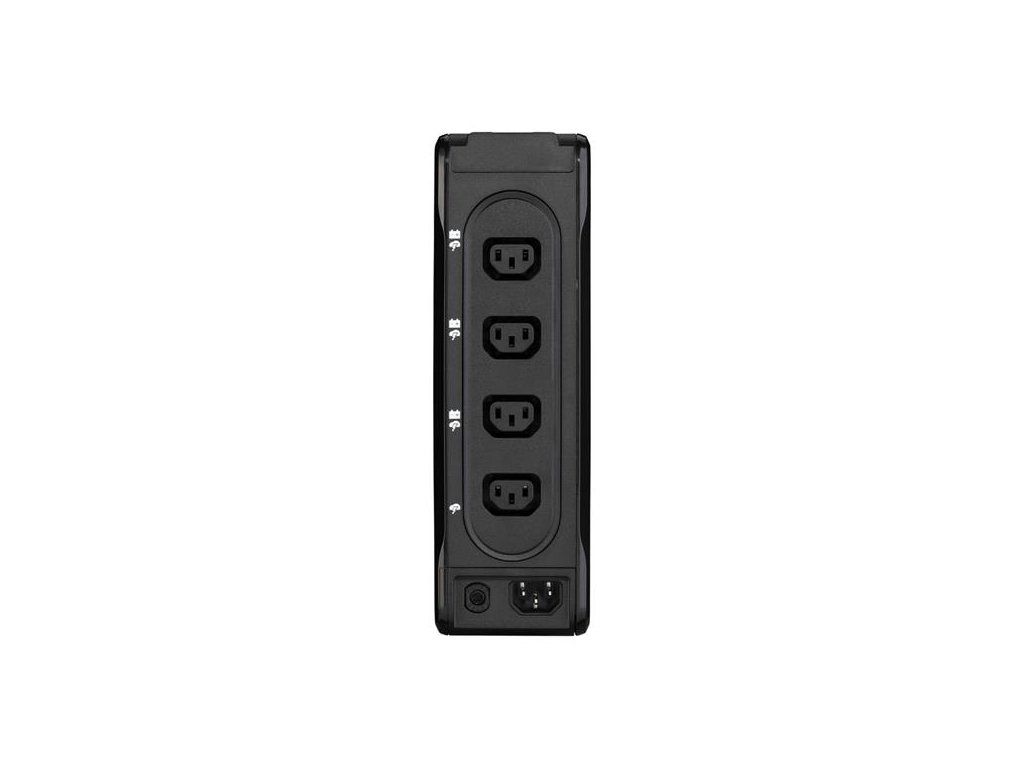

Receptacle (3) C13, (1) C13 surge only
Number of Outputs C13 4
Voltage 230V
Output nominal voltage 230V default (220/230/240V)
Feed type 1
Voltage type AC
Runtime graph View runtime graph
Battery management Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Battery rating 12 V / 7 Ah
Battery type Sealed, lead-acid
Extended battery capability No
Runtime at half load 8.5 min
Expansion slots No
Ethernet interface No
Includes network card No
User interface LED display
Type of interface None
Potential free switch contact No
Altitude 3000 m
Noise level <25 dB at 1 meter
Relative humidity 0 - 95 % (non-condensing)
Temperature range 0° to 40°C (32° to 104°F)
Operating temperature - max 40 °C
Operating temperature - min 0 °C
Output apparent power 700 VA
Input voltage - max 284 V
Input voltage - min 161 V
Output voltage - max 284 V
Output voltage - min 161 V
Secondary frequency - max 60 Hz
Secondary frequency - min 50 Hz
Battery quantity 1
Efficiency at max. load 97
Efficiency (eco-mode) 97
Input voltage range 184-264 V (adjustable to 161-284 V)
Output frequency 50/60 Hz
Output power factor 0.6
Output voltage range 184-264 V (adjustable to 161-284 V)
Phase (input) 1
Phase (output) 1
Runtime at full load 1,5
Power consumption 13 W
USB interface No
Product Name Eaton 3P Ellipse UPS
Catalog Number 3P700I
EAN 3553340621291
Product Length/Depth 235 mm
Product Height 263 mm
Product Width 81 mm
Product Weight 3.7 kg
Warranty 3 year on electronics, 2 year on battery
Compliances CE Marked LVD Directive (CB) EMC Directive RoHS Directive WEEE Directive Packaging Directive Batteries Directive IEC 61643-11
Certifications IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm
Model Code Eaton 3P Ellipse 700 IEC
Product specifications
Special features Convenient extra-flat design for easy installation in any office environmentHigh performance surge-protection device compliant with IEC 61643-11 standard4 outlets to connect your PC + peripheralsEasy to replace battery helps to extend UPS service life
Topology Offline
Form factor Tower
Construction type Free standing model
Color Black
VA rating 700 VA
Wattage 420 W
Rack mounting kit No
Package contents (2) IEC-IEC cablesQuick startSafety instructions
Surge protection Yes
Auto shutdown function No
Primary frequency - max 70 Hz
Primary frequency - min 46 Hz
Input connection C14
Input nominal voltage 230V default (220/230/240V)
Nominal frequency 50-60 Hz
Input frequency range 46-70 Hz
Receptacle (3) C13, (1) C13 surge only
Number of Outputs C13 4
Voltage 230V
Output nominal voltage 230V default (220/230/240V)
Feed type 1
Voltage type AC
Runtime graph View runtime graph
Battery management Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Battery rating 12 V / 7 Ah
Battery type Sealed, lead-acid
Extended battery capability No
Runtime at half load 8.5 min
Expansion slots No
Ethernet interface No
Includes network card No
User interface LED display
Type of interface None
Potential free switch contact No
Altitude 3000 m
Noise level <25 dB at 1 meter
Relative humidity 0 - 95 % (non-condensing)
Temperature range 0° to 40°C (32° to 104°F)
Operating temperature - max 40 °C
Operating temperature - min 0 °C
Output apparent power 700 VA
Input voltage - max 284 V
Input voltage - min 161 V
Output voltage - max 284 V
Output voltage - min 161 V
Secondary frequency - max 60 Hz
Secondary frequency - min 50 Hz
Battery quantity 1
Efficiency at max. load 97
Efficiency (eco-mode) 97
Input voltage range 184-264 V (adjustable to 161-284 V)
Output frequency 50/60 Hz
Output power factor 0.6
Output voltage range 184-264 V (adjustable to 161-284 V)
Phase (input) 1
Phase (output) 1
Runtime at full load 1,5
Power consumption 13 W
USB interface No
Dodatočné parametre
| Kategória: | Záložné zdroje UPS |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 4.37 kg |
| EAN: | 3553340621291 |
