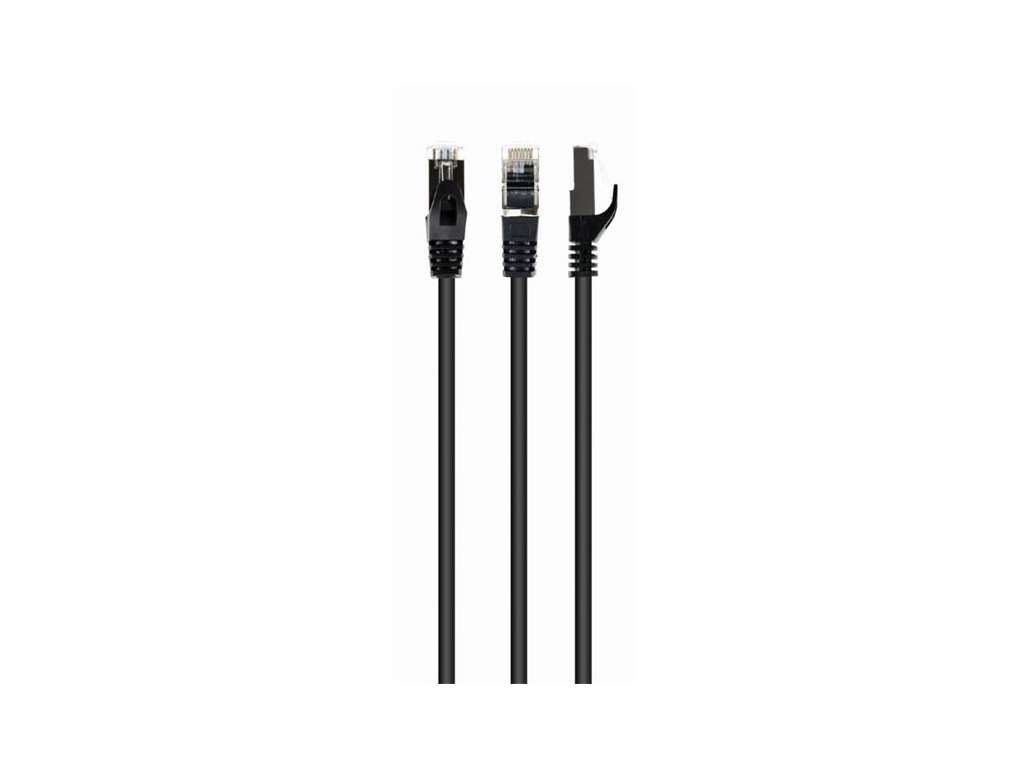

Gembird patch kábel S/FTP Cat. 6A LSZH, 10 m, čierny PP6A-LSZHCU-BK-10M
Gembird patch kábel S/FTP Cat. 6A LSZH, 10 m, čierny PP6A-LSZHCU-BK-10M
Perfect connection
Dual shielded - for a reliable connection
Low Smoke Zero Halogen (LSZH) jacket
Gold plated contacts
Patch cord with foil shielded pairs and braided cable, CAT 6A
Gold plated contacts
Low Smoke Zero Halogen (LSZH) jacket
Molded strain reliefs
Snagless boots
Specifications
Category: category 6A
Type: SSTP (dual shielded)
Frequency bandwidth: Max. 500 MHz
Compliance with ANSI / TIA / EIA-568B standards
Conductor: AWG 27 (7 x 0.135 mm wire), CU
Conductor insulation: FM-PE 1.0 mm
Shielding: AL foil + braid shield (16 x 4/0.12 mm)
LDPE filler: yes
Polyester tape: yes
Drain wire: n/a
Jacket material: LSZH
Jacket braiding: n/a
Jacket outer diameter: 6.2 mm
Length: conform item description
Color: conform item description
Dual shielded - for a reliable connection
Low Smoke Zero Halogen (LSZH) jacket
Gold plated contacts
Patch cord with foil shielded pairs and braided cable, CAT 6A
Gold plated contacts
Low Smoke Zero Halogen (LSZH) jacket
Molded strain reliefs
Snagless boots
Specifications
Category: category 6A
Type: SSTP (dual shielded)
Frequency bandwidth: Max. 500 MHz
Compliance with ANSI / TIA / EIA-568B standards
Conductor: AWG 27 (7 x 0.135 mm wire), CU
Conductor insulation: FM-PE 1.0 mm
Shielding: AL foil + braid shield (16 x 4/0.12 mm)
LDPE filler: yes
Polyester tape: yes
Drain wire: n/a
Jacket material: LSZH
Jacket braiding: n/a
Jacket outer diameter: 6.2 mm
Length: conform item description
Color: conform item description
Dodatočné parametre
| Kategória: | Patch káble |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.29 kg |
| EAN: | 8716309118705 |
| Tienenie: | Áno |
| Typ: | Kábel |
| Typ konektoru B: | RJ-45 M |
| Typ konektoru A: | RJ-45 M |
| Typ jadra: | Metalické |
| Dĺžka kábla [m]: | 10 |
| Typ kábla: | Patch kábel |
| Položka bola vypredaná… | |
