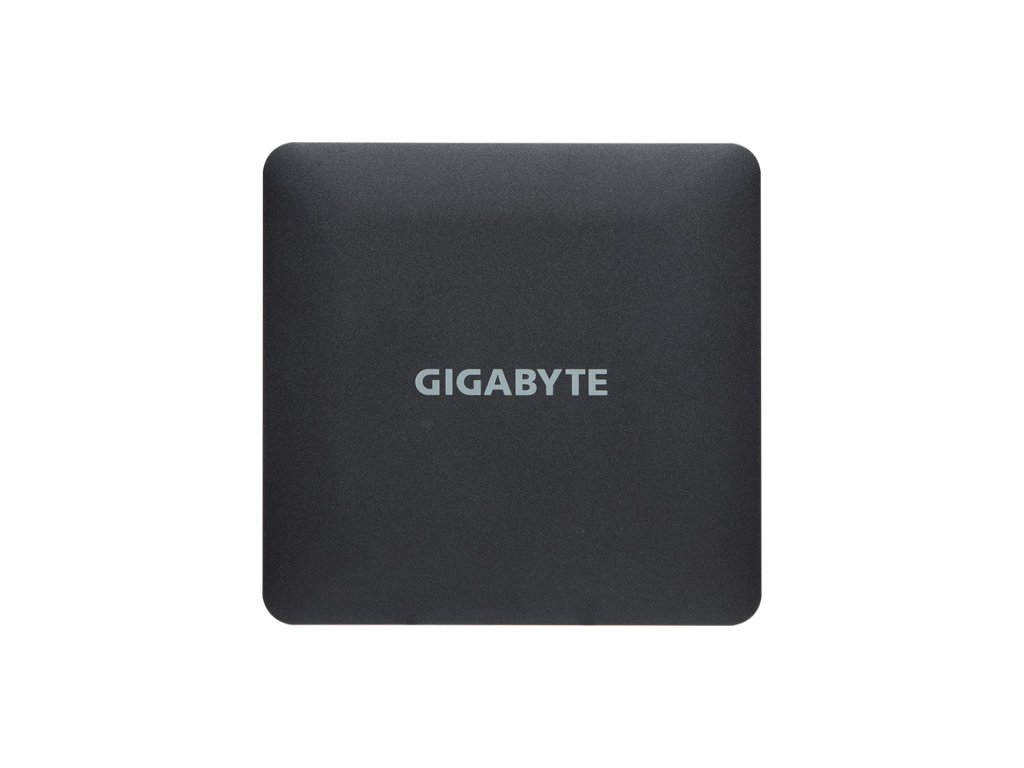

Gigabyte Brix/GB-BRi3H-1315/Tiny/i3-1315U/bez RAM/UHD/bez OS/3R

Elegant design with enhanced computing power
13th Gen Intel® Core™ i3-1315U Processor
Intel® Iris® Xe Graphics , 96EU, 1.25GHz
Super Fast 2.5G LAN + Wi-Fi 6 Module
4 x 4K Module - 2 x HDMI 2.1 and 2 x USB Type C with DP alt mode
2 x USB 3.2 Gen2 , 2 x USB 2.0 Ports
Low Noise
VESA Support


* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.


Dimension
124 x 120 x 49.7 mm

CPU
13th Gen Intel® Core™ i3-1315U Processor
6 Cores (2P+4E), 8 Threads, 10MB Cache
Frequency up to 4.5GHz(P Core Turbo), 15W

Memory
2 x SO-DIMM DDR4 slot
3200MHz
Max. 64GB

LAN
2.5 GbE LAN (Intel i226V)

Wifi Card
Intel AX203
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2

Graphics
Intel® Iris® Xe Graphics, 96EU, 1.25GHz

Audio
Realtek ALC269 HD audio

Video
2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840x2160@60Hz
2 x Type-C, supports DP1.4a, Max Resolution 3840x2160@60Hz

Storage
1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3)
1 x 2.5" slot for HDD/SSD (7 mm or 9.5 mm thick; SATA3)

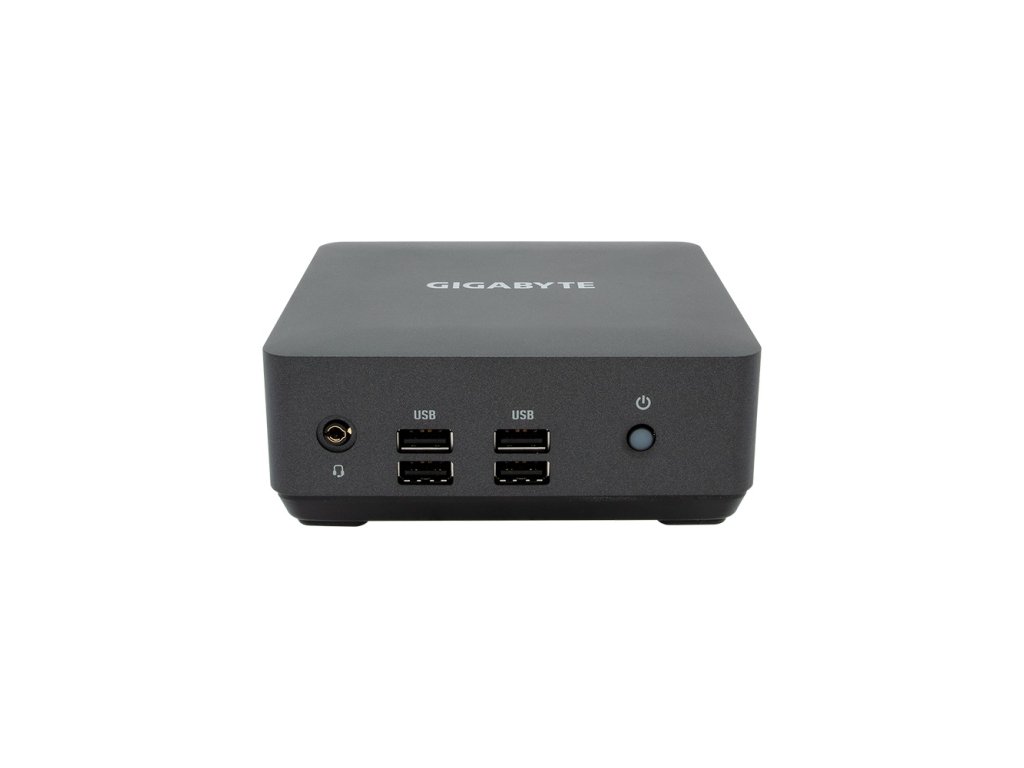

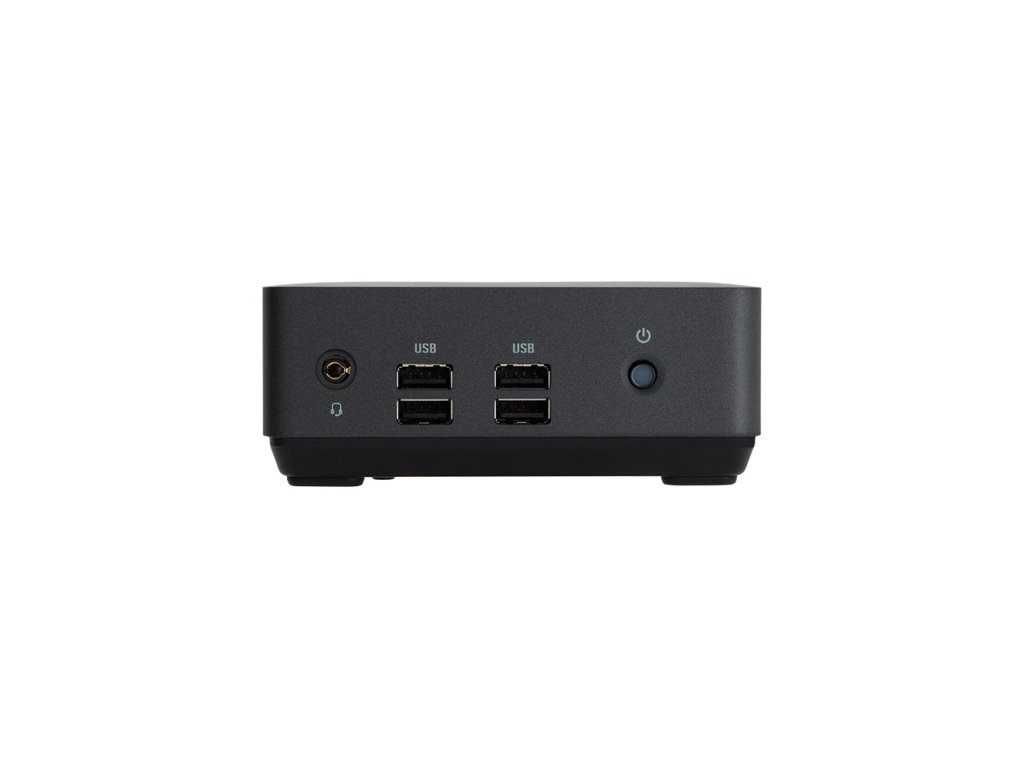

Front I/O
1 x Headphone / Microphone
2 x USB3.2 Gen2 Type-A
2 x USB2.0 Type-A
1 x Power Button

Rear I/O
1 x 2.5 GbE RJ45
2 x HDMI 2.1
2 x USB3.2 Gen2 Type-C with DP alt Mode
1 x Kensington Lock Slot
1 x DC-In

Power Supply
Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm

Support OS
Win11 64 bit
Win10 64 bit

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
