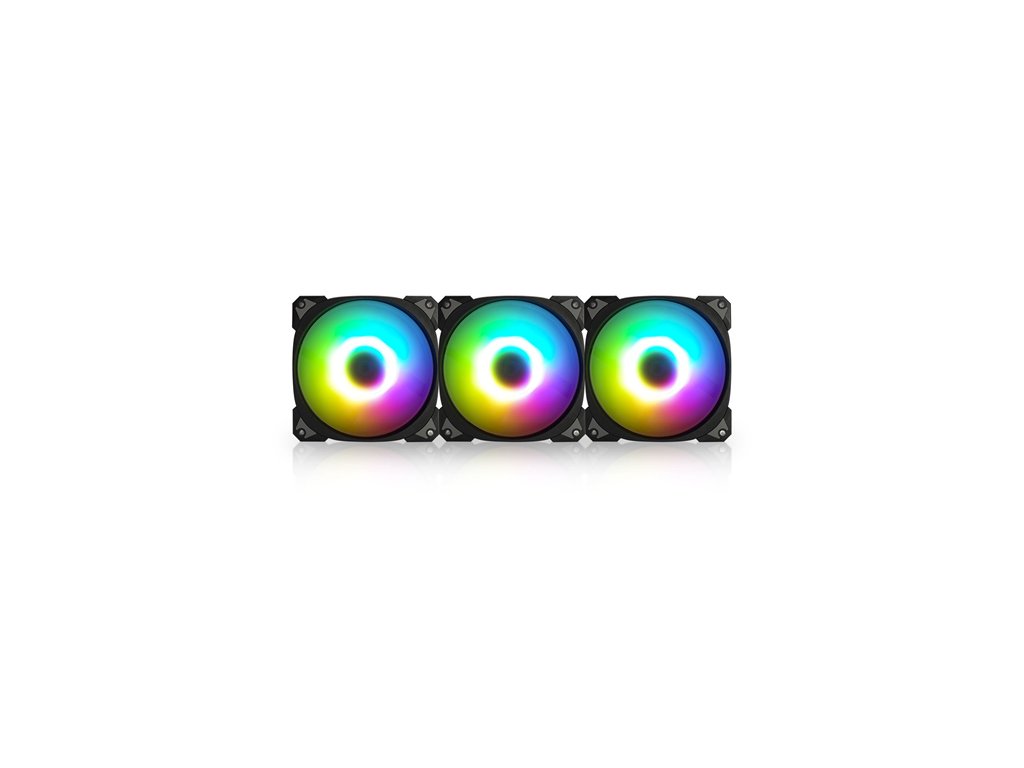

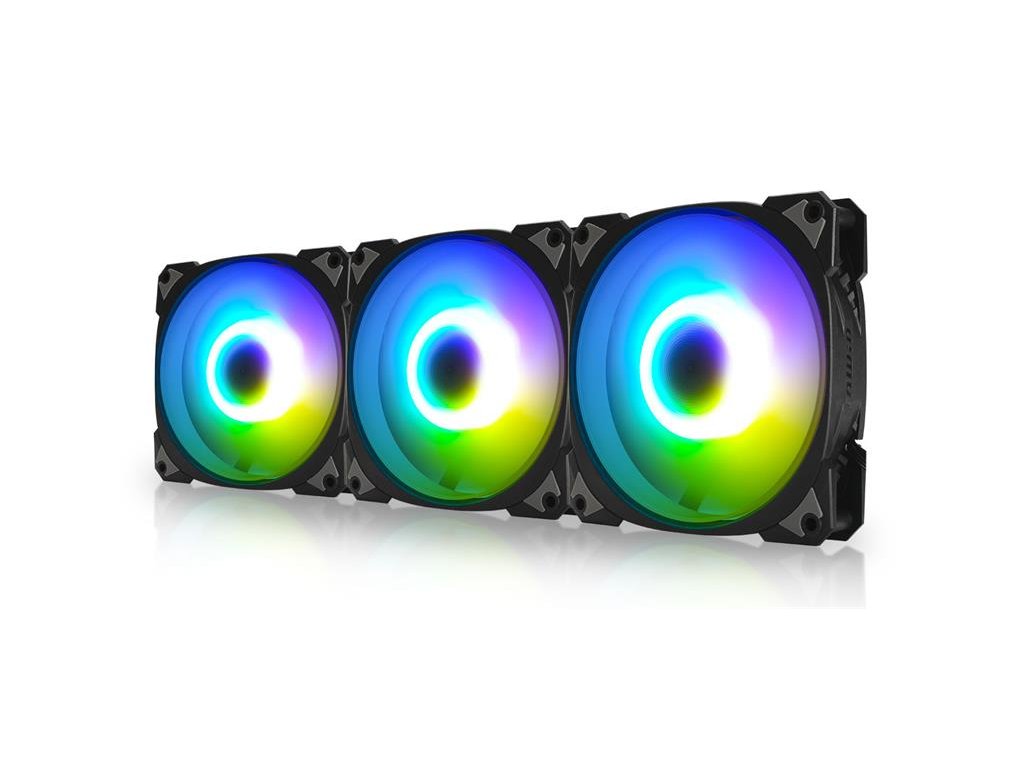

InWin Case fan Neptune AN140, 140mm, ARGB, Black (Triple pack+ Extension cables) IW-FN-AN140-3PK In Win

Popis produktu

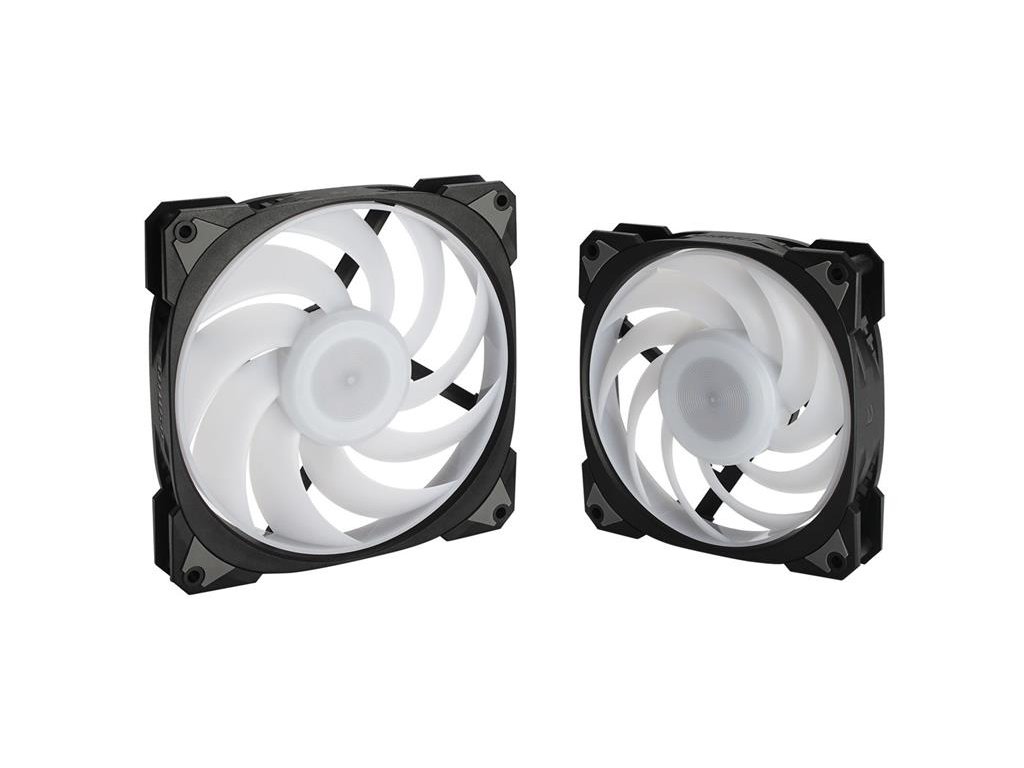

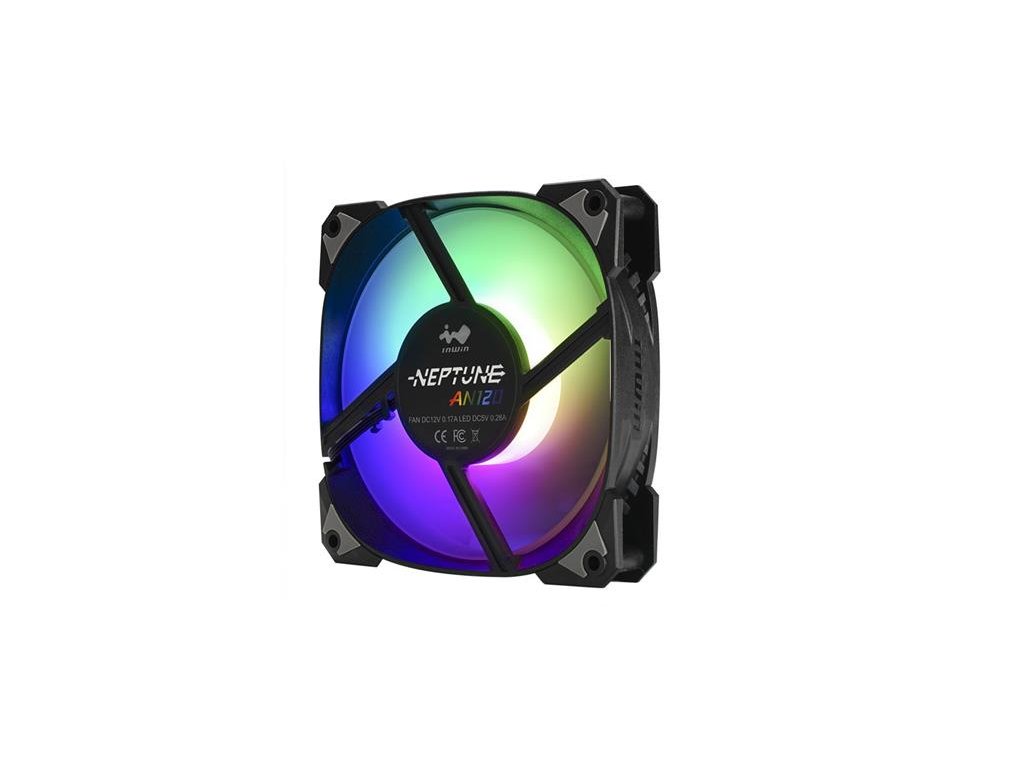

NEPTUNE AN120/AN140
Silent Static Pressure Fan

Acoustic Expression: Silence

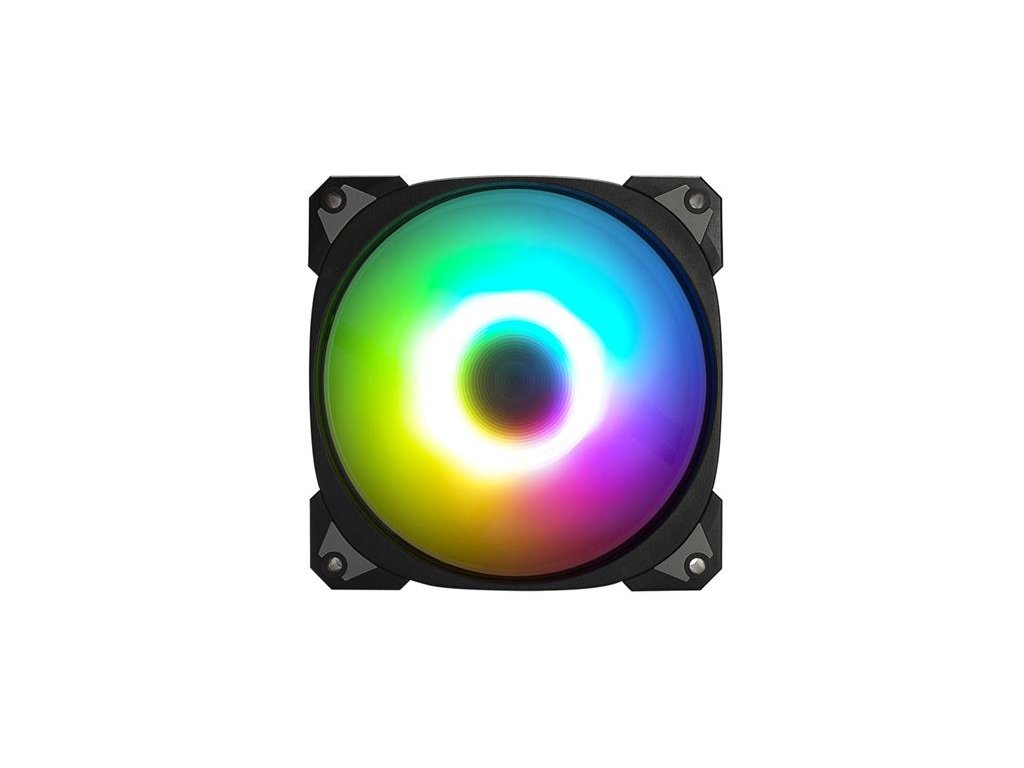

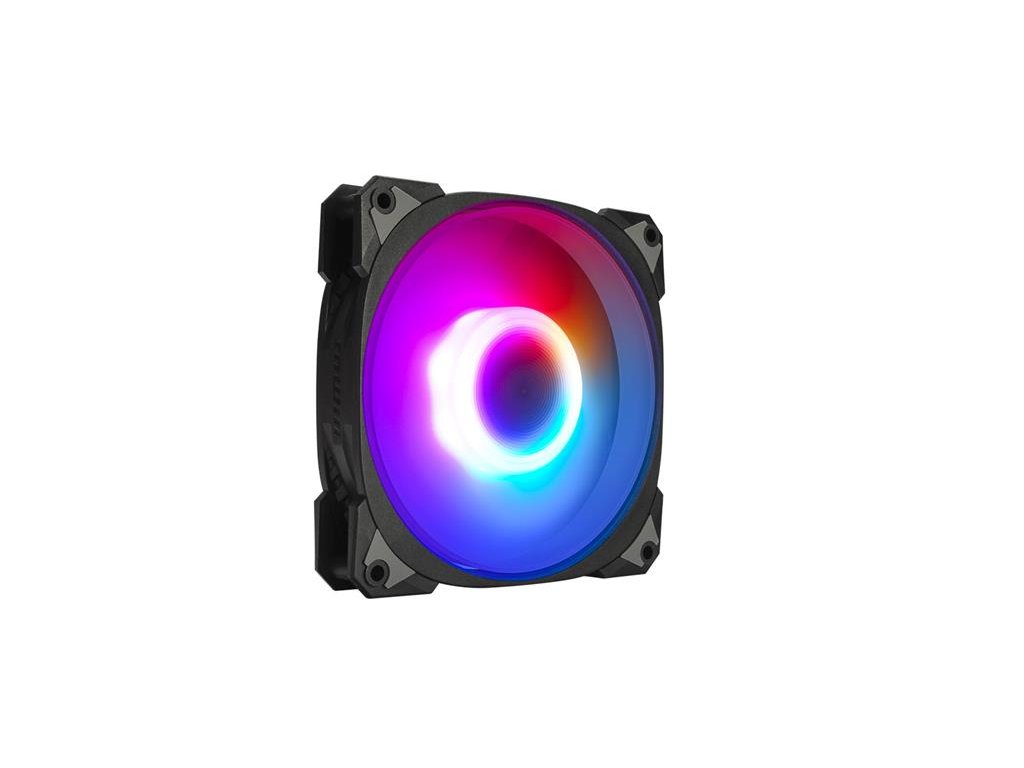

The Neptune AN fans, integrated with innovative aerodynamic blades, maintain efficiency while sustaining a silent, tranquil environment. The 8-individual-ARGB-LEDs enrich the PC’s overall visual aesthetic.


Bested the Tested
The Neptune fans underwent rigorous testing, fortifying a strong pressure-to-airflow P-Q curve. The critical middle section indicates that the Neptune fans possess high static pressure and airflow that outperforms the competition.


True Air Benders
Besides enhancing speed, the Neptune series creates a more balanced performance, which includes reducing noise. Turbulence, resonance, and pitch from air dispersal were all taken into consideration. InWin dissected the fan's anatomy to produce these silent high static-pressure fans.
InWin’s Semi-Anechoic Chamber’s background noise level is at 17 dB(A). The sound test distance between the fan and the microphone is 1 meter.

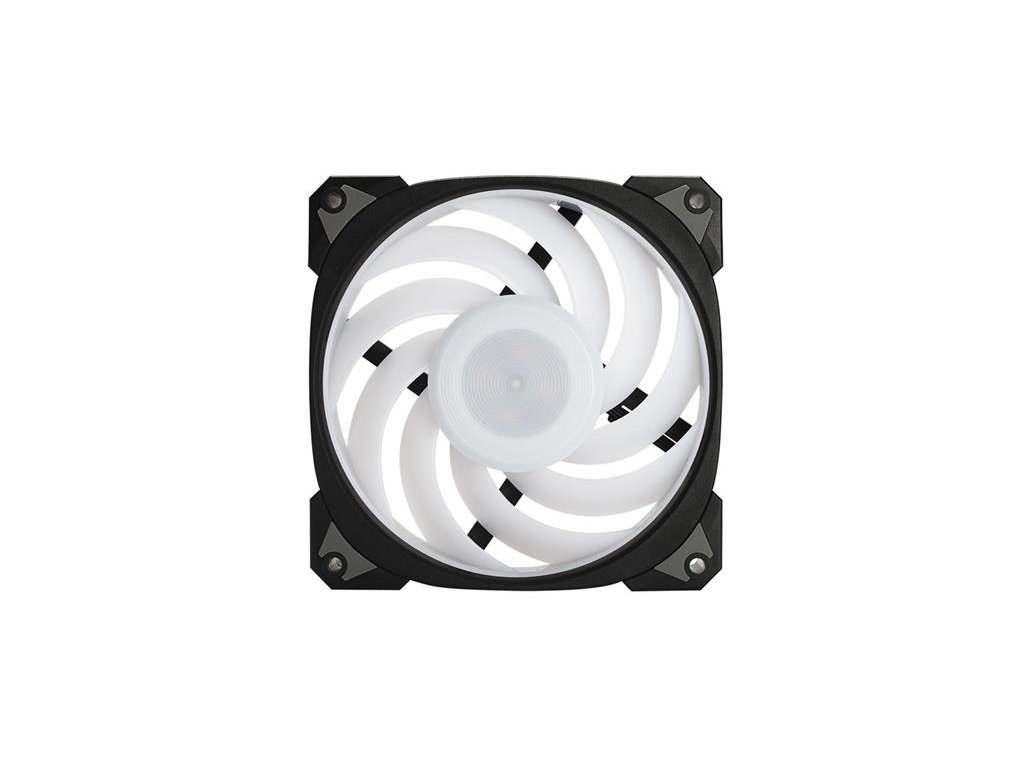

Turbine Blade Design
Experience quiet cooling and efficient airflow with InWin’s signature Turbine Blade design. Molding the fan blades into the frame creates a more concentrated airflow, preventing air leakage and irritating noise pollution.


Ahead of the Curve
Neptune’s fan blades are angled slightly to ensure the airflow is channeled in a more focused stream. This tactical design allows the static pressure to increase.

BE COOL! BE COOL!
The Neptune case fan series PWM initiates at an immediate 900 RPM. This will provide enough airflow to cool loading PC systems while producing an extremely low noise level at 17.2 dB(A).

Specifications
Model Neptune AN120 Neptune AN140

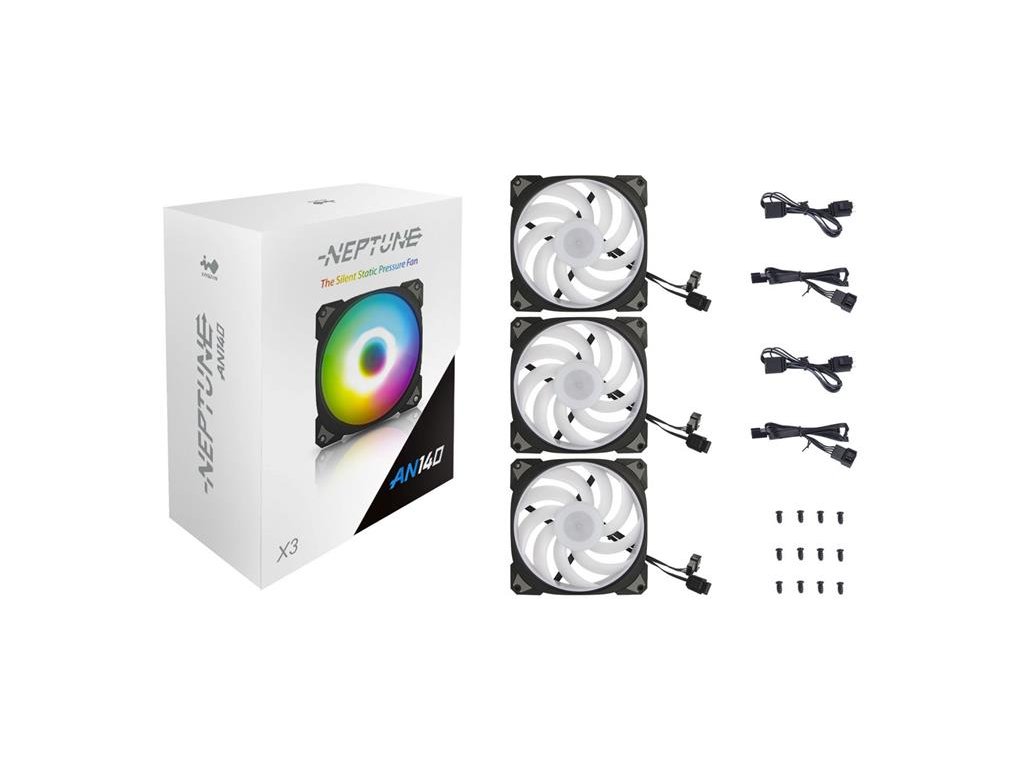

Quantity Included Triple Pack
Model Number IW-FN-AN120-3PK IW-FN-AN140-3PK
Colors Black
Fan Size 120 x 120 x 25 mm 140 x 140 x 25 mm
Materials PBT, PC
Rated Voltage DC 12V
Rated Power 1.92W 2.16W
Rated Current 0.17A 0.19A
ARGB Rated Voltage DC 5V
ARGB Rated Power 1.4W
ARGB Rated Current 0.28A
Speed Mode PWM 900 - 2200 +/- 10% RPM PWM 900 - 1800 +/- 10% RPM
Air Flow 23.87 - 60.1 CFM 41.67 - 88.89 CFM
Air Pressure 0.36 - 2.27 mm / H2O 0.49 - 2.18 mm / H2O
LED Addressable RGB
Connector (Fan to Fan) Non-Modular Cables
Connector to M/B 4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Noise Level 20.5 dB(A) (Normal) 24.5 dB(A) (Normal)
Bearing Type Long Lifespan Sleeve Bearing
MTBF >36,000 hrs.
Net Weight 541 g / 1.19 lbs 629 g / 1.39 lbs
Gross Weight 803 g / 1.77 lbs 946 g / 2.09 lbs
Package Dimensions
(L x W x H) 131 x 91 x 170 mm
5.15 x 3.58 x 6.7" 151 x 91 x 190 mm
5.9 x 3.58 x 7.48"
Warranty 3 Years
* InWin's products comply with RoHS regulations.
* Specifications may vary based on different regions.
