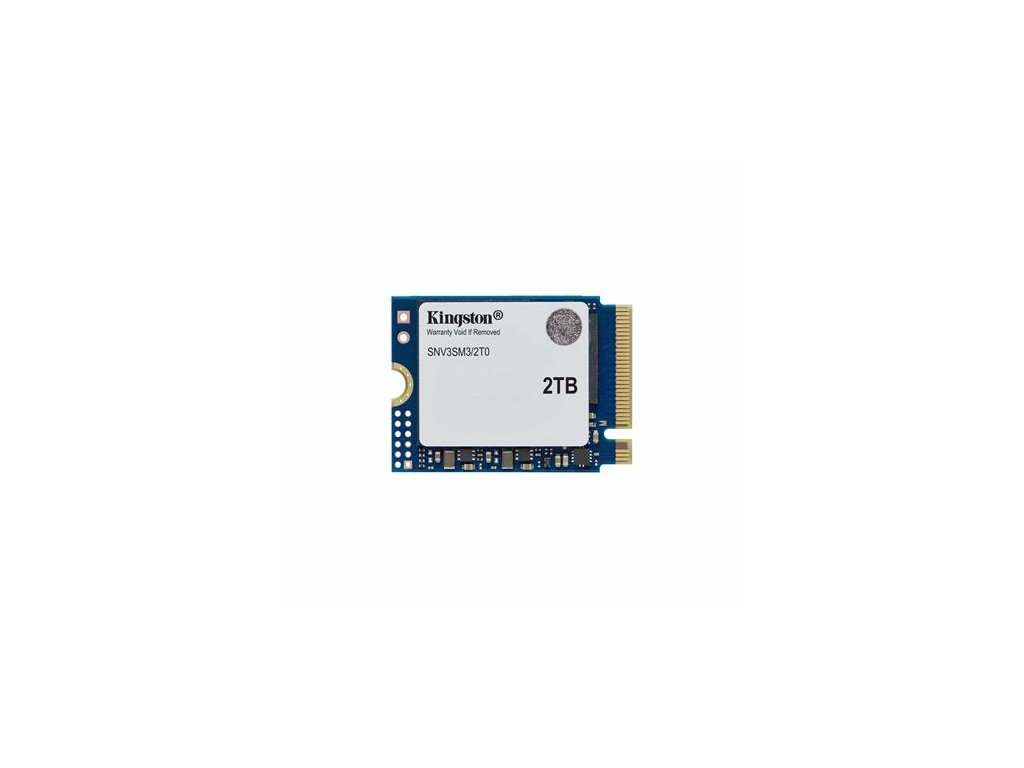

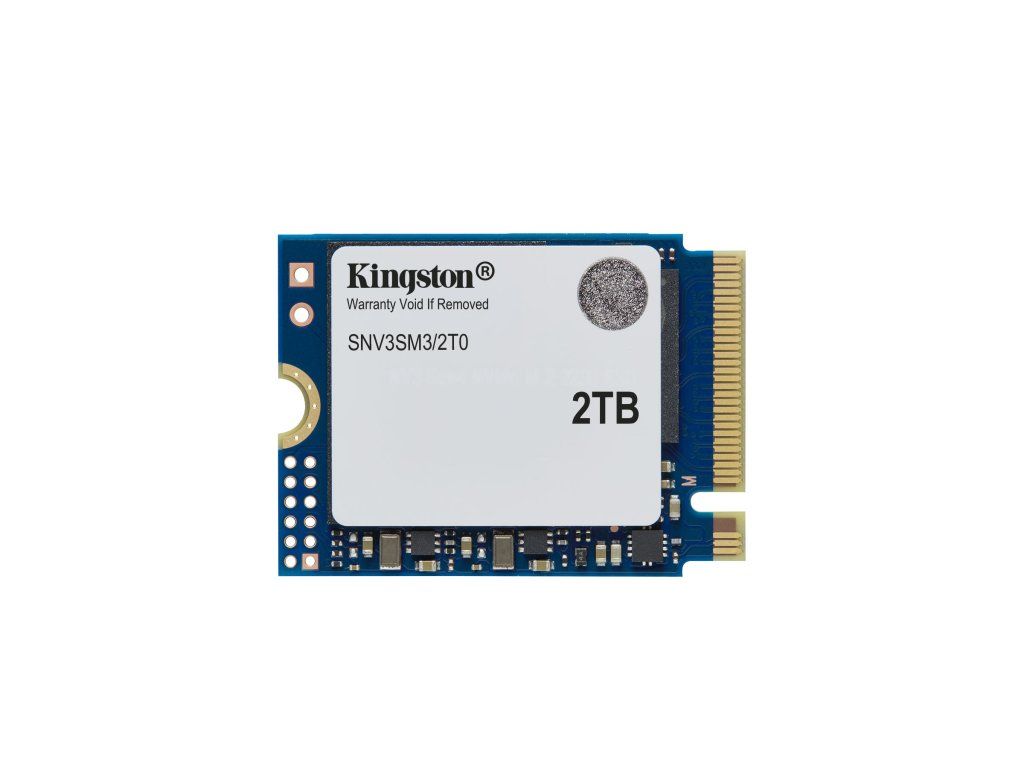

Kingston NV3 2230/2TB/SSD/SAS/M.2 NVMe/5R SNV3SM3-2T0

Kingston’s NV3 PCIe 4.0 NVMe SSDs are next-gen storage solutions powered by a Gen 4x4 NVMe controller, delivering read/write speeds of up to 6,000/5,000MB/s1. They come in both compact, single-sided M.2 2280 (22x80mm) and 2230 (22x30mm) sizes to expand storage in small-form-factor systems like laptops and handheld gaming consoles2. They offer lower power consumption and reduced heat, optimising your system's performance without compromising value. Available in capacities from 500GB– 4TB3 to give you all the space you need for applications, documents, photos, videos, games and more.

Form factor M.2 2230
Interface PCIe 4.0 x4 NVMe
Capacities3 500GB, 1TB, 2TB
Sequential read/write1 500GB – 5,000/3,000MB/s
1TB – 6,000/4,000MB/s
2TB – 6,000/5,000MB/s
NAND 3D
Endurance (total bytes written)4 500GB – 160TB
1TB – 320TB
2TB – 640TB
Storage temperature -40°C~85°C
Operating temperature 0°C~70°C
Dimensions 22mm x 30mm x 2.3mm
Weight 500GB – 2.6g
1TB – 2TB – 2.8g
Vibration non-operating 20G (10-1,000Hz)
MTBF 2,000,000 hours
Warranty/Support5 Limited 5-year warranty with free technical support
