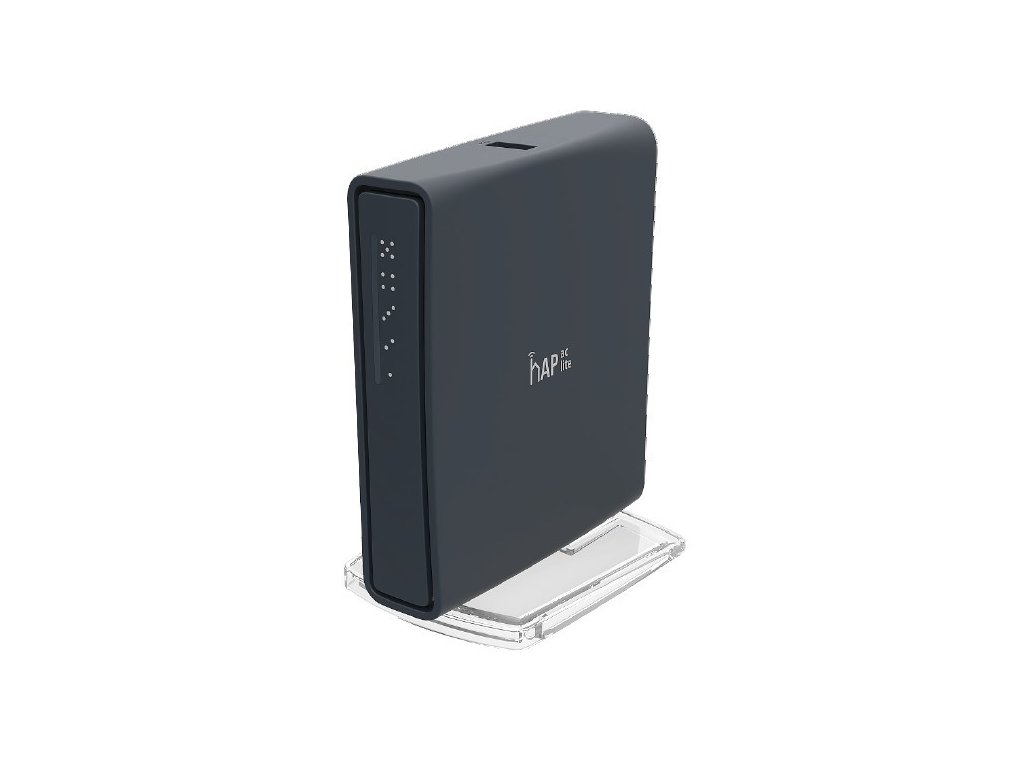

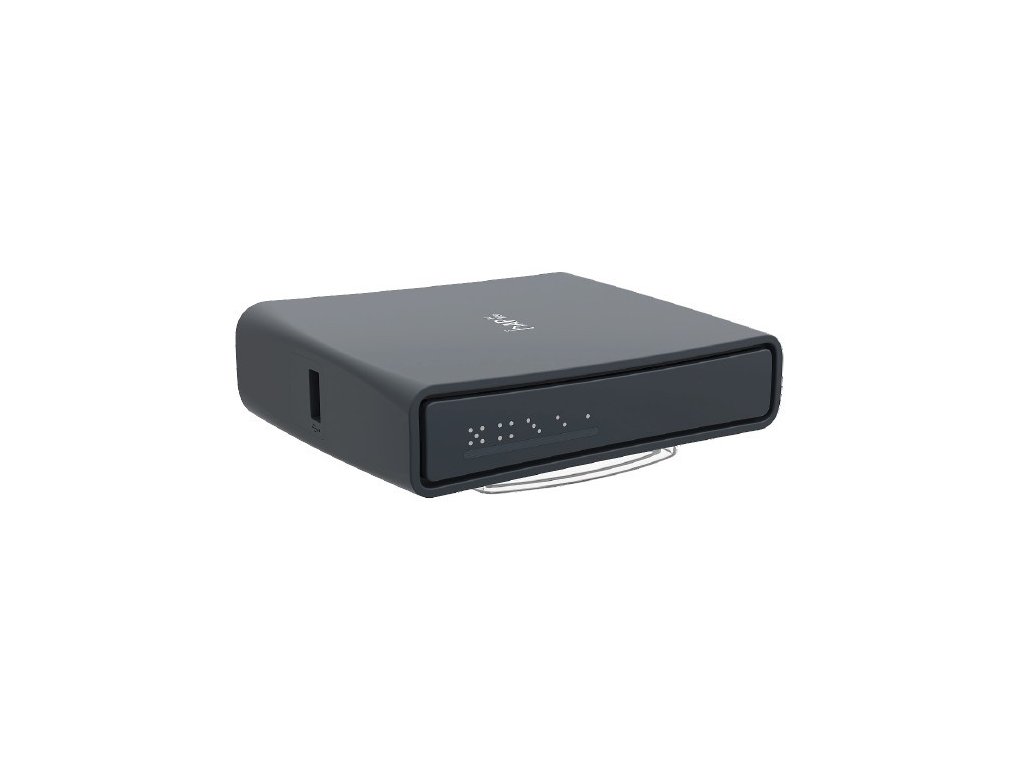

MikroTik hAP ac lite (tower), 650MHz CPU, 64MB RAM, 5xLAN, 2.4+5GHz (802.11b/g/n/ac), vč. L4 RB952Ui-5ac2nD-TC
tabulka datové propustnosti
Specifications
Details | |
---|---|
Product code | RB952Ui-5ac2nD-TC |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 113 x 89 x 28mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -30°C to 70°C |
Powering
Details | |
---|---|
PoE in | Passive PoE |
PoE out | Passive PoE |
PoE in input Voltage | 12-30 V |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 10-30 V |
Max out per port output (input < 30 V) | 500 mA |
Max total out (A) | 500 mA |
Max power consumption | 8 W |
Wireless
Details | |
---|---|
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz standards | 802.11b/g/n |
AC speed | AC750 |
Antenna gain dBi for 2.4 GHz | 2 |
Wireless 2.4 GHz chip model | QCA9531 |
Wireless 5 GHz number of chains | 1 |
Wireless 5 GHz Max data rate | 433 Mbit/s |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 2 |
Wireless 5 GHz chip model | QCA9887 |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 5 |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
Kategória: | Routre a firewally |
---|---|
Záruka: | 24 mesiacov |
Hmotnosť: | 0.45 kg |
