Specifications
Details |
|---|
Product code |

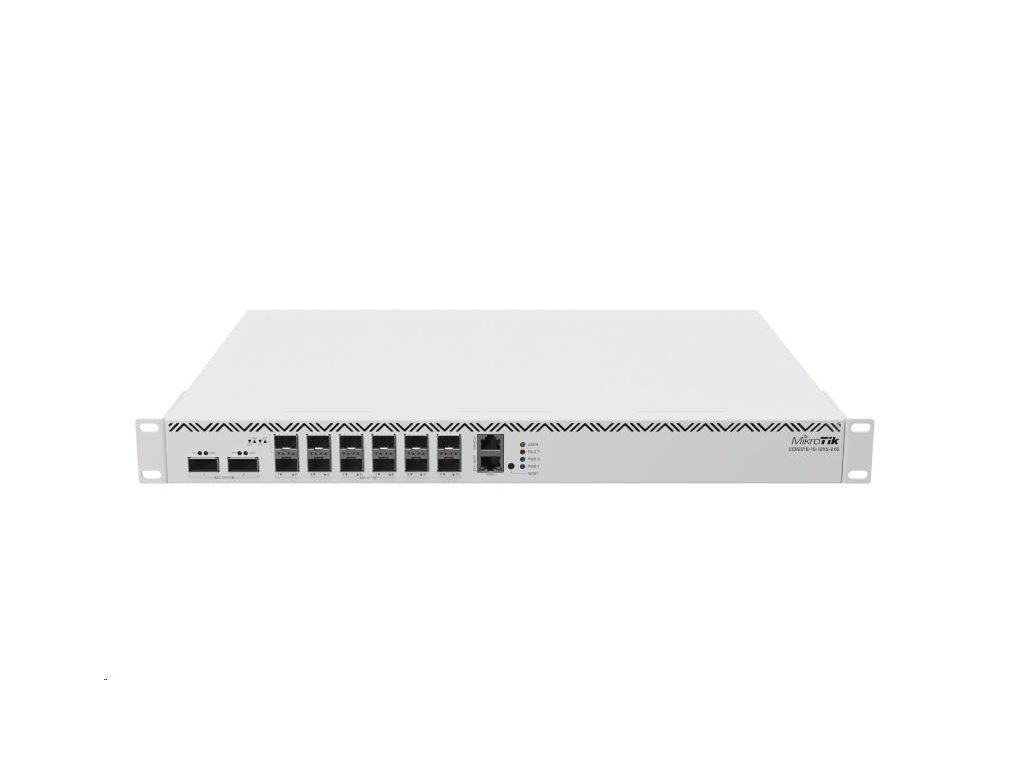

CCR2216-1G-12XS-2XQ |
Architecture |
ARM 64bit |
CPU |
AL73400 |
CPU core count |
16 |
CPU nominal frequency |
2000 MHz |
Switch chip model |
98DX8525 |
Dimensions |
443 x 367 x 44 mm |
RouterOS license |
6 |
Operating System |
RouterOS v7 |
Size of RAM |
16 GB |
Storage size |
128 MB |
Storage type |
NAND |
MTBF |
Approximately 200'000 hours at 25C |
Tested ambient temperature |
-20°C to 60°C |
IPsec hardware acceleration |
Yes |
Powering
Details |
|---|
Number of AC inputs |
2 |
AC input range |
100-240 |
Max power consumption |
128 W |
Max power consumption without attachments |
80 W |
Cooling type |
4 fans |
Ethernet
Details |
|---|
10/100/1000 Ethernet ports |
1 |
Fiber
Details |
|---|
Number of 25G SFP28 ports |
12 |
Number of 100G QSFP28 ports |
2 |
Peripherals
Details |
|---|
Serial console port |
RJ45 |
Number of M.2 slots |
2 |
Other
Details |
|---|
CPU temperature monitor |
Yes |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Certification & Approvals
Details |
|---|
Certification |
CE, EAC, ROHS |
IP |
20 |
