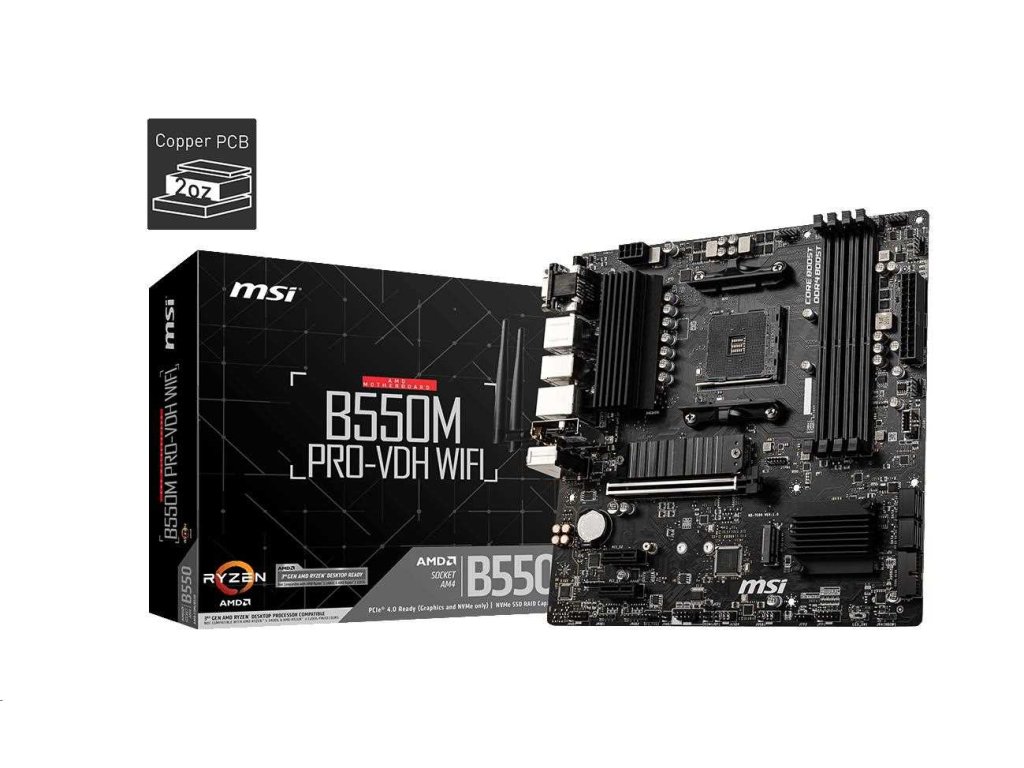

MSI B550M PRO-VDH WIFI
MSI B550M PRO-VDH WIFI
Chipset: AMD B550
Rozměrový formát: Formát Micro-ATX (244 mm x 244 mm)
Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Patice procesoru: AM4
Pozice na paměti: 4x DDR4
Podpora pro paměti:
•Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
•Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
•Dual channel memory architecture
•Supports non-ECC UDIMM memory
•Supports ECC UDIMM memory
•Supports un-buffered memory
Grafická karta: na základě procesoru
•1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
•1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
•1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
Zvuková karta:
•Realtek® ALC892 Codec
Síťová karta:
•1x Realtek® 8111HN Gigabit LAN controller
•Intel® Wireless-AC 3168
•Bluetooth 4.2
RAID řadič:
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Rozšiřující sloty:
•1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
•2x PCIe 3.0 x1 slots
SATA:
•4x SATA 6Gb/s ports
M.2:
•2x M.2 slots (Key M)
USB:
•zadní USB porty ( celkem 6 )
•2x USB 2.0 ports
•4x USB 3.2 Gen 1 5Gbps Type-A ports
•přední USB porty ( celkem 7 )
•1x USB 3.2 Gen 1 5Gbps Type-C port
•2x USB 3.2 Gen 1 5Gbps ports
•4x USB 2.0 ports
Interní porty:
•1x 24-pin ATX main power connector
•1x 8-pin ATX 12V power connector
•4x SATA 6Gb/s connectors
•2x M.2 slots (M-Key)
•1x USB 3.2 Gen 1 5Gbps Type-C port
•1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
•2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
•1x 4-pin CPU fan connector
•1x 4-pin water-pump fan connector
•3x 4-pin system fan connectors
•1x Front panel audio connector
•2x System panel connectors
•1x Serial port connector
•1x Chassis Intrusion connector
•2x 4-pin RGB LED connectors
•2x 3-pin RAINBOW LED connectors
•1x TPM module connector
•1x Clear CMOS jumper
Externí porty:
•VGA
•PS/2 Keyboard / Mouse
•1x LAN
•Flash BIOS Button
•DisplayPort
•HDMI
•2x USB 2.0
•4x USB 3.2 Gen 1 5Gbps Type-A
•Wi-Fi Antenna connectors
•3x Audio jacks
Rozměrový formát: Formát Micro-ATX (244 mm x 244 mm)
Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Patice procesoru: AM4
Pozice na paměti: 4x DDR4
Podpora pro paměti:
•Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
•Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
•Dual channel memory architecture
•Supports non-ECC UDIMM memory
•Supports ECC UDIMM memory
•Supports un-buffered memory
Grafická karta: na základě procesoru
•1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
•1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
•1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
Zvuková karta:
•Realtek® ALC892 Codec
Síťová karta:
•1x Realtek® 8111HN Gigabit LAN controller
•Intel® Wireless-AC 3168
•Bluetooth 4.2
RAID řadič:
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Rozšiřující sloty:
•1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
•2x PCIe 3.0 x1 slots
SATA:
•4x SATA 6Gb/s ports
M.2:
•2x M.2 slots (Key M)
USB:
•zadní USB porty ( celkem 6 )
•2x USB 2.0 ports
•4x USB 3.2 Gen 1 5Gbps Type-A ports
•přední USB porty ( celkem 7 )
•1x USB 3.2 Gen 1 5Gbps Type-C port
•2x USB 3.2 Gen 1 5Gbps ports
•4x USB 2.0 ports
Interní porty:
•1x 24-pin ATX main power connector
•1x 8-pin ATX 12V power connector
•4x SATA 6Gb/s connectors
•2x M.2 slots (M-Key)
•1x USB 3.2 Gen 1 5Gbps Type-C port
•1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
•2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
•1x 4-pin CPU fan connector
•1x 4-pin water-pump fan connector
•3x 4-pin system fan connectors
•1x Front panel audio connector
•2x System panel connectors
•1x Serial port connector
•1x Chassis Intrusion connector
•2x 4-pin RGB LED connectors
•2x 3-pin RAINBOW LED connectors
•1x TPM module connector
•1x Clear CMOS jumper
Externí porty:
•VGA
•PS/2 Keyboard / Mouse
•1x LAN
•Flash BIOS Button
•DisplayPort
•HDMI
•2x USB 2.0
•4x USB 3.2 Gen 1 5Gbps Type-A
•Wi-Fi Antenna connectors
•3x Audio jacks
Dodatočné parametre
| Kategória: | MB socket AMD |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 1.4 kg |
| EAN: | 4719072733698 |
| Socket (pätica): | Socket AM4 |
| Typ pamäte (základné dosky): | DDR4 |
| Výrobca (základné dosky): | MSI |
| GPSR: | MICRO-STAR INTERNATIONAL CO., LTD.;Areal Slatina, Green Building, Tuřanka 115,627 00,Brno,Česká republika;cz-fae@msi.com |
| Položka bola vypredaná… | |
