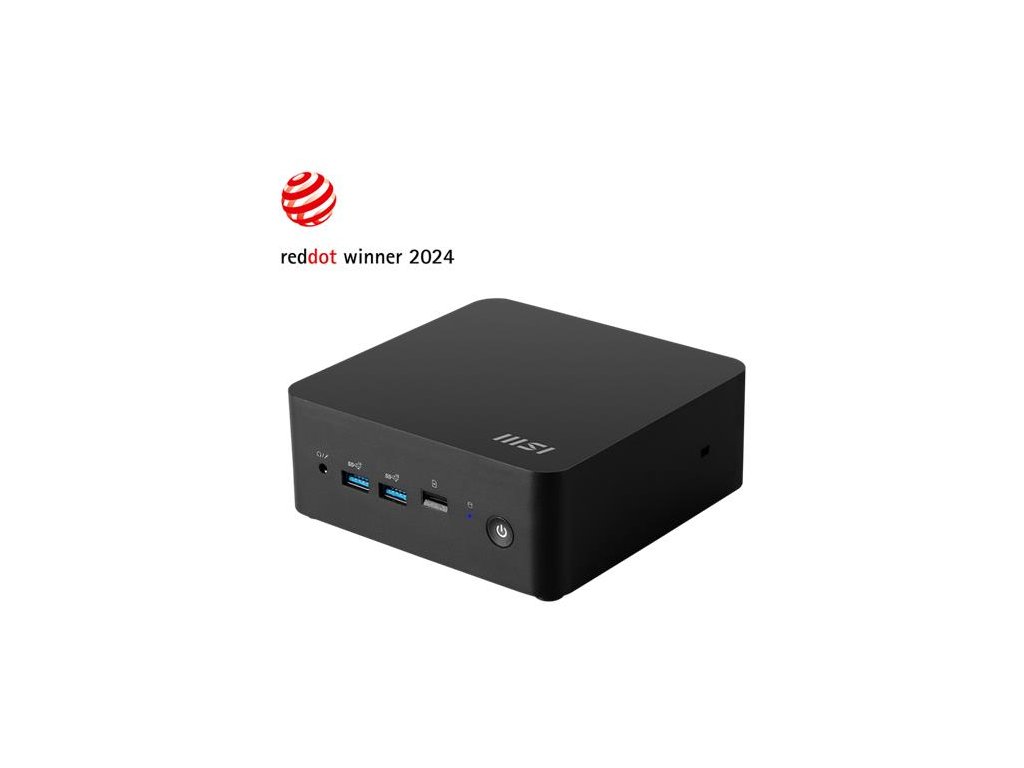

MSI PC Cubi NUC 1M-073BCZ, Intel Core 5 Processor 120U/BT/Wifi/USB/Bez OS/černá

Popis produktu

MSI PC Cubi NUC 1M-073BCZ, Intel Core 5 Processor 120U/BT/Wifi/USB/Bez OS/černá

MKT Spec Cubi NUC 1M-073BCZ
Website Name Cubi NUC 1M
Color ID1/Black-Black-Black
System/Barebone Barebone
Processor
CPU Core Name RAPTOR LAKE
CPU Socket FCBGA-1744pin
CPU Number Intel Core 5 Processor 120U
CPU Clock 1.4GHz
CPU Cores 10
TDP 15W
CPU Cooler Air cooling
Max Turbo Frequency up to 5.00 GHz
Cache 12 MB Intel® Smart Cache
Threads 12
Chipset
Chipsets Soc
MB Ori. MKT Name Proprietary (MS-B0B11)
Graphics
GPU1 Vendor N/A
GPU1 MKT Name N/A
GPU1 Number N/A
GPU1 VRAM Size N/A
VGA I/O Port N/A
VGA MKT Name N/A
Memory
Memory Size N/A
Memory Type N/A
Memory Speed N/A
Module Type SO-DIMM
Memory Slot N/A
Memory Slot(Total) 2
Memory Slot(Free) 2
Max Capacity Max 64GB
Storage
SSD Interface N/A
SSD Form Factor N/A
SSD Config N/A
SSD Size N/A
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD1 Size N/A
HDD1 RPM N/A
ODD(Type) N/A
ODD Height N/A
ODD Type N/A
mSATA slots N/A
mSATA slots(Total) NA
mSATA slots(Free) 0
M.2 slots N/A
M.2 slots(Total) 2
M.2 slots(Free) 2
2.5" Drive Bays N/A
2.5" Drive Bays(Total) 1
2.5" Drive Bays (Free) 1
3.5" Drive Bays N/A
3.5" Drive Bays(Total) NA
3.5" Drive Bays(Free) 0
Communications
LAN 2x Intel I226-V
WLAN INTEL/AX211.NGWG.NV
WLAN Version Wi-Fi 6E+BT
BT Version 5.3
VESA
VESA size 100 x 100 mm
Audio
Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio
Speaker NA
D-MIC
I/O Ports (Front)
USB 4 (80G) Type C
USB 4 (40G) Type C
USB 4 (20G) Type C
USB 3.2 Gen 2x2 (20G) Type C NA
USB 3.2 Gen 2x2 Type A NA
USB 3.2 Gen 2 (10G) Type C NA
USB 3.2 Gen 2 (10G) Type A 2
USB 3.2 Gen 1 (5G) Type C NA
USB 3.2 Gen 1 (5G) Type A NA
USB 2.0 Type A NA
USB 2.0 Type C NA
Thunderbolt NA
Audio Mic-in NA
Audio Headphone-out NA
Audio Headphone-out (HiFi/SPDIF) NA
Mic-in/Headphone-out combo 1
Card Reader 1
I/O Ports (Rear)
USB 4 (80G) Type C (R)
USB 4 (40G) Type C (R)
USB 4 (20G) Type C (R)
USB 3.2 Gen 2x2 (20G) Type C (R) NA
USB 3.2 Gen 2x2 Type A (R) NA
USB 3.2 Gen 2 (10G) Type C (R) NA
USB 3.2 Gen 2 (10G) Type A (R) 2
USB 3.2 Gen 1 (5G) Type C (R) NA
USB 3.2 Gen 1 (5G) Type A (R) NA
USB 2.0 Type C (R) NA
USB 2.0 Type A (R) NA
Thunderbolt (R) 2x (Thunderbolt 4)
RJ45 2
WiFi Antenna NA
Card Reader (R) NA
VGA out NA
VR-Link NA
HDMI out 2x (v2.1)
DP out NA
mini DP in NA
mini DP out NA
PS/2 NA
COM Port NA
DVI-D out NA
Audio jack NA
S/PDIF NA
Configurable port
Lock type
Flash BIOS Button NA
Clear BIOS Button
Power
Power 120W
Power Certification N/A
Formfactor N/A
Type ADAPTOR
Operating Systems
OS N/A
OS Type Non-OS
Operating Systems N/A
Pallet
W/O KB Pallet Q'ty (by air) NA
W/O KB Pallet Q'ty (by sea) 200
W/KB Pallet Q'ty (by air) NA
W/KB Pallet Q'ty (by sea) NA
Dimension&Weight
Product Dimension (WxDxH) (mm) 135.6 x 132.5 x 50.10
Product Dimension (WxDxH) (inch) 5.34 x 5.22 x 1.97
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Outer Carton Dimension Standard (WxDxH) (mm) 500 x 215 x 457
Outer Carton Dimension Standard (WxDxH) (inch) 19.69 x 8.46 x 17.99
Outer Carton Dimension with bundle item (WxDxH) (mm) N/A
Outer Carton Dimension with bundle item (WxDxH) (inch) N/A
Weight (Net kg) 0.625
Net Weight (lbs) 1.38
Weight (Gross kg) 1.45
Gross Weight (lbs) 3.2
Liter 0.826
Pint 1.75
Noise Level
Idle mode 28 db
Full loading mode 38 db
Warranty
Warranty 24months
SW Feature - 3rd Party Royalty
Nahimic Sound effect N/A
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Accessories
AC Adaptor 1
Power Cord 1
Warranty Card N/A
Quick Guide 2
User Manual N/A
VESA Mount kit 1
Power Switch 1
Keyboard N/A
Keyboard Interface N/A
Mouse N/A
Mouse Interface N/A
Model Info
Segment Name2 Cubi NUC
Segment Name Cubi
Series Name Pro
Segment Name3 Cubi NUC 1M
Extra Info
EOL Date
Barcode Info
UCC14
UPC
JAN
EAN 4711377252959
