TP-LINK "10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber ConverterPORT: 1× 100Mbps SC Port, 1× 10/ FC111B-20 TP-link
TP-LINK "10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber ConverterPORT: 1× 100Mbps SC Port, 1× 10/ FC111B-20 TP-link

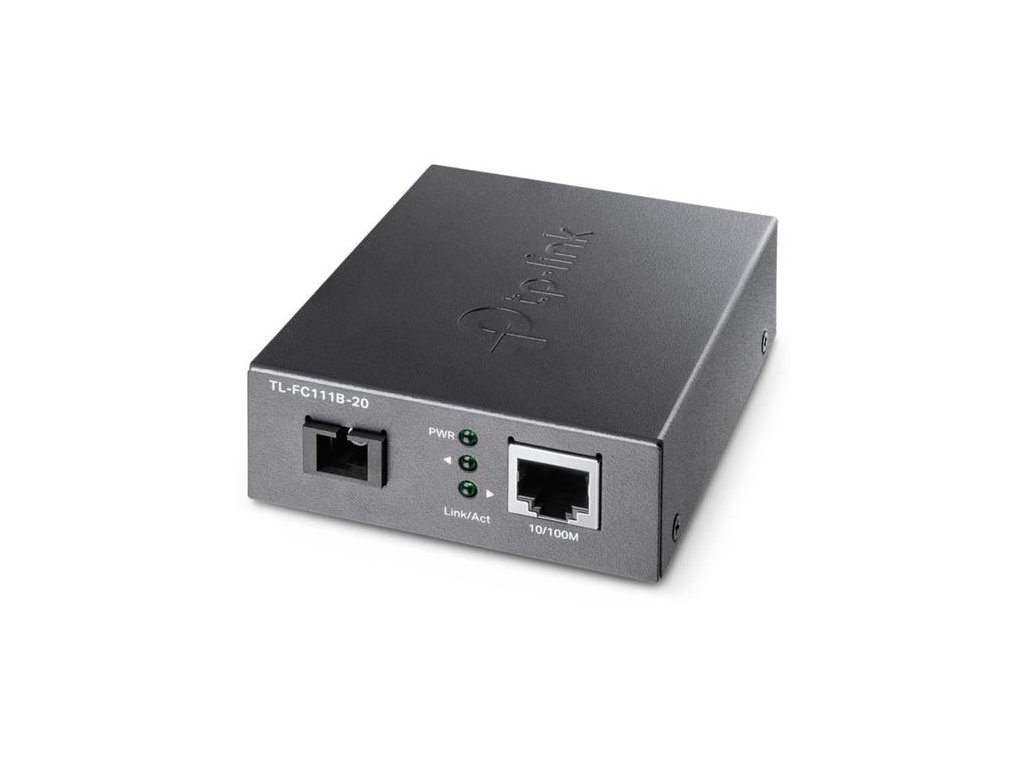

TL-FC111B-20
10/100 Mbps WDM Media Converter
Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km
NETWORK
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
HARDWARE FEATURES
Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (?100 m)
Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 94.5*73*27 mm
Wave Length 1310 nm TX, 1550 nm RX
ANTENNA
Connector Type 1 SC fiber optic, 1 RJ45 jack
MEDIA CONVERTER & MODULE
Fiber Type 9/125 µm single-mode fber (?20 km)
10/100 Mbps WDM Media Converter
Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km
NETWORK
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
HARDWARE FEATURES
Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (?100 m)
Power Supply External Power Adapter: 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 94.5*73*27 mm
Wave Length 1310 nm TX, 1550 nm RX
ANTENNA
Connector Type 1 SC fiber optic, 1 RJ45 jack
MEDIA CONVERTER & MODULE
Fiber Type 9/125 µm single-mode fber (?20 km)
Dodatočné parametre
| Kategória: | PoE, Media konvertory |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.36 kg |
| EAN: | 6935364010997 |
