TP-LINK "4 Channel Network Video RecorderSPEC: H.265+/H.265/H.264+/H.264, Up to 8MP resolution, Decoding capability/8-c VIGI NVR1004H TP-link

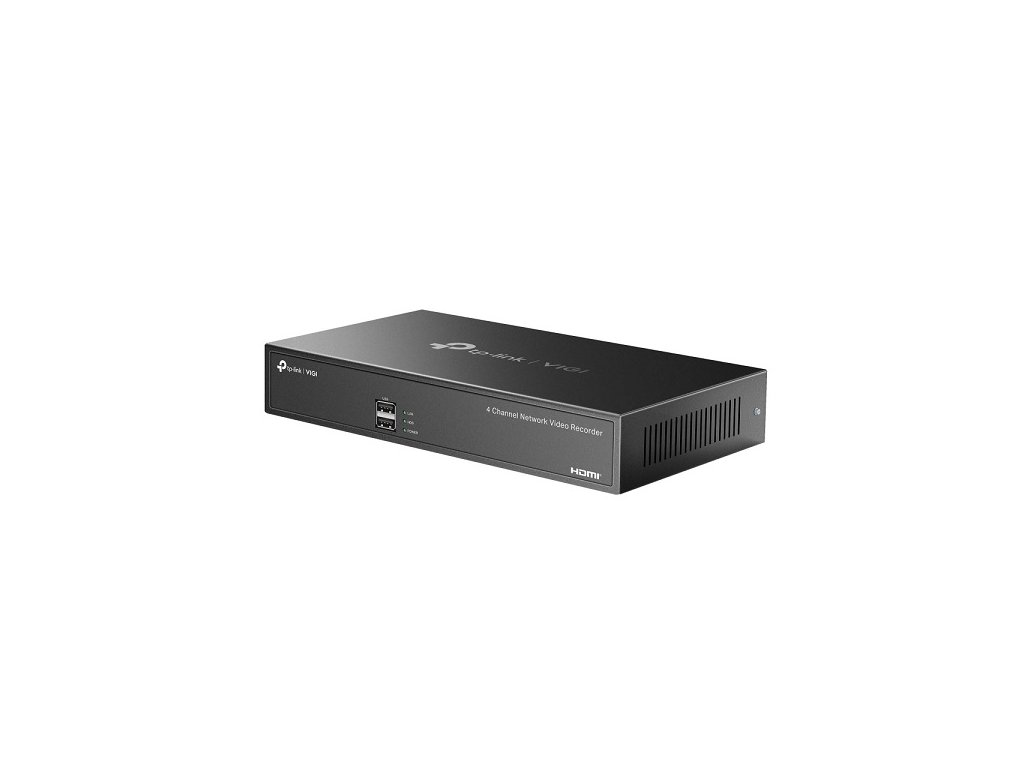

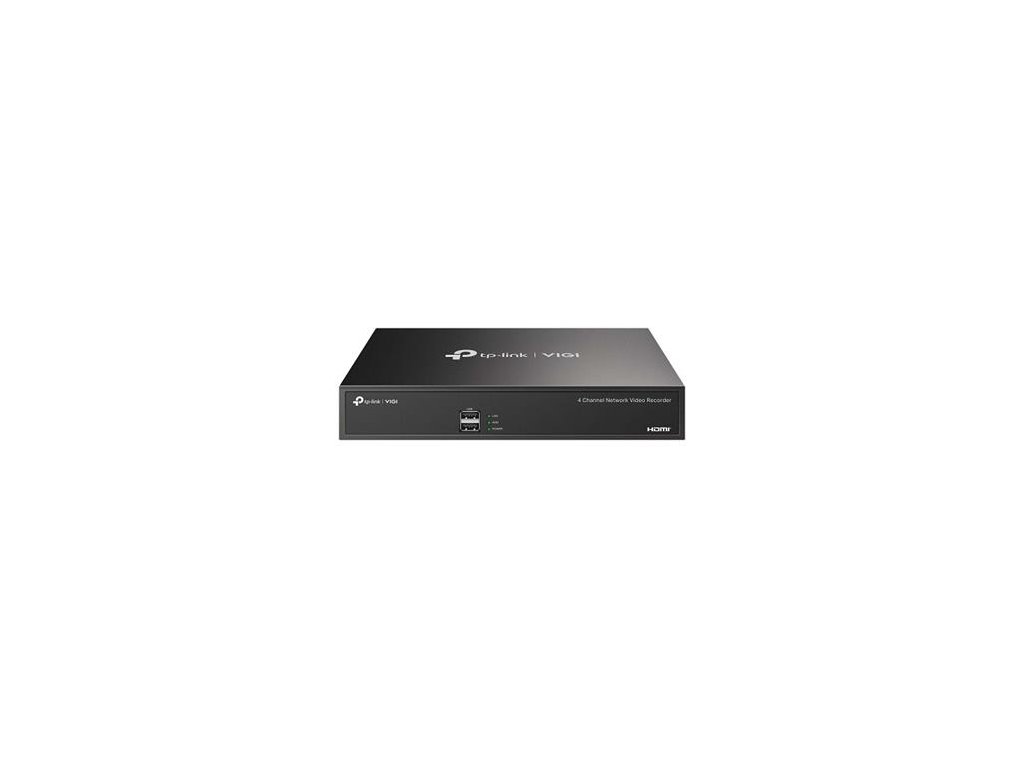

VIGI NVR1004H VIGI 4kanálový sieťový videorekordér
4-kanálový živý náhľad a 4K HDMI video výstup
Dekódovanie: 2-kanály @ 8 MP / 4-kanály @ 4 MP
4-kanálové synchrónne prehrávanie†
80 Mb/s prichádzajúci šírku pásma a 60 Mb/s odchádzajúcu šírku pásma
1 SATA rozhranie (až 10 TB) *
Komprese H.265+
Súčasný výstup HDMI a VGA
Vzdálené monitorovanie



Video and Audio

IP Video Input 4-Channel

Incoming Bandwidth 80 Mbps

Outgoing Bandwidth 60 Mbps

HDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode HDMI/VGA Simultaneous Output

Multi-View Display 1/4

DECODING

Audio Compression G.711A/G.711U/G.726

Video Compression H.265+/H.265/ H.264+/H.264

Record Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback 4-Channel

Capability 2-ch @ 8MP, 4-ch @ 4MP

Record Management

Record Mode • Manual Recording

• Scheduling Recording

• Motion Detection Recording

Playback Mode • Instant Playback

• Regular Playback

• Tag Playback

• Event Playback

Backup Mode • Regular Backup

• Video Clip Backup

Playback Function • Play

• Pause

• Stop

• Fast Forward

• Fast Backward

• Play By Frame

• Full Screen

• Video Clip

• Export Clip

• Digital Zoom

• Lock Recording

• Audio On/Off

NETWORK

Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile Phone Access Android, iOS

Web Browser Chrome (57+), Firefox (52+), Edge (91+)

Interoperability ONVIF, CGI

External Interface

Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface 2× USB 2.0

Audio Interface 1-ch RCA Input; 1-ch RCA Output

Alarm In/Out N/A

Serial Interface N/A

Power 1× DC Jack

Reset Button 1

Speaker N/A

eSATA N/A

HDMI 1

VGA 1

HARD DISK

SATA 1 SATA Interface

Capacity Up to 10 TB Capacity for Each HDD*

Alarm

General Alarm • Motion Detection

• Video Tampering

• Scene Change Detection

• Line-Crossing Detection

• Intrusion Detection

• Region Entering Detection

• Region Exiting Detection

• Loitering Detection

• Object Abandoned/Removal Detection

• Vehicle Detection

• Human Detection

• Abnormal Sound Detection

• Smart Frame

Anomaly Alarm • Video Loss

• Offline and IP Conflict

• Disk Exception

• Login Exception

Alarm Linkage • Recording

• White Light Alarm

• Buzzer

• Log

• Audible Alarm

GENERAL

Storage Temperature -40–70 °C

Storage Humidity 10%~90% RH Non-Condensing

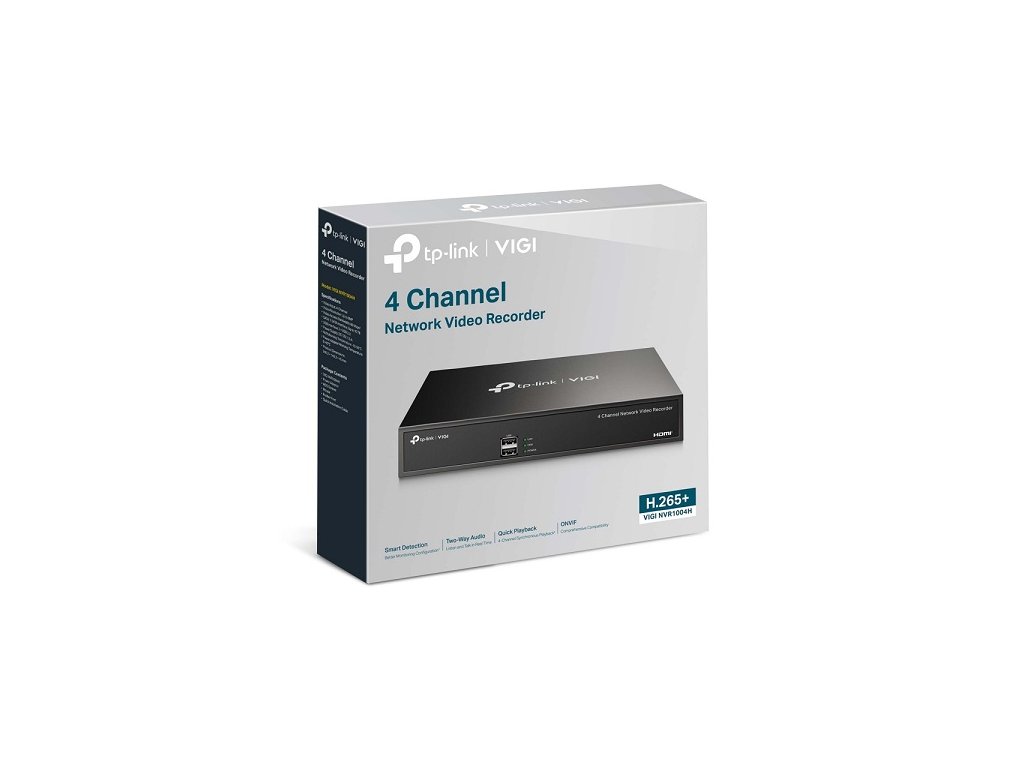

Package Contents • VIGI Network Video Recorder

• Power Adapter

• HDD Screws

• Mouse

• Rubber Feet

• Quick Installation Guide

Working Temperature • NVR: -10–55 °C

• Power Adapter: 0–40 °C

Working Humidity 10%~90% RH Non-Condensing

Dimensions( W X D X H ) 246.2 × 148.2 × 45 mm

External Power Supply DC 12V/1.5A

Net Weight 0.59 kg

Gross Weight 0.95 kg

Power Consumption 4.25 W (Without Disk)

Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
