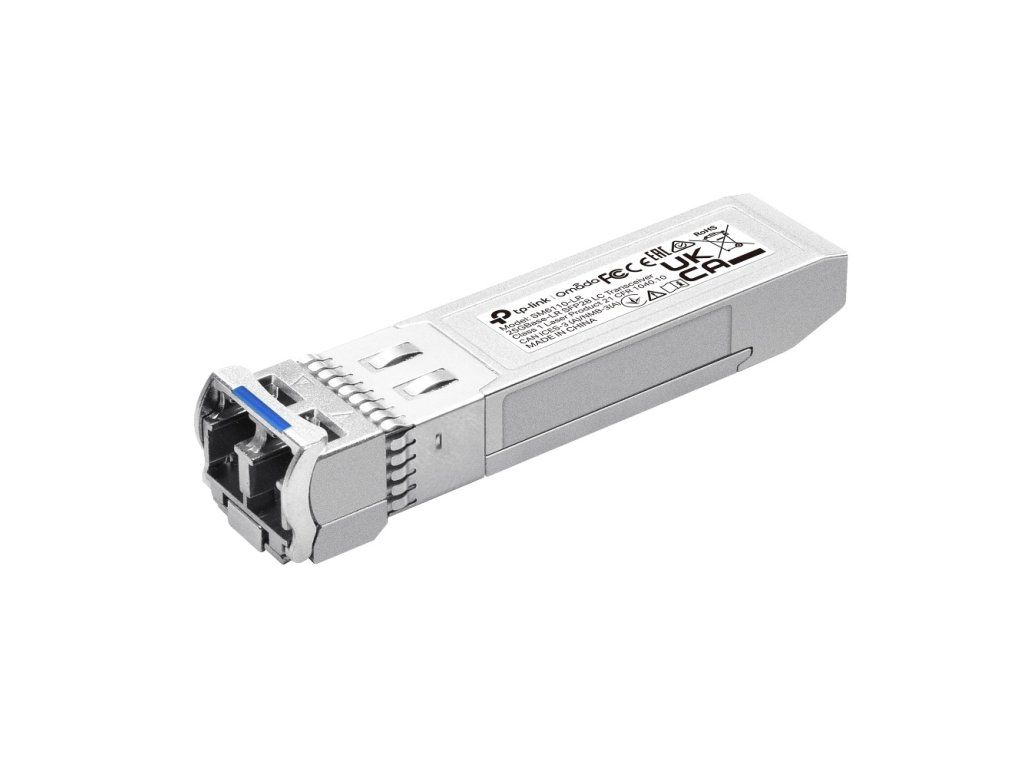

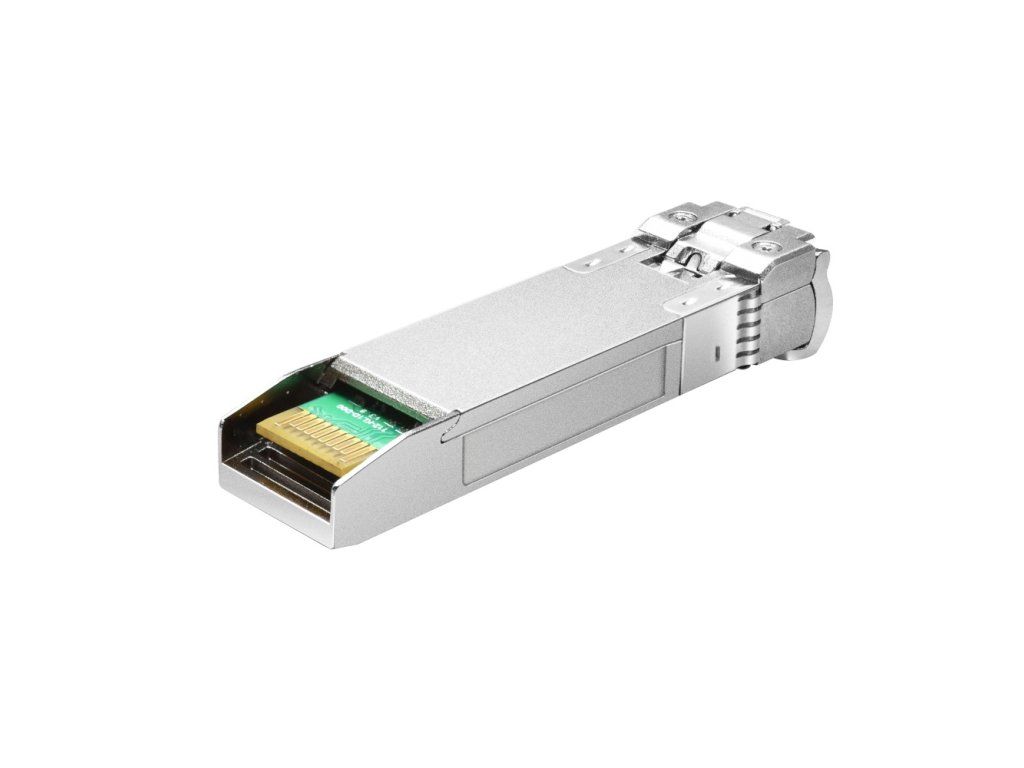

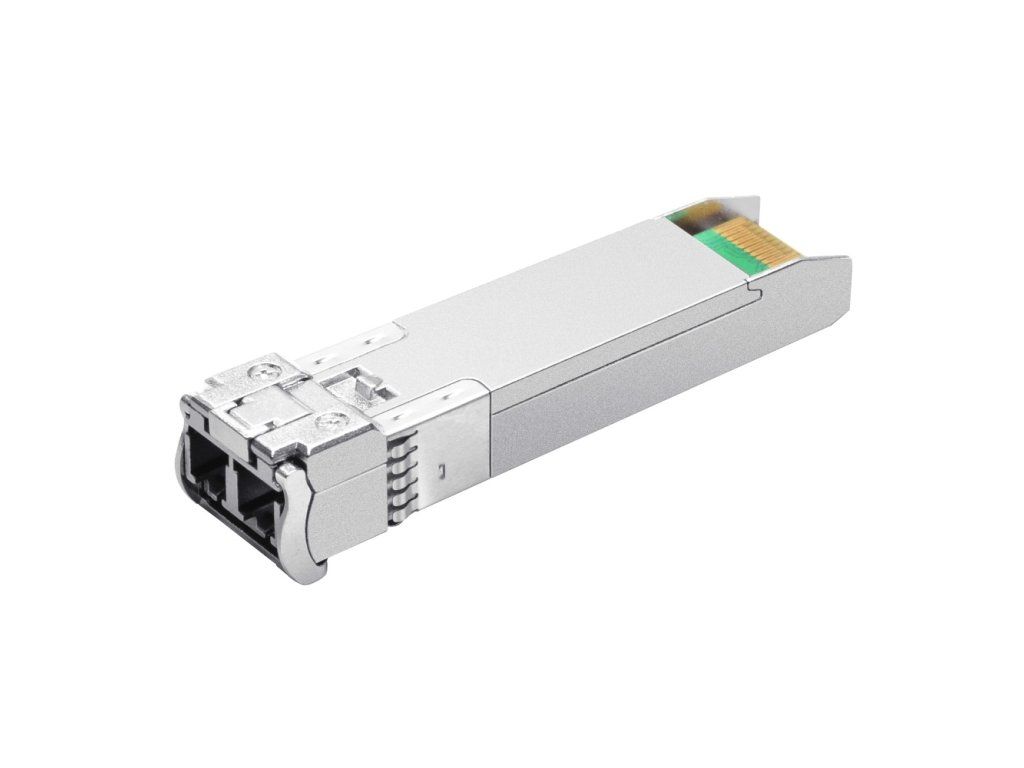

TP-LINK "Omada 25GBase-LR SFP28 LC TransceiverSPEC: Dual Rate 25.78 Gbps and 10.31 Gbps, 1310 nm SMF (Single-mode fiber SM6110-LR TP-link

Popis produktu

Vysielač Omada 25GBase-LR SFP28 LC
Multimódový transceiver SFP+/SFP28 LC
Hot-pluggable s maximálnou flexibilitou
Podporuje digitálny diagnostický monitoring (DDM)
Nízka spotreba energie, nie viac ako 1,2 W
Kompatibilná s 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
Kompatibilné so switchemi s 25G porty, ako je SX6632YF; 10G port, ako sú SG3428X a SG3452X.



PACKAGE CONTENTS

Package Contents • SM6110-LR

• Installation Guide

HARDWARE FEATURES

DDM Yes

SFP-MSA Yes

Hot Swappable Yes

Dimensions ( W x D x H ) 2.24*0.55*0.47 in (57*14*12 mm)

Transceiver

Standards and Protocols • IEEE 802.3ae, 802.3cc

• SFF-8402, SFF-8431, SFF-8432, SFF-8472

• eCPRI, CPRI

• TCP/IP

Wavelength 1310 nm

Power Supply 3.3V

Fiber Type 9/125um Single-Mode

Max. Cable Length 10 km

Support Data Rate Dual Rate 25.78 Gbps and 10.31 Gbps

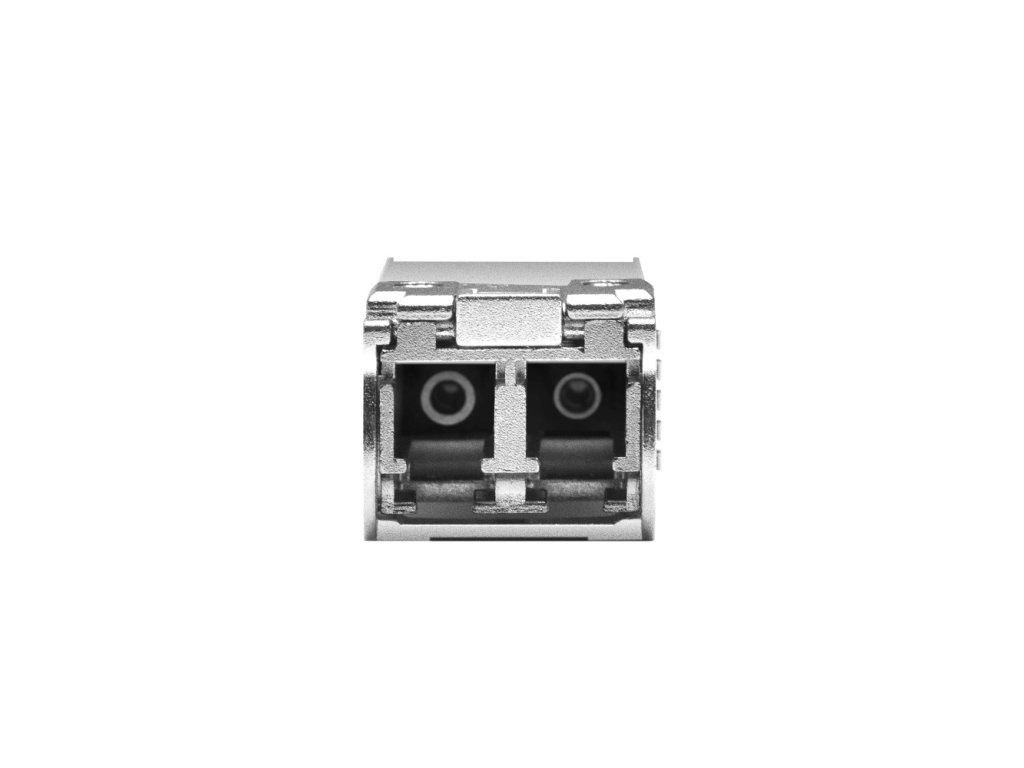

Connector Duplex LC/UPC

Regulatory Compliance CE, FCC, RoHS

Environment • Operating Temperature: 0°C to 70°C (32°F to 158°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Operating Humidity: 10% to 90% RH, Non-Condensing

• Storage Humidity: 5% to 90% RH, Non-Condensing
