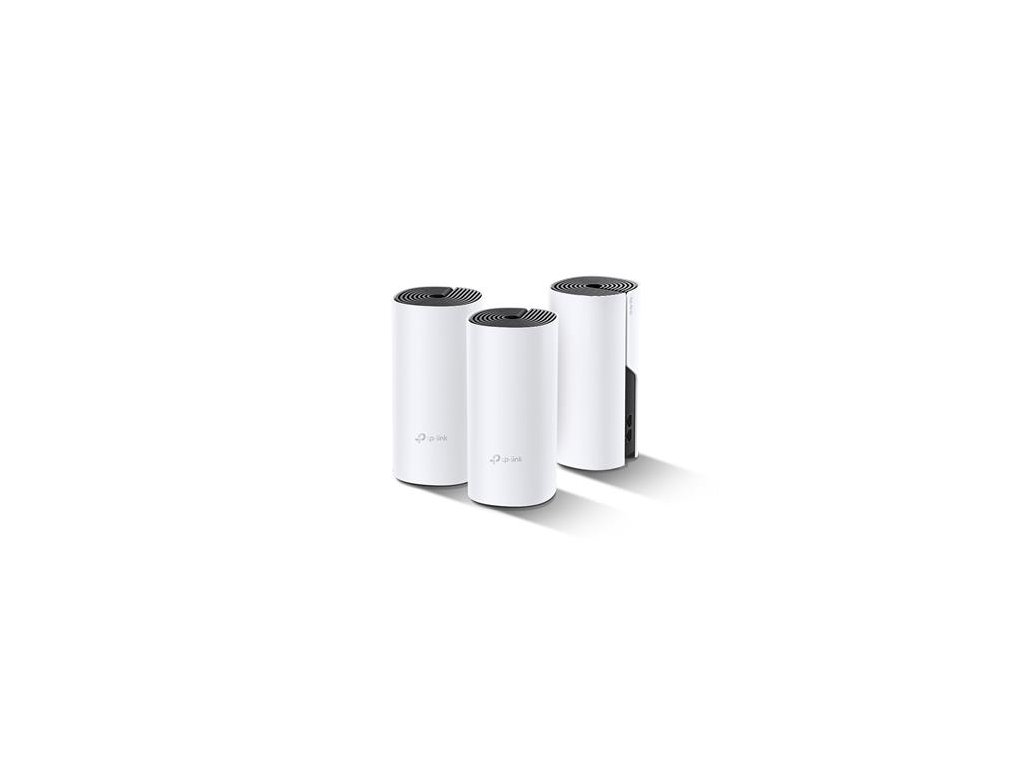

TP-Link AC1200 Whole-home Mesh WiFi Powerline System Deco P9(3-pack) TP-link

POWER

AC adapter input 100-240V ~ 50/60Hz 0.5A

HARDWARE FEATURES

Processor Qualcomm CPU

Interface 2 Gigabit Ethernet Ports (WAN/LAN auto-sensing) per Deco unit

Button 1 Reset button on the underside

External Power Supply Power Cord

Dimensions 7.5 in. x 3.6 in. x 3.6 in. (190 mm x 90.7 mm x 90.7 mm)

Antenna Type 2 internal dual-band antennas per Deco unit

WIRELESS FEATURES

Wireless Standards IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz

Frequency 2.4 GHz and 5 GHz

Signal Rate 300 Mbps on 2.4 GHz

867 Mbps on 5 GHz

Transmit Power FCC: <30 dBm

CE: <20 dBm (2.4 GHz)

<23 dBm (5 GHz)

Wireless Security WPA-PSK/WPA2-PSK

Advanced Functions ? Router/ Access Point Mode

? Optional Ethernet Backhaul

? Guest network

? TP-Link Mesh Technology:

MU-MIMO

Auto Path Selection

Self-Healing

AP Steering

Band Steering

Beamforming

SOFTWARE FEATURES

Quality of Service WMM

IPv6 Support

WAN Type Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management Local Management, Remote Management

DHCP Server, Client

Port Forwarding Support

Access Control Blacklist

Firewall Security SPI Firewall

Protocols Supports IPv4 and IPv6

Advanced Features Parental Controls

Quality of Service

Advanced Functions Monthly Reports

Auto FW Update

Expand Wi-Fi by adding more Deco units

Guest Network 2.4 GHz guest network x 1

5 GHz guest network x 1

Beamforming Support

APP Easy setup via Deco App

POWERLINE

Signal Rate 1000 Mbps

Standard HomePlug AV2

OTHERS

Certification CE, FCC, RoHS

Package Contents ? Deco P9 (3-pack):

3 Deco units

1 RJ45 Ethernet Cable

3 power cords

1 quick installation guide



? Deco P9 (2-pack):

2 Deco units

1 RJ45 Ethernet Cable

2 power cords

1 quick installation guide

Smartphone/Tablet Requirements iOS 9.0 or later, Android 4.4 or later

Environment Operating Temperature: 0?~40? (32?~104?)

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
