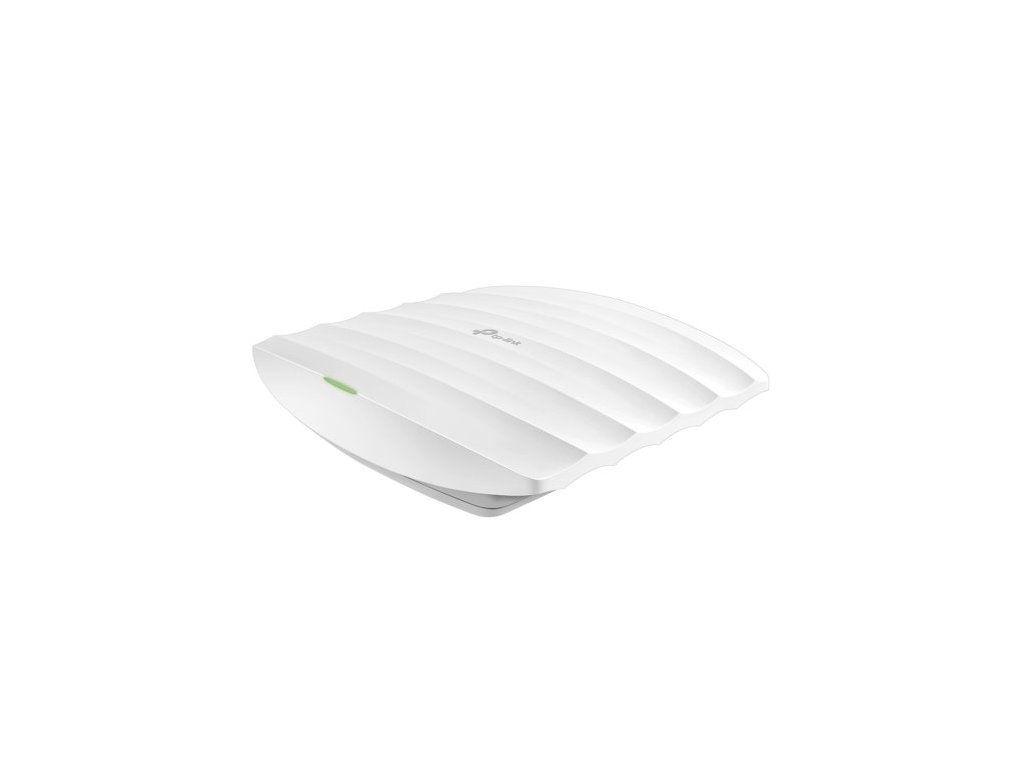

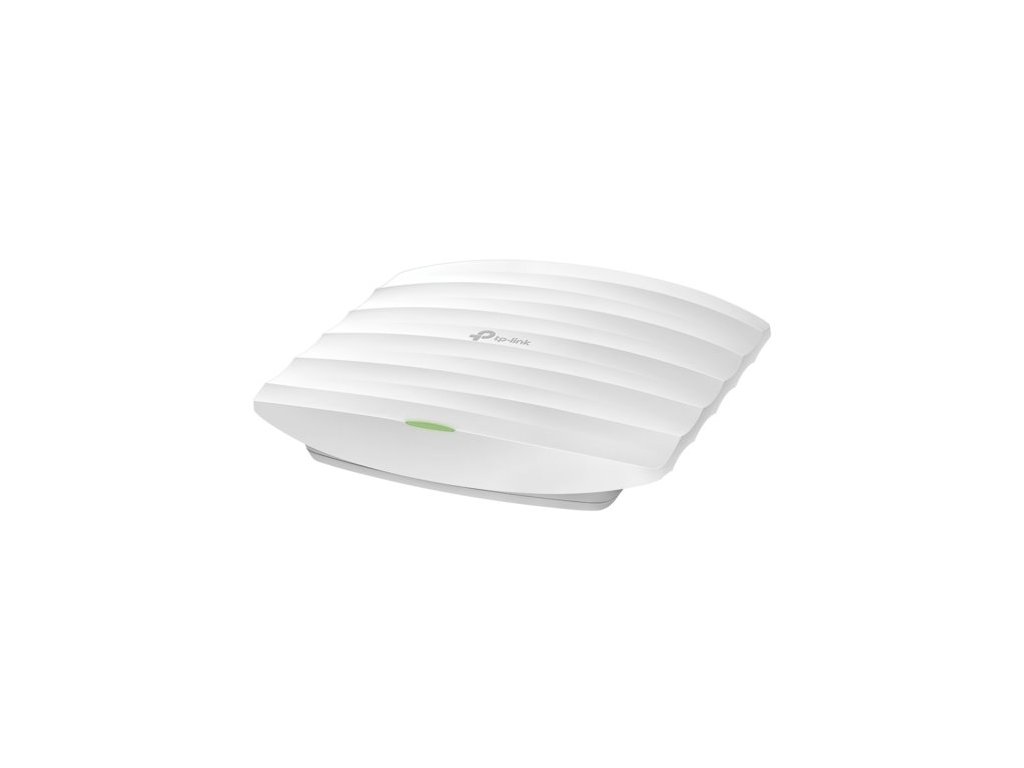

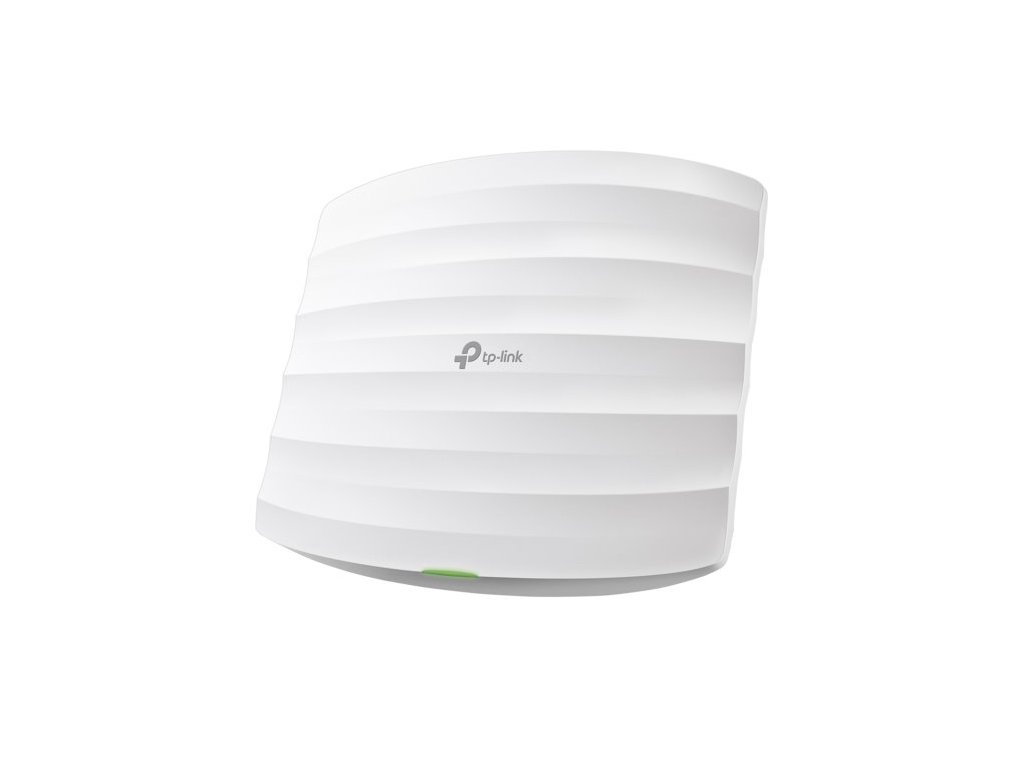

TP-LINK"AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point PORT: 1× Gigabit RJ45 PortSPEED: 450 Mbps at 2.4 GHz + 867 M EAP223 TP-link

Rýchle dvojité Wi-Fi pásmo: Súčasná rýchlosť 450 Mbps na 2,4 GHz a 867 Mbps na 5 GHz, čo spolu dáva rýchlosť Wi-Fi 1317 Mbps.†Integrované do Omada SDN: Zero-Touch Provisioning (ZTP)‡, centralizovaná správa cloudu a inteligentné monitorovanie.

Centralizovaná správa: Prístup do cloudu a aplikácia Omada pre maximálne pohodlie a jednoduchú správu. Plynulý roaming: Ani video streamy a hlasové hovory nie sú ovplyvnené, keď sa používatelia presúvajú medzi lokalitami.

*Podpora PoE: Podpora štandardov 802.3af/at aj pasívneho PoE (PoE adaptér nie je súčasťou balenia) pre flexibilnú inštaláciu. Bezpečná sieť pre hostí: Spolu s viacerými možnosťami overovania (SMS/Facebook Wi-Fi/voucher atď.) a bohatými technológiami bezdrôtovej bezpečnosti.

Pokročilá bezdrôtová technológia: Optimalizujte výkon siete pomocou technológií MU-MIMO, Band Steering, Airtime Fairness a Beamforming.



HARDWARE FEATURES

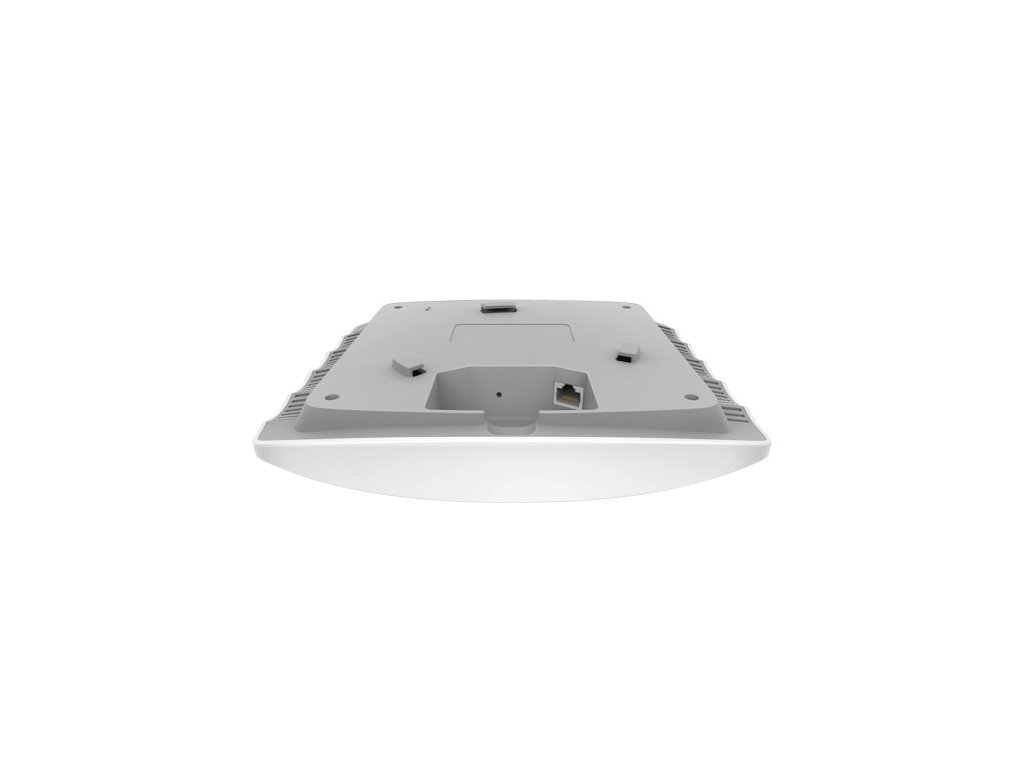

Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)

Physical Security Lock Yes

Button Reset

Power Supply • 802.3af/at PoE

• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)

Power Consumption EU: 9.7W

US: 12.1W

Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna Type 3 Internal Omni

• 2.4 GHz: 4 dBi

• 5 GHz: 5 dBi

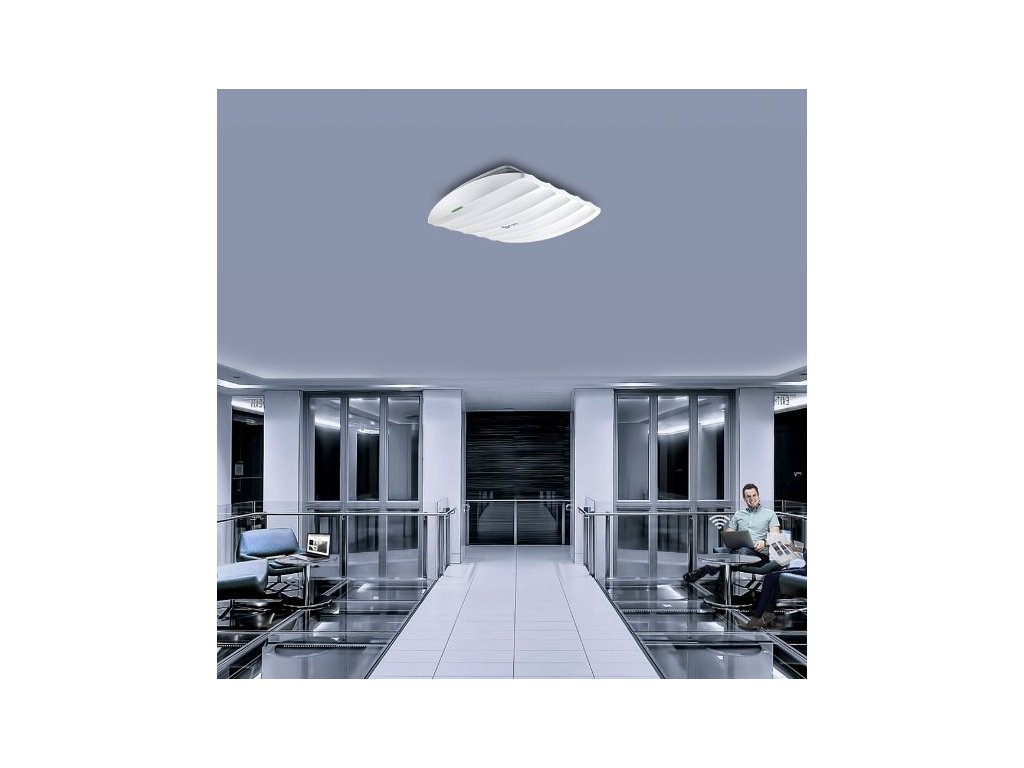

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz:Up to 867 Mbps

• 2.4 GHz:Up to 450 Mbps

Wireless Functions • Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming*

• Omada Mesh*

• Band Steering

• Load Balance

• MU-MIMO

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication*

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

Transmission Power • CE:

?20 dBm(2.4 GHz, EIRP)

?23 dBm(5 GHz, EIRP)

• FCC:

?24 dBm(2.4 GHz)

?22 dBm(5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Hardware Controller OC300

• Omada Hardware Controller OC200

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access Yes, through

• OC300

• OC200

• Omada Software Controller

• Omada Cloud-Based Controller

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

Certification CE, FCC, RoHS

Package Contents • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223

• Mounting Kits

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
