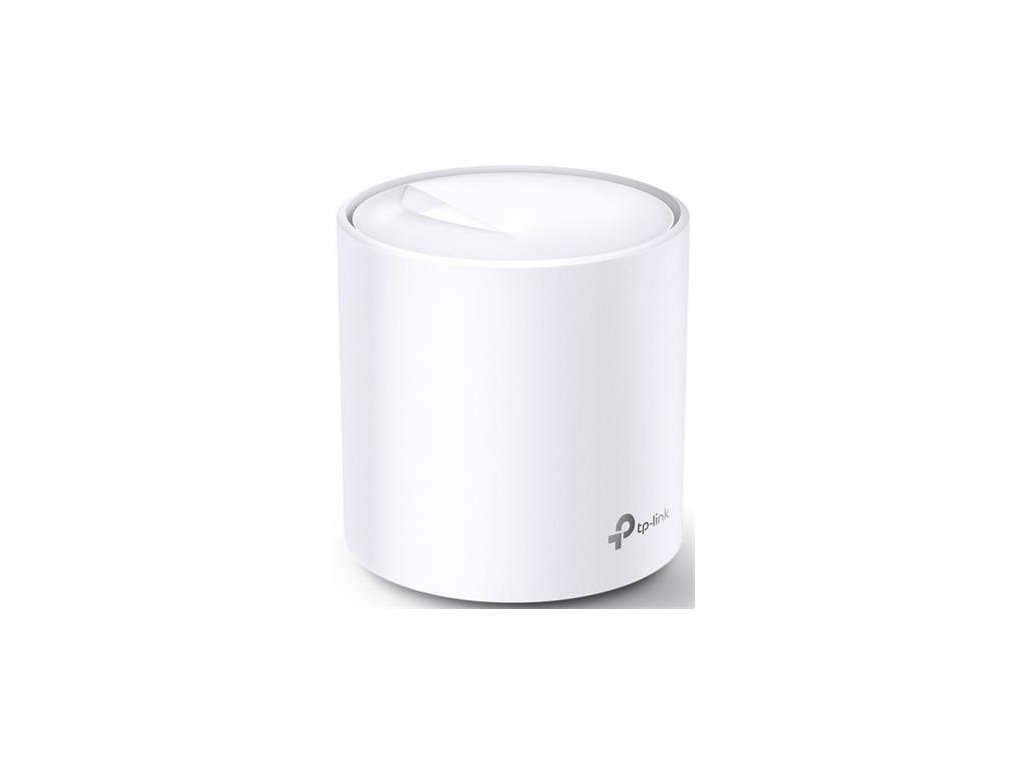

TP-Link AX3000 Smart Home Mesh WiFi6 System Deco X60(1-pack) TP-link

WIRELESS

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX3000

5 GHz: 2402 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 4-7+ Bedroom Houses (3-pack)

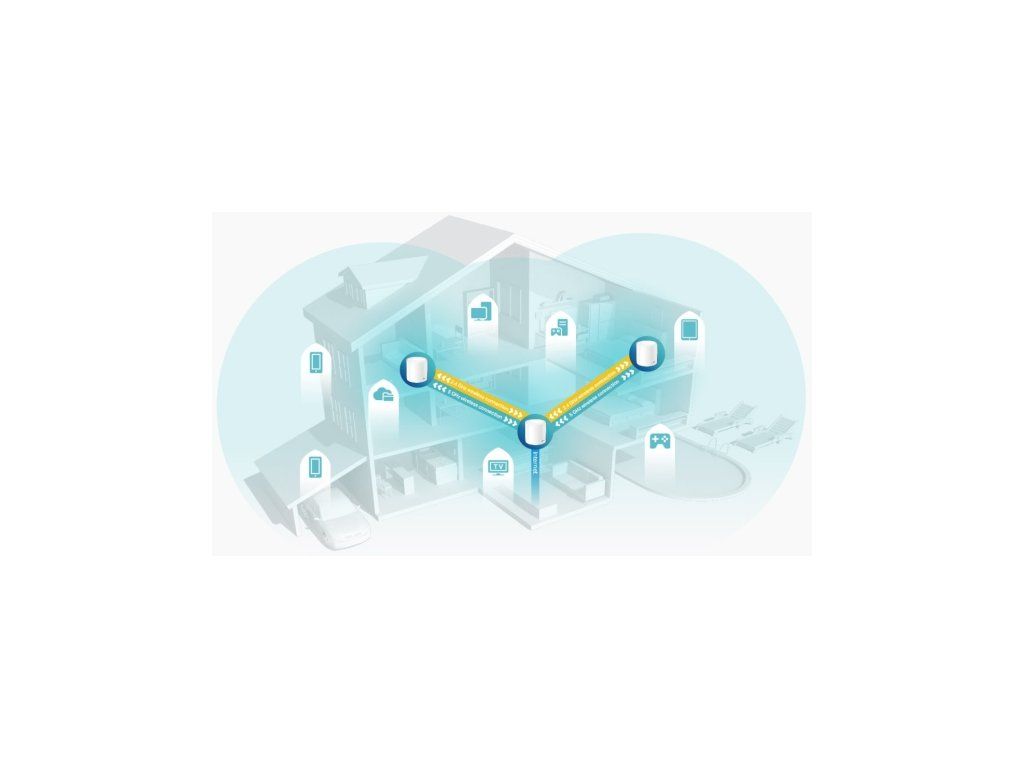

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage



4× Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas



Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity High

Dual-Band

Distribute devices to different bands for optimal performance



MU-MIMO

Silmultaneously communicates with multiple MU-MIMO clients



OFDMA

Silmultaneously communicates with multiple WiFi 6 clients



6 Streams

More than enough bandwidth for connected devices

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor 1 GHz Quad-Core CPU

Ethernet Ports 2× Gigabit Ports



*Per Deco Unit

Supports WAN/LAN auto-sensing

Buttons Reset Button

Power 12 V ? 2 A

SECURITY

WiFi Encryption WPA

WPA2

WPA3

Network Security SPI Firewall

Access Control



HomeCare™ Antivirus

Malicious Site Checker

Port Intrusion Prevention

Infected Device Isolation

Notification and Log

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

SOFTWARE

Protocols IPv4

IPv6

Service Kits HomeCare™

Learn More>

Parental Controls HomeCare™ Parental Controls

Custom Profiles

Content Filtering

URL FIltering

Time Limit

Time Schedule (Bed Time)

Log Insight

Usage Monitor

Monthly Reports

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service HomeCare™ QoS

QoS by Device

QoS by Application

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

Management Deco App

PHYSICAL

Dimensions (W×D×H) 4.33 × 4.33 × 4.99 in

(110 × 110 × 114 mm)

Package Contents Deco X60 (3-pack)

3 Deco X60 Units

1 RJ45 Ethernet Cable

3 Power Adapters

1 Quick Installation Guide



Deco X60 (2-pack)

2 Deco X60 Units

1 RJ45 Ethernet Cable

2 Power Adapters

1 Quick Installation Guide



Deco X60 (1-pack)

1 Deco X60 Unit

1 RJ45 Ethernet Cable

1 Power Adapter

1 Quick Installation Guide



OTHERS

System Requirements Android 4.4 or later

iOS 9.0 or later

Certifications CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm (2.4 GHz)

<30 dBm (5 GHz)
