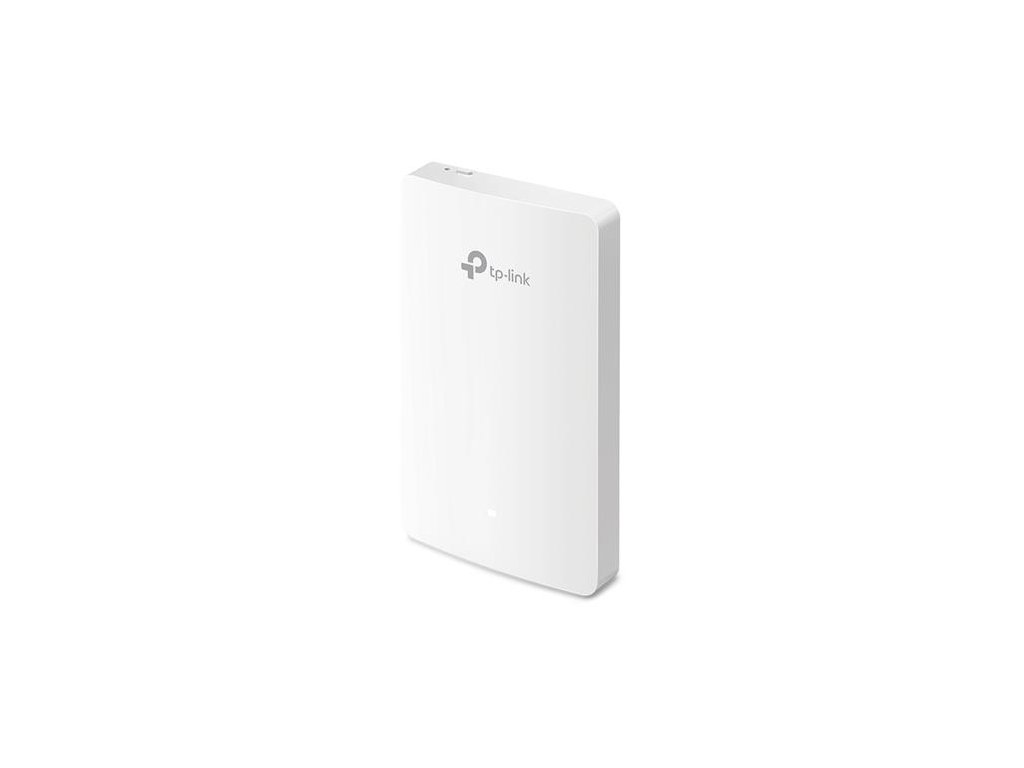

TP-Link EAP235-Wall AC1200 4xGb wall-plate AP Omada SDN TP-link

HARDWARE FEATURES

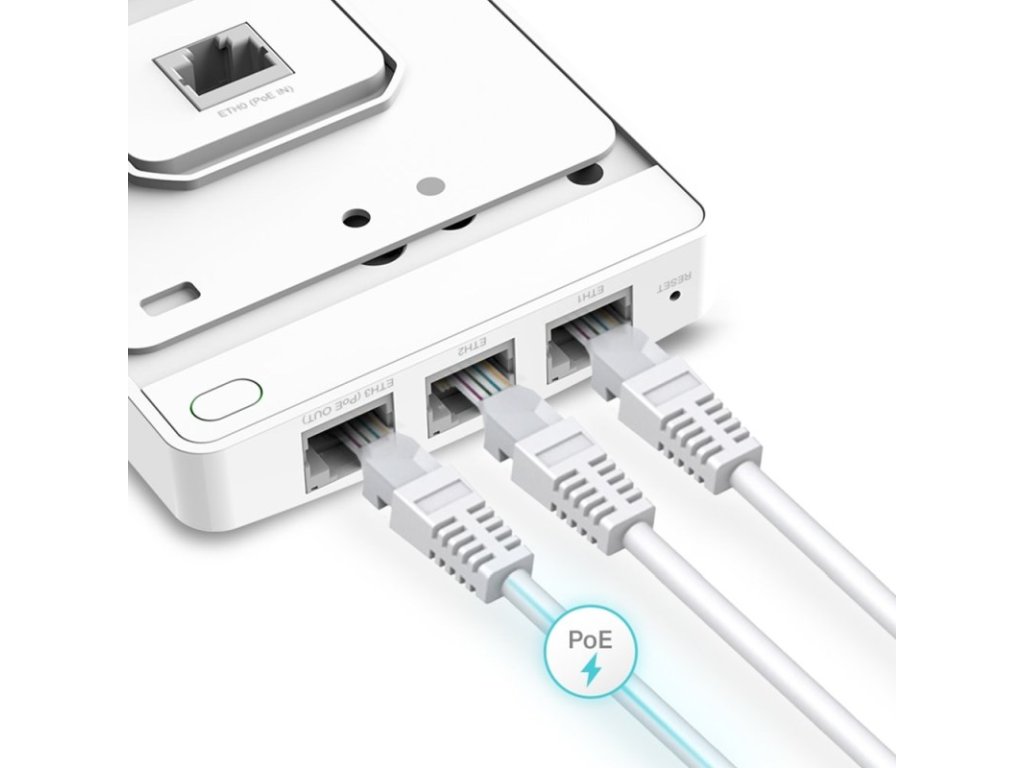

Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port

• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)

Physical Security Lock Yes

Button Reset

Power Supply 802.3af/802.3at PoE

Power Consumption 9.8 watts /24.4 watts (PoE Out Included)

Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna 2 Dual-Band Antennas

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 4 dBi

Mounting Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/b/g/n/ac

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 867 Mbps

• 2.4 GHz: Up to 300 Mbps

Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Band Steering

• Beamforming

• Load Balance

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Local LAN port based VLAN

• Rogue AP Detection

• 802.1X Support

• 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

Transmission Power • CE:

?20 dBm (2.4 GHz, EIRP)

?23 dBm (5 GHz, EIRP)



• FCC:

?21 dBm (2.4 GHz)

?21 dBm (5 GHz)

MANAGEMENT

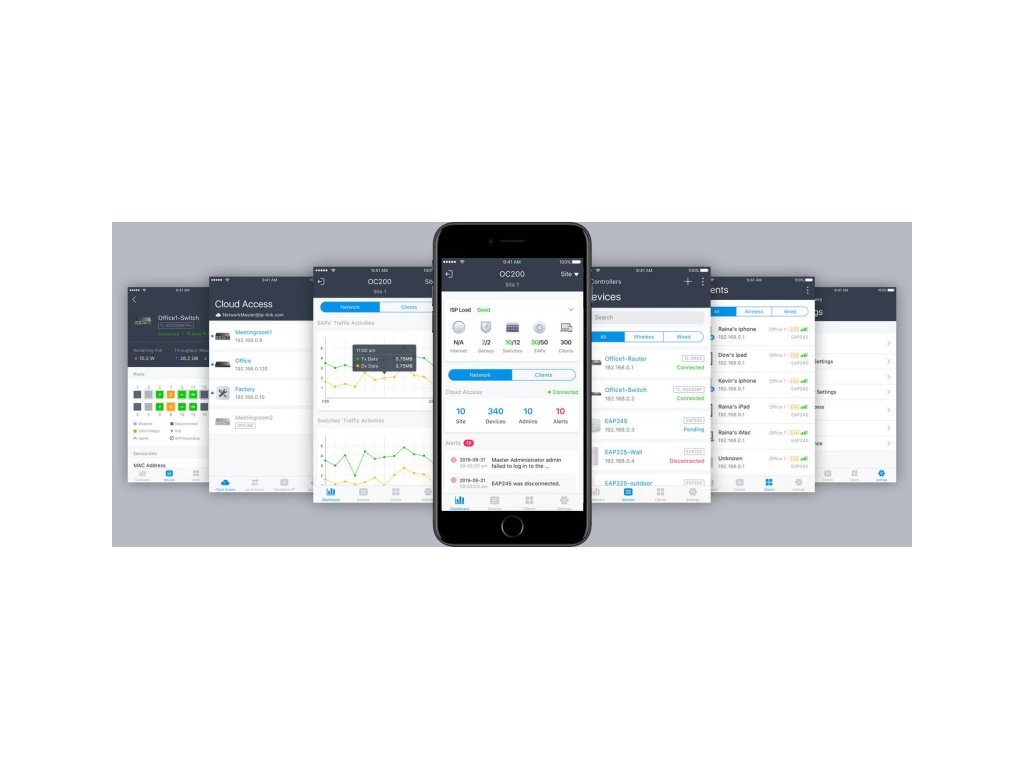

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1,v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

OTHERS

Certification CE, FCC, RoHS

Package Contents • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall

• Installation Guide

• Mounting Screw

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
