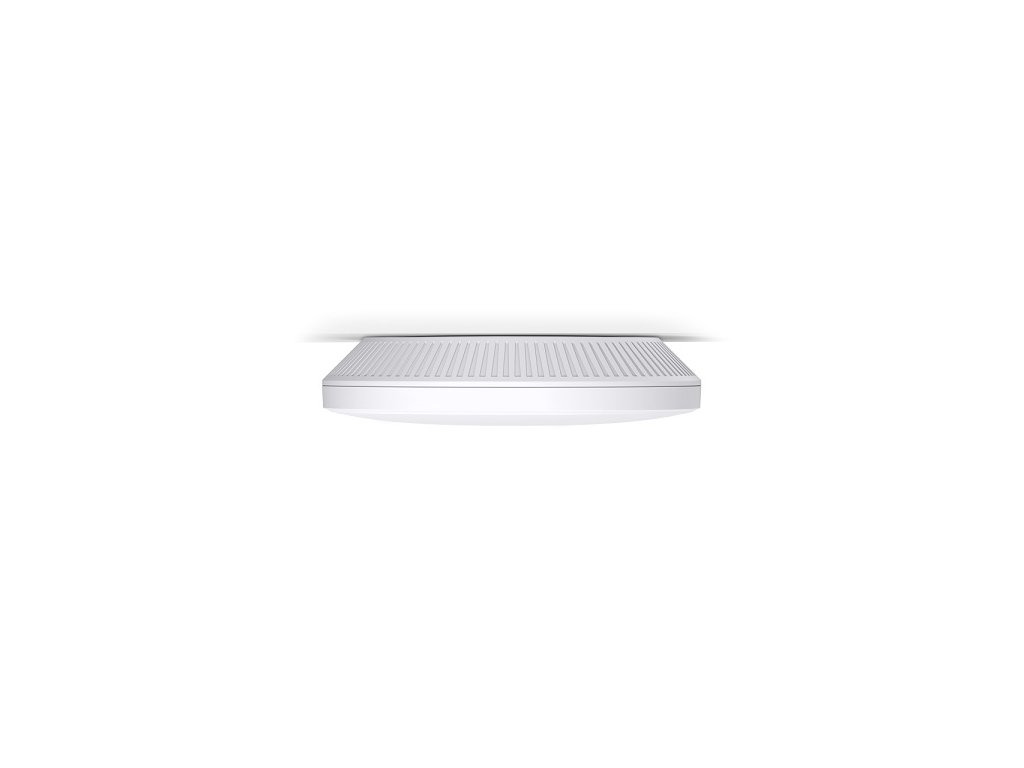

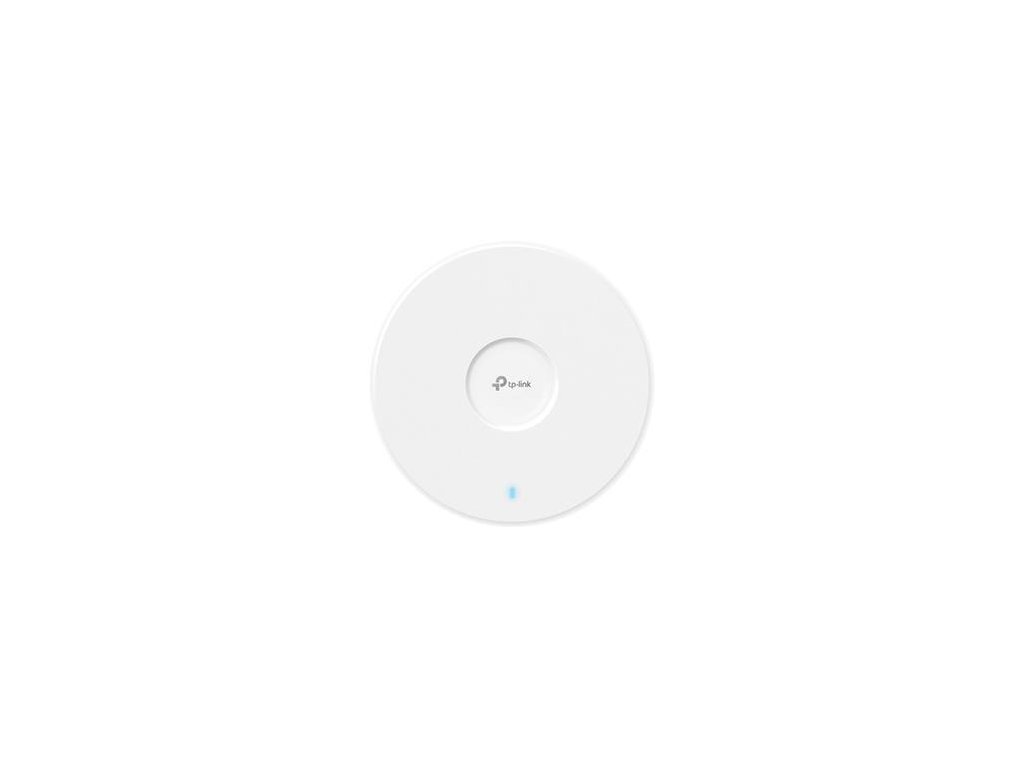

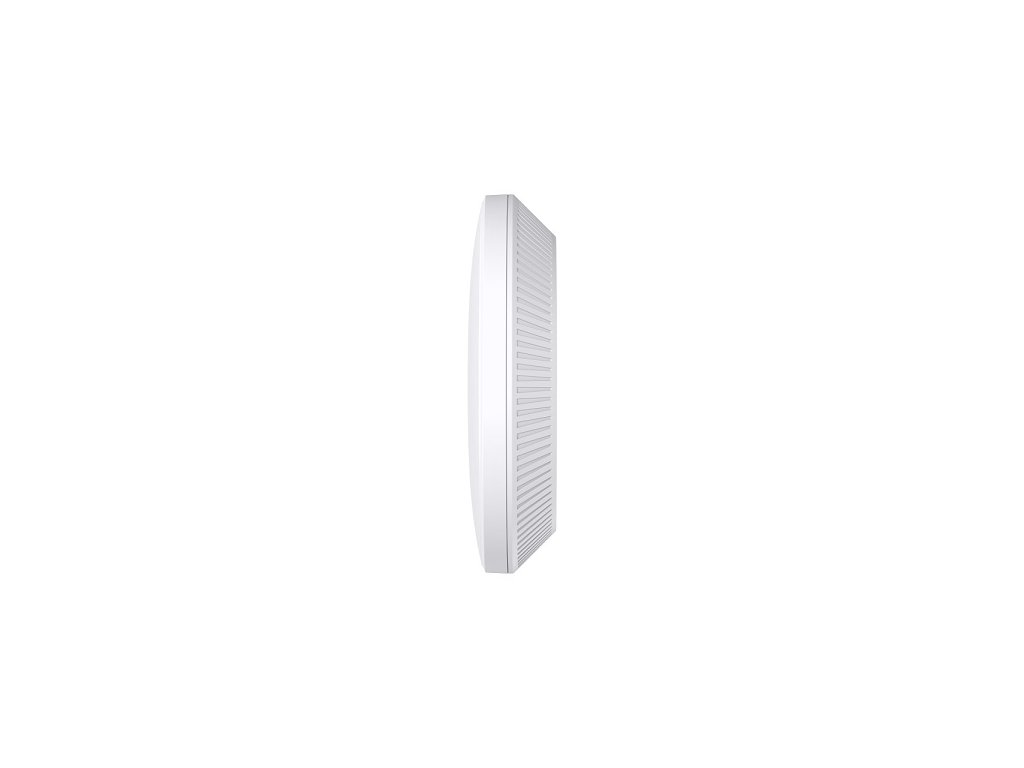

TP-Link EAP723 BE5000 WiFi7 Access Point TP-link

BE3600 Dual-Band Wi-Fi 7 (2882 Mb/s na 5 GHz + 688 Mb/s na 2,4 GHz).
1× 2,5GbE port odomyká plný potenciál Wi-Fi 7.

Šírka pásma 160 MHz umožňuje oveľa viac simultánnych prenosov.‡Multi-RUs zabezpečujú vysoký výkon vašej siete.


Pokročilé funkcie: Centralizovaná správa, Mesh a plynulý roaming.



HARDWARE FEATURES

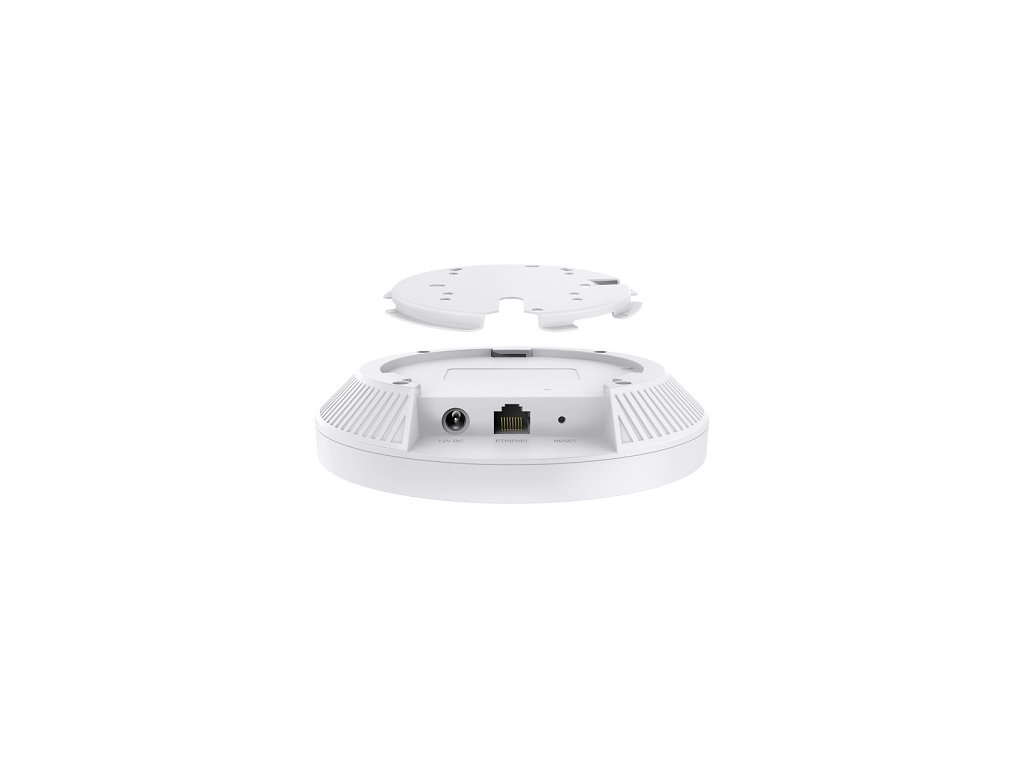

Interface 1× 2.5G Ethernet Port

Button Reset

Power Supply 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)

Max. Power Consumption • 18.6 W (For PoE);

• 16.0 W (For DC)

Dimensions ( W x D x H ) 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)

Antenna • 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi

Mounting Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Coverage 140?(1500 ft2)***

Concurrent Clients 250+**

Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be

Frequency 2.4 GHz and 5 GHz

Signal Rate 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)

Wireless Functions • 4K-QAM‡

• Seamless Roaming

• MU-MIMO‡

• EHT160‡

• Mesh?

• OFDMA‡

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:16(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

Wireless Security • Captive Portal Authentication?

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power < 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, band 1&band 2, EIRP)

< 28 dBm (5 GHz, band 3, EIRP)



Management Features

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Yes

Web-based Management Yes

OTHERS

Certification CE, FCC, RoHS, IC

Package Content • EAP723

• Installation Guide

• Ceiling/Wall Mounting Kit

Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;
