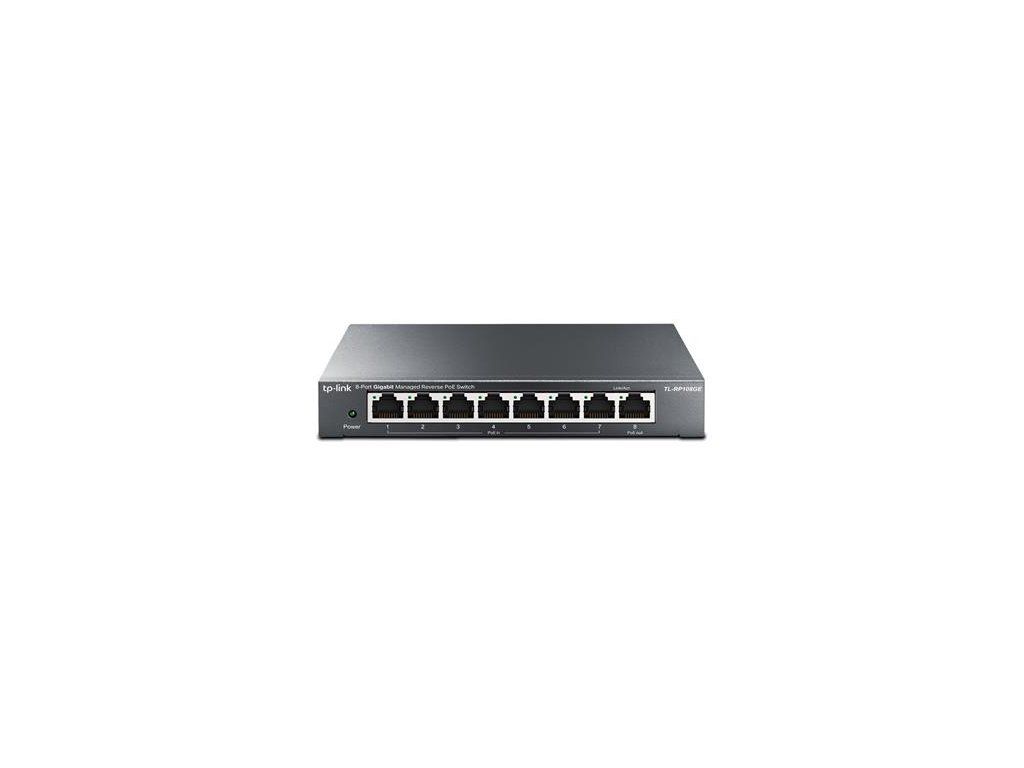

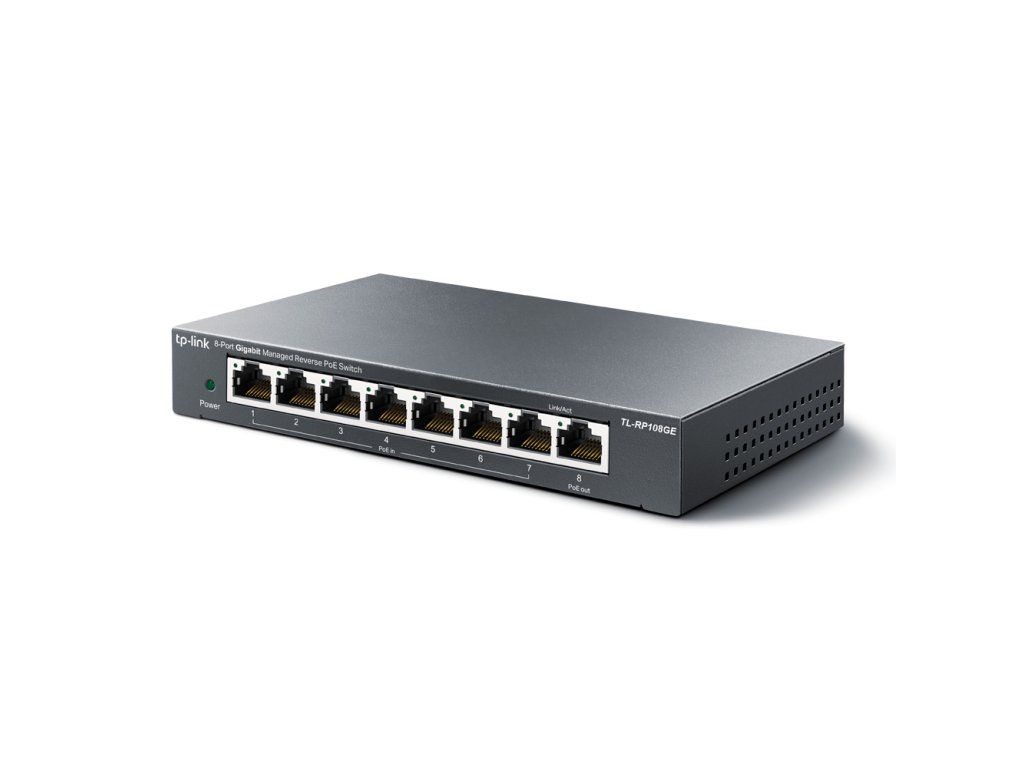

TP-Link Easy Smart switch RP108GE (7xGbE passive PoE-in, 1xGbE passive PoE-out) TP-link

TL-RP108GE

8portový gigabitový managovateľný reverznej PoE Switch

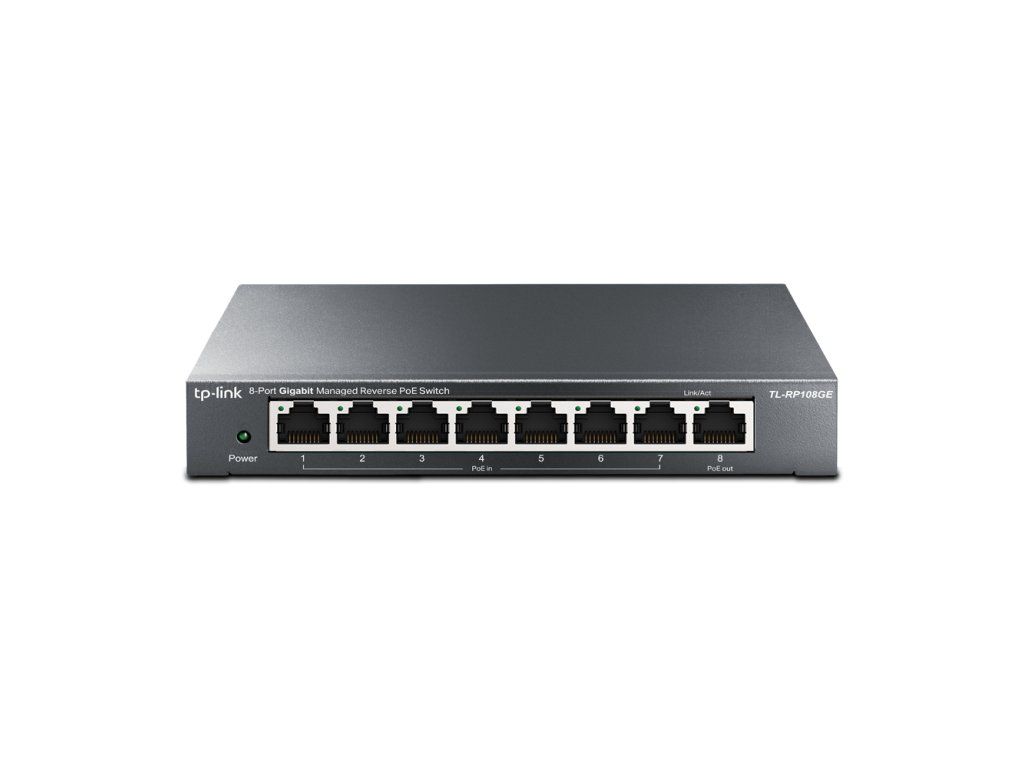

7 PoE vstupov a 1 PoE výstup 10/100/1000 Mbps RJ45 porty

1 DC výstupný port, ktorý podporuje obe 5V a 12V prepínanie napätia

Odolný kovový obal je zárukou kvality a profesionálneho vzhľadu

Inteligentná správa pomocou webového rozhrania a stiahnutého nástroje

Green technológia znižuje spotrebu elektrickej energie



HARDWARE FEATURES

Standards and Protocols CSMA/CD

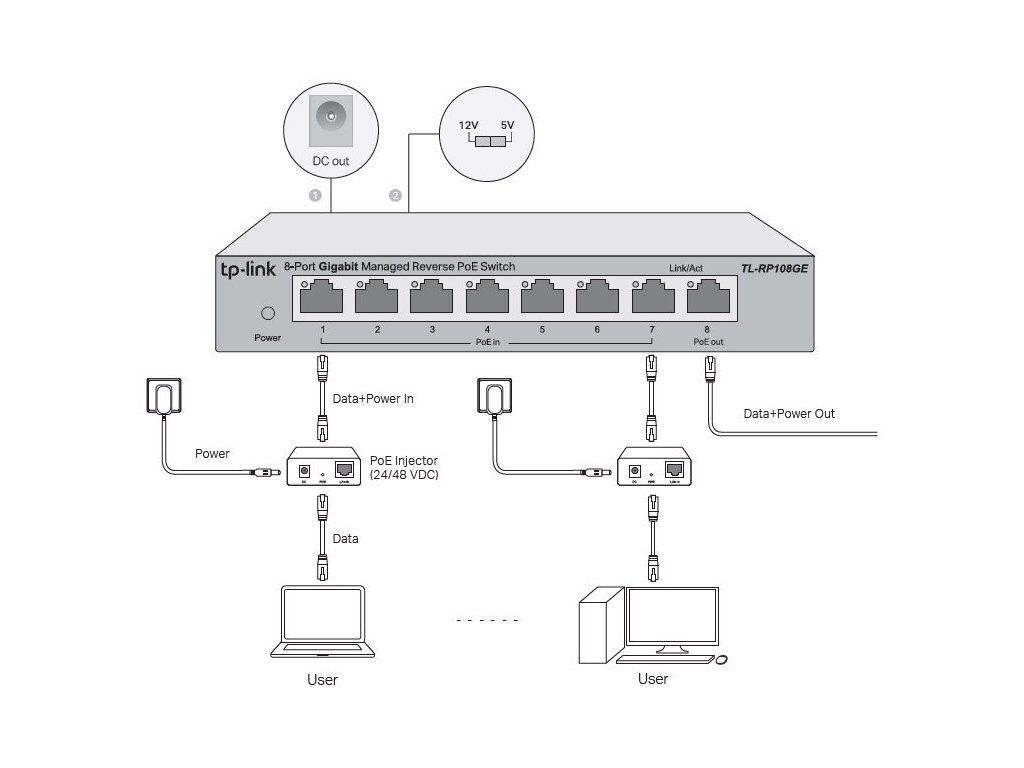

Interface 7 Passive PoE-in RJ45 Ports:

10/100/1000Mbps Auto-Negotiation

Voltage: 24/48 V (mixture is not supported)

Power pin of Ethernet cable: 4/5+ 7/8-

802.3af/B, 24V DC, 48V DC



1 Passive PoE-out RJ45 Port:

10/100/1000Mbps Auto-Negotiation

Voltage: depending on the input voltage of PoE-in ports

Power pin of Ethernet cable: 4/5+ 7/8-

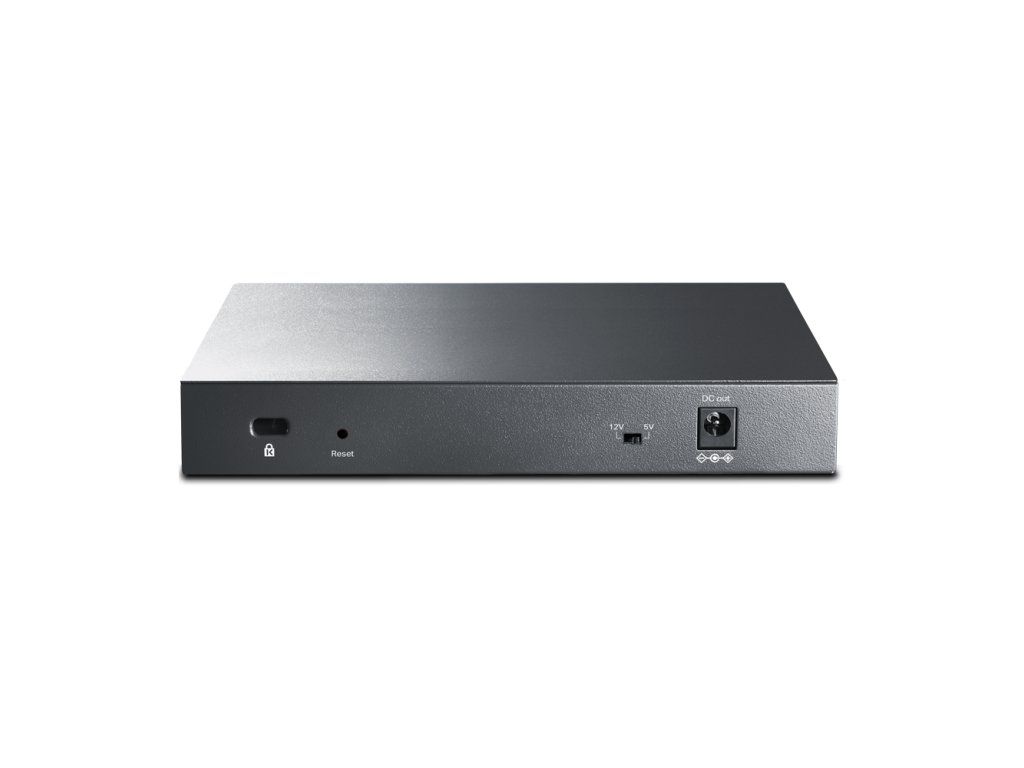

1 DC Output Port:

Voltage: 5/12 V

Network Media 10Base-T:

UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100 ? STP (maximum 100 m)



100Base-TX:

UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100 ? STP (maximum 100 m)



1000Base-T:

UTP category 5e cable (maximum 100 m)

EIA/TIA-568 100 ? STP (maximum 100 m)

Packet Forwarding Rate 11.9 Mbps

Mac Address Table 4 K

Jumbo Frame 16 KB

Switching Capacity 16 Gbps

IEEE Standards IEEE802.3ab, IEEE802.3i, IEEE802.3p

IEEE802.3q, IEEE802.3x, IEEE802.3u

Data Rates Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex)

Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex)

Gigabit Ethernet: 2000 Mbps (Full Duplex)

LED Indicator Power, Link/Act LED

Dimensions ( W x D x H ) 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)

Max Power Consumption 3.98 W (with no PD connected)

18.01 W (24 V with PD connected)

32.74 W (48 V with PD connected)

Max Heat Dissipation 13.57 BTU/h (with no PD connected)

61.41 BTU/h (24 V with PD connected)

111.64 BTU/h (48 V with PD connected)

SOFTWARE FEATURES

Quality of Service Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-RP108GE

Power Cord

Installation Guide

Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0?~40? (32?~104?)

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
