TP-Link ES220GMP 20xGb (16xPOE+) Easy Man.switch Omada TP-link

Popis produktu

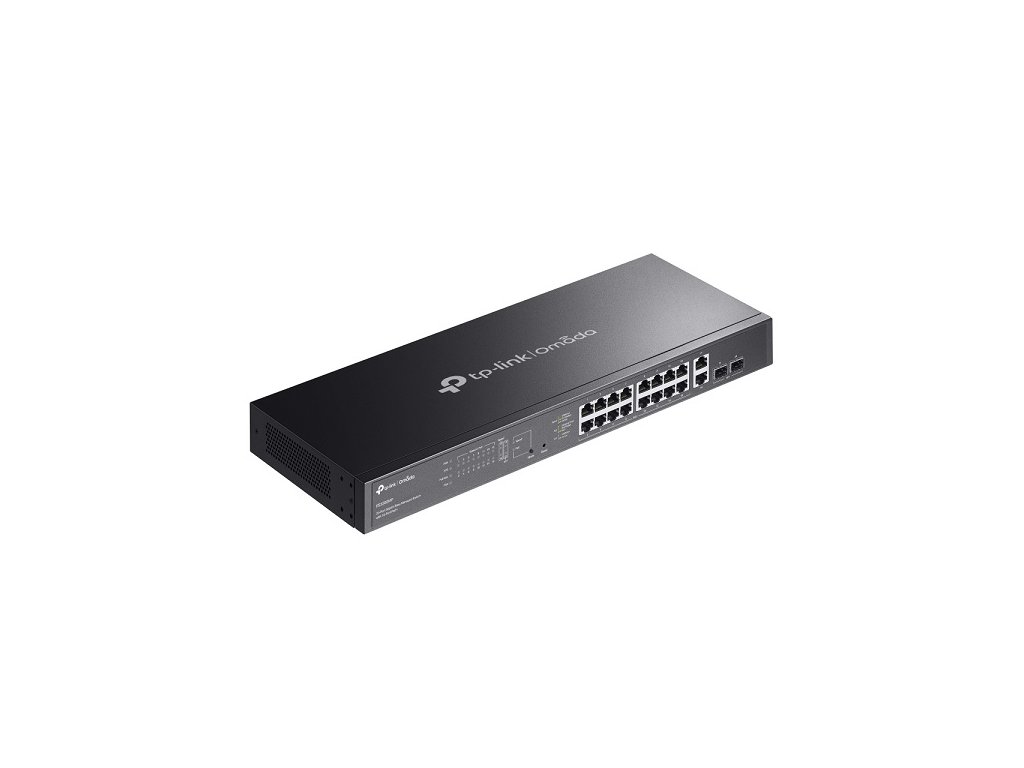

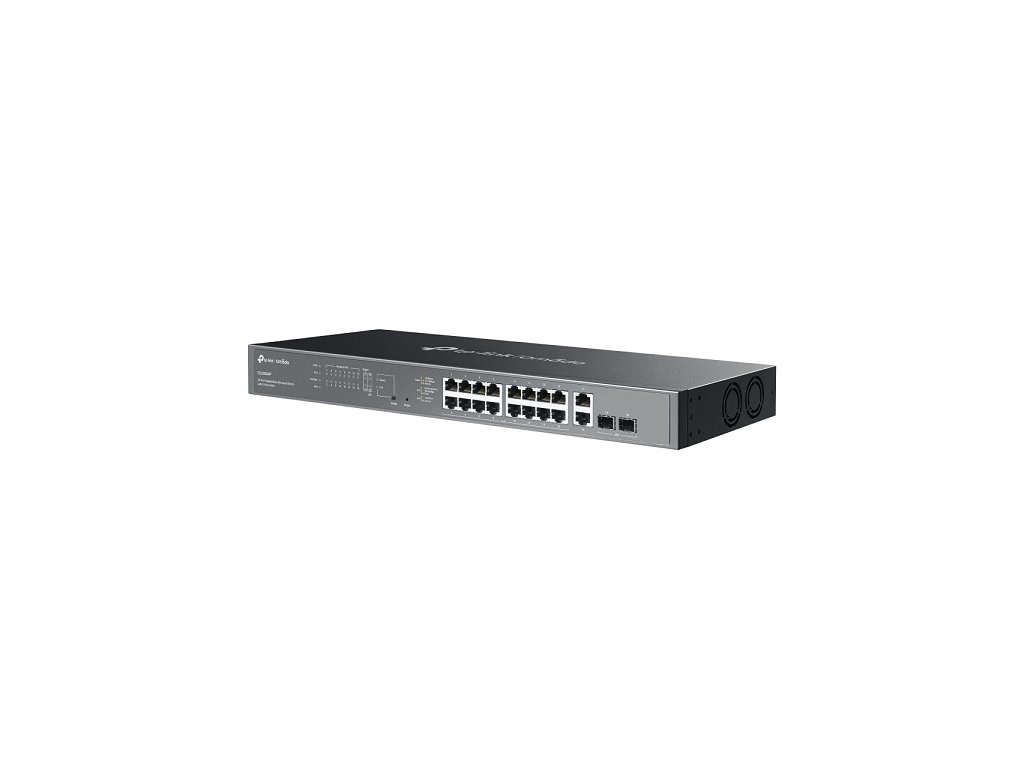

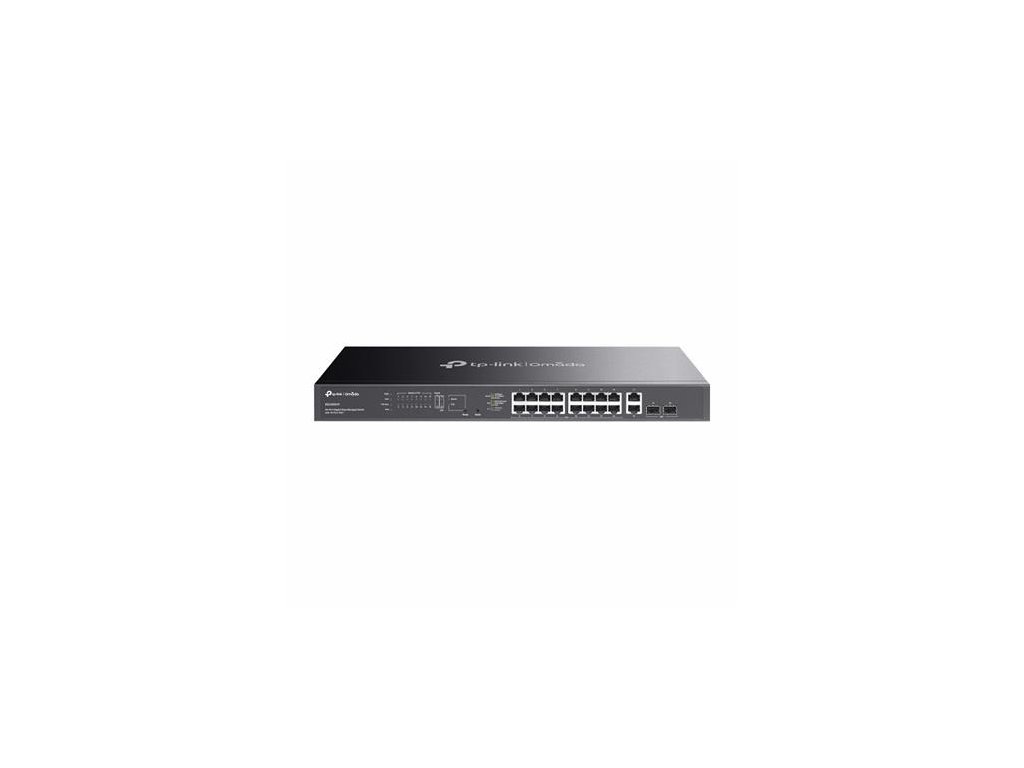

ES220GMP

Omada 20portový gigabitový Easy Managed switch s 8 portami PoE+

16× gigabitové PoE+ RJ45 porty kompatibilné s 802.3at/af

2× gigabitový RJ45 port, 2× gigabitový SFP/RJ45 combo port

Rozpočet PoE napájania 250 W, až 30 W pre každý PoE port*

Jednoduché použitie: Podporuje plug-and-play pre okamžité pripojenie a jednoduchú konfiguráciu pre ďalšie funkcie

Centralizovaná cloudová správa cez web alebo aplikáciu Omada†

Až 250 m PoE**, QoS?, automatické obnovenie PoE‡ a izolácia portov pre spoľahlivú sieť v dohľadových systémoch

Automatická prevencia slučiek, VLAN a IGMP Snooping

Odolné kovové puzdro a možnosť montáže na stôl alebo stenu



HARDWARE FEATURES

Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)

• 2× 10/100/1000 Mbps RJ45 Port

• 2× Gigabit SFP Slot

• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity 2

Installation Rackmountable

Physical Security Lock ?

Power Supply 100–240V AC, 50/60Hz

PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant

• PoE Ports: 16 ports

• PoE Budget: 250W available for all PoE+ ports, 30W max per port

• Fast PoE & Perpetual PoE

• PoE Auto Recovery‡

• Up to 250m PoE transmission distance**

Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)

Surge Protection ±6kV

PERFORMANCE

Switching Capacity 40 Gbps

Packet Forwarding Rate 29.76 Mpps

MAC Address Table 8K

Packet Buffer Memory 4 Mbit

Jumbo Frame 15 KB

SOFTWARE FEATURES

Quality of Service • Port-based/802.1p/DSCP QoS

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control?

L2 Features • Static Link Aggregation

• Loop Prevention / Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast • IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN • MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method Store-And-Forward

MANAGEMENT

Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller

Management Features • Web-based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Unified Configuration†

OTHERS

Certification FCC, CE, RoHS

Package Contents • ES220GMP

• Power Cord

• Mounting Brackets

• Rubber Feet

• Screws

• Installation Guide

Environment • Operating Temperature: -5?~50? (23?~122?)

• Storage Temperature: -40?~70? (-40?~158?)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
