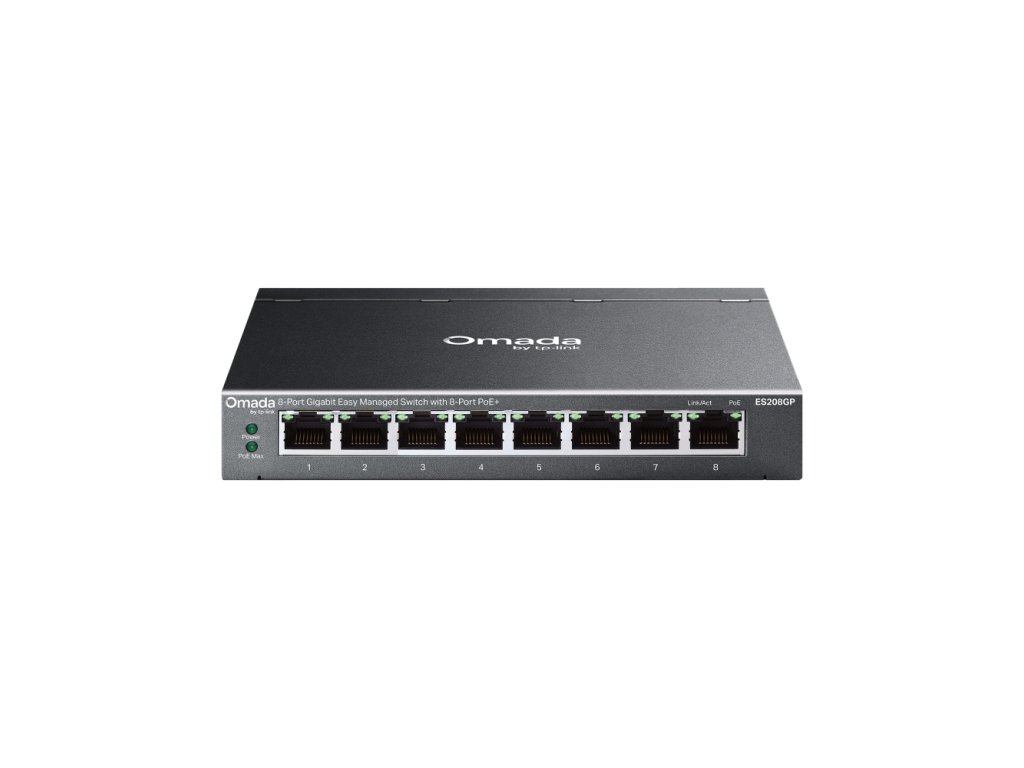

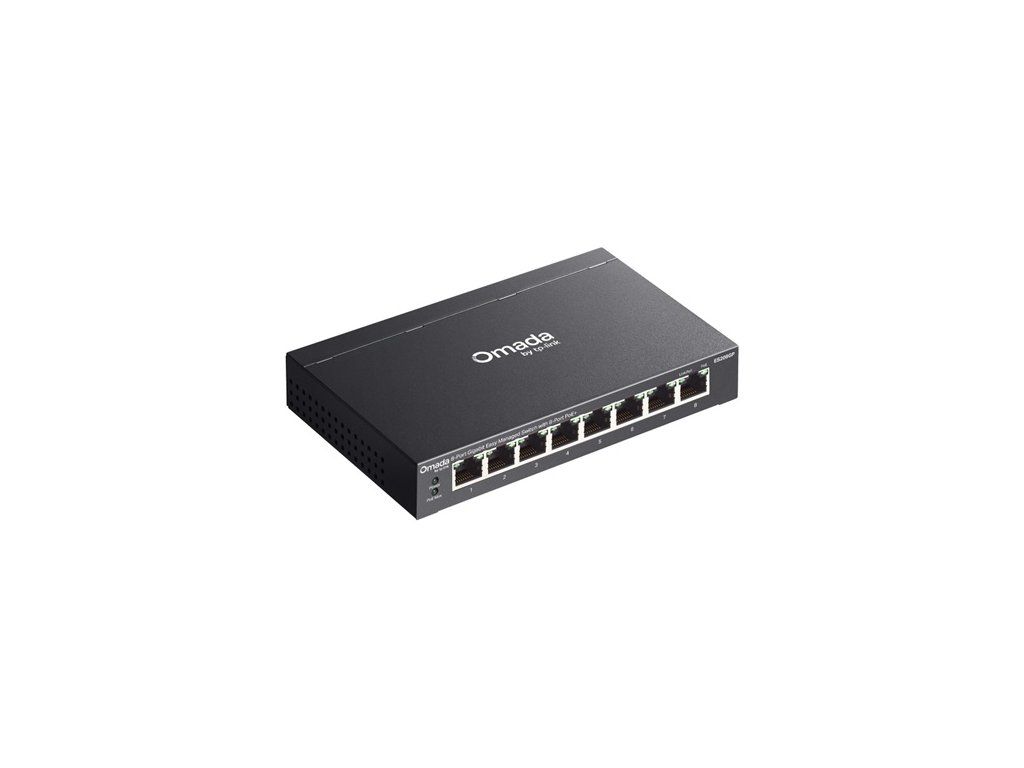

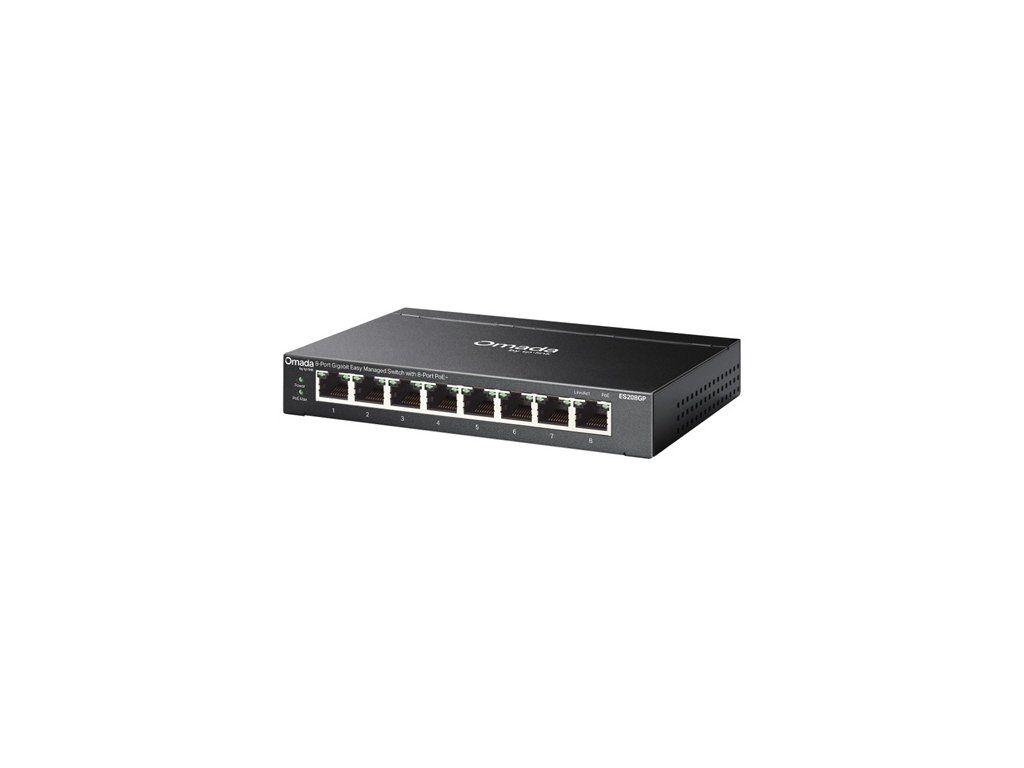

TP-Link OMADA switch ES208GP (8xGbE,8xPoE+,64W, fanless) TP-link

ES208GP
Omada 8portový gigabitový Easy Managed switch s 8 portami PoE+
8 portov RJ45 10/100/1000 Mb/s (8 portov kompatibilných s PoE+ 802.3af/at)
Celkový výkon PoE 64 W až 30 W pre každý port PoE*
Jednoduché použitie: Podporuje plug-and-play pre okamžité pripojenie a jednoduchú konfiguráciu ďalších funkcií
Centralizovaná cloudová správa cez web alebo aplikáciu Omada†
Až 250m PoE**, vzdialený reštart kamery†, QoS a izolácia portov pre spoľahlivé siete kamerových systémov
Automatická prevencia slučiek, VLAN a IGMP Snooping
Bezventilátorová konštrukcia pre tichú prevádzku
Odolné kovové puzdro a konštrukcia pre montáž na stôl/na stenu,



HARDWARE FEATURES

Interface 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)

Fan Quantity Fanless

Installation • Desktop

• Wall Mount

Physical Security Lock ?

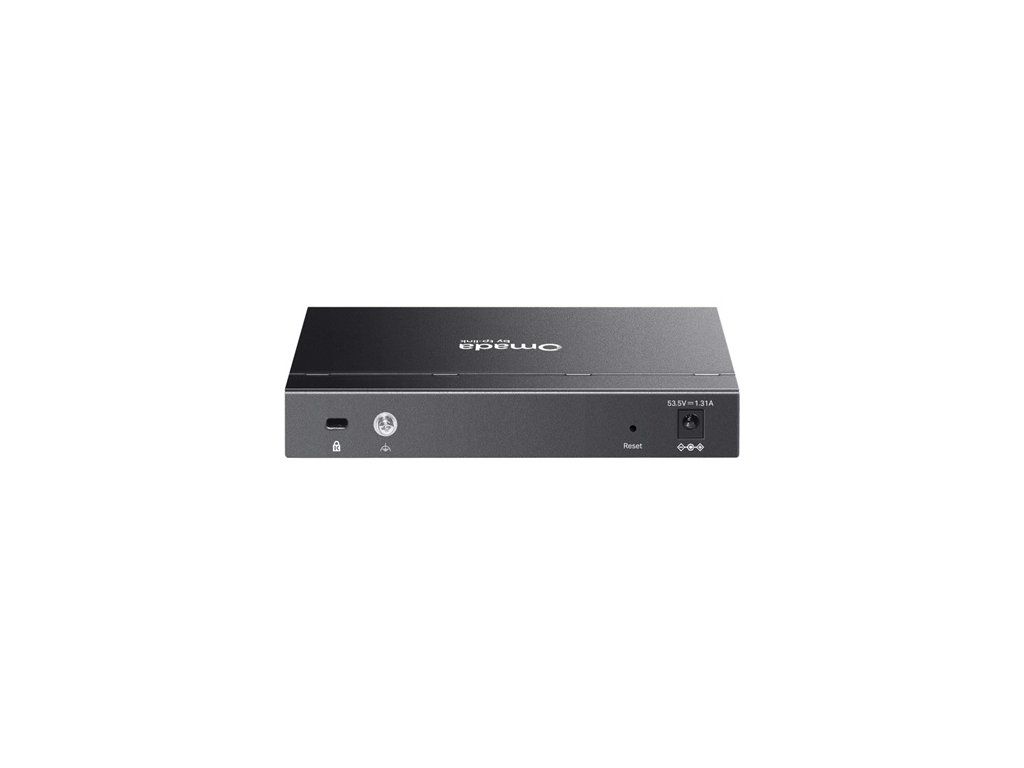

Power Supply DC Power Adapter (Output: 53.5V DC / 1.31A)

PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant

• PoE Ports: 8 ports

• PoE Budget: 64W available for all PoE+ ports, 30W max per port

• Remote Camera Reboot†

• Up to 820ft (250m) PoE transmission distance**

Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)

Surge Protection Service port: ±6 kV

PERFORMANCE

Switching Capacity 16 Gbps

Packet Forwarding Rate 11.904 Mpps

MAC Address Table 8K

Packet Buffer Memory 4 Mbit

Jumbo Frame 15 KB

SOFTWARE FEATURES

Quality of Service • 802.1p DSCP Priority

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control

L2 Features • Link Aggregation

- Static Link Aggregation

- Up to 2 aggregation groups and up to 4 ports per group

• Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast • IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN • MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method Store and Forward

Management Features

Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller

Management Features • Web-based GUI

• DHCP Client

• Cable Diagnostics

OTHERS

Certification FCC, CE, RoHS

Package Content • ES208GP

• Power Adapter

• Power Cord

• Installation Guide

• Rubber Feet

Environment • Operating Temperature: 0?~40? (32?~104?)

• Storage Temperature: -40?~70? (-40?~158?)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
