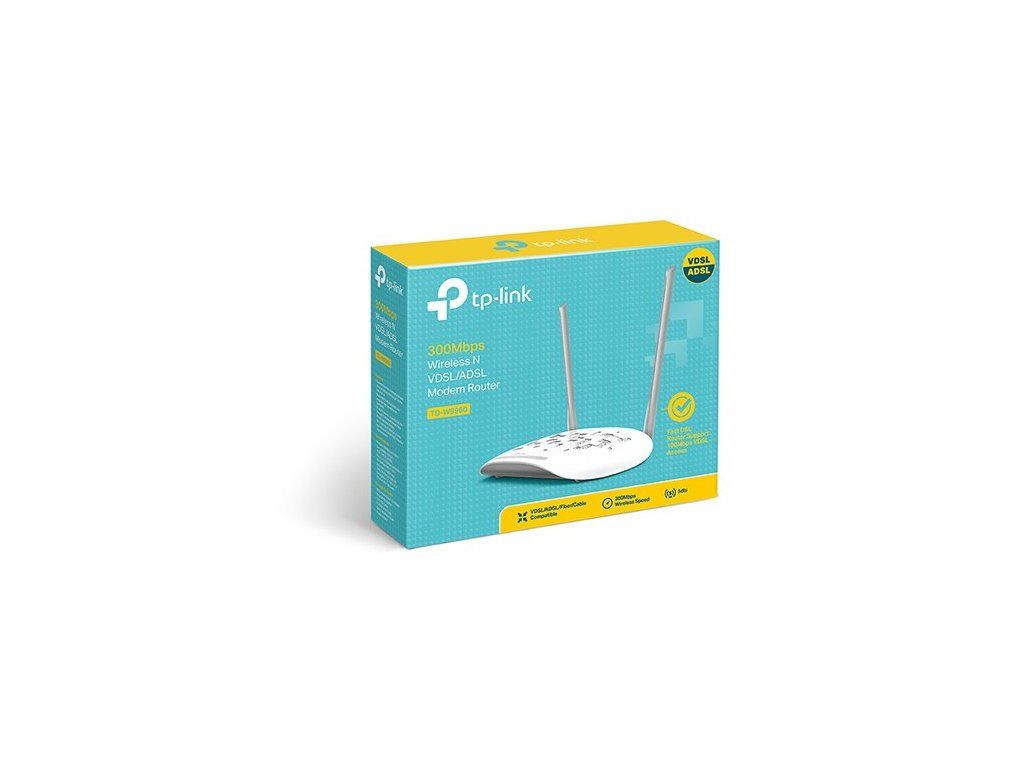

TP-Link TD-W9960 [Modem a router VDSL/ADSL s Wi-Fi standardem N s rychlostí přenosu dat 300 Mb/s] TP-link

300Mbps Wireless N VDSL/ADSL Modem Router
TD-W9960



Versatile Connectivity – With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.
Boosted Speeds – Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.
Maximized Range – Powerful external antennas provide far-reaching wireless coverage in every direction.
Effortless Management – Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere.

HARDWARE FEATURES
Interface 3 10/100Mbps RJ45 LAN Ports
1 10/100Mbps RJ45 LAN/WAN Port
1 RJ11 Port
Button WPS Button
RESET Button
Power ON/OFF Button
External Power Supply 9VDC/0.6A
IEEE Standards IEEE 802.3, 802.3u
VDSL2 Standards ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
Dimensions ( W x D x H ) 181.6 x 129.7 x 36.2mm
Antenna Type Omni directional, Fixed
Antenna Gain 2 x 5dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11b, 802.11g, 802.11n
Frequency 2.400-2.4835GHz
Transmit Power <20dBm(EIRP)
Wireless Security 64/128-bit WEP
WPA/WPA2
WPA-PSK/WPA-PSK2 Encryptions
Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control (IP QoS)
Security NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address Binding
Operating Modes VDSL/ADSL Modem Router, Wireless Router,
Management Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
VPN Pass-Through PPTP, L2TP, IPSec Passthrough
Protocols Supports IPv4 and IPv6
ATM/PPP Protocols PPPoE (RFC2516), PPPoA (RFC 2364), MER\IPoE (RFC 1483 Routed), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge)
Advanced Features Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
APP Tether App
OTHERS
Certification CE, RoHS
Package Contents TD-W9960
External DSL Splitter
RJ-11 DSL Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0?~40?(32?~104?)
Storage Temperature: -40?~70?(-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
