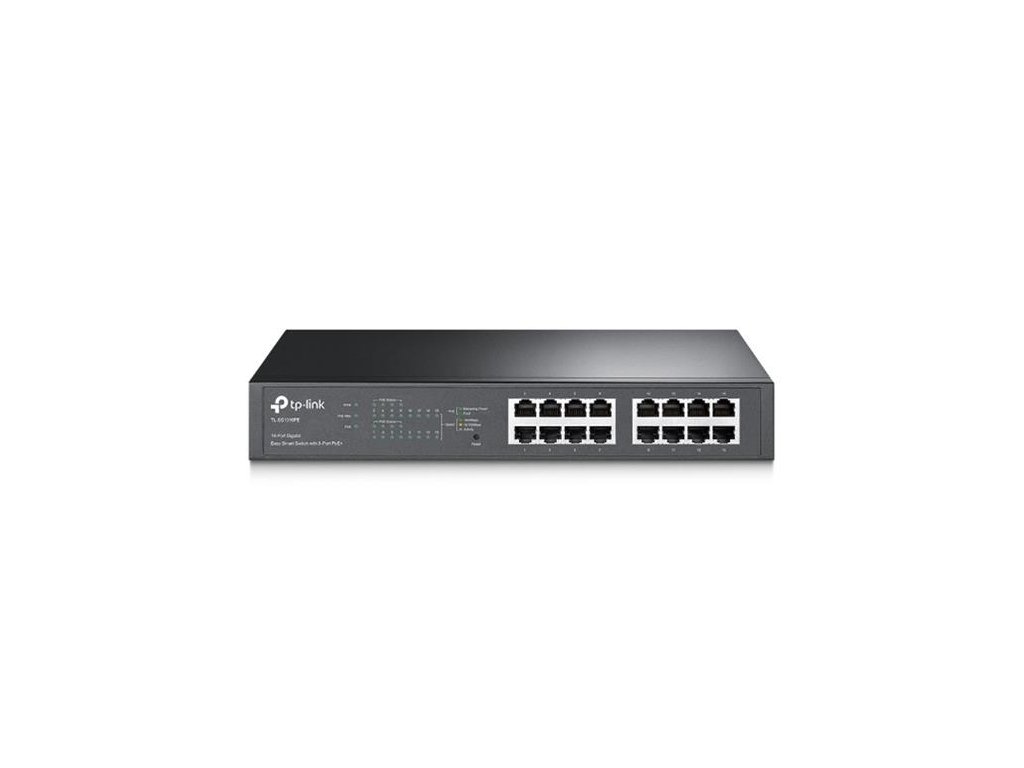

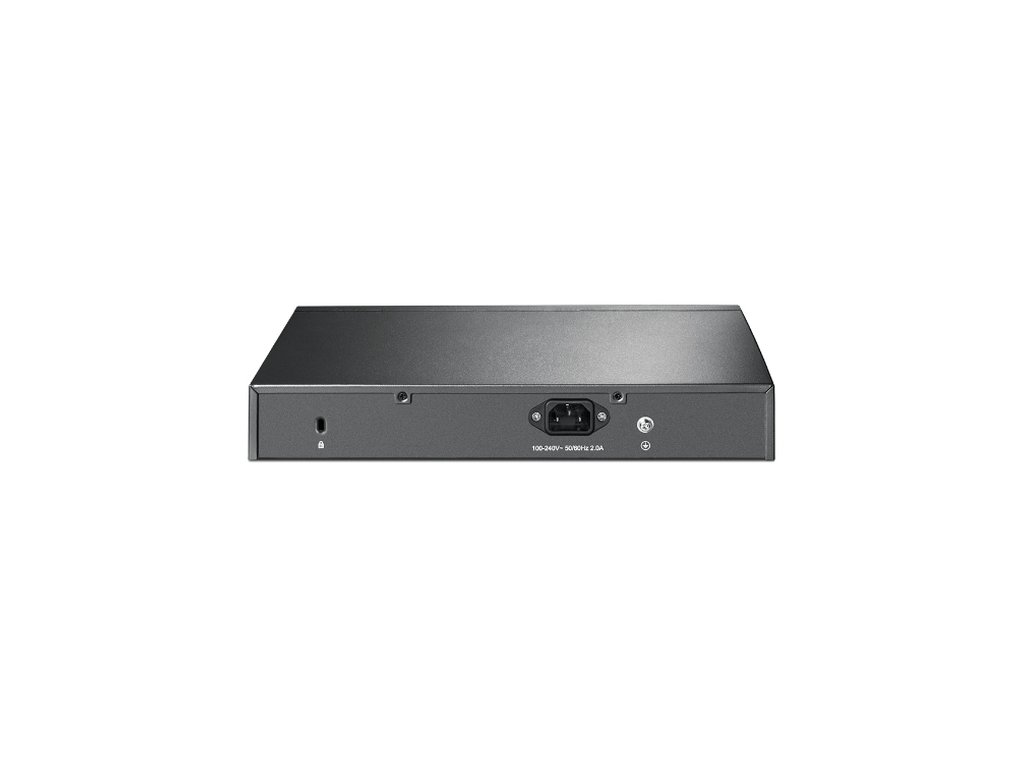

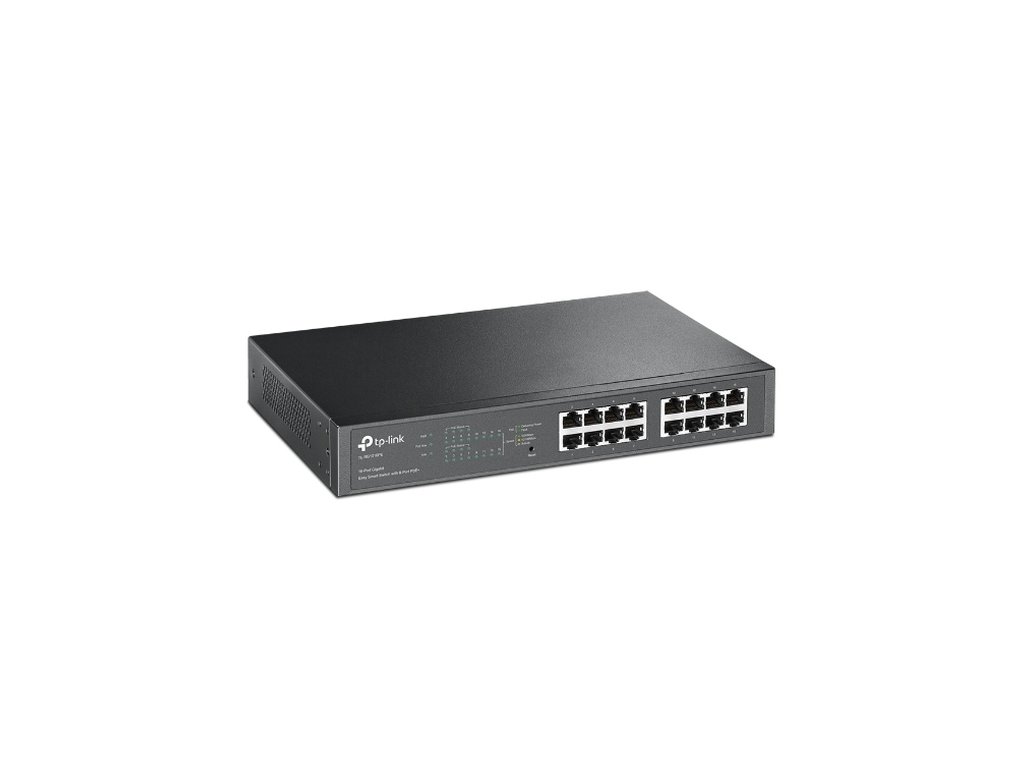

TP-Link TL-SG1016PE 16xGb,(8xPOE+) easy smart rack switch 150W TP-link
16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
TL-SG1016PE
16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 110W, up to 30W per port
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity 1
PoE Ports (RJ45) Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 14.72W (110V/60Hz with no PD connected)
131.42W (110V/60Hz with 110W PD connected)
Max Heat Dissipation 50.22 BTU/h (with no PD connected)
448.41 BTU/h (with 110W PD connected)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1Mbit
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TL-SG1016PE
16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 110W, up to 30W per port
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity 1
PoE Ports (RJ45) Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 14.72W (110V/60Hz with no PD connected)
131.42W (110V/60Hz with 110W PD connected)
Max Heat Dissipation 50.22 BTU/h (with no PD connected)
448.41 BTU/h (with 110W PD connected)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1Mbit
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dodatočné parametre
| Kategória: | Prepínače (switch) |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 2.56 kg |
| EAN: | 6935364098865 |
