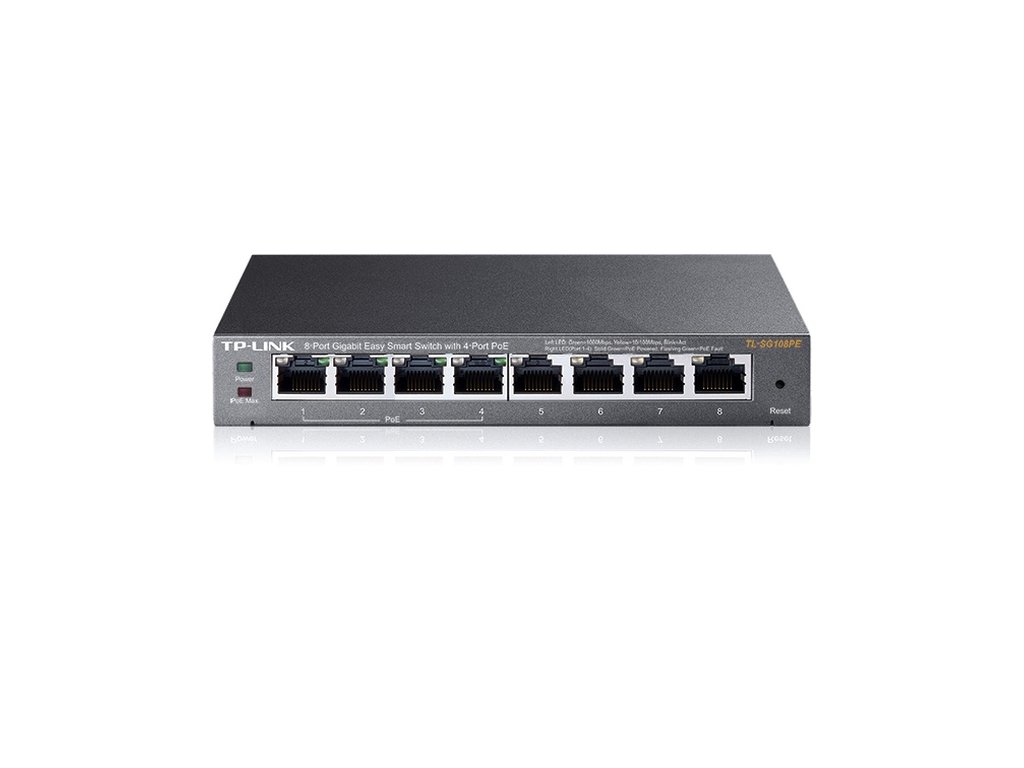

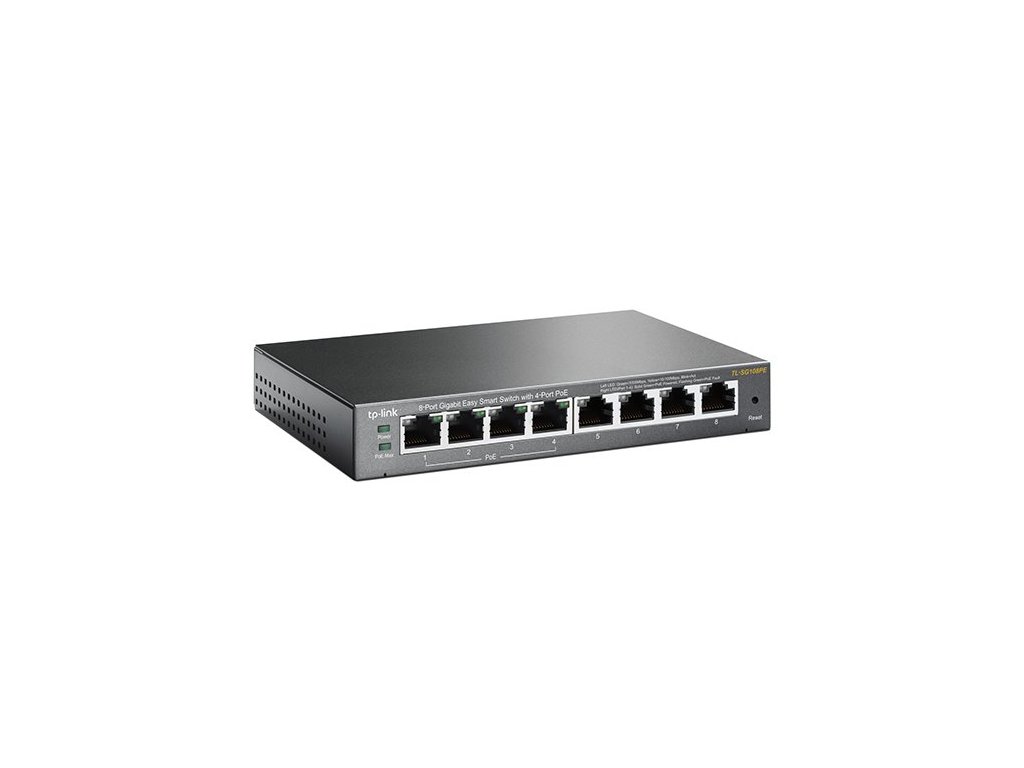

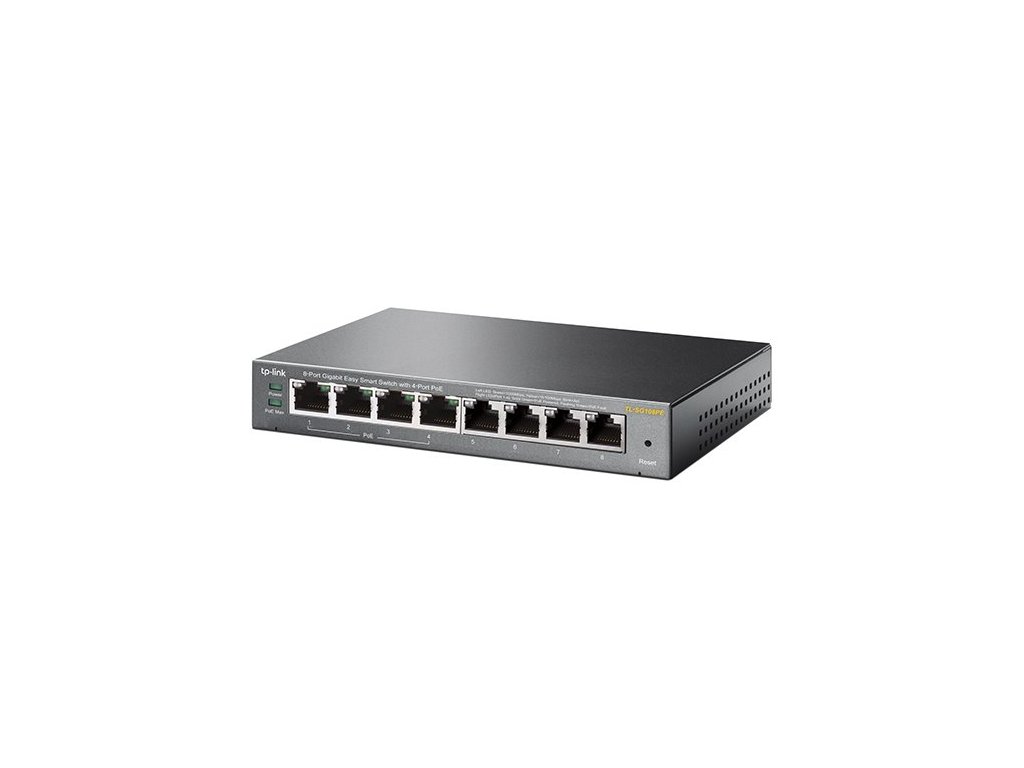

TP-Link TL-SG108PE 8xGb (4xPOE) 64W Easy Smart Switch TP-link
8-Port Gigabit Easy Smart Switch
with 4-Port PoE
TL-SG108PE
8 10/100/1000Mbps RJ45 ports
Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
Supports PoE power up to 55W for all PoE ports
Provides network monitoring, traffic prioritization and VLAN features
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
Max Power Consumption 5.15W (220V/50Hz with no PD connected)
65.18W (220V/50Hz with 55W PD connected)
Max Heat Dissipation 17.57 BTU/h (with no PD connected)
222.39 BTU/h (with 55W PD connected)
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS

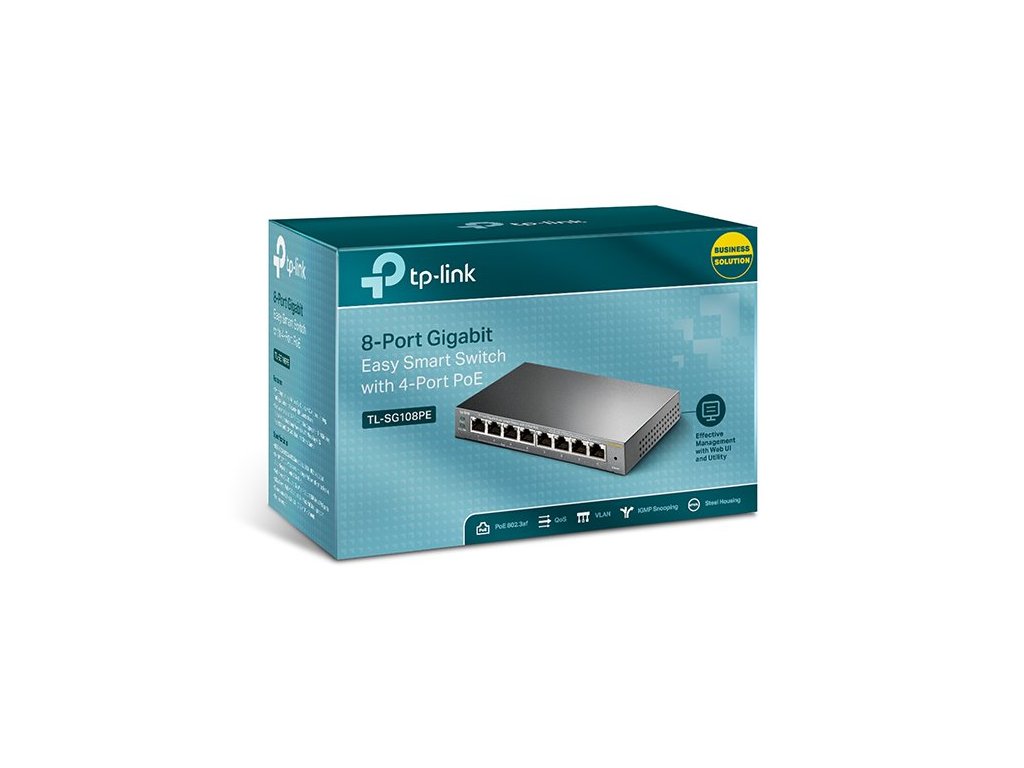

Package Contents TL-SG108PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
with 4-Port PoE
TL-SG108PE
8 10/100/1000Mbps RJ45 ports
Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
Supports PoE power up to 55W for all PoE ports
Provides network monitoring, traffic prioritization and VLAN features
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
Max Power Consumption 5.15W (220V/50Hz with no PD connected)
65.18W (220V/50Hz with 55W PD connected)
Max Heat Dissipation 17.57 BTU/h (with no PD connected)
222.39 BTU/h (with 55W PD connected)
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG108PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
Dodatočné parametre
| Kategória: | Prepínače (switch) |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.95 kg |
