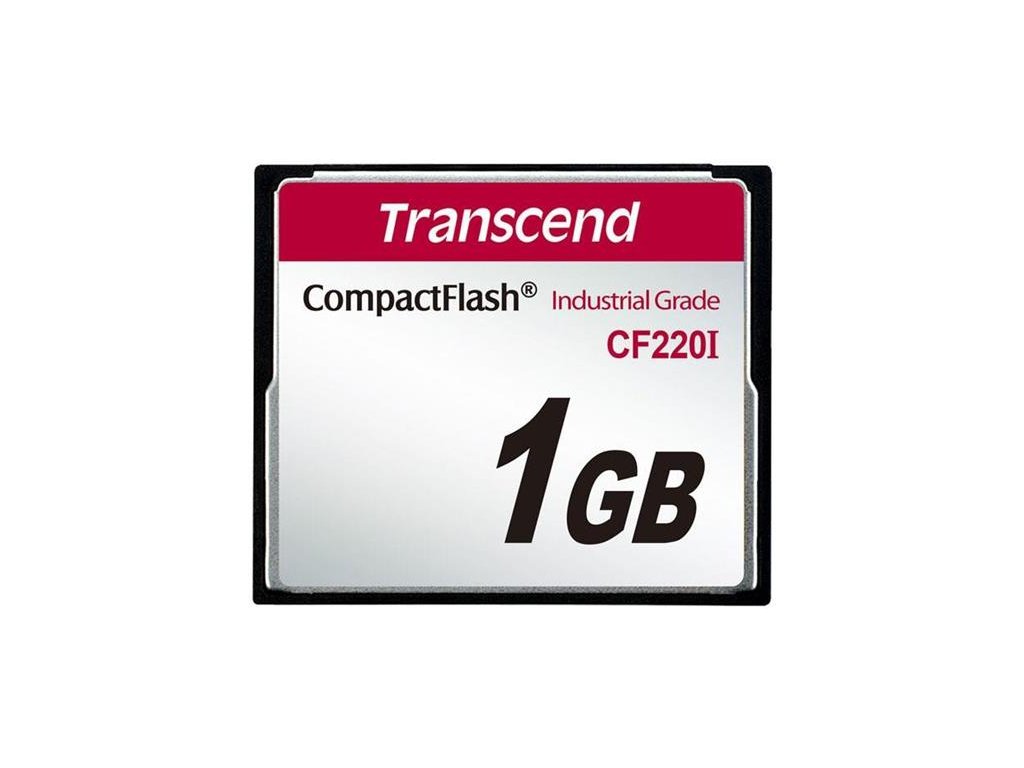

Transcend 1GB INDUSTRIAL TEMP CF220I CF CARD (SLC) Fixed disk and UDMA5 TS1GCF220I
Transcend 1GB INDUSTRIAL TEMP CF220I CF CARD (SLC) Fixed disk and UDMA5 TS1GCF220I
Transcend 1GB INDUSTRIAL TEMP CF220I CF CARD (SLC) Fixed disk and UDMA5
Built extra-rugged with excellent temperature flexibility and high performance, Transcend's CF220I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.
Features:
CompactFlash Specification Version 6.0 compliant
RoHS compliant
Supports S.M.A.R.T (Self-defined)
Supports Security Command
Supports Global Wear-Leveling, Static Data Refresh, Early Retirement, and Erase Count Monitor functions to extend product life
Operation Modes: PC Card Memory, PC Card IO, True IDE
True IDE Mode supports: UDMA0-5, MDMA0-4, PIO0-6 (UDMA5 as default)
True IDE Mode: Fixed Disk (Default)
PC Card Mode: Fixed Disk (Default)
Power Shield prevents data loss in the event of a sudden power outage
Specifications:
Interface (connector): Compact Flash, 50P
Form Factor: Compact Flash Card
Flash Type: SLC
Capacity: 1GB
Max. R/W Performance (MB/s) (Vary by density):
Read: 90MB/s
Write: 75MB/s
Op. Voltage(V): 3.3V±5% or 5V±10%
Power Consumption(W): 0.76W
Op. Temp.:-40 C~85 C
Storage Temp.:-55 C~100 C
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz (Frequency)
Dimensions: 42.8mm × 36.4mm × 3.3mm (1.69" x 1.43" x 0.13")
MTBF(hours): 4,000,000 hours
Built extra-rugged with excellent temperature flexibility and high performance, Transcend's CF220I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.
Features:
CompactFlash Specification Version 6.0 compliant
RoHS compliant
Supports S.M.A.R.T (Self-defined)
Supports Security Command
Supports Global Wear-Leveling, Static Data Refresh, Early Retirement, and Erase Count Monitor functions to extend product life
Operation Modes: PC Card Memory, PC Card IO, True IDE
True IDE Mode supports: UDMA0-5, MDMA0-4, PIO0-6 (UDMA5 as default)
True IDE Mode: Fixed Disk (Default)
PC Card Mode: Fixed Disk (Default)
Power Shield prevents data loss in the event of a sudden power outage
Specifications:
Interface (connector): Compact Flash, 50P
Form Factor: Compact Flash Card
Flash Type: SLC
Capacity: 1GB
Max. R/W Performance (MB/s) (Vary by density):
Read: 90MB/s
Write: 75MB/s
Op. Voltage(V): 3.3V±5% or 5V±10%
Power Consumption(W): 0.76W
Op. Temp.:-40 C~85 C
Storage Temp.:-55 C~100 C
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz (Frequency)
Dimensions: 42.8mm × 36.4mm × 3.3mm (1.69" x 1.43" x 0.13")
MTBF(hours): 4,000,000 hours
Dodatočné parametre
| Kategória: | Pamäťové karty |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.06 kg |
| EAN: | 0760557831938 |
| Kapacita pamäťovej karty: | menej ako 1 GB |
| Typ (pamäťové karty): | CF průmyslové |
| GPSR: | Transcend Information, Inc;Cairostraat 40,3047,Rotterdam,Nederland;service-tw@transcend-info.com |
