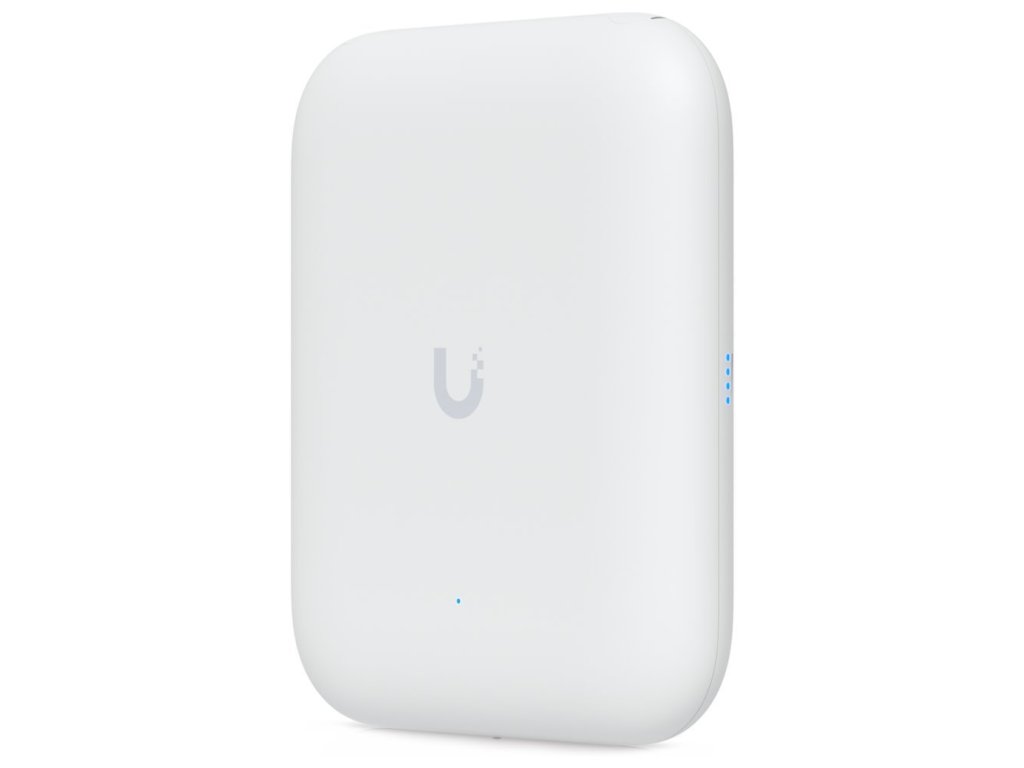

Ubiquiti All-weather IP67 WiFi 7 AP with 6 spatial streams, integrated directional super antenna, and articulation mount U7-Pro-Outdoor

WiFi 7 AP pro venkovní použití se 6 samostatnými streamy a integrovanou super-anténou a montážním držákem.

- WiFi 7

- 6 samostatné streamy

- pokrytí 465 m² (v otevřeném prostoru s integrovanou super-anténou)

- softwarové přepínání mezi integrovanou anténou a výstupy na externí anténu

- 300+ samostatných připojených klientů

- napájení přes POE+

- 2.5 GbE uplink

- montážní držák na zeď / tyč

- vodotěsné pouzdro IP67

Technical Specifications

Mechanical

Dimensions Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")

With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")

Weight Device: 1.2 kg (2.6 lb)

Mount: 130 g (0.3 lb)

Enclosure material UV-stabilized polycarbonate, aluminum alloy

Mount material UV-stabilized polycarbonate

Pole mount diameter 25–63.5 mm (1–2.5") on pipe outer diameter

Wind survivability 74.6 N at 200 km/h (16.8 lbf at 125 mph)

Weatherproofing IPX6

IP67 with cable-gland door kit (Included)



Hardware

Networking interface (1) 1/2.5 GbE RJ45 port

Management interface Ethernet

Power method PoE+

Power supply UniFi PoE switch

Supported voltage range 42.5—57V DC

Max. power consumption 21W

Max. TX power

2.4 GHz   23 dBm

5 GHz   29 dBm

6 GHz   ---



MIMO

2.4 GHz   2 x 2 (DL/UL MU-MIMO)

5 GHz   4 x 4 (DL/UL MU-MIMO)

6 GHz   ---



Max. data rate

2.4 GHz   688 Mbps (BW40)

5 GHz   8.6 Gbps (BW240)

6 GHz    ---



Antenna gain

2.4 GHz   Directional internal: 8 dBi / External omni: 6 dBi

5 GHz   Directional internal: 11 dBi / External omni: 8 dBi

6 GHz   ---



Antenna beamwidth

2.4 GHz  90°

5 GHz  90°

6 GHz  ---



Antennas (1) Directional internal antenna

(2) RP-SMA connectors for external antenna

LEDs (1) Power: white/blue

(4) Mesh signal: blue

Button Factory reset

Mounting Wall, ceiling, pole (Included)

Ambient operating temperature -30 to 60° C (-22 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE



Software

WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID 8 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Concurrent clients 300+



Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)



Application Requirements

UniFi Network Version 9.0.108 and later
