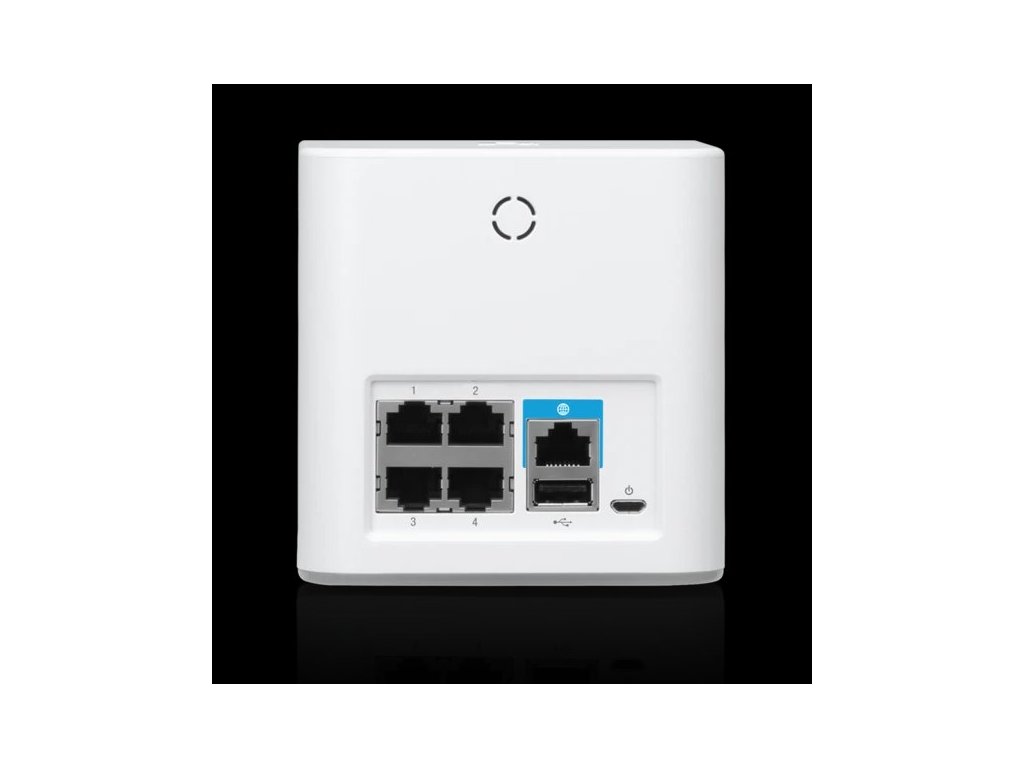

Ubiquiti AmpliFi HD Mesh Router AFi-R

Popis produktu

Domácí WIFI router s 4x GLAN portem a dotykovým displayem.

140m² pokrytí

100+ současně připojených zařízení

WiFi5 (3x3 MIMO)

(4) GbE LAN and (4) GbE WAN port

1.6" LCM dotykový display

Technical Specifications

Mechanical

Dimensions 99.5 x 97.8 x 99.6 mm (3.9 x 3.9 x 3.9")

Weight 410 g (14.5 oz)

Hardware

Networking Interface WiFi

(1) GbE RJ45 WAN

(4) GbE RJ45 LAN

Max. Power Consumption 11W

ESD/EMP Protection ± 24kV Air/Contact

Max. TX Power 26 dBm

Radios 2

MIMO Chains 6

Speed 1750 Mbps

Antennas (1) Dual-Band Antenna, Tri-Polarity

Display 40.6 mm (1.6") Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color

Buttons Reset

Operating Temperature -10 to 55° C (14 to 131° F)

Operating Humidity 5 to 95% Noncondensing

Certifications FCC, CE, IC

Software

WiFi Standards 802.11ac

Power Save Supported

Wireless Security WPA2-PSK AES/TKIP

Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11ac 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
