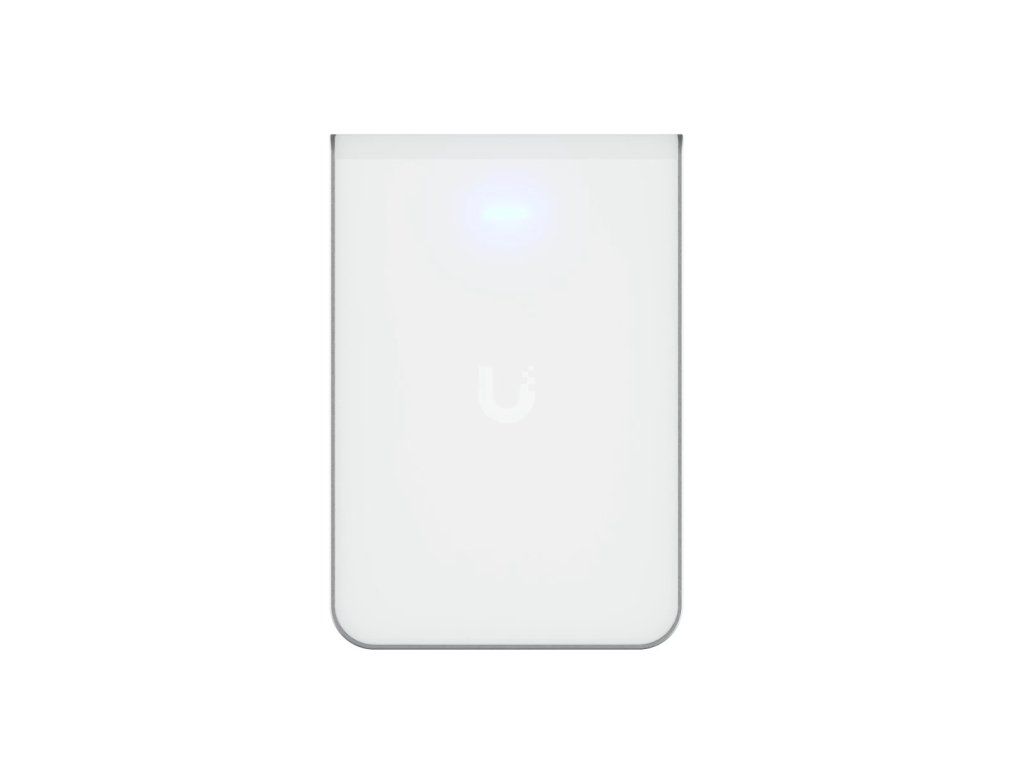

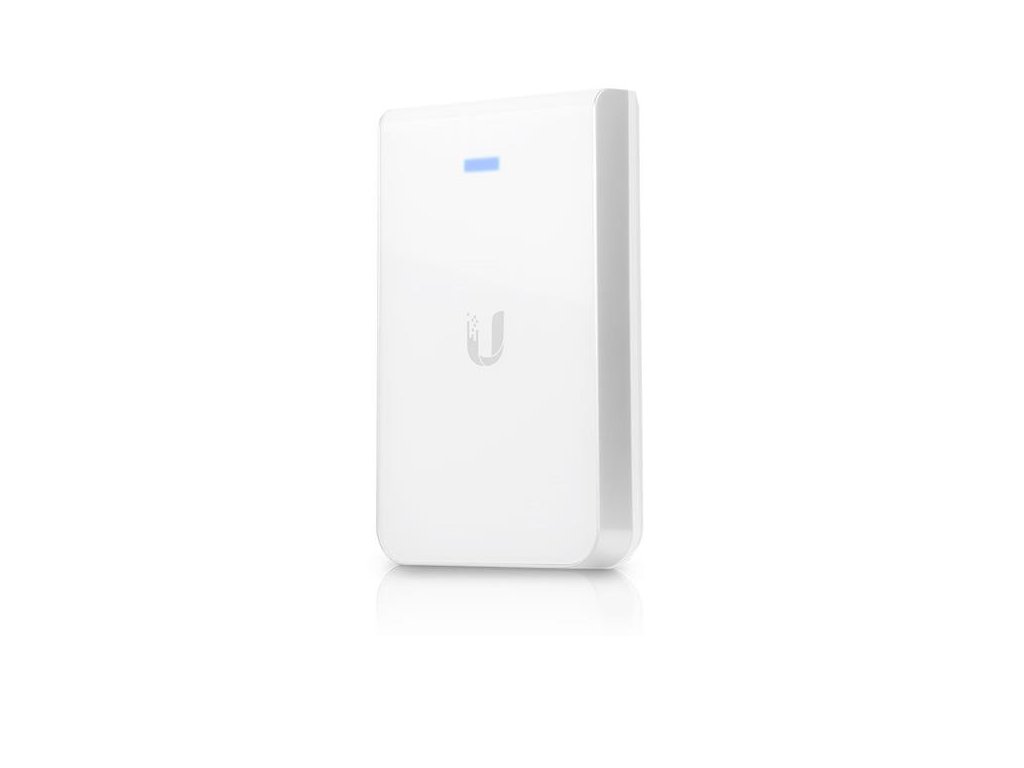

Ubiquiti U6-IW, UniFi6 In-Wall
Ubiquiti U6-IW, UniFi6 In-Wall
Description & Key Features
UniFi6 In-Wall
Wall-mounted WiFi 6 access point with a built-in PoE switch.
Features:
WiFi 6 support (2.4/5 GHz bands)
5.3 Gbps aggregate throughput rate
(1) GbE RJ45 port (PoE In)
(4) GbE RJ45 ports, including one that supports PoE output*
Technical Specifications
Mechanical
Dimensions 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight 460 g (1.01 lb)
Enclosure materials Plastic, aluminum
Mount material Aluminum
Hardware
Processor specs Dual-Core® Cortex® A53 at 1 GHz
Memory information 1 GB
Management interfaces Ethernet
Bluetooth
Networking interfaces (1) Data-in: 1GbE RJ45 port
(4) Data-out: 1GbE RJ45 ports
PoE interfaces (1) PoE in (PoE output not used)
(1) PoE out (requires a PoE+ switch)
Button Factory reset
LED* White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
Power method PoE
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Max. power consumption Excluding PoE output: 13.5W
Max PoE wattage per port by PSE 15.4W*
*Requires a PoE+ switch
Voltage range PoE mode 44 to 57VDC
Max. TX power
2.4 GHz
5 GHz
22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
5 dBi
5.9 dBi
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero-wait DFS Yes
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
UniFi6 In-Wall
Wall-mounted WiFi 6 access point with a built-in PoE switch.
Features:
WiFi 6 support (2.4/5 GHz bands)
5.3 Gbps aggregate throughput rate
(1) GbE RJ45 port (PoE In)
(4) GbE RJ45 ports, including one that supports PoE output*
Technical Specifications
Mechanical
Dimensions 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28")
Weight 460 g (1.01 lb)
Enclosure materials Plastic, aluminum
Mount material Aluminum
Hardware
Processor specs Dual-Core® Cortex® A53 at 1 GHz
Memory information 1 GB
Management interfaces Ethernet
Bluetooth
Networking interfaces (1) Data-in: 1GbE RJ45 port
(4) Data-out: 1GbE RJ45 ports
PoE interfaces (1) PoE in (PoE output not used)
(1) PoE out (requires a PoE+ switch)
Button Factory reset
LED* White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.
Power method PoE
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Max. power consumption Excluding PoE output: 13.5W
Max PoE wattage per port by PSE 15.4W*
*Requires a PoE+ switch
Voltage range PoE mode 44 to 57VDC
Max. TX power
2.4 GHz
5 GHz
22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
5 dBi
5.9 dBi
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 - 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero-wait DFS Yes
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Dodatočné parametre
| Kategória: | WiFi AP a Routre |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.63 kg |
| Počet LAN: | 4 |
| Rýchlosť LAN portov (Mbps): | 10/100/1000/10000 |
| Typové označenie: | AP |
| Agregovaná rýchlosť [Mbps]: | 5300 |
| Štandard: | 802.11 ax |
