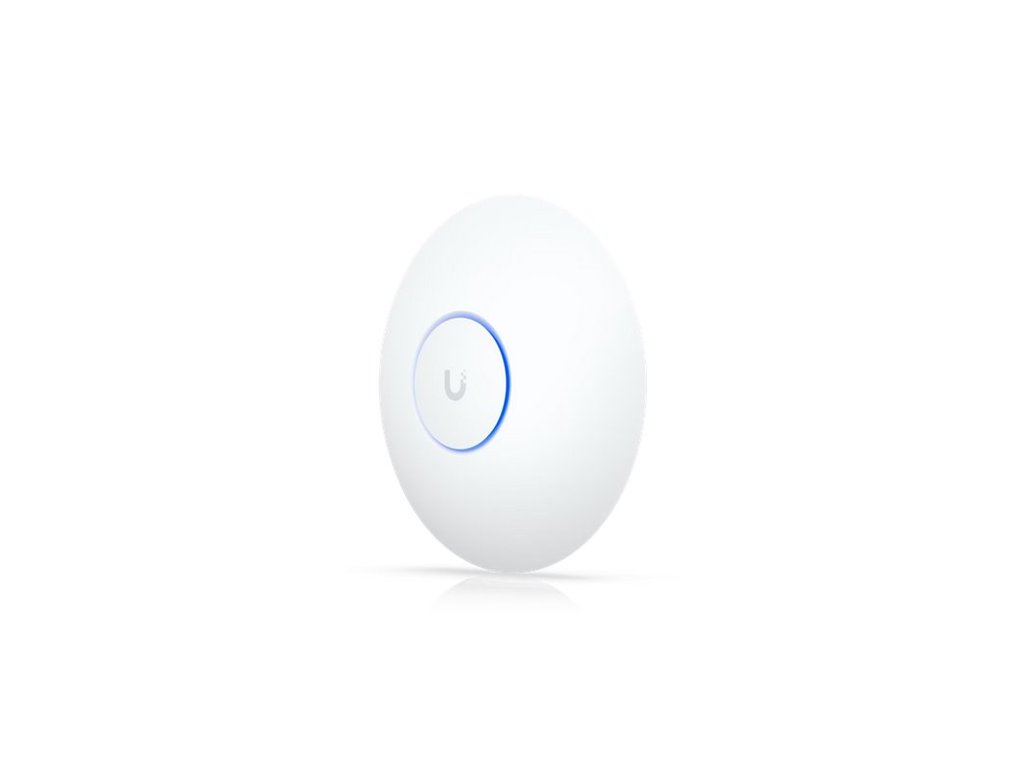

Ubiquiti U7-LR, UniFi AP U7 Long-Range

WiFi 7 AP pro interiérové použití se 5 samostatnými streamy a zvýšeným vysílacím výkonem pro větší pokrytí signálem.

- WiFi 7

- 5 samostatných streamů

- pokrytí 165 m²

- 300+ samostatných připojených klientů

- napájení přes POE+

- 2.5 GbE uplink

- montážní držák na zeď / strop



Overview

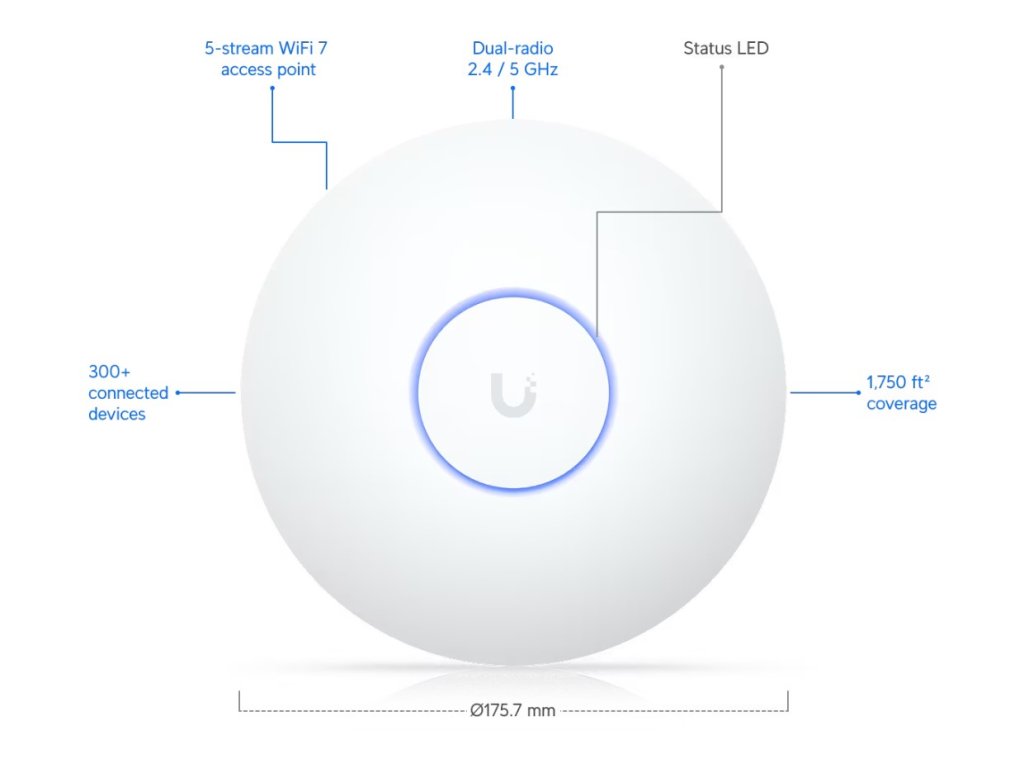

Dimensions O175.7 x 43 mm

WiFi Standard  WiFi 7

Spatial Streams  5

Coverage Area  160 m² (1,750 ft²)

Max. Client Count  300+

Uplink  2.5 GbE

Mounting  Ceiling, Wall  (Plastic Mounting Plate included)

Power Method  PoE



Performance

MIMO

5 GHz  3 x 3 (DL/UL MU-MIMO)

2.4 GHz  2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz   4.3 Gbps (BW160)

2.4 GHz   688 Mbps (BW40)

Antenna Gain

5 GHz   6 dBi

2.4 GHz   4 dBi

Max. TX Power

5 GHz   27 dBm

2.4 GHz   26 dBm

Supported Data Rates

802.11be (WiFi 7)    7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6)    7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5)    6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n    6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)



Features

Wireless Meshing   Yes

Band Steering   Yes

802.11v BSS Transition Management   Yes

802.11r Fast Roaming   Yes

802.11k Radio Resource Management (RRM)   Yes

Advanced Radio Management   Yes

Passpoint (Hotspot 2.0)   Yes

Captive Hotspot Portal   Custom Branding Landing Page  Yes

Voucher Authentication   Yes

Payment-Based Authentication   Yes

External Portal Server Support   Yes

Password Authentication  Yes

Guest Network Isolation   Yes

Private Pre-Shared Key (PPSK)   Yes

WiFi Speed Limiting   Yes

Client Device Isolation   Yes

WiFi Schedules   Yes

RADIUS over TLS (RadSec)   Yes

Dynamic RADIUS-assigned VLAN   Yes



Hardware

Max. Power Consumption   14W

Includes PoE Adapter   No

Supported Voltage Range   42.5—57V DC

Networking Interface   (1) 2.5 GbE RJ45 port

Weight   448 g (15.8 oz)

Management   Ethernet

Enclosure Material   Polycarbonate, aluminum alloy

Mount Material   Polycarbonate, galvanized steel (SGCC)

LEDs   System  White/Blue

Channel Bandwidth   HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant   Yes

Certifications   CE, FCC, IC

Ambient Operating Temperature   -30 to 50° C (-22 to 122° F)

Ambient Operating Humidity   5 to 95% noncondensing



Software

Application Requirements

UniFi Network   Version 9.1.120 and later

Mobile App   iOS™ version 10.20.2 and later   Android™ version 10.21.7 and later
