Ubiquiti UniFi 6+ Access point, Dual-band WiFi 6 support (2.4/5 GHz) U6+
Ubiquiti UniFi 6+ Access point, Dual-band WiFi 6 support (2.4/5 GHz) U6+
Tip

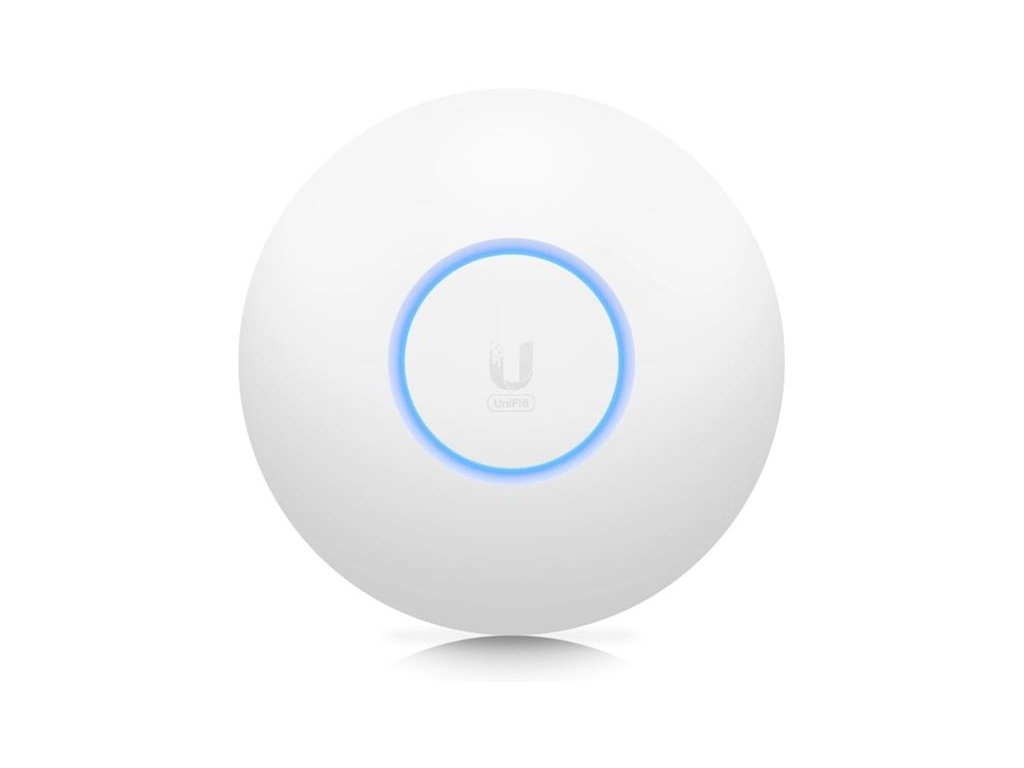

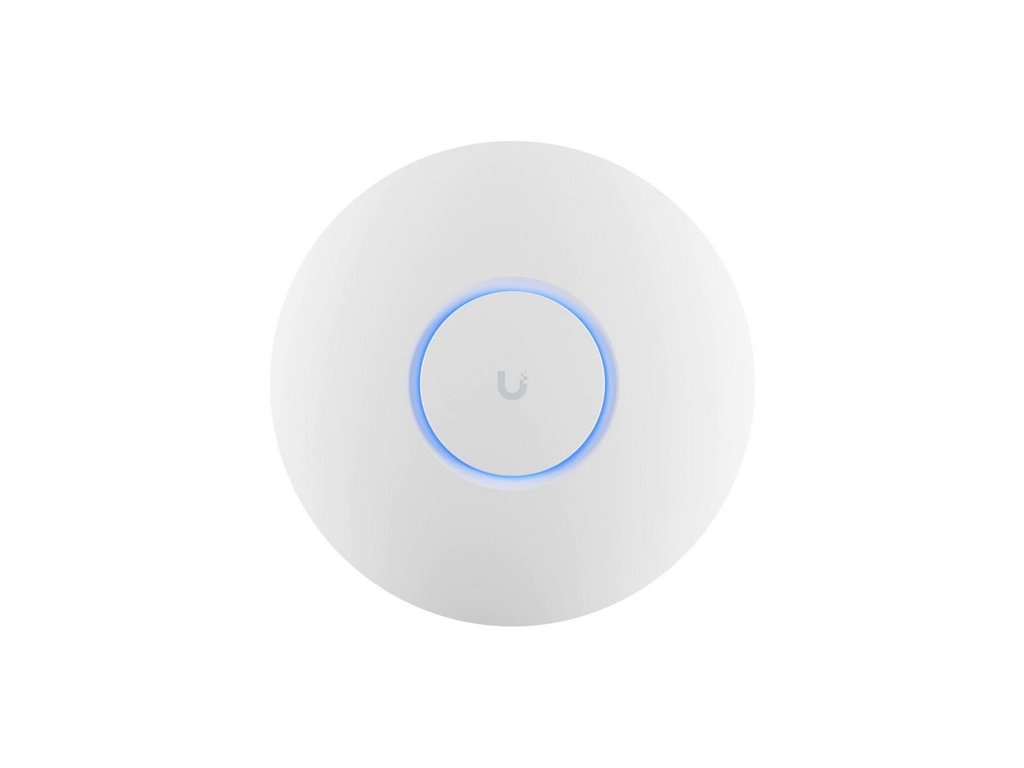

Wi-Fi 6 Access Point with dual-band 2x2 MIMO in a compact design for low-profile mounting.
Technical Specifications
Mechanical
Dimensions O160 x 33 mm (O6.3 x 1.3")
Weight Without mount: 338 g (0.75 lb)
With mount: 413 g (0.91 lb)
Enclosure materials Polycarbonate, aluminum

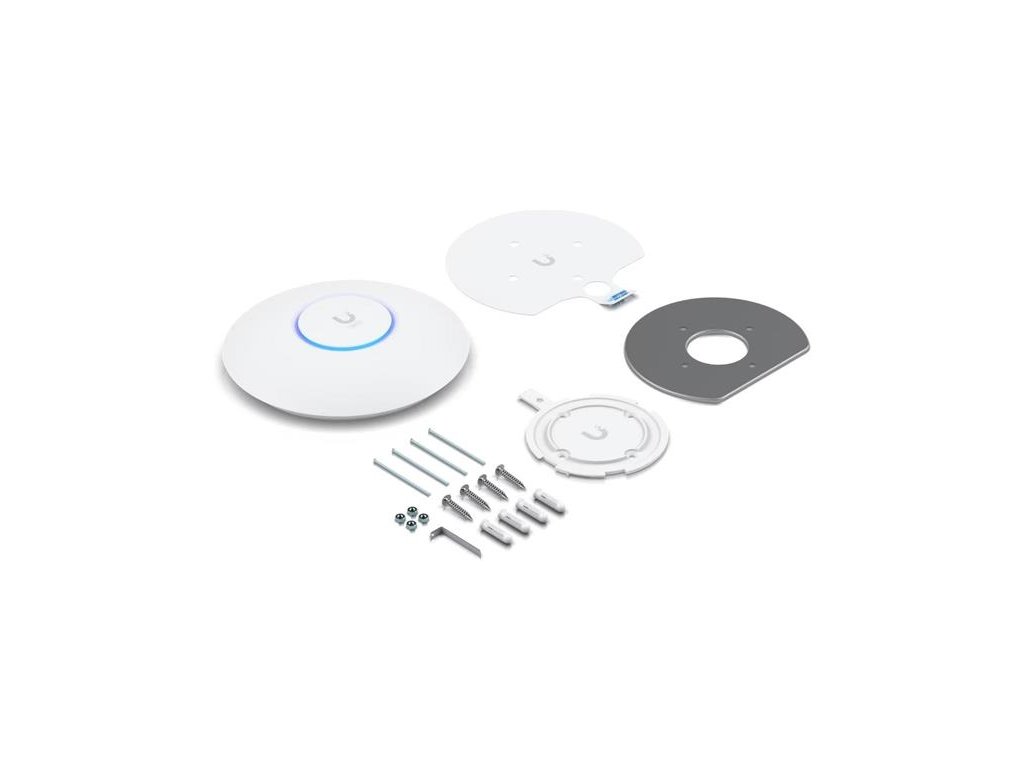

Mount materials ABS, SGCC steel
Hardware

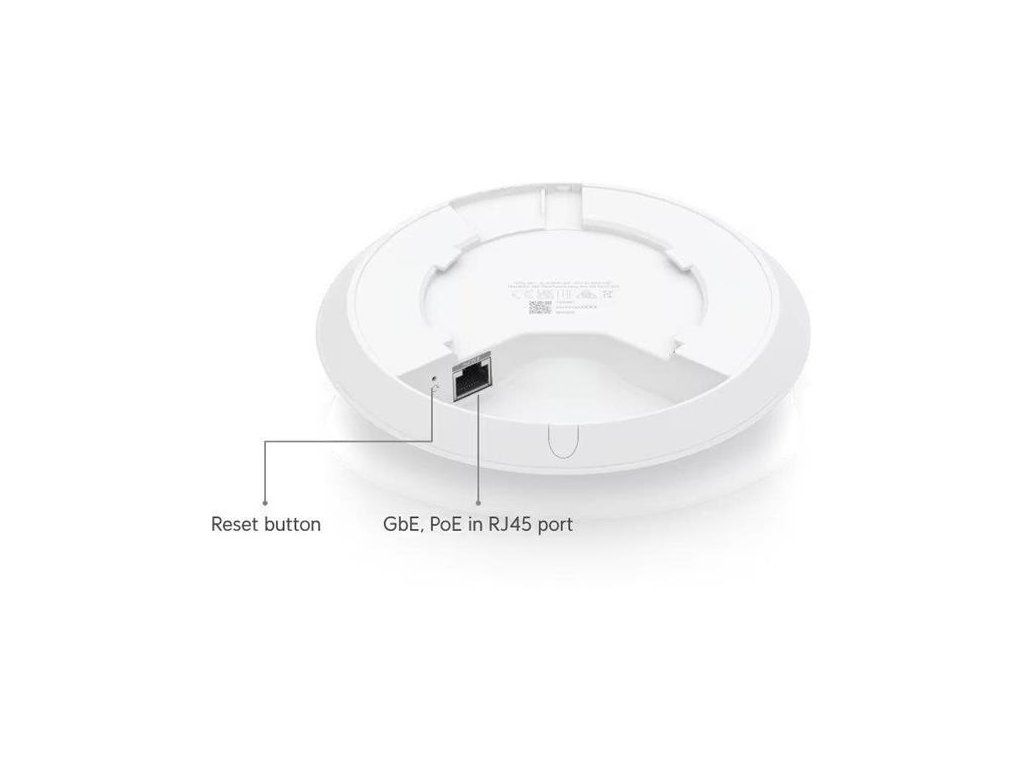

Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE
Supported voltage range 44–57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
23 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
2402 Mbps
Antenna gain
2.4 GHz
5 GHz
3dBi
5.4 dBi
Button Factory reset
LEDs White/blue
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Zero wait DFS Not supported
Concurrent clients 300+
Software
Management application UniFi Network: Version 7.3.76 and later
Technical Specifications
Mechanical
Dimensions O160 x 33 mm (O6.3 x 1.3")
Weight Without mount: 338 g (0.75 lb)
With mount: 413 g (0.91 lb)
Enclosure materials Polycarbonate, aluminum
Mount materials ABS, SGCC steel
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE
Supported voltage range 44–57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
23 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
2402 Mbps
Antenna gain
2.4 GHz
5 GHz
3dBi
5.4 dBi
Button Factory reset
LEDs White/blue
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Zero wait DFS Not supported
Concurrent clients 300+
Software
Management application UniFi Network: Version 7.3.76 and later
Dodatočné parametre
| Kategória: | WiFi AP a Routre |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 0.61 kg |
| Kategória: | Ubiquiti - UniFi AP |
| PoE príkon [W]: | 9 |
| Dátová priepustnosť 5 GHz [Mb/s]: | 2400 |
| Dátová priepustnosť 2,4GHz [Mb/s]: | 600 |
| Počet kusov v balení [ks]: | 1 |
| MU-MIMO: | Áno |
| Prevedenie: | Indoor |
| Napájací zdroj v balení: | Nie |
| Kmitočet: | 2,4 + 5 GHz |
