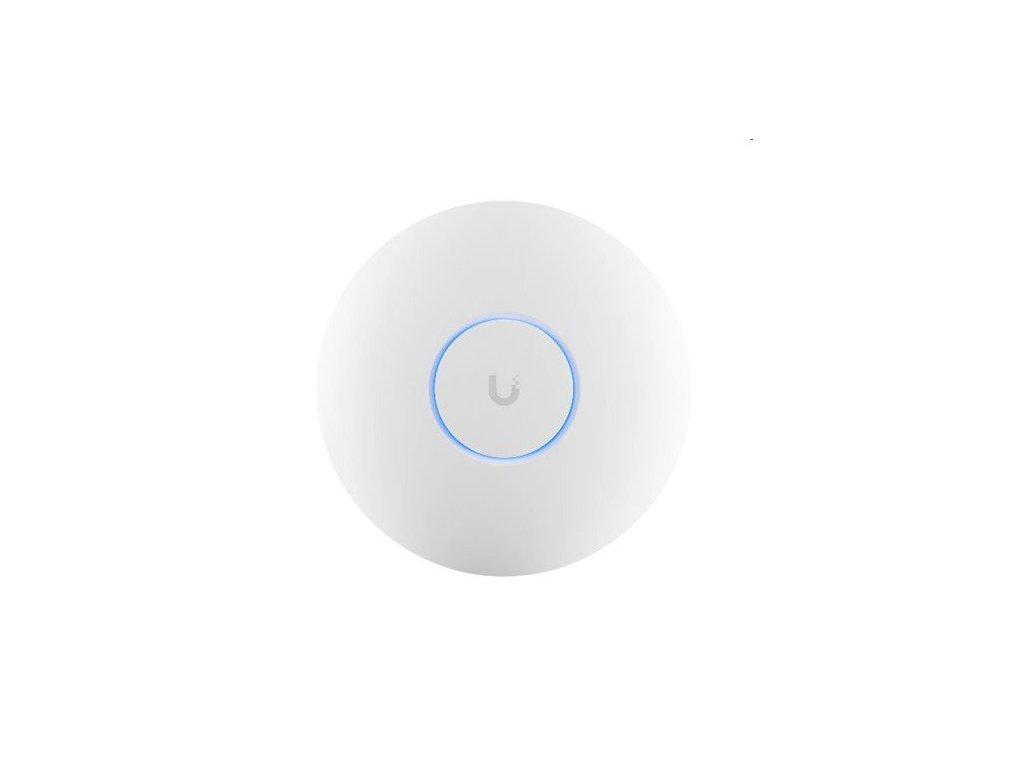

Ubiquiti UniFi 7 PRO, Access Point with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed. - 5 pack U7-Pro-5

Popis produktu

WiFi 7 AP pro interiérové použití se 6 samostatnými streamy a přidaným vysílacím pásmem 6GHz

- WiFi 7

- 6 samostatných streamů

- pokrytí 140 m²

- 300+ samostatných připojených klientů

- napájení přes POE+

- 2.5 GbE uplink

- montážní držák na zeď / strop

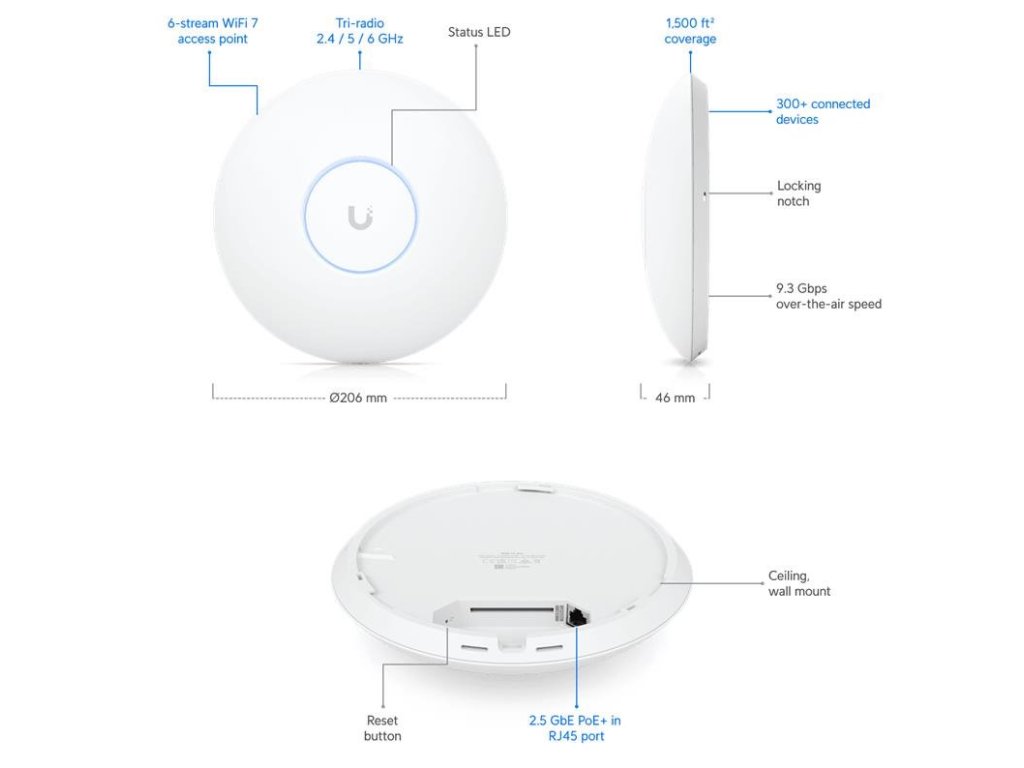

Technical Specifications

Overview

Dimensions   O206 x 46 mm

WiFi Standard   WiFi 7

Spatial Streams   6

Coverage Area   140 m² (1,500 ft²)

Max. Client Count   300+

Uplink   2.5 GbE

Mounting   Ceiling, Wall  (Pro Mount Included)

Power Method  PoE+

Performance

MIMO

6 GHz   2 x 2 (DL/UL MU-MIMO)

5 GHz   2 x 2 (DL/UL MU-MIMO)

2.4 GHz   2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

6 GHz   5.8 Gbps (BW320)

5 GHz   4.3 Gbps (BW240)

2.4 GHz   688 Mbps (BW40)

Antenna Gain

6 GHz   5.8 dBi

5 GHz   6 dBi

2.4 GHz   4 dBi

Max. TX Power

6 GHz   23 dBm

5 GHz   26 dBm

2.4 GHz   22 dBm

Max. BSSIDs   8 per Radio

Supported Data Rates

802.11be (WiFi 7)   7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

802.11ax (WiFi 6/6E)   7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)   6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n   6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)



Features

Wireless Meshing  Yes

Band Steering   Yes

802.11v BSS Transition Management   Yes

802.11r Fast Roaming   Yes

802.11k Radio Resource Management (RRM)   Yes

Advanced Radio Management   Yes

Passpoint (Hotspot 2.0)   Yes

Captive Hotspot Portal

Custom Branding Landing Page   Yes

Voucher Authentication   Yes

Payment-Based Authentication  Yes

External Portal Server Support   Yes

Password Authentication   Yes

Guest Network Isolation   Yes

Private Pre-Shared Key (PPSK)   Yes

WiFi Speed Limiting   Yes

Client Device Isolation   Yes

WiFi Schedules   Yes

RADIUS over TLS (RadSec)   Yes

Dynamic RADIUS-assigned VLAN   Yes



Hardware

Max. Power Consumption   21W

Supported Voltage Range   44—57V DC

Networking Interface   (1) 1/2.5 GbE RJ45 port

Weight   680 g (1.5 lb)

Management   Ethernet

Enclosure Material   Polycarbonate, metal

Mount Material   Stainless steel (SUS304), galvanized steel (SGCC)

LEDs  System   White/Blue

Channel Bandwidth   HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant  Yes

Certifications   CE, FCC, IC

Operating Frequency   US/CA:

2400 - 2472 MHz

U-NII-1: 5150 - 5250 MHz

U-NII-2A: 5250 - 5350 MHz

U-NII-2C: 5470 - 5725 MHz

U-NII-3: 5725 - 5850 MHz

U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:

2400 - 2483.5 MHz

5150 - 5725 MHz

5925 - 7125 MHz

Ambient Operating Temperature   -30 to 40° C (-22 to 104° F)

Ambient Operating Humidity   5 to 95% noncondensing

Software

Application Requirements   UniFi Network   Version 8.0.28 and later
