Ubiquiti UniFi All-weather WiFi 7 AP with 4 spatial streams U7-Outdoor

WiFi 7 AP pro venkovní použití se 4 samostatnými streamy a integrovanou super-anténou a montážním držákem.



- WiFi 7

- 4 samostatné streamy

- pokrytí 465 m² (v otevřeném prostoru s integrovanou super-anténou)

- softwarové přepínání mezi integrovanou anténou a výstupy na externí anténu

- 250+ samostatných připojených klientů

- napájení přes POE+

- 2.5 GbE uplink

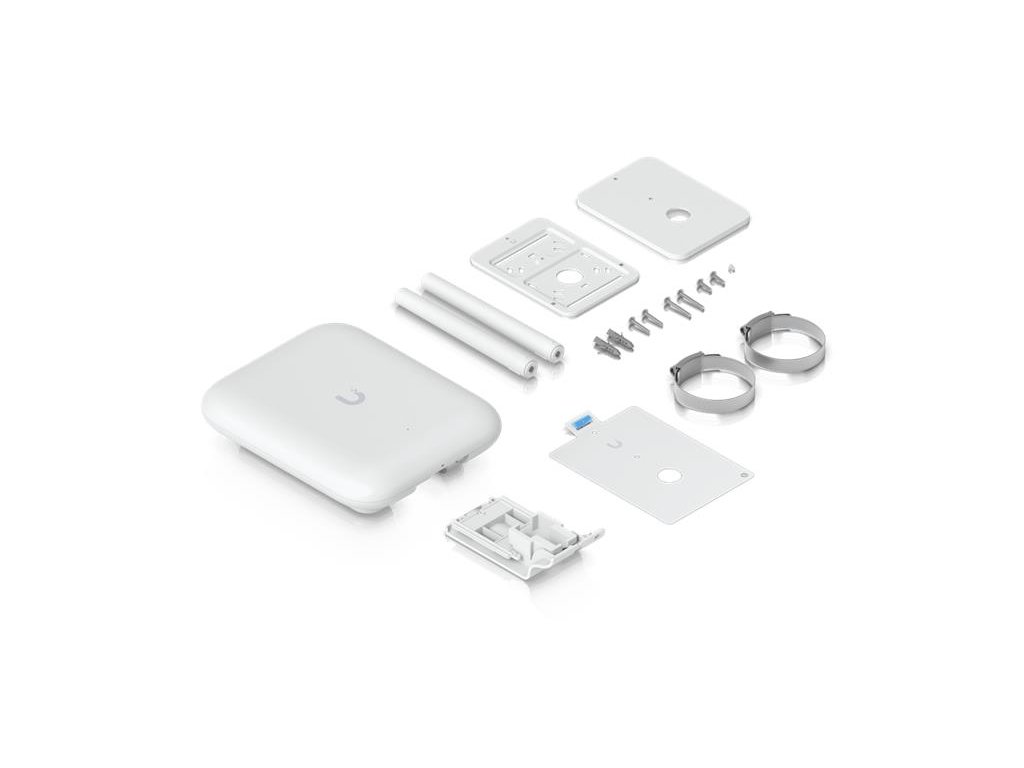

- montážní držák na zeď / tyč

- vodotěsné pouzdro IP67

Technical Specifications

Mechanical

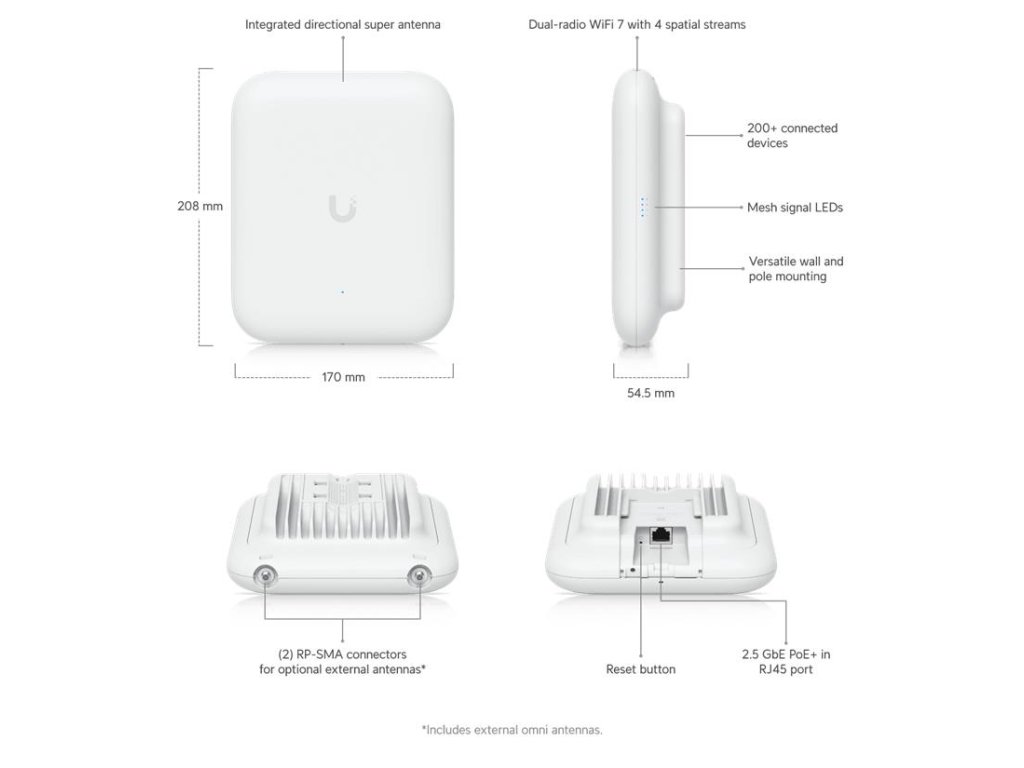

Dimensions 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")

Weight 1.2 kg (2.6 lb)

Enclosure material UV-stabilized polycarbonate, aluminum alloy

Mount material Polycarbonate, SGCC steel

Pole mount diameter 25–60 mm (1–2.36") on pipe outer diameter

Wind survivability 74.6 N at 200 km/h (16.8 lbf at 125 mph)

Weatherproofing IPX6



Hardware

Networking interface (1) 1/2.5 GbE RJ45 port

Management interface Ethernet

Power method PoE+

Power supply UniFi PoE Switch

Supported voltage range 42.5—57V DC

Max. power consumption 19W

Max. TX power

2.4 GHz   23 dBm

5 GHz   26 dBm

6 GHz   –



MIMO

2.4 GHz   2 x 2 (DL/UL MU-MIMO)

5 GHz   2 x 2 (DL/UL MU-MIMO)

6 GHz    ---



Max. data rate

2.4 GHz   688 Mbps (BW40)

5 GHz   4.3 Gbps (BW240)

6 GHz   ---



Antenna gain

2.4 GHz   Directional internal: 8 dBi/External omni: 3 dBi

5 GHz   Directional internal: 12.5 dBi/External omni: 4 dBi

6 GHz  ---



Antenna beamwidth

2.4 GHz   90°

5 GHz   45°

6 GHz   ---



Antennas (1) Directional internal antenna

(2) External omni antennas

(2) RP-SMA connectors for external antenna

LEDs (1) Power: white/blue

(4) Mesh signal: blue

Button Factory reset

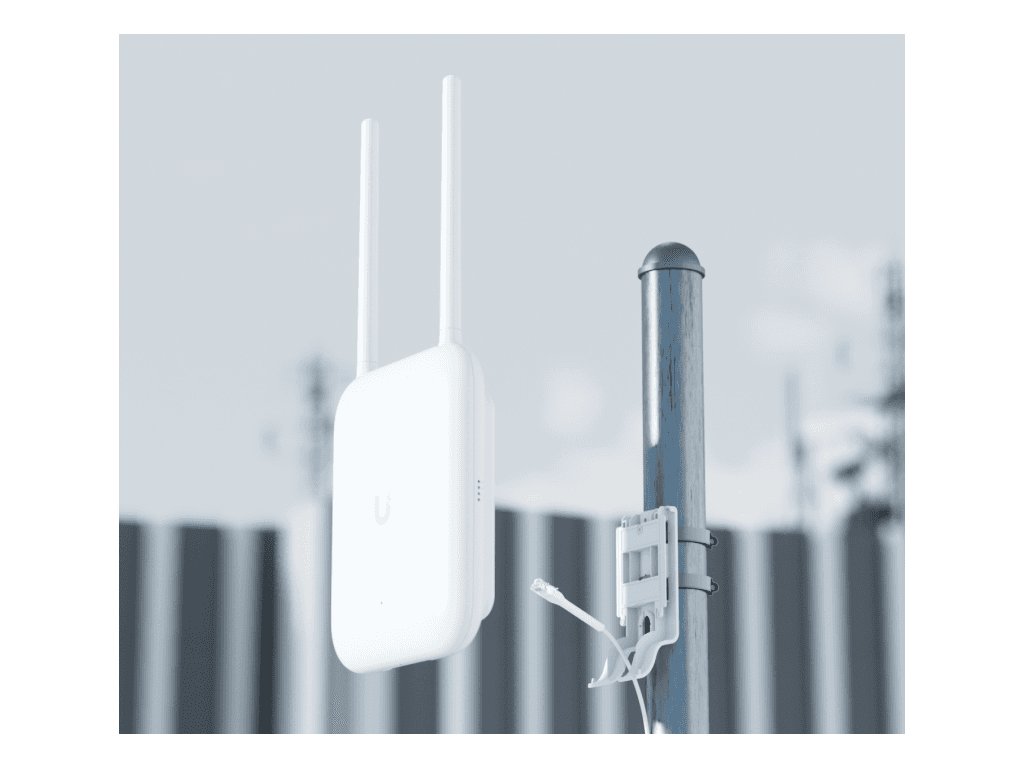

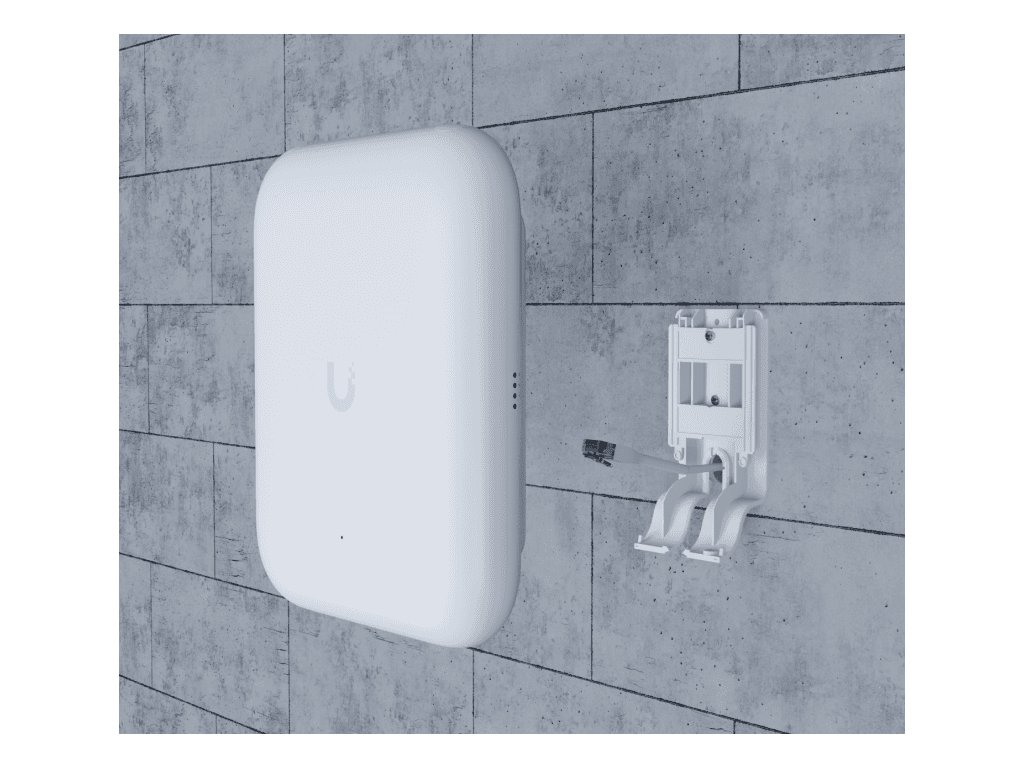

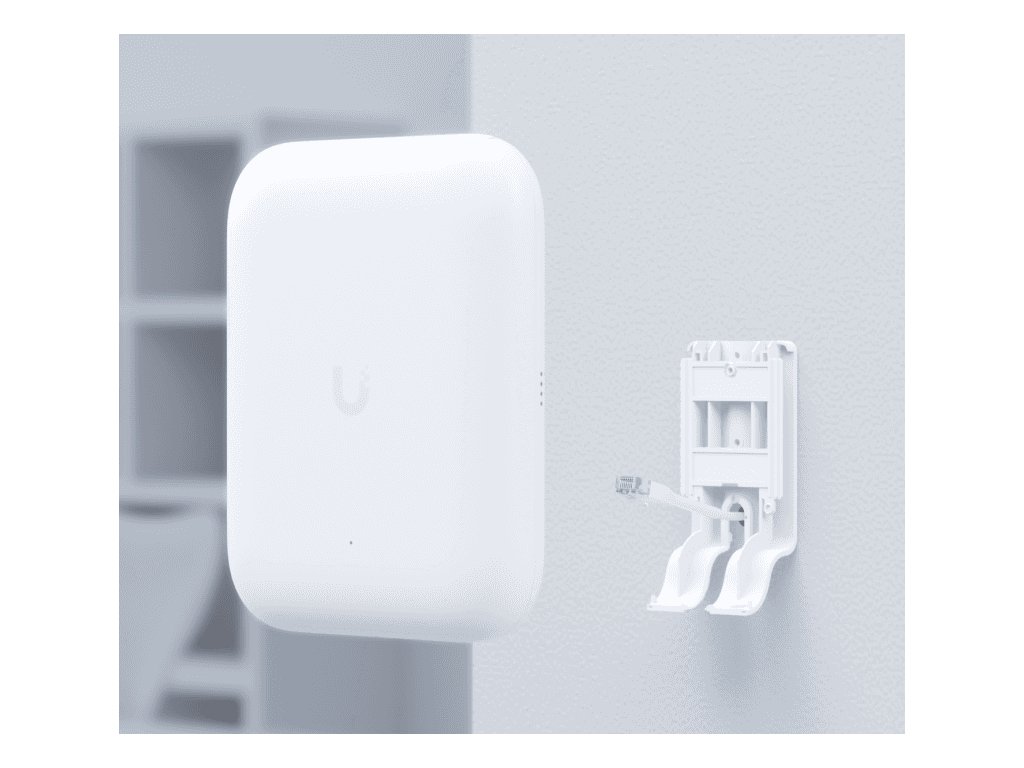

Mounting Wall, ceiling, pole (Included)

Ambient operating temperature -30 to 60° C (-22 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC



Software

WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID 8 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Concurrent clients 250+



Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)



Application Requirements

UniFi Network Version 8.3 and later
