Ubiquiti UniFi Cloud Gateway Max UCG-Max

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

• Includes full UniFi application suite for device management


• Manages 30+ UniFi devices and 300+ clients


• 1.5 Gbps routing with IDS/IPS


• Multi-WAN load balancing


• 512 GB NVMe SSD storage for NVR

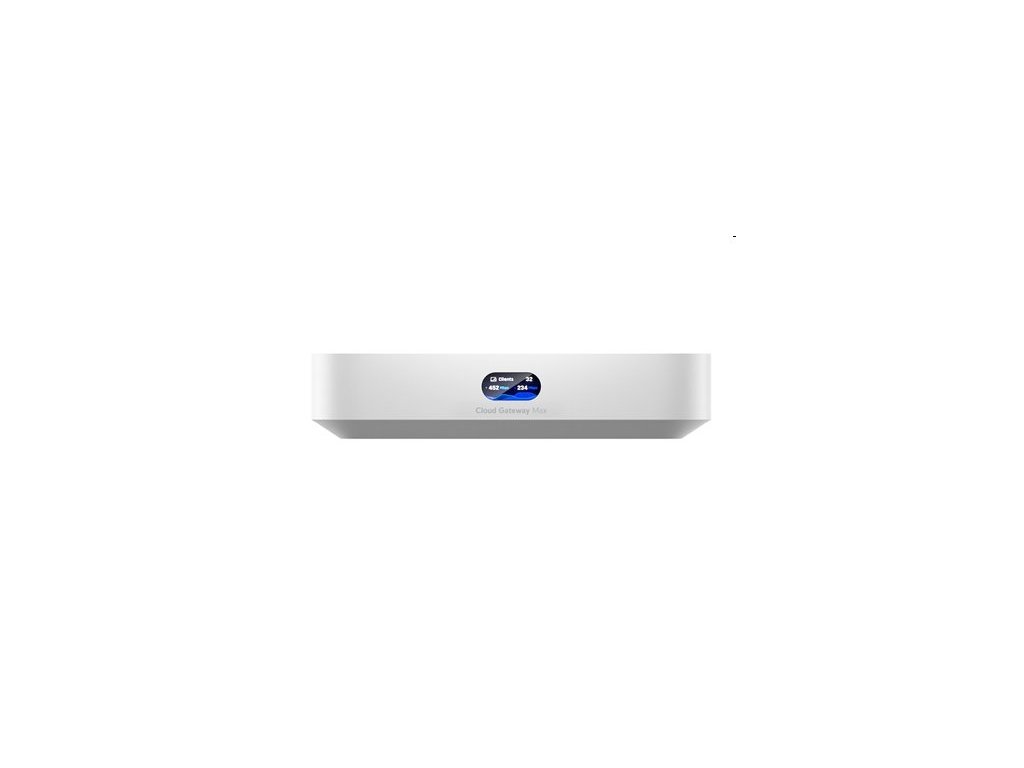

• 0.96" LCM status display

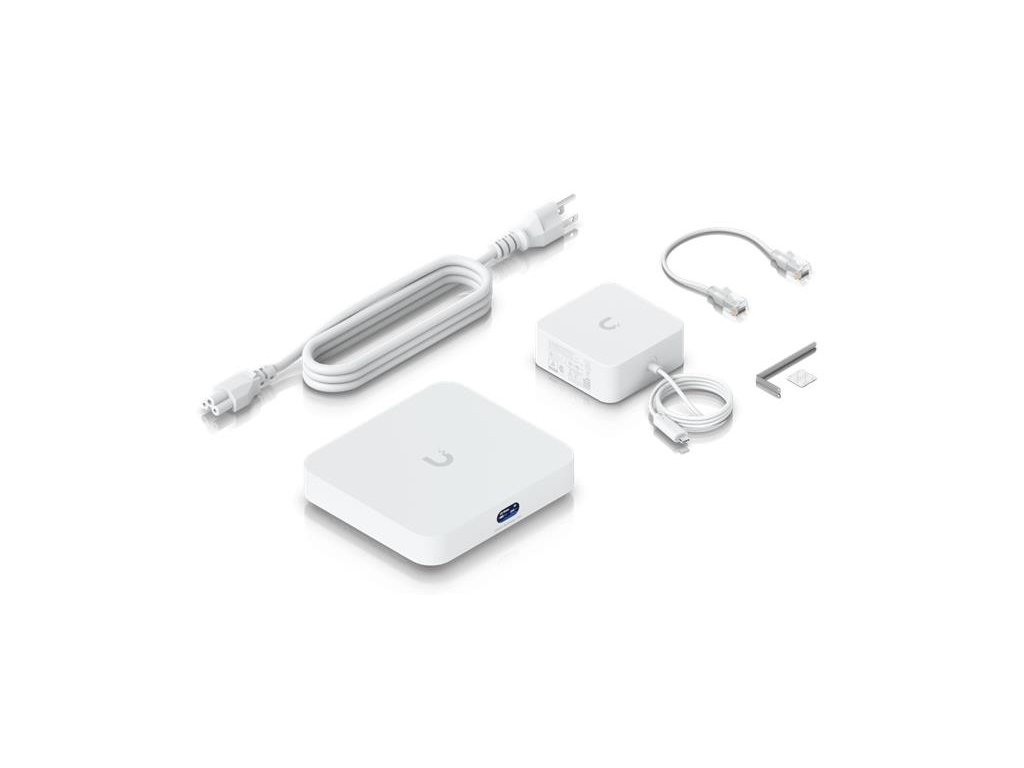

• USB-C powered (adapter included)

Mechanical

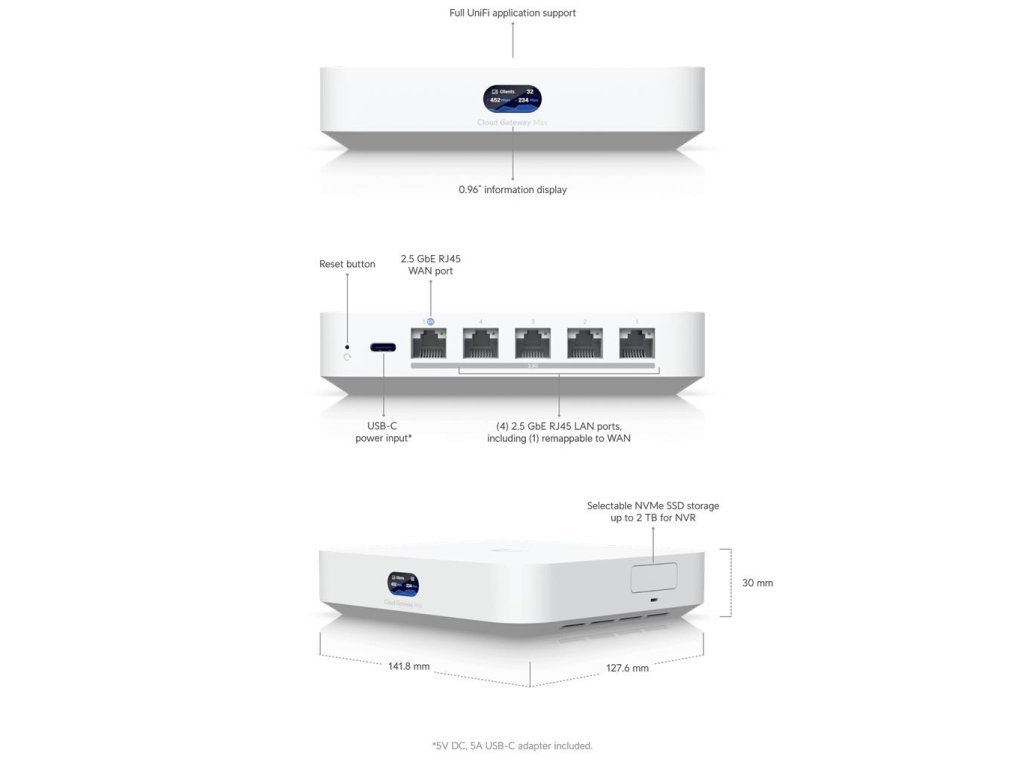

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

Weight 519 g (1.1 lb)

Enclosure material Polycarbonate



Hardware

Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz

System memory 3 GB DDR4

On-board storage 512 GB NVMe SSD

Management interface Ethernet

Bluetooth

Networking interface

LAN:

(4) 1/2.5 GbE RJ45 ports

WAN:

(1) 1/2.5 GbE RJ45 port

IDS/IPS throughput 1.5 Gbps*

*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.

Power method USB type C (5V DC/5A)

Supported voltage range 100–240V AC

Max. power consumption 16.1W

LCM display 0.96" status display

Button Factory reset

Ambient operating temperature -10 to 40° C (14 to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC



Gateway Features

Performance

• Redundant WAN with failover and load balancing


• WiFi QoS with UniFi APs


• Application, domain, and country-based QoS


• Application and device type identification


• Additional internet failover with LTE Backup


• Internet quality and outage reporting

Next-generation security

• Application-aware firewall rules


• Signature-based IPS/IDS threat detection


• Content, country, domain, and ad filtering


• VLAN/subnet-based traffic segmentation


• Full stateful firewall

Advanced networking

• License-free SD-WAN


• WireGuard, L2TP and OpenVPN server


• OpenVPN client


• OpenVPN and IPsec site-to-site VPN


• One-click Teleport and Identity VPN


• Policy-based WAN and VPN routing


• DHCP relay


• Customizable DHCP server


• IGMP proxy


• IPv6 ISP support



LEDs

Ethernet Green: link/activity



Application Requirements

Mobile app UniFi iOS™ and Android™: Version 10.17.2 and later
